ISO 8644 Motorcycle Light Alloy Wheel Testing Machine | UnitedTest
UnitedTest manufactures ISO 8644 compliant testing machines for motorcycle light-alloy wheels. ISO 8644 defines laboratory performance tests simulating real road service for unit and composite construction motorcycle alloy wheels for 2/3-wheel motorcycles and sidecar models.
ISO 8644 defines laboratory performance test methods for motorcycle light‑alloy road wheels under simulated real‑road service conditions. It covers rotational bending fatigue, radial load durability, radial impact resistance, torsional fatigue and tubeless wheel air leak tests. This standard applies to wheels for two or three-wheel motorcycles including motorcycles fitted with side-cars per ISO 3833, covering unit construction light-alloy wheels and composite construction light-alloy wheels. UnitedTest provides reliable ISO 8644 wheel test equipment for motorcycle wheel R&D, quality control and certification.
Test Specimen Information
Applicable to 2‑wheel and 3‑wheel motorcycle wheels (including side‑car motorcycles) as defined in ISO 3833. Two wheel construction types are covered:
1. Unit‑construction light‑alloy wheel: Rim plus spokes/disc manufactured as one single monolithic piece.
2. Composite‑construction light‑alloy wheel: Light‑alloy rim assembled with separate supporting structures made from light alloy or alternative metals.
- Distinct separate wheel samples are permitted for each individual test.
- Heavy‑Duty (HD) wheels refer to wheels for cargo‑oriented three‑wheel motorcycles, preferably marked “HD” on product surface.
- For tubeless‑tyre‑configured wheels, air‑leak tightness testing is mandatory; tubed‑tyre wheels skip this test item.
Five Specific Test Methods, Equipment, Principles, Parameters, Procedures & Stipulations of ISO 8644

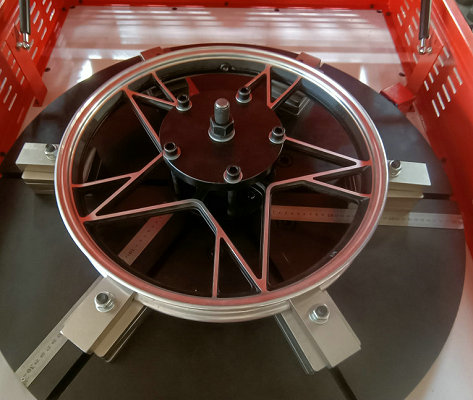

| 1, Rotational bending fatigue test / simulates cornering / side load | |
| Principle | a constant bending moment is applied at the wheel centre while the wheel rotates at constant speed, so every point of the rim/hub/spokes experiences a fully reversed bending cycle per revolution (rotating‑bending fatigue). It reproduces the lateral load generated when the bike leans/corners, limited by tyre‑road grip. |
| Equipment | Driven rotary disc + rigid loading arm with pivot point and dead weight/actuator; the rim flange is clamped to the disc, the arm is attached exactly as the wheel attaches to the vehicle.
|
| Test procedure | Mount test wheel rim flange onto rotating disc following vehicle assembly practice. Attach rigid loading arm, apply calculated bending moment M, and run continuous rotation test. |
| Test stipulation | Standard wheels: minimum 10⁵ test cycles; HD heavy‑duty wheels: minimum 10⁶ cycles |
| Key test parameters | Bending moment: M = 0,7 × μ × Fv × R [N·m] |

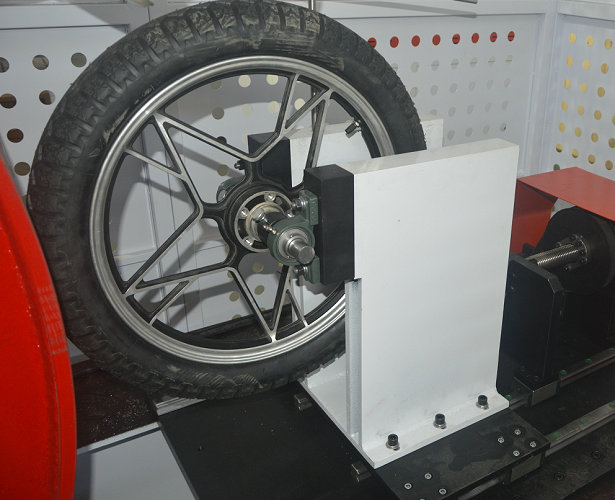

| 2, Radial load durability test - simulates continuous vertical road loading | |
| Principle | the wheel + tyre is pressed against a rotating smooth drum under a constant radial load exceeding service load (accelerated factor 2,25); the wheel rotates, so the whole circumference is loaded cyclically — reproduces straight‑line riding with rider/luggage/payload plus road‑induced overloads. |
| Equipment | driven drum, diameter ≥ 400 mm, smooth surface wider than the tyre; load application system keeping wheel and drum in contact under constant load.
|
| Test procedure | Fit specified tyre to wheel, mount assembly to test rig as on real motorcycle. Apply radial load Q, rotate drum to drive wheel‑tyre assembly under constant load. |
| Test stipulation | Complete at least 5 × 10⁵ cycles. No harmful cracks, significant deformation or abnormal joint looseness permitted post‑test. |
| Key test parameters | Radial load Q = 2,25 × Fv [N]. |

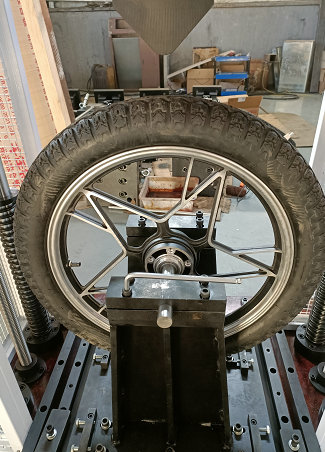

| 3, Radial impact resistance test - simulates pothole / kerb strike | |
| Principle | a striker is dropped freely onto the wheel/tyre assembly; the tyre transmits a radial blow to the rim flange. It is a single‑event, energy‑limited toughness test — it probes the rim's ability to absorb a one‑off overload without cracking or rapid air loss. |
| Equipment | 1. Single‑mass impact rig: Free‑fall single striker block; striker width ≥ 1.5 × rim width. 2. Pendulum impact rig: Swing striker; pendulum arm ≥ 800 mm from pivot to striker edge. 3. Double‑mass impact rig: Main + auxiliary striker connected by two coil springs; combined spring constant 3000 ± 100 N/cm; spring stroke 100 ± 5 mm.
|
| Test procedure | Install smallest applicable (or manufacturer‑specified) tyre on test wheel; fasten assembly onto support replicating real‑vehicle mounting. Set striker mass, tyre pressure and drop height; release striker for one impact event. |
| Test stipulation | No harmful cracks, large permanent deformation, joint loosening; no rapid air loss (more than 50 % test‑pressure drop within 30 seconds) after impact loading. |
| Key test parameters | Striker mass, single/pendulum: Mₛ = K × Fv / g [kg], ± 2 %; g = 9,8 m/s²; K = 1,0 (front and rear); Striker mass, double mass: M_d = K × Fv / g, ± 2 %; K = 2,5 front / 1,5 rear; M_d = m₁ + m₂ with m₂ = 40 kg (auxiliary weight incl. springs) Drop height: single mass & pendulum: 180 mm front / 120 mm rear; double mass: 150 mm (front & rear) Tyre inflation pressure: P = p × 1,15 ± 10 kPa, where p = pressure corresponding to the tyre's design maximum load |

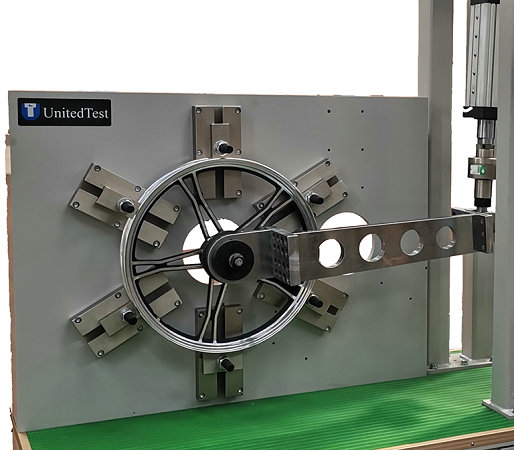

| 4, Torsional fatigue test — simulates drive / brake torque | |
| Principle | a to‑and‑fro (alternating) torsional moment is applied between hub and rim, reproducing acceleration torque at the rear wheel and braking reaction at the front; it loads spokes/disc and hub‑to‑rim junction in cyclic shear. |
| Equipment | rig permitting torque between hub and rim: either rim flange bolted to the support with torque applied through the hub contact face via a loading arm, or hub fixed and torque applied to the rim through a rigid annular ring. Loading arm length recommended = tyre radius.
|
| Test procedure | Secure rim flange onto support; apply alternating bidirectional torsional moment onto hub contact surface. Secure wheel hub face to support; fasten rigid annular ring to rim, then apply cyclic torque through this ring. Operate cyclic back‑and‑forth torsional loading at calculated moment value T. |
| Test stipulation | Complete minimum 10⁵ torsional cycles. No harmful cracks, major deformation or abnormal joint looseness after test completion. |
| Key test parameters | Torsional moment: T = Fv × R [N·m] |
| 5, Air leak test — pressure integrity of tubeless rims | |
| Principle | Pressurize wheel inner cavity and detect air leakage to verify tubeless rim sealing integrity. |
| Equipment | Pressure plates, sealing gaskets, compressed‑air supply, water‑immersion tank (Figure 5) for bubble‑leak inspection. |
| Test procedure | Seal both rim‑flange sides with pressure‑plates and gaskets; inject pressurized air into wheel interior, submerge assembly in water to check for air bubbles. |
| Test stipulation | No air‑bubble leakage shall be observed over minimum 2‑minute pressurized holding period. |
| Key test parameters | Internal test air pressure > 300 kPa; minimum observation duration 2 minutes. |
Similar test standard can refer to ISO 3006:
| KS I 4053 | Test methods for remanufactured alloy wheels for passenger cars-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles |
| GOST 30599 | Wheels made of lightweight alloys for pneumatic tires.-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles |
| BS AU 50-2.6A | Wheels and rims-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles |
| JASO T203 | Light Alloy Wheels for Motorcycles Test |
| ISO 8644 | Motorcycles - Light-alloy wheels - Test method |
| GB/T 22435 | China standard. declared NEQ (non‑equivalent) to ISO 8644:2006; it drops the pendulum impact method and adds a static load performance test and a dynamic unbalance test. |
| ISO 8645 | Mopeds — Light‑alloy wheels — Test method |
| ISO 7141 | (passenger cars — light alloy wheels — impact test), SAE J175, SAE J328, SAE J2530, SAE J267 — the car/light‑truck impact and fatigue family . |
| IS 16192 | Automotive Vehicles - Wheel Rims for Two nad Three Wheeled Vehicles part 1 Light Alloy Wheel Rims - Methods Rims - Methods of Tests and Requirements Automotive Vehicles - Wheel Rims for Two and Three Wheeled Vehicles Part 2 Sheets Metal Wheel Rims - Methods of Tests and Requirements Automotive Vehicles — Wheel Rims for Two and Three Wheeled Vehicles Part 3 Spoke Wheel Rims — Method of Tests and Requirements |
| ISO 3006 | Road vehicles - Passenger car wheels for road use - Test methods |
| GB/T 5334 | Passenger car—Wheels—Performance requirements and test methods for cornering and radial fatigue |
| ES 2997 | ROAD VEHICLES – PASSANGER CAR WHEELS FOR ROAD USE - TEST METHOD |
| ISO 3894 | Road vehicles — Wheels/rims for commercial vehicles — Test methods |
| SAE J328 | Passenger‑car and light‑truck wheel fatigue performance and laboratory test procedures. |
| JIS D4103 | Japanese automotive‑wheel performance and durability‑test specification. |
Industry Application
Motorcycle OEMs (Honda, Yamaha, Suzuki, Kawasaki, BMW, Piaggio, KTM…) for wheel design validation, supplier qualification and PPAP/type‑approval dossiers for L‑category vehicles.
Wheel manufacturers and foundries — the big light‑alloy wheel makers (Enkei, Marchesini/Brembo, OZ, Ronal; Chinese producers such as Wanfeng, Jinfei, Zhongnan Aluminium) — for process development: gravity die casting vs low‑pressure die casting vs squeeze casting vs forging/flow‑forming, and for T6 heat‑treatment validation.
Independent and accredited laboratories (TÜV, SGS, CATARC/Nanchang Motorcycle Quality Inspection Institute etc.) performing conformity and certification testing.
Aftermarket and racing — forged magnesium/aluminium wheels for supersport/MotoGP/WSBK; JWL‑type marks on aftermarket wheels rely on the same three‑test family .
Failure analysis and warranty/liability work — reproducing spoke‑root cracks, hub cracks, rim‑flange fractures and slow air leaks.
Keywords: ISO 8644,motorcycle light alloy wheel test,motorcycle wheel testing machine,alloy wheel fatigue tester,motor wheel radial impact test,rotational bending fatigue test,torsional fatigue test for motorcycle wheels,two wheeler wheel lab test,composite alloy wheel test,unit construction wheel testing,motorcycle wheel durability tester,UnitedTest wheel test equipment,ISO 3833 motorcycle wheel test,motorcycle sidecar wheel testing,tubeless motorcycle wheel air leak test,motorcycle rim testing machine,motorcycle wheel certification test,light alloy wheel laboratory tester,motorcycle wheel quality control tester
Related products and device
Related Standard
ISO 10191 Passenger car tyres — Verifying tyre capabilities — Laboratory test methods
ISO 10191 specifies laboratory test methods for verifying structural capability of passenger‑car pneumatic tyres, covering radial, diagonal / bias‑belted, and T‑type temporary‑use spare tyres. It includes five core test groups: endurance test, low‑pressure performance test (radial‑only), high‑speed test, strength test, bead‑unseating test (tubeless‑only).
ASTM F2663 Standard Test Method for Bead Unseating of Tubeless Passenger and Light Truck Tires
ASTM F2663 quantify the resistance of tubeless tires against bead unseating, which means the tire bead slipping off the rim flange leading to sudden air loss. It covers passenger tires, light‑truck tires, and temporary spare tires. It only defines test methodology, not mandatory performance limit values for tires.
ISO 3006 Road vehicles — Passenger car wheels for road use — Test method
ISO 3006 defines two standardized laboratory fatigue test methods for passenger‑car road wheels, to assess wheel fatigue strength under simulated real‑driving cyclic loads. It contains two methods only: dynamic cornering fatigue and dynamic radial fatigue.
ISO 3006 applies for passenger‑car wheels only, while ISO 3894 targets commercial‑vehicle (truck, bus, trailer) wheels.
ISO 7141 Road vehicles — Light alloy wheels — Lateral impact test
ISO 7141 evaluates wheel performance when striking a kerb, for screening and quality‑control purposes for passenger‑car and special‑vehicle light‑alloy wheels. It is intended for passenger car applications, and special vehicle applications where there is a possibility of the wheel impacting the kerb, with the purpose of screening and/or quality control of the wheel.
ISO 3894 Road vehicles‑Wheels/rims for commercial vehicles‑Test methods
ISO 3894 defines two standardized laboratory fatigue test methods for disc wheels of commercial vehicles, buses, trailers and multi‑purpose passenger vehicles, to evaluate wheel fatigue strength under simulated road service conditions. Its purpose is to give wheel and vehicle manufacturers a uniform way to evaluate certain fatigue‑strength characteristics, so wheels from different suppliers/regions can be compared.
FAQs for ISO 8644 (Motorcycles‑Light‑alloy wheels‑Test method)
Q1. What is ISO 8644?
ISO 8644:2006 is the International Standard titled Motorcycles — Light-alloy wheels — Test method. It specifies laboratory bench test methods for determining the performance of light-alloy road wheels for motorcycles under normal road use. It was published in November 2006 (2nd edition), replaces ISO 8644:1988, was confirmed again in 2021, and is still the current edition.
Q2. Is ISO 8644 a performance standard or a test-method standard?
It is a test-method standard. It defines the equipment, conditions and procedures. The acceptance criteria are concentrated in Clause 10 ("Performance"), but the standard deliberately does not fix sample size, rotation speed, test frequency or the crack-detection method — those are agreed between wheel manufacturer, vehicle manufacturer and laboratory.
Q3. Which wheels does ISO 8644 cover?
Wheels for motorcycles with two or three wheels (including motorcycles with side-cars, as defined in ISO 3833), of two construction types:
Unit construction light-alloy wheel — rim and spokes, or disc, manufactured as a single unit (one-piece cast or forged).
Composite construction light-alloy wheel — light-alloy rim with a support structure of light alloy or other metals, subsequently assembled.
Q4. May the same wheel be used for all five tests?
No requirement to do so. The standard states explicitly: "A different wheel may be used for each test." In practice labs use one specimen per test, plus spares.
Q5. What are the cycle requirements?
| Property | Required cycles / condition |
|---|---|
| Durability against bending moment | ≥ 10⁵ cycles; ≥ 10⁶ for Heavy Duty (HD) wheels |
| Durability against radial load | ≥ 5 × 10⁵ cycles |
| Impact resistance | single impact; no sudden air leakage (> 50 % of test pressure lost within 30 s) |
| Durability against torsional moment | ≥ 10⁵ cycles |
| Airtightness of rims | ≥ 2 min at > 300 kPa, no bubbles |
Universal acceptance wording for the four durability tests: no harmful cracks, no significant deformation, no abnormal looseness at joints.
Q6. Why is ISO 8644 testing important?
A motorcycle wheel is a single-track safety component: if a spoke, hub or rim flange fractures, the rider loses control immediately, and with tubeless tyres there is no second barrier. The standard converts real service loads — cornering, vertical road load, pothole/kerb strike, drive and brake torque, and tyre pressure retention — into five reproducible bench tests so that a design, an alloy and a manufacturing process can be validated before the wheel reaches the road.
Q7. Why is it especially important for the material?
Aluminium has no true endurance limit. Its S–N curve keeps falling, so "safe" can only mean "safe for N cycles" — which is why the standard is written around explicit cycle counts.
Castings are defect-sensitive. Gas porosity, shrinkage, oxide films and cold shuts become crack nuclei; only a finished-component fatigue/impact test proves the foundry route (gravity, low-pressure, squeeze casting, flow-forming, forging) plus T6 heat treatment is sound.
Lower ductility and higher notch sensitivity than steel. Coarse eutectic silicon, Fe-rich intermetallics or unmodified microstructure give low elongation and low fracture toughness — exactly what the radial impact test is designed to expose in thin rim flanges.
Forged and magnesium wheels add anisotropy and corrosion-fatigue sensitivity, and composite construction adds a bimetallic joint with galvanic and fretting risk — covered by the "no abnormal looseness at joints" clause.
Airtightness is a casting-quality proxy — interconnected porosity or a defective rim well leaks, which is what the 300 kPa bubble test detects.
Q8. Why is the impact test separate from the fatigue tests?
Fatigue tests prove resistance to many small cycles; the impact test proves resistance to one large overload — a pothole, kerb or debris strike. It is an energy-limited toughness event on the rim flange, and it is the only ISO 8644 test with a pressure-loss criterion (> 50 % of test pressure within 30 s), because a cracked rim on a tubeless wheel deflates quickly.
Q9. What are the typical failures the standard is designed to catch?
Spoke-root and hub-web fatigue cracks, rim-flange cracking after impact, hub-to-rim junction cracking under torsion, deformation/permanent set, loosening of joints and fasteners, and slow or sudden air loss through porous castings or sealing-ring joints.
Q10. Can ISO 8644 replace real road testing?
No — it complements it. Road testing is expensive, slow and poorly repeatable; the bench test gives controlled, accelerated, comparable data for material screening, prototype iteration and batch audit. It does not simulate corrosion, heat cycling, combined load spectra or long-term wear.
Q11. What is the difference between ISO 8644 and ISO 8645?
ISO 8644 is for motorcycles; ISO 8645:1988 — Mopeds — Light-alloy wheels — Test method is its sister standard for mopeds. Same philosophy, different vehicle class; ISO 8645 was confirmed as recently as 2017 and remains current.
Q12. How does ISO 8644 relate to ISO 3006 and ISO 3894?
Those are the four-wheel counterparts and use the same two-test core (dynamic cornering/bending fatigue + dynamic radial fatigue):
ISO 3006:2015 — passenger-car wheels (adopted in China as GB/T 5334-2021, MOD).
ISO 3894:2023 — commercial-vehicle wheels/rims (trucks, buses, trailers).
ISO 8644 is broader on the motorcycle side: it adds a radial impact test and a torsional fatigue test (drive/brake torque is a dominant load on a driven single-track wheel) plus an air-leak test.
Q13. Why choose ISO 8644 Motorcycle Light‑alloy Wheel Complete Test System from UnitedTest?
UnitedTest designs and manufactures ISO 8644 motorcycle wheel testing machines for wheel makers, motorcycle OEMs, and independent test laboratories. Our test benches cover the complete ISO 8644:2006 test programme — rotational bending fatigue, radial load durability, radial impact resistance, torsional fatigue and air leak (airtightness) — on cast, forged and composite light-alloy wheels for two- and three-wheeled motorcycles. Every machine is built around the standard's own load model: one wheel load rating Fv and one tyre radius R, from which the bending moment M = 0,7 × μ × Fv × R, the radial load Q = 2,25 × Fv, the striker mass Mₛ = K × Fv / g and the torsional moment T = Fv × R are derived automatically in the control software.
UnitedTest is a professional manufacturer of ISO 8644‑compliant testing machines for motorcycle and tricycle light‑alloy wheels. Our test equipment fully implements requirements of ISO 8644:2006 Motorcycles‑Light‑alloy wheels‑Test method, covering all five mandatory test items: rotational bending fatigue test, radial load durability test, radial impact resistance test, torsional fatigue test and tubeless‑rim air leak test.
Our wheel test systems are widely deployed for motorcycle OEM R&D departments, aluminium wheel casting & forging factories, independent third‑party testing laboratories, and quality inspection institutions worldwide. We support testing for both monolithic unit‑construction wheels and composite assembled light‑alloy wheels for two‑wheel motorcycles, side‑car motorcycles and HD heavy‑duty cargo tricycles.
Rotational Bending Fatigue Tester: Simulate cyclic cornering side‑load stress; automatic bending‑moment calculation per ISO 8644 formula, supports 10⁵ /10⁶‑cycle test for standard and HD heavy‑duty wheels.
Radial Load Durability Test Machine: Equipped with ≥ 400 mm‑diameter smooth rotating drum; closed‑loop load control with fluctuation tolerance within ±5 % as required by standard, runs up to 5 × 10⁵ cycles for vertical road‑load durability validation.
Radial Impact Resistance Test Rig: Configurable for single‑mass drop, pendulum‑type or double‑mass spring‑impact modes; built‑in striker‑mass calculation, adjustable drop height for front‑wheel / rear‑wheel impact test.
Torsional Fatigue Test Bench: Applies bidirectional alternating torsional moment between hub and rim, reproduces acceleration‑deceleration twisting stress on motorcycle wheels.
Air‑Leak / Airtightness Test Equipment: Water‑immersion pressure‑holding test bench for tubeless motorcycle alloy rims; test pressure > 300 kPa for rim sealing‑performance inspection.
All UnitedTest motorcycle wheel testing machines adopt high‑precision servo control, automatic cycle counting, real‑time test‑data recording and multi‑level safety‑protection mechanisms. Custom‑made fixtures are available for different wheel diameters, hub‑mount forms and special‑specimen requirements. Our machines can help customers complete ISO 8644 compliance verification for new‑wheel design validation, incoming‑quality inspection and pre‑market certification.
Contact UnitedTest today to get your custom quotation for ISO 8644 motorcycle light‑alloy wheel test solutions.
