ISO 3894 Commercial Vehicle Wheel Rim Fatigue Test Machine | UnitedTest

ISO 3894 specifies standardized laboratory fatigue test methods for commercial vehicle disc wheels and rims, evaluating wheel fatigue strength under simulated road service conditions. UnitedTest manufactures ISO 3894 compliant wheel testing machines for uniform wheel performance comparison and manufacturer quality validation.

ISO 3894 is an international standard for road vehicle components, focusing exclusively on test methods for wheels and rims used on commercial vehicles, buses, trailers, and multi-purpose passenger vehicles. The standard establishes two authoritative and standardized laboratory fatigue testing procedures specially designed for disc wheels, accurately simulating real-world road service operating conditions to comprehensively evaluate the fatigue strength and structural durability of vehicle wheel assemblies.

The core purpose of ISO 3894 is to provide wheel manufacturers and automobile manufacturers with unified, standardized testing and evaluation criteria for wheel fatigue strength characteristics. This uniform testing specification enables fair and accurate performance comparison of wheels sourced from different suppliers and manufacturing regions, facilitating product screening, batch quality control, new product R&D, and industry-standard performance verification for commercial vehicle wheel components.

ISO 3894 Commercial Vehicle Wheel Fatigue Testing

UnitedTest designs and manufactures high-precision ISO 3894 compliant wheel rim fatigue testing machines. Our professional testing equipment perfectly simulates actual road load conditions, delivers stable and repeatable fatigue test data, and fully meets the laboratory testing, performance certification and quality inspection requirements of commercial vehicle wheel factories, automotive manufacturing enterprises and third-party testing institutions worldwide.

Two Specific Test Methods

1, Dynamic cornering fatigue test	Simulates repeated bending loads generated during vehicle cornering. A constant bending moment acts on the rotating wheel to reproduce cyclic cornering stress. Two fixture configurations are allowed: bottom clamping and top clamping of the wheel assembly.
Principle	A bending moment is applied to the mounted wheel to reproduce the alternating stress caused by cornering lateral forces (tyre‑road friction) plus the effect of wheel offset. The wheel can be rotated while a stationary moment is applied, or a rotating moment can be applied to a stationary wheel.
Test Equipment	Fixture with pivot point, loading arm, rotary disc/adapter, hub/test fixture. Moment arm length l = 0.5 m to 1.4 m. Loading system applies a force F parallel to the wheel‑mounting plane at distance l, so that bending moment M = F × l. Bottom‑clamping or top‑clamping arrangement; wheel attached with test bolts and wheel nuts. Bending moment must be maintained within ±2.5% of the calculated value.
Test Procedures	1. Preparation: Mount test wheel with matched bolts/nuts onto adaptor, tighten nuts to specified torque. Select bottom‑clamping or top‑clamping fixture configuration, install loading arm and pivot assembly. Record wheel inset value d, confirm tyre static loaded radius R, get maximum vertical static load. 2. Calculate target bending moment using formula with friction coefficient μ and accelerated test factor S. 3. Apply target bending moment, start machine to rotate wheel continuously. 4. Monitor wheel condition, crack status and fastener torque throughout running. 5. Terminate test when any termination criterion is satisfied. Record total achieved cycles and failure mode

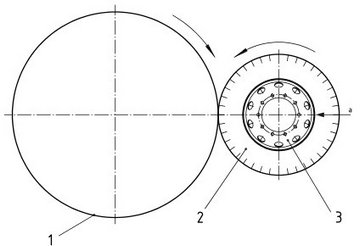

2, Dynamic radial fatigue test	Simulates cyclic vertical road loads while the wheel rotates against a driven drum, reproducing the vertical load condition during driving over road surfaces. Dual‑application wheels shall be tested in single‑wheel configuration.
Principle	Press rotating wheel‑tyre assembly against the driven drum with constant vertical radial load. Cyclic stress is generated across rim and disc as the wheel rotates, simulating repeated vertical road impacts and static vertical loading during vehicle operation. Accelerated load factor is applied for accelerated durability evaluation.
Test Equipment	Driven rotatable smooth drum with minimum outer diameter of 1700 mm. Drum surface width exceeds test‑tyre section width. Loading system applying constant radial load, axes of drum and test wheel must remain parallel. Wheel‑tyre fixture, adaptor assembly, qualified test bolts and nuts. Mating surfaces shall be free of scoring, deformation, excessive paint or dirt build‑up
Test Procedures	Preparation: Assemble test wheel with specified maximum‑load‑rating tyre, inflate tyre to required test pressure. Mount wheel‑tyre assembly onto test adaptor, torque wheel nuts as per manufacturer requirement. Align drum axis parallel with wheel axis. Calculate radial test load using maximum vertical static load and accelerated factor K. Apply target radial load, start drum‑driven rotation. Check and retorque nuts once within 1 000‑5 000 revolutions if permitted. Continuously observe load stability, tyre pressure, crack formation and nut tightness. Stop test when any termination condition triggers, document test cycles and failure phenomenon

Test Specimen Information

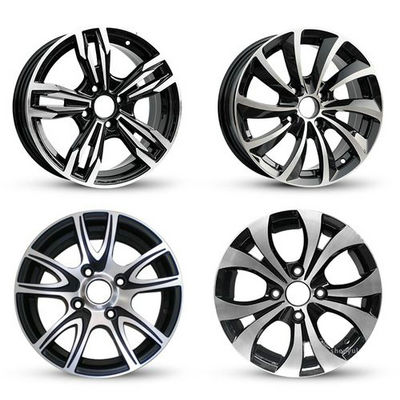

Specimen: Production‑representative disc wheels for commercial vehicles (steel or aluminium).

Matching test tyres: select tyres with maximum load rating applicable for the target wheel, or tyres specified by wheel / vehicle manufacturer.

Fasteners: test bolts and wheel nuts equivalent to original vehicle hardware, in good functional condition. Lubrication status follows real‑vehicle application rules defined by vehicle makerISO.

Adaptor: interface component for mounting wheel onto test machine; mating faces must be clean and undamaged.

Test Stipulation (Termination & Mandatory Rules)

Both tests share four identical test‑termination conditions, test shall stop when any one occurs:

1. Wheel cannot sustain applied load or tyre pressure (radial test).

2. New stress‑caused through‑section cracks appear, or pre‑existing cracks propagate through wheel cross‑section.

3. Abnormal loosening of wheel nuts or test bolts.

4. Final fastener torque drops below 70 % of initial torque requirement.

Tyre inflation pressures:

Tyre pressure at usage load (kPa)	Test inflation pressure (kPa)
up to 310	450
320–450	550
460–580	690
590–720	900
730 or more	1000

Industry / application field

Truck, bus, coach, trailer and commercial MPV wheel design validation.
Wheel manufacturers – steel and aluminium disc wheels, quality release, supplier qualification.
Vehicle OEMs – chassis/wheel compatibility, durability sign‑off.
Independent test laboratories and certification bodies.
Fleet/service reliability and failure analysis – root‑cause investigation of cracked wheels, bolt‑hole fatigue, rim flange failures.

Related and similar standards

ISO 3894	Road vehicles — Wheels/rims for commercial vehicles — Test methods
ES 2976	ROAD VEHICLES – WHEELS/ RIMS FOR COMMERCIAL VEHICLES - TEST METHODS
GB/T 5909	Commercial vehicles—Wheels—Performance requirements and test methods for cornering and radial fatigue
SAE J267	Truck‑bus wheel radial and cornering fatigue performance and test procedures.
JIS D4103	Automotive wheel performance requirements and marking.
IS 9438	Truck bus wheel performance and test method specification.
NBR 6751	Truck‑bus wheel durability‑strength determination
EUWA ES‑3.11	European wheel association test requirements for commercial‑vehicle wheels, referenced to ISO 3894 test framework.

UnitedTest designs and builds ISO 3894:2023 commercial vehicle wheel fatigue testing machines for truck, bus, trailer and heavy‑duty disc wheels. Our wheel test systems support the two core ISO 3894 methods—dynamic cornering fatigue and dynamic radial fatigue—with configurable bending‑moment rigs, rotating drum radial rigs, hydraulic/electromechanical loading, torque monitoring and automatic crack/loosening termination.

As a Beijing‑based material and component testing machine manufacturer founded in 2012, UnitedTest produces universal testing machines, fatigue testers, torsion testers, impact testers and customized wheel‑hub durability rigs under ISO/ASTM/BS/EN compliance, with CE and calibration certificates. For commercial‑vehicle programs, we configure test benches to calculate bending moment M=(μR+d)FvS and radial load Fr=FvK, store cycle counts, log fastener torque, and generate reports for steel or aluminium wheels per ISO 3894 Annex A.

Keywords: ISO 3894 wheel rim test machine,commercial vehicle wheel fatigue tester,bus trailer wheel structural durability test rig,multi-purpose passenger vehicle disc wheel test equipment,road vehicle wheel fatigue strength testing system,automotive wheel simulated road service test machine,commercial wheel supplier performance comparison tester,vehicle wheel batch quality control apparatus,wheel rim laboratory fatigue test instrument,automotive wheel component R&D test equipment,heavy vehicle wheel structural performance verifier,standardized wheel fatigue testing machinery.

Wheel radial load fatigue testing machine is used to test the operational strength of wheels under load. By applying prolonged force to the wheels, it can assess the overall strength of the wheels as well as the strength and fastening of each component connection.

Wheel rotary bending fatigue test machine is mainly used for rotating bending fatigue test of light alloy wheels of motorcycles and mopeds. Conform with standard ISO 8644-2006 Motorcycle- Light Alloy Wheels - Test Methods.

Wheel torsion fatigue testing machine is mainly used in electric vehicles, motorcycles, and their supporting hub factories. The wheel torsion fatigue testing machine is used to test the overall strength of wheels under sudden braking in normal driving conditions.

Radial double hammer impact test machine for motorcycle light alloy wheel is used to simulate the impact of the wheels during the driving process through ditches and other undulating road surfaces, the test machine impact energy can be adjusted (by adjusting the weight and impact height to achieve).

Q1: What is ISO 3894:2023? Why is this test important?

A: ISO 3894:2023 is the global ISO standard defining two laboratory fatigue test methods for disc wheels of trucks, buses, trailers and multi‑purpose commercial vehicles. It covers dynamic cornering fatigue and dynamic radial fatigue testing. This test is critical because commercial‑vehicle wheels suffer cyclic bending and vertical loads in real‑world service. Even below static material strength, repeated cyclic stress may trigger fatigue cracks, wheel fracture and serious traffic accidents. ISO 3894 provides uniform accelerated lab testing to validate wheel material, design and manufacturing quality before mass production, supporting global product comparison and market compliance.

Q2: What two main test methods does ISO 3894 specify?

A: Dynamic cornering fatigue test: Applies constant bending moment on rotating wheel, simulates cyclic stress generated during vehicle cornering. Two fixture mounting options are allowed: bottom‑clamping or top‑clamping configuration.

Dynamic radial fatigue test: Presses tyre‑wheel assembly against a driven rotating drum, simulating repeated vertical road loads during driving. Dual‑fit wheels shall be tested under single‑wheel setup.

Q3: What are the test‑stopping (termination) conditions for ISO 3894 tests?

A: Both tests stop automatically when any of four conditions occurs:

Wheel cannot sustain applied load (or tyre pressure loss for radial test).

Visible stress‑caused through‑section cracks appear, or existing cracks propagate through wheel cross‑section.

Wheel nuts / test fasteners become abnormally loose.

Fastener final torque drops below 70 % of initial tightening torque.

Q4: How do I calculate key test loads for ISO 3894?

A: - Cornering test: Bending moment is calculated from maximum vertical static load Fv, tyre‑road friction coefficient μ, tyre static loaded radius R, wheel inset d and accelerated test factor S.

- Radial fatigue test: Radial test load formula: Fr=Fv × K.Fv = max vertical static load; K = accelerated radial test‑load factor from Annex A. The test machine shall keep actual radial load within ±5 % of calculated value.

Q5: Can I retighten wheel nuts during ISO 3894 fatigue testing?

A: Yes. One retightening is permitted between 1 000‑5 000 wheel rotations. Extra retightening actions are allowed only if formally specified by wheel or vehicle manufacturer.

Q6: Why run ISO 3894 lab fatigue test instead of only road field test?

A: Road field tests are time‑consuming, costly, and suffer variable real‑road conditions with poor repeatability. ISO 3894 bench test uses controlled accelerated cyclic loading. It delivers repeatable, comparable data for material comparison, design iteration and batch quality screening in much shorter time. It does not fully replace road validation but is essential pre‑qualification step.

Q7. Does ISO 3894 cover rims only or complete wheels?

A: It is for disc wheels/rims for commercial vehicles. The test methods focus on wheel fatigue performance; tyres are selected only to define loaded radius/inflation for radial testing and to represent the application.

Q8. Which industries need ISO 3894 testing?

A: Truck/trailer/bus OEMs, commercial‑wheel manufacturers (steel & aluminium), fleet maintenance/engineering, third‑party certification labs, military/logistics heavy‑vehicle programs, and component suppliers doing hub/bolt/fastener validation.

Q9: Why choose UnitedTest ISO 3894 wheel fatigue testing machin?

A: UnitedTest is professional manufacturer for ISO 3894:2023 commercial‑vehicle wheel fatigue test machines. Our systems perform dynamic cornering fatigue test and dynamic radial fatigue test for truck, bus & trailer disc wheels, complying with ISO 3894, SAE J267, GB/T 5909. Custom fixtures & lab technical support available.

As an experienced test‑equipment manufacturer, UnitedTest delivers full‑solution ISO 3894 test machines for wheel factories, automotive OEM labs and third‑party certification laboratories. Our test benches strictly follow ISO 3894:2023 requirements, supporting both dynamic cornering fatigue test and dynamic radial fatigue test for steel and aluminium commercial‑vehicle wheels.

Our ISO 3894 dynamic cornering fatigue test system supports bottom‑clamping and top‑clamping fixture configurations, accurately applying target bending moment, monitoring wheel crack growth and fastener torque decay throughout cyclic testing. Our radial fatigue tester is equipped with ≥1700 mm standard driven drum, closed‑loop radial‑load control within ±5 % tolerance, tyre pressure monitoring and safety interlock functions, fully satisfying ISO 3894 radial‑fatigue test specifications.

UnitedTest ISO 3894 wheel test machines are also compatible with correlated regional standards including SAE J267, GB/T 5909, JIS D4103. We provide custom‑made wheel adaptor fixtures, on‑site installation, operator training and long‑term after‑sales service.

For wheel designers and quality managers, ISO 3894 fatigue testing validates whether your wheel material, casting / stamping process and bolt‑mount design resist cyclic road stress, helping you avoid field wheel‑failure risks and meet global market access requirements.
