ISO 7141 Radial double hammer impact testing for Light alloy wheels Lateral impact test

Share:

ISO 7141 Light Alloy Wheel Lateral Impact Test Machine | UnitedTest

UnitedTest manufactures ISO 7141 compliant lateral impact testers for light alloy wheels, simulating kerb strike impact for passenger car and special vehicle wheel screening and quality control testing.


ISO 7141 Road vehicles — Light alloy wheels — Lateral impact test

ISO 7141 evaluates wheel performance when striking a kerb, for screening and quality‑control purposes for passenger‑car and special‑vehicle light‑alloy wheels. It is intended for passenger car applications, and special vehicle applications where there is a possibility of the wheel impacting the kerb, with the purpose of screening and/or quality control of the wheel. UnitedTest supplies robust ISO 7141 wheel lateral impact test rigs for wheel manufacturers, automotive component labs and third-party certification institutes.


Test principle

The test simulates real‑world lateral kerb impact events that happen when vehicle wheels strike road kerbs. A weighted steel striker drops vertically onto the rim flange of an inclined, tyre‑fitted test wheel. The wheel assembly is tilted to 13° to replicate kerb‑impact orientation. After controlled impact, inspect the wheel for fractures and structural failure to judge whether the wheel meets acceptance criteria.


Test Specimen Information

WheelNew, fully processed, representative of production wheels intended for vehicle application
TyreAs specified by the vehicle manufacturer; otherwise the smallest nominal section width tubeless radial-ply tyre intended for that wheel
InflationManufacturer's specification, otherwise 200 kPa
FixingsDimensionally representative hub fixture/fasteners, tightened by the vehicle or wheel manufacturer's method/value
Re-useTyres and wheels used in the test shall not subsequently be used on a vehicle; a new wheel is used for every impact
PositionsBecause centre-member (spoke) designs vary, test a sufficient number of circumferential positions so that centre-member integrity is fully assessed


Test Equipment of ISO 7141 Lateral Impact Test

Impact loading test machine

Includes a vertically‑dropping steel striker assembly. The striker edge shall have radius ≤1 mm or 45° chamfer (0.5 mm‑1.0 mm).

Minimum striker plate width is 230 mm ±2 mm (ADH range:230‑240 mm ±2 mm).

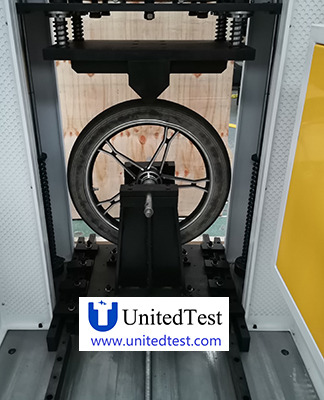

Recommend UnitedTest UT1013 Radial double hammer impact test machine.

1000 kg calibration massUsed for system deflection calibration of test rig beam assembly.
Calibration adapter

For rig deflection calibration; steel test beam with minimum yield strength 400 MPa;

four 50‑Shore natural‑rubber mounting buffers (diameter 51 mm, uncompressed height 27 mm).

Optical gate velocity‑measurement systemComposed of timing blade, sliding rail, optical sensing gate and electric timer for striker velocity verification.

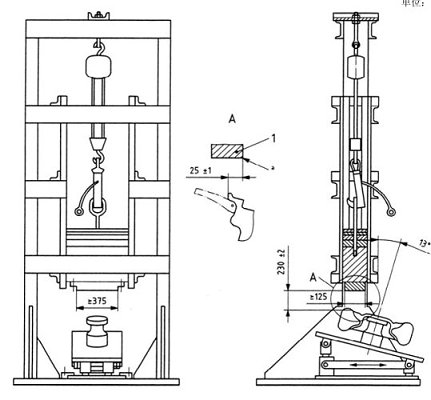

ToolsFixture for tilting wheel assembly, set to 13° impact angle (refer below fig.).


ISO 7141 Radial double hammer impact testing for Light alloy wheels Lateral impact testISO 7141 Radial double hammer impact testing for Light alloy wheels Lateral impact test


Key test parameters:

Striker massm = 0.6 W + 180 kg (± 2 %)
Drop height230 ± 2 mm (or ADH 230–240 ± 2 mm)
Impact velocity equivalent12.31 ms over 25.4 mm (≈ 2.06–2.12 m/s)
Mounting angle13° ± 1° to vertical
Striker overlap on rim flange25 ± 1 mm
Tyre pressureSpecified, else 200 kPa
Number of impactsOne (single impact intended)
Rig calibration deflection7.5 ± 0.75 mm under 1000 kg


Test Procedures of ISO 7141 Lateral Impact Test - Light Alloy Wheel Kerb Impact Tester

  1. Preparation: Mount new production‑representative wheel fitted with tyre onto rig fixture, set wheel tilt angle to 13° ±1°. Do not reuse tested wheel‑tyre assemblies for real‑vehicle service.

  2. Rig calibration (Clause 5): Install calibration adapter, apply 1000 kg vertical mass on wheel‑mount centre. Confirm beam‑centre deflection of 7.5 ±0.75 mm. Perform velocity‑sensor setup following Annex A: install optical gate on sliding rail, attach timing blade to striker, set gate position, reset timer, adjust drop height in 2 mm steps to achieve target blade passing‑time 12.31 ms +0.3/‑0 ms. Record adjusted drop height (ADH). If height adjustment >10 mm, service test machine before use.

  3. Impact execution: Lift striker mass to calibrated ADH drop height, release striker for vertical drop impact onto wheel rim flange.

  4. Post‑test inspection: Visually examine the wheel for fractures according to failure criteria and Figure 3 examples in standard.

  5. Record test result and acceptance judgment.


Similar test standard:

KS I 4053 Test methods for remanufactured alloy wheels for passenger cars-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles
GOST 30599Wheels made of lightweight alloys for pneumatic tires.-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles
BS AU 50-2.6AWheels and rims-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles
ISO 7141Road vehicles — Light alloy wheels — Lateral impact test
JASO T203Light Alloy Wheels for Motorcycles Test
IS 16192

Automotive Vehicles - Wheel Rims for Two nad Three Wheeled Vehicles part 1 Light Alloy Wheel Rims - Methods Rims - Methods of Tests and Requirements

Automotive Vehicles - Wheel Rims for Two and Three Wheeled Vehicles Part 2 Sheets Metal Wheel Rims - Methods of Tests and Requirements

Automotive Vehicles — Wheel Rims for Two and Three Wheeled Vehicles Part 3 Spoke Wheel Rims — Method of Tests and Requirements

ISO 3006Road vehicles - Passenger car wheels for road use - Test methods
GB/T 5334Passenger car—Wheels—Performance requirements and test methods for cornering and radial fatigue
ES 2997ROAD VEHICLES – PASSANGER CAR WHEELS FOR ROAD USE - TEST METHOD
ISO 3894

Road vehicles — Wheels/rims for commercial vehicles — Test methods

SAE J328Passenger‑car and light‑truck wheel fatigue performance and laboratory test procedures.
SAE J175

Wheels — Lateral Impact Test Procedure — Road Vehicles; historically declared equivalent to ISO 7141-1981.

Same 13° ± 1°, 230 mm/ADH, D = 0.6 W + 180, 25 ± 1 mm overlap, 200 kPa.

Differences: striker face ≥ 125 × 375 mm, lug torque 115 ± 7 N·m, temperature 10–38 °C, 380 kPa for light-truck/temporary spare, impact at valve stem, adds SAE J3204 for composite wheels.

GB/T 15704Chinese standard: Road vehicles—Light alloy wheels—Impact test method
JIS D4103Japanese automotive‑wheel performance and durability‑test specification.

TÜV / StVZO (Germany), AK-LH 08, GMW 14910: Regional/OEM protocols using the same 13° impact principle (D = 0.6 W + 180, 230 mm), often with additional long-duration fatigue;

UNECE Regulation No. 124 (replacement wheels), Annex 8: Requires an impact test according to ISO 7141 at critical positions (incl. valve), with essentially the same three failure criteria;


Industry Application

Passenger-car and special-vehicle light-alloy wheels (cast and forged aluminium, magnesium, and increasingly hybrid/composite designs). Users: wheel and tyre manufacturers (design validation + production quality control), OEMs and Tier-1 suppliers (design sign-off, supplier acceptance), independent test laboratories (conformity testing), and type-approval / certification engineers. It is a screening and quality-control test, and one of the most critical homologation tests for a passenger-car wheel.


Importance of this Test for Wheel Materials

Light‑alloy materials (aluminium alloys mainly) offer low‑weight advantages for automotive wheels but are susceptible to brittle fracture under sudden lateral shock loads from kerb strikes. ISO 7141 reproduces this real‑world dynamic shock condition in‑lab, evaluating material toughness, ductility and crack‑resistance performance of light‑alloy wheel cast or forged material under impact loading.

Distinguishes whether material defects (casting porosity, forging flow‑line weakness, improper heat‑treatment) lead to critical structural cracking on spokes/hub upon impact, even if cosmetic rim‑flange damage is allowed.

Validates material and design robustness: prevents in‑service catastrophic wheel fracture caused by kerb collision, which is critical for vehicle‑travel safety.

Provides repeatable laboratory assessment, supporting material formulation optimization, heat‑process tuning and incoming‑material quality screening for light‑alloy wheel production. It reduces road‑test cost and risk, enabling consistent quality control across wheel manufacturers globally.


Keywords: ISO 7141 wheel tester,light alloy wheel lateral impact test machine,automotive wheel kerb impact tester,passenger car wheel impact test rig,special vehicle alloy wheel tester,wheel kerb strike simulation equipment,aluminum wheel lateral impact tester,automotive wheel quality control tester,road vehicle wheel mechanical test,alloy wheel lab impact machine,wheel impact performance screening tester,UnitedTest wheel testing machine,automotive component certification test rig,light alloy wheel durability tester,wheel impact damage test equipment

Related products and device

ISO 7141 Radial double hammer impact test machine

Radial double hammer impact test machine for motorcycle light alloy wheel is used to simulate the impact of the wheels during the driving process through ditches and other undulating road surfaces, the test machine impact energy can be adjusted (by adjusting the weight and impact height to achieve).

Wheel Radial Load Fatigue Testing Machines

Wheel radial load fatigue testing machine is used to test the operational strength of wheels under load. By applying prolonged force to the wheels, it can assess the overall strength of the wheels as well as the strength and fastening of each component connection.

Wheels Rotational bending fatigue test machine

Wheel rotary bending fatigue test machine is mainly used for rotating bending fatigue test of light alloy wheels of motorcycles and mopeds. Conform with standard ISO 8644-2006 Motorcycle- Light Alloy Wheels - Test Methods.

Wheel Rim Torsion Fatigue Testing Machine

Wheel torsion fatigue testing machine is mainly used in electric vehicles, motorcycles, and their supporting hub factories. The wheel torsion fatigue testing machine is used to test the overall strength of wheels under sudden braking in normal driving conditions.

Related Standard

ISO 10191 Passenger Car Tyre Test - Endurance, High-Speed, Bead unseating –

ISO 10191 Passenger car tyres — Verifying tyre capabilities — Laboratory test methods

ISO 10191 specifies laboratory test methods for verifying structural capability of passenger‑car pneumatic tyres, covering radial, diagonal / bias‑belted, and T‑type temporary‑use spare tyres. It includes five core test groups: endurance test, low‑pressure performance test (radial‑only), high‑speed test, strength test, bead‑unseating test (tubeless‑only).

ASTM F2663 – Bead Unseating of Tubeless Passenger and Light Truck Tires –

ASTM F2663 Standard Test Method for Bead Unseating of Tubeless Passenger and Light Truck Tires

ASTM F2663 quantify the resistance of tubeless tires against bead unseating, which means the tire bead slipping off the rim flange leading to sudden air loss. It covers passenger tires, light‑truck tires, and temporary spare tires. It only defines test methodology, not mandatory performance limit values for tires.

ISO 3006 Test for Road vehicles Passenger car wheels for road use –

ISO 3006 Road vehicles — Passenger car wheels for road use — Test method

ISO 3006 defines two standardized laboratory fatigue test methods for passenger‑car road wheels, to assess wheel fatigue strength under simulated real‑driving cyclic loads. It contains two methods only: dynamic cornering fatigue and dynamic radial fatigue.

ISO 3006 applies for passenger‑car wheels only, while ISO 3894 targets commercial‑vehicle (truck, bus, trailer) wheels.

ISO 3894 Commercial Vehicle Wheel Fatigue Testing –

ISO 3894 Road vehicles‑Wheels/rims for commercial vehicles‑Test methods

ISO 3894 defines two standardized laboratory fatigue test methods for disc wheels of commercial vehicles, buses, trailers and multi‑purpose passenger vehicles, to evaluate wheel fatigue strength under simulated road service conditions. Its purpose is to give wheel and vehicle manufacturers a uniform way to evaluate certain fatigue‑strength characteristics, so wheels from different suppliers/regions can be compared.

ISO 7141 Lateral Impact Test FAQs

Q1. What is ISO 7141?

ISO 7141 is an International Standard that specifies a laboratory test procedure for evaluating the axial (lateral) kerb-impact collision properties of a wheel made wholly or partly of light alloys. It is intended for passenger cars and for special vehicles where the wheel may strike a kerb, and its purpose is screening and/or quality control of the wheel. The current version is ISO 7141:2022 (4th edition), published April 2022, developed by ISO/TC 22/SC 33 (Vehicle dynamics and chassis components).


Q2. What real-world event does the test simulate?

A vehicle sliding sideways into a kerb, pothole edge, kerb-like obstacle or similar object so that the outer rim flange is struck laterally. The wheel is mounted at 13° to vertical so the highest point of the rim flange faces a vertically falling steel striker — this reproduces the geometry of a kerb strike rather than a straight vertical hit.


Q3. Why is the ISO 7141 lateral impact test important?

Because it is the only wheel homologation test that probes fracture toughness and damage tolerance under a single, high-rate event. Fatigue tests (bending/cornering and radial) prove durability under repeated service loads; they cannot reveal whether a wheel will crack and deflate when hit once, hard. A wheel can pass hundreds of thousands of fatigue cycles and still fail catastrophically on a kerb strike. ISO 7141 therefore:

keeps the tyre seated and the vehicle controllable after a kerb hit (safety);

is a market-access requirement — it is referenced by UNECE Regulation No. 124 (Annex 8) for replacement wheels and adopted identically by national systems such as China's GB/T 15704;

acts as a production quality-control screen that detects drift in melt quality, casting soundness, heat treatment and machining;

sets the boundary for lightweighting — thinner spokes and higher-strength-but-lower-ductility alloys raise strength but reduce impact tolerance, and this test is what stops that trade-off from eroding crashworthiness.


Q4. Which wheels are covered?

Wheels manufactured wholly or partly of light alloys (cast and forged aluminium alloys, magnesium, and hybrid/composite designs), for passenger cars and for special vehicle applications where kerb contact is possible.


Q5. Why exactly 13°?

13° ± 1° is the standardised inclination that presents the highest point of the rim flange to a vertically acting striker. It fixes the geometry of the strike — overlap, contact point and load path into the disc — so that results are comparable between laboratories and machines.


Q6. What happens if the drop height has to be raised by more than 10 mm?

That indicates excessive friction in the machine. The standard requires the test machine to be taken out of service and maintenance performed to reduce system friction. This is a hard equipment-health threshold introduced to protect test repeatability.


Q7. How many impacts and how many positions?

One impact is intended — only the first impact counts. If a secondary impact from mass rebound (or the mass resting on the tyre) invalidates the result, a retest is allowed; anti-rebound additions to the rig are permitted provided they do not influence the initial impact. Because centre-member (spoke) designs vary, a sufficient number of circumferential positions must be tested so that the integrity of the centre members is fully assessed — using a new wheel each time. Many laboratory protocols include the valve-stem position.


Q8. Why is this test especially meaningful for light-alloy wheel materials?

Light alloys are notch- and defect-sensitive. Cast Al-Si-Mg alloys (e.g. A356-T6) are judged on secondary dendrite arm spacing, eutectic silicon modification, Fe-rich intermetallic platelets, porosity and oxide films, and on the T6 solution-treatment and ageing condition — all of which control elongation and impact-energy absorption. Forged 6xxx wheels gain advantage from a worked, non-porous grain structure; magnesium and composite/hybrid wheels introduce anisotropy and more brittle failure modes. ISO 7141 converts these metallurgical and process variables into a binary, repeatable acceptance result, and the 2022 velocity-calibration requirement (Annex A) removes the machine-to-machine scatter that used to let a borderline wheel pass on a "soft" rig — which matters directly when comparing alloys, casting routes or heat treatments by impact margin.


Q9. Why choose ISO 7141 Light Alloy Wheel Lateral Impact Test Machine from UnitedTest?

UnitedTest manufactures high‑precision ISO 7141:2022 lateral impact test machines for passenger‑car light‑alloy wheels. Fully compliant with ISO 7141 requirements: 13° wheel tilt fixture, striker mass system, 1000 kg calibration assembly, Annex A optical velocity sensing for ADH adjusted drop‑height measurement. Suitable for wheel R&D, incoming material inspection, factory quality control and third‑party testing laboratories.


UnitedTest is professional manufacturer of ISO 7141:2022 lateral kerb impact testing machine for road‑vehicle light‑alloy wheels. Our test rig strictly implements all requirements defined in ISO 7141:2022 fourth‑edition standard, including striker mass calculation formula, 13° ±1° inclined wheel mounting fixture, 1000 kg static deflection calibration module, and optional Annex A optical gate velocity measuring system for adjusted drop height (ADH) calibration.


Our ISO 7141 impact tester simulates real‑world kerb collision for cast & forged aluminium alloy wheels, helping automotive wheel factories, material labs and third‑party certification labs perform product screening, material performance evaluation and routine quality‑control validation.


Key machine features aligned to ISO 7141:

  • Vertical free‑fall steel striker with mass tolerance within +2 %

  • Wheel tilt fixture adjustable to 13 ± 1 degree

  • 1000 kg calibration set‑up for beam deflection check (7.5 ± 0.75 mm)

  • Optional optical timing‑blade velocity measurement system per Annex A

  • Real‑time data logging for drop height, impact velocity

  • Safety protection interlock system for lab‑site operation

  • Customizable fixtures for multi‑size passenger‑car wheels
