ISO 3006 Passenger Car Wheel Fatigue Test Machine | Dynamic Radial & Cornering Tester | UnitedTest

ISO 3006 specifies dynamic cornering fatigue and dynamic radial fatigue test methods for road-use passenger car wheels, evaluating cyclic load fatigue strength under simulated real driving conditions. UnitedTest manufactures ISO 3006 compliant passenger wheel testing machines for automotive wheel qualification and quality control.

ISO 3006 is an international standard dedicated exclusively to road vehicles passenger car wheels, establishing two standardized laboratory fatigue test methods to evaluate structural durability and fatigue performance under realistic cyclic driving loads. The standard covers only two core testing procedures: dynamic cornering fatigue testing and dynamic radial fatigue testing, which together simulate the repeated road stresses that passenger vehicle wheels endure during daily operation.

Strictly tailored for passenger‑car road wheels, ISO 3006 differs clearly from ISO 3894, which governs fatigue testing for commercial vehicle wheels including trucks, buses, and trailers. ISO 3006 test data validates wheel structural integrity, supports wheel design optimization, verifies manufacturing consistency, and fulfills automotive industry certification requirements for passenger wheel components. It is essential for automotive R&D, batch production inspection, and third‑party component compliance verification.

UnitedTest designs and manufactures high‑precision ISO 3006 compliant passenger car wheel fatigue testing machines. Our test systems accurately simulate dynamic radial and cornering cyclic loads, delivering stable, repeatable fatigue test results for passenger wheel manufacturers, automotive engineering laboratories, and vehicle component certification institutions.

Specific Test Methods

Two core dynamic fatigue test approaches are defined for passenger‑car wheels:

1. Dynamic cornering fatigue test: Simulates repeated cyclic bending stress generated during vehicle cornering. Two loading modes are allowed: the wheel rotates under stationary bending‑moment load, or the wheel remains stationary while a rotating bending moment is applied. Both bottom‑clamping and top‑clamping fixture configurations are permitted.

2. Dynamic radial fatigue test: Simulates cyclic vertical road loads. The tyre‑wheel assembly rolls against a driven rotating drum to reproduce vertical dynamic stress from road irregularities. Dual‑fit wheels shall be tested in single‑wheel configuration.

Test principle

Cornering: a force F is applied parallel to the wheel‑mounting plane at moment arm L to create a bending moment M=F x L. This reproduces the moment from tyre‑road friction during cornering plus the effect of wheel offset.

Radial: the wheel‑tyre assembly is pressed against a rotating drum and subjected to a constant radial load F_r, reproducing repeated vertical road load while rolling.

Test Specimen Information

Test wheel: New, fully‑processed production‑representative passenger‑car wheel (steel or aluminium alloy wheel). Only production‑equivalent samples can be used for testing.

Test tyre: Select the tyre with maximum applicable load rating specified for the wheel, or tyres defined by wheel / vehicle manufacturer.

Fasteners: Hub bolts, wheel nuts or wheel bolts identical to original vehicle hardware, in good condition. Lubrication or dry condition must match real‑vehicle application as specified by vehicle OEM.

Adaptor: Must replicate the geometry and mounting interface of real‑vehicle wheel hub.

Test Equipment of ISO 3006 Test for Road vehicles Passenger car wheels for road use

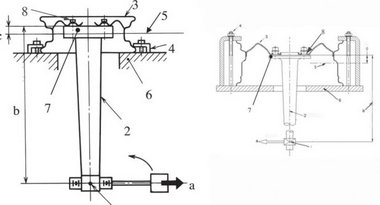

Dynamic cornering fatigue test

Rotatable test fixture set including pivot point, loading arm, adaptor, rotary disc or fixing base, wheel fasteners (hub bolts, wheel nuts or wheel bolts).

Moment‑arm working range: 0.5 m‑1.4 m.

Two fixture layouts: bottom‑clamping method and top‑clamping method. Bending‑moment closed‑loop control must maintain moment within ±2.5 % of calculated value.

ISO 3006 Test for Road vehicles Passenger car wheels for road use

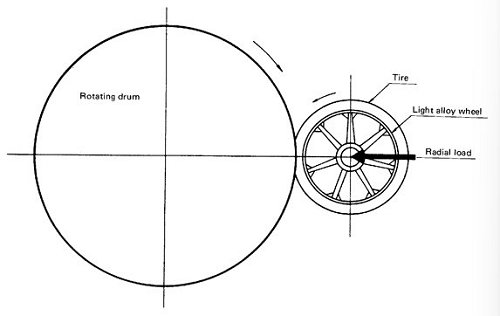

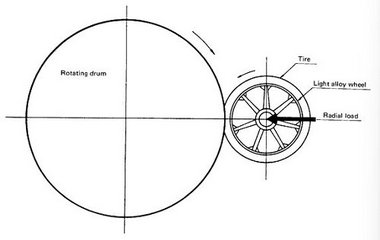

Dynamic radial fatigue test

Driven smooth‑surface rotatable drum with minimum outer diameter of 1 700 mm. Drum surface width exceeds test‑tyre section width.

Loading system delivering constant radial force; drum spindle and wheel spindle axes must stay strictly parallel.

Wheel‑tyre mounting fixture and production‑equivalent adaptor. Mating contact surfaces shall be free of scoring, deformation, excessive paint or dirt build‑up to avoid biased test outcomes.

ISO 3006 Test for Road vehicles Passenger car wheels for road use

Key test parameters:

Dynamic cornering fatigue test

Bending‑moment calculation formula: M=(μ × R+d) × F_v × S

μ: tyre‑road friction coefficient (typical value 0.7)
R: tyre static loaded radius (metres)
d: wheel inset/outset (metres; inset positive, outset negative)
F_v: maximum vertical static load or maximum tyre load rating (Newtons)
S: accelerated cornering test factor
Moment tolerance: actual bending moment shall stay within ±2.5 % of computed value.
Annex A provides recommended test factors and minimum test cycles for steel and aluminium passenger‑car wheels.

Dynamic radial fatigue test

Radial‑load formula: F_r=F_v × K

F_r: target radial test load(N); F_v : maximum vertical static load(N); K: accelerated radial load factor.
Load tolerance: actual radial load within ±2.5 % of calculated value.
Tyre cold test inflation pressure follows Table 1 (280 kPa, 450 kPa, 550 kPa corresponding to different service‑load pressure ranges). Pressure rise during test is normal and shall not be adjusted.
One single re‑torque of wheel fasteners is permitted in early‑test phase to settle mating surfaces.

Test Procedures of ISO 3006 Test for Road vehicles Passenger car wheels for road use

Dynamic cornering fatigue test

1. Preparation: Mount production‑representative passenger‑car wheel onto test adaptor with vehicle‑equivalent fasteners, tighten nuts or wheel bolts to manufacturer‑defined torque. Choose either bottom‑clamping or top‑clamping fixture configuration. Confirm wheel inset value d, tyre static‑loaded radius R and maximum vertical static load F_v. Check mating surfaces are clean and undamaged.

2. Compute target bending moment M using standard formula.

3. Apply calculated bending moment, start test machine to rotate wheel or activate rotating‑moment mechanism. Perform permitted single re‑torque at early test phase if needed.

4. Continuously monitor wheel surface for crack growth, fastener tightness and load accuracy.

5. Terminate test upon triggering any termination criterion. Record total achieved test cycles and failure mode.

Dynamic radial fatigue test

1. Preparation: Assemble wheel with maximum‑load‑rating specified tyre, inflate tyre to required cold test‑pressure per Table 1. Mount wheel‑tyre set onto hub‑equivalent adaptor; torque wheel fasteners as per OEM specification. Align drum axis parallel to wheel rotation axis.

2. Calculate radial test load F_r=F_v × K.

3. Apply target radial load and start drum‑driven rotation.

4. Observe load stability, tyre pressure, crack initiation during continuous running.

5. Stop test when any termination condition appears, document total cycles and failure phenomenon.

Similar test standard can refer to ISO 3006:

KS I 4053	Test methods for remanufactured alloy wheels for passenger cars-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles
GOST 30599	Wheels made of lightweight alloys for pneumatic tires.-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles
BS AU 50-2.6A	Wheels and rims-Specification for road wheels manufactured wholly or partly of light alloy for mopeds and motor cycles
JASO T203	Light Alloy Wheels for Motorcycles Test
IS 16192	Automotive Vehicles - Wheel Rims for Two nad Three Wheeled Vehicles part 1 Light Alloy Wheel Rims - Methods Rims - Methods of Tests and Requirements Automotive Vehicles - Wheel Rims for Two and Three Wheeled Vehicles Part 2 Sheets Metal Wheel Rims - Methods of Tests and Requirements Automotive Vehicles — Wheel Rims for Two and Three Wheeled Vehicles Part 3 Spoke Wheel Rims — Method of Tests and Requirements
ISO 3006	Road vehicles - Passenger car wheels for road use - Test methods
GB/T 5334	Passenger car—Wheels—Performance requirements and test methods for cornering and radial fatigue
ES 2997	ROAD VEHICLES – PASSANGER CAR WHEELS FOR ROAD USE - TEST METHOD
ISO 3894	Road vehicles — Wheels/rims for commercial vehicles — Test methods
SAE J328	Passenger‑car and light‑truck wheel fatigue performance and laboratory test proceduresSAE Mobilu...
JIS D4103	Japanese automotive‑wheel performance and durability‑test specification.

Industry Application

ISO 3006 serves the global passenger‑car wheel manufacturing industry, for steel and aluminium alloy passenger‑vehicle wheels.

- Applied by wheel tier‑one suppliers and automotive OEMs for new‑product design validation, prototype assessment, batch‑production quality verification.

- Offers unified laboratory baseline for global cross‑border wheel comparison and component qualification before vehicle road testing.

- Used by third‑party automotive test laboratories for wheel‑durability evaluation. It complements real‑vehicle road tests by delivering repeatable accelerated bench‑fatigue results.

Keywords: ISO 3006 passenger car wheel fatigue tester,automotive road wheel dynamic fatigue test machine,passenger wheel dynamic radial fatigue test rig,vehicle wheel dynamic cornering fatigue testing equipment,car wheel cyclic load durability tester,road vehicle wheel structural fatigue performance analyzer,ISO 3006 automotive wheel qualification test system,passenger wheel manufacturing quality control machine,automotive wheel design validation test apparatus,car wheel real driving simulation tester,passenger vehicle wheel component certification instrument,automotive wheel lab fatigue testing rig

Wheel radial load fatigue testing machine is used to test the operational strength of wheels under load. By applying prolonged force to the wheels, it can assess the overall strength of the wheels as well as the strength and fastening of each component connection.

Wheel rotary bending fatigue test machine is mainly used for rotating bending fatigue test of light alloy wheels of motorcycles and mopeds. Conform with standard ISO 8644-2006 Motorcycle- Light Alloy Wheels - Test Methods.

Wheel torsion fatigue testing machine is mainly used in electric vehicles, motorcycles, and their supporting hub factories. The wheel torsion fatigue testing machine is used to test the overall strength of wheels under sudden braking in normal driving conditions.

Radial double hammer impact test machine for motorcycle light alloy wheel is used to simulate the impact of the wheels during the driving process through ditches and other undulating road surfaces, the test machine impact energy can be adjusted (by adjusting the weight and impact height to achieve).

Q1: What is ISO 3006:2015 and why is this test important?

A: ISO 3006:2015 is the global international standard defining laboratory fatigue test methods for passenger‑car road wheels. It includes dynamic cornering fatigue test and dynamic radial fatigue test. The test is highly critical: passenger‑car wheels undergo repeated cyclic bending and vertical loads during cornering, driving over potholes and uneven roads. Fatigue cracks can initiate even when working stress stays below the material’s static strength. This standard provides repeatable accelerated bench testing to validate wheel material, design and manufacturing quality before mass production, reduce real‑world wheel‑failure risks and support global component qualification and cross‑border trade.

Q2: What two core test methods are covered under ISO 3006:2015?

A: Dynamic cornering fatigue test: Simulates cyclic bending stress when vehicles turn. Two loading modes are acceptable: rotating wheel with stationary bending moment, or stationary wheel with rotating bending moment. Bottom‑clamping and top‑clamping fixture setups are both allowed.

Dynamic radial fatigue test: Simulates cyclic vertical road loads. The tyre‑wheel assembly rolls against a driven smooth drum. Dual‑fit wheels must be tested under single‑wheel mounting configuration.

Q3: What are ISO 3006 test‑termination conditions?

A: The test shall stop immediately if any of below two conditions appears:

The wheel cannot sustain applied test load (or cannot maintain tyre pressure for radial fatigue test).

New stress‑induced through‑section cracks occur, or pre‑existing cracks propagate through wheel cross‑section.

Per ISO 3006 definition, a crack means material separation propagating over 10 mm. Liquid penetrant inspection (ISO 3452‑1) can be used for crack detection.

Q4: What is the main difference between ISO 3006 and ISO 3894?

A: ISO 3006:2015: Applies exclusively for passenger‑car wheels, with different accelerated factors and cycle requirements for steel and aluminium passenger‑car wheels. It does not monitor nut torque decay as a stop criterion.

ISO 3894:2023: For commercial‑vehicle wheels (trucks, buses, trailers). It adds two extra termination conditions: abnormal fastener loosening and final torque falling below 70 % of initial torque.

Q5. What tyre pressure is used in the ISO 3006 radial test?

A: Cold inflation per Table 1: usage-load pressure ≤160 kPa → 280 kPa test; 161–280 kPa → 450 kPa; 281–450 kPa → 550 kPa. Pressure rise during running is normal; no adjustment needed.

Q6: Can I retighten wheel fasteners during ISO 3006 test?

A: Only one retightening operation is permitted in the early test phase, to compensate seating wear of contact surfaces. Initial tightening torque must strictly follow OEM specification for wheel bolts / nuts. No extra retightening cycles are allowed unless formally approved by vehicle / wheel manufacturer.

Q7: Why perform ISO 3006 bench fatigue test instead of only real‑road vehicle test?

A: Real‑world road testing is expensive, time‑consuming and suffers poor repeatability because road conditions vary. ISO 3006 lab‑bench test uses controlled accelerated cyclic loading. Engineers get consistent, comparable test data for material screening, prototype design iteration and batch‑quality audit within much shorter lead‑time. It does not fully replace road validation but is a mandatory pre‑qualification step for passenger‑car wheels.

Q8: Why choose ISO 3006 Passenger‑Car Wheel Fatigue Test Machine from UnitedTest?

A: UnitedTest manufactures ISO 3006:2015 passenger‑car wheel fatigue test machines. Our equipment performs dynamic cornering fatigue test and dynamic radial fatigue test for steel & aluminium passenger‑car wheels. Compatible with SAE J328, GB/T 5334‑2021. Custom fixtures & global technical support available.

As a professional automotive test‑equipment manufacturer, UnitedTest delivers full‑solution ISO 3006 test machines for wheel component factories, automotive OEM in‑house labs and independent third‑party test houses. Our test benches strictly follow ISO 3006:2015 technical requirements, covering both dynamic cornering fatigue test and dynamic radial fatigue test for passenger‑car disc wheels.

Our ISO 3006 dynamic cornering fatigue test system supports both bottom‑clamping and top‑clamping fixture configurations. It can realise two loading modes: stationary bending moment with rotating wheel, or rotating bending moment with stationary wheel. Closed‑loop bending‑moment control guarantees load accuracy within ±2.5 % tolerance, continuously monitoring wheel crack initiation during cyclic testing.

Our ISO 3006 radial fatigue tester adopts standard ≥1700 mm driven smooth drum, closed‑loop radial‑load control within ±2.5 % tolerance, integrated tyre inflation monitoring and multi‑level safety interlock functions, fully satisfying ISO 3006 radial fatigue specification requirements.

UnitedTest wheel test machines are also compatible with correlated regional standards including SAE J328, GB/T 5334‑2021 and JIS D4103. We provide custom‑designed wheel‑hub adaptor fixtures, on‑site installation, operator training and long‑term after‑sales support worldwide.

For wheel designers and quality managers, ISO 3006 fatigue testing verifies whether wheel materials, casting / forging / stamping manufacturing processes and bolt‑mounting structure resist cyclic road‑induced stress. It helps you mitigate on‑road wheel‑cracking safety risks and fulfil global market‑access requirements for passenger‑car wheel products.
