Model: UT1013, ISO 8644 Motorcycle- Light Alloy Wheels Impact resistance, ISO 7141

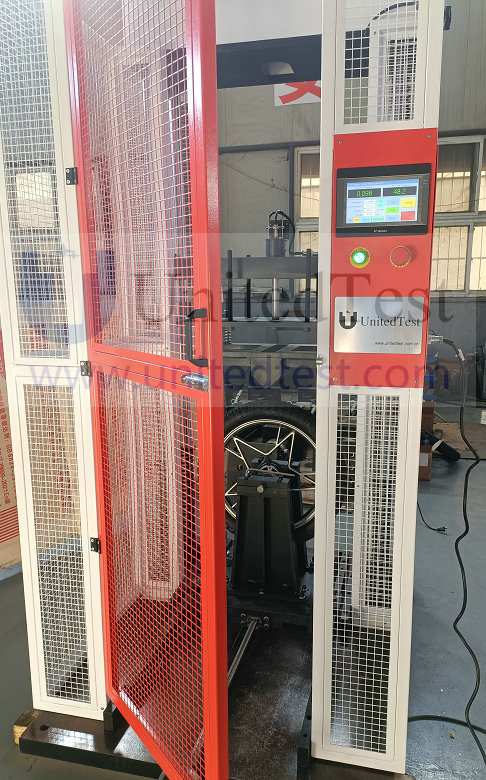

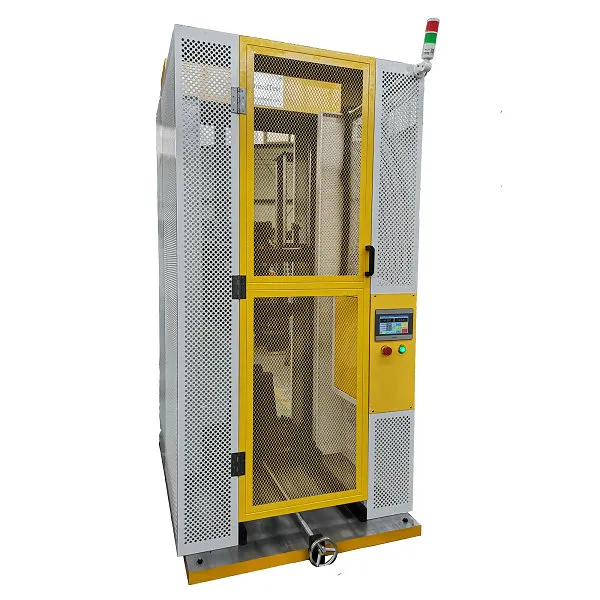

UT1013 Radial double hammer impact test machine for motorcycle light alloy wheel is used to simulate the impact of the wheels during the driving process through ditches and other undulating road surfaces, the test machine impact energy can be adjusted (by adjusting the weight and impact height to achieve), the system configuration adjusts the height of the screw and servo motor control height changes, high-precision encoder real-time display impact height, (after the input wheel diameter and impact height before the experiment, the system automatically adjusts to the preset position, the system automatically adjusts to the preset position, the system is a double-acting mechanism, the system is stable and reliable. (The protective door cannot be tested without closing, and the test cannot be carried out without lifting the insurance pin).
The test machine is mainly composed of the main host, parameter measurement display unit, strong electrical control unit, test accessories and so on.
ISO 7141 Road vehicles — Light alloy wheels — Lateral impact test
General introduction
UT1013 Radial double hammer impact test machine for motorcycle light alloy wheel is used to simulate the impact of the wheels during the driving process through ditches and other undulating road surfaces, the test machine impact energy can be adjusted (by adjusting the weight and impact height to achieve), the system configuration adjusts the height of the screw and servo motor control height changes, high-precision encoder real-time display impact height, (after the input wheel diameter and impact height before the experiment, the system automatically adjusts to the preset position, the system automatically adjusts to the preset position, the system is a double-acting mechanism, the system is stable and reliable. (The protective door cannot be tested without closing, and the test cannot be carried out without lifting the insurance pin).
The test machine is mainly composed of the main host, parameter measurement display unit, strong electrical control unit, test accessories and so on.

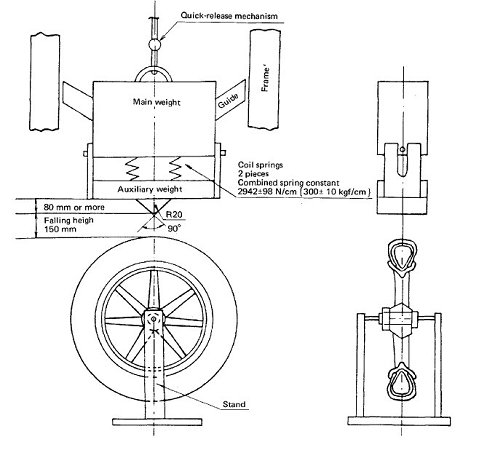

ISO 8644 wheel with tire impact resistance test

Key Features

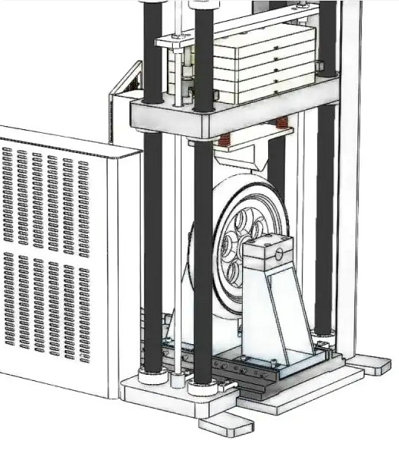

Host frame using a double column frame structure, the motor on the upper, through the servo motor to drive the screw rotation, thereby driving the lifting device up and down, the built-in photoelectric encoder accurately measure the height value, so as to ensure that the impact energy is accurate and reliable. Perfect measurement and control software, set the hub diameter and impact energy, the system automatically adjusted to the specified position.
- Vertical free‑fall steel striker with mass tolerance within +2 %
- Wheel tilt fixture adjustable to 13 ± 1 degree
- 1000 kg calibration set‑up for beam deflection check (7.5 ± 0.75 mm)
- Optional optical timing‑blade velocity measurement system per Annex A
- Real‑time data logging for drop height, impact velocity
- Safety protection interlock system for lab‑site operation
- Customizable fixtures for multi‑size passenger‑car wheels
1. QC/T211-1996 "Test Methods for Light Alloy Wheels for Motorcycles and Mopeds"
2. QC/T212-1996 General Technical Conditions for The Overall Wheels of Motorcycles and Mopeds
3. ISO 8644-2006 Motorcycle- Light Alloy Wheels - Test Methods
4. GB/T22435-2008 Motorcycle and Moped Light Alloy Wheels
5. JASO T203-2005 Motorcycle Light Alloy Wheels
6. GB/T6147-92 "Test machine packaging, packaging marks, storage and transportation technical requirements"
7. ISO 7141 Road vehicles — Light alloy wheels — Lateral impact test
The release of the impact hammer, by electromagnetic iron traction, and release, electronic control system control circuit set limit switch, the guard door does not close, can not carry out impact test, electromagnetic iron end set safety pin, before the impact first to pull out the operation, lift the safety pin can make electromagnetic iron traction, and release the impact hammer, safety pin lifted after the system will trigger (sound and light alarm), prompt to prepare for the impact.
with a secondary impact device, in order to achieve the second impact on the wheel, at the same time equipped with a 30-degree impact bracket (this bracket angle can be free adjusting), users can choose according to different standards. (optional) The protective net is used to ensure the safety of the test.

Motorcycle manufacturers: Test the product quality of wheel suppliers to ensure compliance with the durability requirements of the complete vehicle.
Passenger car manufacturers: Assess the dynamic rotational bending fatigue strength of wheels when cornering.
Third-party testing agencies: Provide wheel fatigue performance certification services to help companies meet industry access standards.
Main technical specification
| Main impact hammer mass | 100kg |
| Secondary hammer mass | 40kg |
| Impact hammer head width | 300mm |
| Impact hammer maximum displacement | not less than 40mm |
| Wheel mount bracket adjustable | no less than 260mm |
| Spring total stiffness | 300±10kgf/cm |
| Weight size | 40kg x 2, 30kg x 3, 20kg x 3, 10kg x 3, 5kg x 2(used to add the different impact hammer weight) |
| Maximum hammer load | 370kg |
| Suitable for the outer diameter of the wheel | 260 to 800mm (with tire) |
| Motor power | 5Kw |
| Power supply | 220V, 50HZ |
| Dimensions | 1300*1000*2100 |
| Weight | 1100Kg |
Main accessories (Standard delivery with machine)
| Frame | 1 set |
| Lift screw | 1 set |
| Lifting mechanism | 1 set |
| the electronic cabinet | 1 set |
| Color touch screen | 1 set |
| electromagnetic iron and accessories | 1 set |
| servo motor | 1 set |
| impact hammer | 1 set |
| test accessories | 1 set |
| Safety guard | 1 set |
| Documents (Manual, packing list, certificate) | |

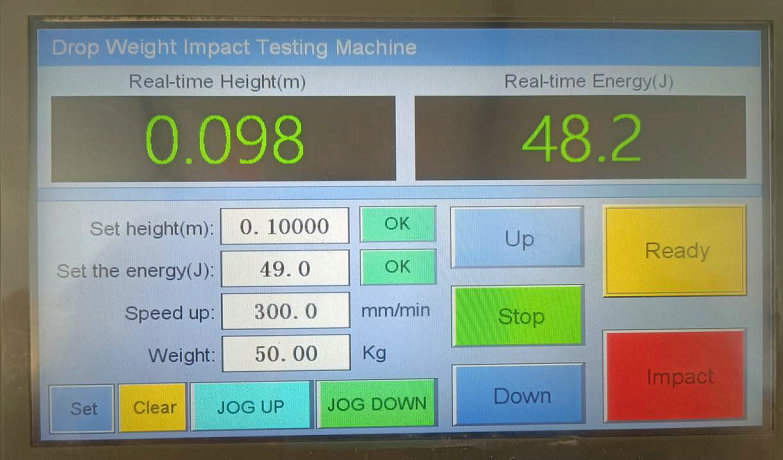

Touching screen operation, set the test height, weight.
Sensitive sensor for safety replease the hammer.
Lock pin and impact (de-pin) of the hammer are completed by the touch-screen-controlled electromagnet valve.
Standard
ISO 3894 Road vehicles‑Wheels/rims for commercial vehicles‑Test methods
ISO 3894 defines two standardized laboratory fatigue test methods for disc wheels of commercial vehicles, buses, trailers and multi‑purpose passenger vehicles, to evaluate wheel fatigue strength under simulated road service conditions. Its purpose is to give wheel and vehicle manufacturers a uniform way to evaluate certain fatigue‑strength characteristics, so wheels from different suppliers/regions can be compared.
ISO 3006 Road vehicles — Passenger car wheels for road use — Test method
ISO 3006 defines two standardized laboratory fatigue test methods for passenger‑car road wheels, to assess wheel fatigue strength under simulated real‑driving cyclic loads. It contains two methods only: dynamic cornering fatigue and dynamic radial fatigue.
ISO 3006 applies for passenger‑car wheels only, while ISO 3894 targets commercial‑vehicle (truck, bus, trailer) wheels.
ISO 7141 Road vehicles — Light alloy wheels — Lateral impact test
ISO 7141 evaluates wheel performance when striking a kerb, for screening and quality‑control purposes for passenger‑car and special‑vehicle light‑alloy wheels. It is intended for passenger car applications, and special vehicle applications where there is a possibility of the wheel impacting the kerb, with the purpose of screening and/or quality control of the wheel.
ISO 10191 Passenger car tyres — Verifying tyre capabilities — Laboratory test methods
ISO 10191 specifies laboratory test methods for verifying structural capability of passenger‑car pneumatic tyres, covering radial, diagonal / bias‑belted, and T‑type temporary‑use spare tyres. It includes five core test groups: endurance test, low‑pressure performance test (radial‑only), high‑speed test, strength test, bead‑unseating test (tubeless‑only).
ISO 8644 Motorcycles — Light-alloy wheels — Test method
ISO 8644 defines laboratory performance test methods for motorcycle light‑alloy road wheels under simulated real‑road service conditions. It is applicable to wheels for motorcycles with two or three wheels (including motorcycles equipped with side-cars) as defined in ISO 3833, of the following types: unit construction light-alloy wheels; andcomposite construction light-alloy wheels.
