ISO 10471 GRP Pipe Long-Term Bending Strain Tester | UnitedTest

UnitedTest manufactures testing machines complying with ISO 10471 for glass-reinforced thermosetting plastics (GRP) pipes. ISO 10471 covers laboratory testing and calculation methods to extrapolate long-term ultimate ring bending strain and relative ring deflection under fully immersed wet conditions using plate loading or beam-bar loading for creep-rupture evaluation.

ISO 10471 Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the long-term ultimate bending strain and the long-term ultimate relative ring deflection under wet conditions

ISO 10471 defines laboratory test and calculation methods to extrapolate long‑term ultimate ring‑bending performance for GRP (fiberglass‑reinforced thermoset) pipes under fully immersed wet service conditions. Two alternative diametral compressive loading approaches are specified: plate loading and beam‑bar loading.

It is a constant‑load creep‑rupture test on full pipe rings fully immersed in water, from which the strain (or deflection) at failure versus time‑to‑failure is measured and extrapolated (log–log regression) to a design life x — typically 50 or 100 years. UnitedTest supplies professional ISO 10471 compliant test equipment for GRP pipe manufacturers and material testing laboratories.

Test Principle

Short‑term failure data cannot directly represent multi‑decade underground wet‑service behaviour of GRP pipes.

1. Cut GRP pipe‑ring specimens are horizontally mounted and subjected to constant vertical compressive force while fully immersed in temperature‑controlled water.

2. Under sustained load, vertical diametral deflection increases over time until structural failure (loss of load‑carrying capacity) occurs. Record each specimen’s time‑to‑failure and ultimate failure deflection.

3. Convert measured failure deflection into ultimate bending strain, using dedicated formulae for crown/invert failures or spring‑line failures; waterproof strain gauges or deflection‑strain calibration curves may also be used.

4. Apply regression analysis per ISO 10928 on log‑strain versus log‑time‑to‑failure datasets. Extrapolate test data to get the long‑term ultimate bending strain for a defined service life (x‑years). The corresponding long‑term ultimate relative ring deflection can be further calculated from strain values.

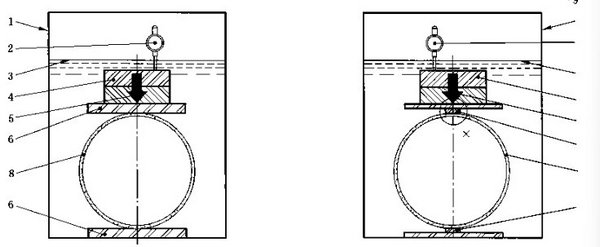

Test methods — the two loading modes

	Plate loading	Beam‑bar loading
Contact element	Rigid bearing plate	Rigid beam bar with a flat face
Width	≥ 100 mm	15 mm – 55 mm flat face, no sharp edges
Length	≥ specimen length	≥ specimen length
Use	Relative vertical deflection up to 28 %	Required (at least one bar) when 28 % is expected to be exceeded
Stiffness	No visible bending/deformation during test	Same, and no part of the bar structure may touch the specimen

ISO 10471 GRP Pipe Long-Term Ring Bending Strain Test equipment required:

Ring Stiffness Compression Testing Machine	Delivers shock‑free constant vertical compressive force for long‑duration testing; must eliminate buoyancy and friction interference. Automatic recording instruments are recommended especially for fast‑failure specimens (failure <100 h).
Force‑application surfaces	Bearing plates: Minimum width 100 mm, length ≥ specimen length, high rigidity to avoid bending during test. Beam bars: Rigid bars with flat contact face (width 15 mm‑55 mm), length ≥ specimen length, sharp edges removed.
Water container	Holds fully submerged specimens; maintains stable water level, controlled test temperature and specified water pH value.
Measuring devices	Dimensional instruments: ±1 % accuracy of measured value for length, wall thickness, diameter (per ISO 3126). Deflection sensors: ±1 % accuracy of initial deflection; resistant to aqueous corrosive environment. Load sensors: ±1 % accuracy of applied compressive force.

Test Specimen Information

Specimen type: Complete cut pipe rings.
Length: If not specified by referring product standard: 300 ± 15 mm, permissible tolerance ±5 %. Ends shall be smooth, perpendicular to pipe axis, and may be sealed.
Quantity: Minimum 18 specimens, unless specified otherwise. Exception: If 16 specimens fail and two remain unfailed after >10 000 h exposure, those two long‑run specimens may be included for extrapolation when dataset meets statistical distribution requirements.

Key Test Parameters & Stipulations

Extrapolation target service time x (design service life in years).
Test water temperature.
Test‑water pH.
Specimen length and specimen quantity.
Required statistical distribution of failure times.

Test Procedures of ISO 10471 GRP Pipe Long-Term Ring Bending Strain Test:

Pre‑measure all specimens’ dimensions according to ISO 3126, compute mean wall thickness e and mean diameter d_m. Perform pre‑conditioning if required.
Measure initial specific ring stiffness S0 for every specimen following ISO 7685, to estimate required compressive load to achieve target failure‑time distribution.
Mount pipe‑ring specimen horizontally onto plate / beam‑bar supports, align reference lines vertically, place assembly inside water tank.
Fill tank to fully immerse specimen, stabilise water temperature and pH to specified conditions.
Apply vertical compressive force F, achieve target deflection within 3 min; record actual applied load and achieved deflection.
Keep force constant; record elapsed time and deflection at scheduled time intervals. Record time‑to‑failure t_u and ultimate wet deflection y_u,wet upon specimen failure.
Repeat testing until sufficient valid failed specimens are obtained (normally ≥18; allow the special 16‑fail‑plus‑two‑long‑run exception).
Convert each failure deflection value into ultimate wet bending strain, using formulae or pre‑determined deflection‑strain calibration curves.
Process strain‑time‑to‑failure dataset with ISO 10928 regression method, perform log‑log extrapolation to obtain x‑year long‑term ultimate wet bending strain. Compute corresponding long‑term ultimate relative ring deflection if required.

Related Test Standard:

ASTM D2412	Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
ISO 9969	Thermoplastics pipes — Determination of ring stiffness
ISO 9967	Thermoplastics pipes - Determination of creep ratio
GB/T 9647	China standard: Thermoplastics pipes—Determination of ring stiffness
ISO 10471	Long-term ultimate bending strain / ultimate relative ring deflection under wet conditions — the long-term analogue of the Level-2 damage limit; also uses the 28 % beam-bar rule
ISO 10466	Plastics piping systems - Glass-reinforced thermosetting plastics (GRP) pipes - Test method to prove the resistance to initial ring deflection
ISO 8521	Glass-reinforced thermosetting plastic (GRP) pipes — Test methods for the determination of the initial circumferential tensile wall strength
ISO 8513	Plastics piping systems — Glass-reinforced thermosetting plastics (GRP) pipes — Test methods for the determination of the initial longitudinal tensile strength
ISO 10468	Long-term counterpart: ring creep properties under wet or dry conditions, creep factor αₓ,creep, extrapolation to 50 years
ISO 13967	Thermoplastics fittings - Determination of ring stiffness
ISO 13268	Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics shafts or risers for inspection chambers and manholes — Determination of ring stiffness
EN 1226	Plastics piping systems. Glass- reinforced thermosetting plastics (GRP) pipes. Test method to prove the resistance to initial ring deflection.
JIS K 7038	Plastics piping systems -- Glass-reinforced thermosetting plastics (GRP) pipes -- Test method to prove the resistance to initial ring deflection
ASTM F2433	Standard Test Method for Determining Thermoplastic Pipe Wall Stiffness
ISO 13968	Plastics piping and ducting systems. Thermoplastics pipes. Determination of ring flexibility
DIN 16961	Thermoplastics pipes and fittings with profiled wall and smooth pipe inside
EN 1228	European method for initial specific ring stiffness, cited alongside ISO 7685
ISO 7685	Glass-reinforced thermosetting plastics (GRP) pipes — Determination of initial ring stiffness
EN 1446	Plastics piping and ducting systems - Thermoplastics pipes - Determination of ring flexibility
AS/NZS 1462.22	Methods of test for plastics pipes and fittings Method 22: Thermoplastics pipes – Determination of ring stiffness

Industry Applications

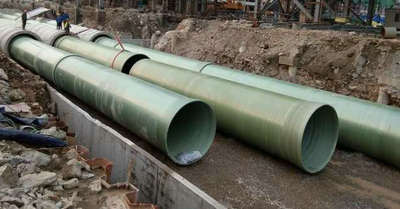

Municipal underground non‑pressure sewer, drainage and storm‑water pipelines.
Buried gravity‑flow water‑supply pipelines.
Agricultural irrigation pipelines.
GRP pipe product development, factory quality‑control, third‑party laboratory certification.
Structural design and service‑life assessment for buried GRP pipes under long‑term external soil loading in wet underground environment.
Provide critical input data for GRP product‑standard compliance verification and engineering specification selection by design engineers.

ISO 10471 GRP Pipe Long-Term Ring Bending Strain Test

Keywords: ISO 10471,GRP pipe long term bending strain test,GRP pipe wet ring deflection test,glass reinforced thermosetting plastic pipe creep rupture test,fiberglass pipe long-term performance test,constant load creep rupture tester,GRP pipe immersed water test,plate loading pipe test,beam-bar loading pipe test,log-log regression pipe extrapolation,GRP pipe design life test,plastic piping long-term durability test,UnitedTest GRP pipe testing machine,thermoset composite pipe ring test,pipe ring deflection extrapolation measurement,GRP pipe quality control lab equipment

pipe ring stiffness test machine is used to determine the ring stiffness of circular cross-section thermoplastic pipes, according customer’s request, it can also execute compression, ring stiffness, ring softness and creep ratio test.

Q1: What is ISO 10471 test for?

A: ISO 10471 is an international lab test standard for GRP (fiberglass‑reinforced thermoset) pipes. It measures and extrapolates long‑term ultimate ring bending strain and long‑term ultimate relative ring deflection under fully wet immersed conditions. It predicts multi‑year service failure risk for buried gravity‑flow GRP sewer / drainage pipes using constant‑load water‑immersed ring‑compression testing plus log‑log regression extrapolation.

Q2: Why is ISO 10471 test so important for GRP pipe material?

A: Buried GRP pipes stay wet underground for decades. Water penetrates pipe wall and degrades resin‑fibre bonding, reducing long‑term bending strength significantly compared to short‑term dry lab test results. Short‑term burst or ring‑stiffness tests cannot reflect real‑world long‑term creep‑failure risk. ISO 10471 delivers the core design input: allowable long‑term bending strain, so civil engineers set safe installation deflection limits and avoid pipe ring cracking or collapse after many service years. It is also mandatory for many GRP pipe product certification programs.

Q3: What are the two loading methods defined in ISO 10471? When shall I use beam‑bar loading?

A: Two loading configurations: bearing plates loading and beam‑bar loading. If expected relative vertical deflection ≤ 28 %, plates or beam‑bars are both acceptable. If expected relative deflection exceeds 28 %, at least one beam‑bar must be used, to prevent artificial local flattening and invalid test data. Beam‑bars have flat contact face width 15 mm‑55 mm and full specimen‑length rigidity.

Q4: How many test specimens (pipe rings) are required for ISO 10471 testing?

A: Normally minimum 18 pipe‑ring specimens. There is one special exception: when 16 specimens have failed, and 2 specimens run > 10 000 h without failure, those two non‑failed specimens can be included for extrapolation if the dataset meets required time‑to‑failure statistical distribution from referencing product standards.

Q5: What does “failure” mean under ISO 10471 definition?

A: Failure means loss of structural integrity of pipe ring specimen; the test piece can no longer sustain the applied constant compressive load. Time‑to‑failure t_u is the elapsed hours until failure. Automatic recording is preferred; if no auto‑system, take last valid deflection‑time reading just before failure happens.

Q6: Why test specimens must be fully immersed in water? Can I run ISO 10471 under dry condition?

A: ISO 10471 simulates permanently wet underground service environment. Water immersion accelerates resin‑matrix hydrolysis and fibre‑matrix interface degradation. Dry‑condition equivalent test is ISO 7684, not ISO 10471. Test water temperature and pH shall follow requirements of your referencing product standard and be fully documented in test report.

Q7: How do we get x‑year long‑term strain result from short‑term lab failure data?

A: You collect each specimen’s failure bending strain (%) and corresponding time‑to‑failure tu hours). Process log₁₀ (strain) vs log₁₀ (time‑to‑failure) regression strictly following ISO 10928 regression‑analysis rules. Extrapolate regression line to target service life (x‑years, converted into hours). Standard note: extrapolation on strain data is more accurate than directly extrapolating deflection values.

Q8: What is spring‑line failure and crown/invert failure difference for calculation?

A: Crown/invert failure occurs at pipe top / bottom position; spring‑line failure occurs at horizontal side positions of pipe ring. Two different strain‑factor D_g formulae are used for calculating ultimate bending strain. ISO 10471:2018 added explicit calculation rules for spring‑line failures. Failure location must be recorded for every specimen in test report.

Q9: Why strain rather than stress?

A: Wall construction varies hugely (liner, chopped‑strand core, hoop/axial windings, sand fill), so stress at a given deflection changes from product to product while failure strain stays comparatively constant within a laminate family. Strain is the transferable design parameter.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
