ISO 7685 GRP Pipe Initial Ring Stiffness Test

ISO 7685 is the international standard specifying two standardized compression test procedures for measuring the initial ring stiffness (S₀) of circular glass‑reinforced thermosetting plastics (GRP / FRP) pipes. This test assesses the pipe’s resistance to radial deformation when subjected to short‑term vertical external loads, a vital performance indicator for buried GRP pipeline projects.

The two alternative compression methods defined in ISO 7685 deliver reliable initial ring stiffness S₀ data for quality verification, material formulation development and third‑party laboratory assessment of fiberglass‑reinforced plastic pipes.

UnitedTest manufactures professional GRP pipe ring stiffness testing machines fully compliant with ISO 7685. Our test equipment accurately captures radial deformation under short‑term compression loads, supporting GRP pipe factory QC, civil engineering laboratory testing and new product validation.

Test Principle & Test Method

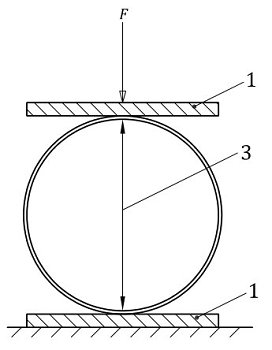

A cut GRP pipe ring specimen is horizontally positioned between parallel flat plates or beam bars and vertically compressed. Two equally valid testing methodologies are provided within 2.5%–3.0% relative deflection limits:

The standard defines two alternative methods, both valid within the specified deflection limits:

Method A	Constant Load	Load is applied to achieve 2.5%–3.0% relative deflection within 60 s ± 10 s, then the load is held constant for 2 minutes. The deflection at the end of the holding period is recorded.
Method B	Constant Deflection	Load is applied to achieve 2.5%–3.0% relative deflection within 60 s ± 10 s, then the deflection is held constant for 2 minutes. The load at the end of the holding period is recorded.

Test Equipment Required for ISO 7685 Glass-Reinforced Thermosetting Plastics GRP Pipe Initial Ring Stiffness Test:

Ring Stiffness Compression Testing Machine

Servo-controlled compression tester delivering shock-free vertical force, with load accuracy ±1% of full scale maximum load.

It must support stable constant load holding (Method A) and fixed deflection locking (Method B).

UnitedTest manufactures universal ring stiffness testers fully compatible with ISO 7685, ISO 9969 and ISO 10468 GRP creep tests.

ISO 9969 Ring stiffness testing for plastic pipe

Load Application Surfaces

1, Parallel Flat Plates: Minimum width 100 mm, length ≥ specimen length; parallelism tolerance ≤1 mm/m (1:1000 gradient), rigid to avoid bending under test load.

ISO 7685 Glass-Reinforced Thermosetting Plastics GRP Pipe Initial Ring Stiffness Test

2, Beam Bars with rounded edges:

DN ≤ 300 pipes: 20 ±2 mm flat contact width

DN > 300 pipes: 50 ±5 mm flat contact width

One plate + one beam bar combination is also permitted.

Pipe inner diameter deformation Measuring Devices

For length, diameter, and wall thickness: accuracy of ±0.1 mm.

For deflection measurement: accuracy of ±1.0% of the maximum value.

Test Specimen Information

Form: A complete ring cut from the pipe to be tested.

Length: As specified in the referring standard (±5% tolerance). If unspecified: 300 mm ± 15 mm.

Cut quality: Ends must be smooth and perpendicular to the pipe axis.

Reference lines: Straight lines drawn on the inside or outside along the pipe length at 60° intervals around the circumference (6 lines total), serving as positioning references.

Number of test pieces: As specified by the referring standard. If unspecified: one per pipe size.

Dimensions to measure (per ISO 3126):

Length (L): Measured along each of the 6 reference lines; averaged → L.

Wall thickness (e): Measured at each end of each reference line (12 values total); averaged → e.

Mean diameter (dm): Either internal diameter (di) or external diameter (de) measured at mid-length; then dm=di+e or dm=de−e.

Core Test Parameters & Test Stipulations

Target relative deflection	2.5% ~ 3.0% of mean diameter d<span mathnormal mtight">m
Loading ramp duration to target deflection	60 ±10 seconds
Constant load / constant deflection holding time	2 minutes
Preload value for specimen centering	DN100–DN450: 15 ±5 N; DN ≥500: 100 ±10 N
Parallelism tolerance of plates/bars	≤ 1 mm/m
Load measurement accuracy	±1% full scale
Deflection measurement accuracy	±1% full deflection range
Test recovery interval between orientation tests	Minimum 15 minutes (dispute condition)

Testing positions: Conduct the test at each pair of reference lines (i.e., 3 positions around the circumference). Allow the test piece to recover between tests; in dispute cases, wait 15 minutes between tests.

Validity limit: The calculation method does not account for shear deformations and is therefore only valid for pipes with stiffness classes up to SN 10000.

Test Report Mandatory Content: Standard reference (ISO 7685), pipe identification, specimen dimensions, fixture type (plate/beam bar), test temperature, method A/B selection, load-deflection raw data, individual and average stiffness values, test anomalies, test date.

Step-by-Step Test Procedures of ISO 7685 Glass-Reinforced Thermosetting Plastics GRP Pipe Initial Ring Stiffness Test

Specimen Positioning: Align one pair of diametric reference lines against plates/beams, ensure horizontal centering with no lateral tilt.

Preload & Tare: Apply size-specified preload, fully zero/tare both load and deflection sensors (no load reduction after preload to eliminate machine backlash errors).

Compression Ramp: Increase force steadily to reach 2.5%–3.0% relative deflection within 60±10 seconds.

Hold Stage (Method A or B):

A: Lock load constant for 2 min; record deflection at holding end

B: Lock deflection constant for 2 min; record residual load at holding end

Multi-orientation Repeat: Rotate specimen to test all three pairs of reference lines, allow full elastic recovery between each test (15 min minimum for disputes).

Calculation: Compute initial ring stiffness S₀ for each orientation, average three results as final pipe initial ring stiffness.

Related Test Standard:

ISO 9969	Thermoplastics pipes — Determination of ring stiffness
ASTM D2412	Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
ISO 10471	GRP pipes — Determination of long-term extreme bending strain and relative ring deflection under wet conditions
ISO 11296-3	Plastics piping systems for renovation of underground drainage — Part 3: Lining with close-fit pipes
ISO 13268	Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics shafts or risers for inspection chambers and manholes — Determination of ring stiffness
ISO 10468	GRP pipe ring creep test (long-term deflection prediction under sustained load), analogous to ISO 9967 for thermoplastics; initial ring stiffness from ISO 7685 is core input for creep factor calculations.
ISO 7685	Glass-reinforced thermosetting plastics (GRP) pipes — Determination of initial ring stiffness
EN 1228	Glass-reinforced thermosetting plastics (GRP) pipes - Determination of initial specific ring stiffness
JIS K 7032	Plastics piping systems -- Glass-reinforced thermosetting plastics (GRP) pipes -- Determination of initial specific ring stiffness

Industry Applications

GRP pipes are widely used in demanding fluid transport applications where high strength-to-weight ratio, corrosion resistance, and long service life are essential. ISO 7685 testing is critical in:

Water & wastewater management: Buried sewage and stormwater drainage pipelines must resist soil pressure without excessive deformation.

Industrial piping: Chemical plants, desalination facilities, and power plant cooling water systems.

Oil & gas: Onshore and offshore flowlines, firewater mains.

Infrastructure & civil engineering: Culverts, duct banks, trenchless rehabilitation liners.

Marine & offshore: Seawater intake/discharge lines, ballast systems.

Keywords: ISO 7685 initial ring stiffness test, GRP pipe ring stiffness tester, FRP pipe compression testing machine, ISO 7685 GRP pipe test equipment, ISO 7685 test for initial ring stiffness S₀ of GRP pipes, compression test machine for glass‑reinforced thermosetting plastics pipes, radial deformation resistance tester for circular FRP pipes ISO 7685, UnitedTest ISO 7685 compliant GRP pipe testing system, short‑term vertical load ring stiffness test for buried GRP pipelines

pipe ring stiffness test machine is used to determine the ring stiffness of circular cross-section thermoplastic pipes, according customer’s request, it can also execute compression, ring stiffness, ring softness and creep ratio test.

ISO 7685 GRP Pipe Initial Ring Stiffness Testing Machine Manufacturer | UnitedTest FRP Pipe Tester

UnitedTest is professional ISO 7685 ring stiffness testing machine manufacturer for GRP/FRP composite pipes. Our RST series testers fully comply with ISO 7685:2026, ISO 9969, ISO 10468, ASTM D4161 and EN 1446 standards. Integrated machine supports constant load Method A & constant deflection Method B for GRP pipe initial ring stiffness test, with interchangeable plate and beam bar fixtures. Custom 20kN/50kN/100kN/200kN load capacity for DN50–DN4000 large diameter FRP pipes, factory direct supply, OEM ODM available with global after-sales service.

Q1: What is ISO 7685?

A1: ISO 7685 is the latest 3rd-edition international standard developed by ISO/TC 138/SC6 for glass-reinforced thermosetting plastic (GRP/FRP) pipes. It defines two equal-valid compression test methods (Method A constant load, Method B constant deflection) to measure initial ring stiffness (S₀), the core mechanical index reflecting GRP pipe’s resistance to radial deformation under external soil load. UnitedTest’s composite pipe ring stiffness tester fully meets all clauses of this standard.

Q2: Why is ISO 7685 initial ring stiffness testing extremely important for GRP pipes & materials?

A2: Underground pipeline structural safety guarantee: Buried GRP pipes bear long-term soil backfill load; insufficient initial ring stiffness leads to severe ovalization, joint separation, leakage or pipe collapse during service life.

Mandatory civil engineering design parameter: Municipal and industrial pipeline designers rely on ISO 7685 stiffness values to calculate maximum burial depth, backfill compaction requirements and pipe-soil interaction.

GRP material & structural R&D baseline: Manufacturers adjust glass fiber winding angle, fiber content, wall thickness and resin formula using ISO 7685 data to balance mechanical performance and production cost.

Global product certification pass requirement: Third-party type testing, municipal project tender inspection, cross-border import & export customs all require valid ISO 7685 test reports for GRP pipes.

Foundational data for long-term creep prediction: Initial ring stiffness results from ISO 7685 are essential input parameters for ISO 10468 GRP pipe creep test to forecast multi-decade long-term deflection.

Distinguish GRP composite vs thermoplastic pipe performance: Unlike flexible HDPE/PVC pipes tested under ISO 9969, rigid GRP has minimal creep; ISO 7685’s 2-minute static holding step captures its unique short-term relaxation property that ISO 9969 cannot measure.

Q3: What mandatory requirements for ISO 7685 test specimens?

A3: Specimen type: Complete pipe ring cut from finished GRP pipe, cut ends smooth and perpendicular to pipe axis.

Standard length: 300±15 mm if no referencing product standard specifies otherwise, length tolerance +5%.

Marking: Draw 6 reference lines evenly at 60° intervals around circumference for 3-direction repeated testing.

Specimen quantity: Minimum 1 piece per pipe size when no specified requirement from product standard.

Q4: What is the difference between ISO 7685 (GRP) and ISO 9969 (thermoplastic) ring stiffness test?

A4: Test object: ISO 7685 for rigid GRP/FRP reinforced thermosetting pipes; ISO 9969 for flexible HDPE/PVC/PP thermoplastic pipes.

Test procedure core difference: ISO 7685 adds a mandatory 2-minute static holding stage to capture GRP’s slight viscoelastic relaxation; ISO 9969 runs continuous speed compression without load/deflection hold.

Fixture option: ISO 7685 allows beam bar contact besides flat plates; ISO 9969 only uses flat parallel plates.

Preload rule: ISO 7685 specifies DN-dependent preload values; ISO 9969 has no separate preload standard.

Application linkage: ISO 7685 data feeds ISO 10468 GRP creep test; ISO 9969 data feeds ISO 9967 thermoplastic creep test.

UnitedTest integrated tester covers both standards to cut lab equipment procurement cost.

Q5: Which industries need ISO 7685 testing?

A5: GRP/FRP pipe manufacturing factories for batch quality control and new composite material R&D.

Third-party certification laboratories for type testing, export inspection and municipal tender compliance.

Municipal engineering institutes, highway & tunnel construction units for buried pipeline design verification.

Industrial wastewater, chemical plant, landfill leachate pipeline project inspection departments.

University composite material research labs for glass fiber reinforced plastic mechanical performance study.

Q6: What is the purpose of the preload?

A6: The preload eliminates slack and ensures uniform contact between the specimen and the load surfaces. Per the 2019 edition (retained in 2026):

DN 100 to DN 450: 15 N ± 5 N

DN ≥ 500: 100 N ± 10 N

After applying preload, both load and deflection are tarred (zeroed) before the actual test begins. The load must not be reduced after preload to avoid machine backlash errors.

Q7: Why is the test performed at multiple positions around the circumference?

A7: GRP pipes are anisotropic — their reinforcement structure gives them direction-dependent properties. Testing at three pairs of reference lines (rotated 60° each time) captures this directional behavior and provides a more representative stiffness characterization.

Q8: Why Choose UnitedTest ISO 7685 GRP pipe ring stiffness testing machine?

A8: UnitedTest is a leading specialized manufacturer of composite pipe mechanical testing equipment, flagship product ISO 7685 GRP pipe ring stiffness testing machine fully aligned with the latest ISO 7685:2026 international standard for glass-reinforced thermosetting plastic FRP pipes. Our all-in-one test system also supports ISO 9969 thermoplastic pipe stiffness test and ISO 10468 GRP long-term creep test, meeting global laboratory and factory testing demands for municipal, industrial buried composite pipelines.

Our RST series GRP ring stiffness tester covers full pipe diameter range: small DN50–DN630 compact model, medium DN630–DN1500 standard model, extra-large DN1500–DN4000 oversized machine for big winding GRP sewer pipes. Multiple load capacity options (20kN, 50kN, 100kN, 200kN) fit all SN-class GRP pipes from SN2 up to SN10000 as specified in ISO 7685.

Core Advantages of UnitedTest ISO 7685 Compliant Tester

1, 100% Full Compliance with ISO 7685:2026 Clauses

Servo closed-loop control system accurately realizes two official test methods: Method A constant load holding and Method B constant deflection locking for 2 minutes. Interchangeable flat plates and standard beam bar fixtures meet fixture width and parallelism tolerance (≤1mm/m) requirements. High-precision load cell (±1% FS accuracy) and displacement sensor (±1% deflection precision) eliminate measurement error; built-in professional software auto-calculates initial ring stiffness S₀ with the standard correction formula and exports standardized PDF ISO test reports with raw load-deflection data.

2, Dual Standard Integrated Design: ISO 7685 + ISO 9969 + ISO 10468

Single machine completes GRP composite pipe initial ring stiffness test, HDPE/PVC thermoplastic pipe ring stiffness QC test and long-term GRP creep performance test without extra fixture replacement, drastically cutting laboratory equipment investment cost for pipe manufacturers and third-party certification labs. Heavy-duty rigid frame ensures stable long-duration load holding required by both ISO 7685 and ISO 10468.

3, Specialized Fixture for GRP Pipe Test

Equips matched beam bar accessories dedicated for FRP pipes, with size-specified flat contact width for DN≤300 and DN>300 pipes as required by ISO 7685, avoiding uneven contact and invalid test results. All contact surfaces are smooth, rigid and parallel to standard requirements.

4, Wide Application Compatibility for All GRP Pipes

Suitable for all glass fiber reinforced thermosetting pipelines: winding GRP sewer pipe, filament wound FRP drainage pipe, chemical corrosion-resistant GRP industrial fluid pipe, landfill leachate pipe, highway culvert composite pipe, irrigation large-diameter GRP mains.

5, Global Customization & Complete After-sales Support

UnitedTest accepts OEM & ODM customization: custom test chamber stroke, load range, extra-large test space for oversized GRP pipes and special fixtures matching regional testing standards. We provide door-to-door installation, on-site operator training, 24-month full warranty and overseas engineer after-sales service for Europe, Southeast Asia, Middle East, Australia and South American GRP pipe factories & inspection laboratories.

Target Customers of UnitedTest ISO 7685 GRP Pipe Test Equipment

GRP/FRP composite pipe production factories for daily ring stiffness quality inspection and new glass fiber composite material formula R&D

Third-party testing & certification laboratories for ISO standard type testing and import & export commodity inspection

Municipal engineering design institutes, chemical plant pipeline departments, highway tunnel construction units for buried composite pipe performance verification

If you are searching for reliable ISO 7685 GRP pipe ring stiffness tester manufacturers, FRP initial ring stiffness testing machine, ISO 10468 GRP creep test equipment, large diameter winding FRP pipe stiffness test machine, contact UnitedTest for free technical consultation and factory direct quotation.
