ASTM D2412 Parallel‑Plate Loading Test for Plastic Pipe External Loading Characteristics

ASTM D2412 is the widely‑adopted standard test method for measuring load‑deflection performance of plastic pipe under parallel‑plate compression loading. This standard applies to multiple pipe categories, including thermoplastic resin pipe, reinforced thermosetting resin pipe (RTRP), and reinforced polymer mortar pipe (RPMP).

For valid ASTM D2412 testing, the outer dimension of the test pipe shall be at least 0.5‑inch smaller than the overall size of the two compression platens. Both circular and square platens are acceptable per specification, while square platens are the most common selection in industrial labs. Operators need to compensate for slight outward expansion at the pipe mid‑section occurring during compression.

Key pipe performance parameters derived from ASTM D2412 tests include pipe stiffness, stiffness factor, and load values at defined deflection levels. These critical data support product quality control, material qualification, and design validation for buried plastic piping systems.

UnitedTest supplies high‑precision plastic pipe compression testing machines fully compliant with ASTM D2412. Our parallel‑plate loading test systems accurately capture load‑deflection curves, delivering repeatable measurements for pipe stiffness, stiffness factor and deflection‑specific load for thermoplastic, RTRP and RPMP pipes.

Test Principle

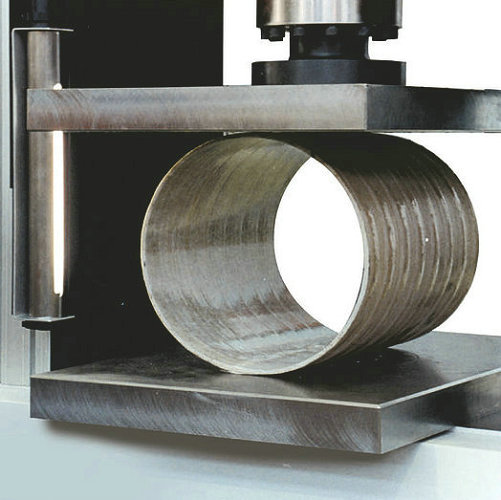

A short length of pipe is compressed between two rigid parallel flat plates at a controlled, constant rate of approach. During loading, load-versus-deflection data of the pipe diameter are recorded continuously (or at intervals). If significant events such as cracking, crazing, delamination, or rupture occur, the corresponding load and deflection are captured.

Horizontal pipe specimen compressed vertically between two rigid parallel steel plates at a fixed constant crosshead speed (12.5 mm/min / 0.50 in/min).

ASTM D2412 Plastic Pipe Deflection Testing by Compression Loading Test

The key measured quantities are:

Pipe Stiffness (PS) — the resistance of the pipe to diametric deflection

Stiffness Factor (SF = EI) — the product of flexural modulus and wall moment of inertia

Load at specific deflections — e.g., at 5% or 10% deflection.

Captures critical failure events: liner crazing, wall cracking, delamination, full rupture.

Separate specimen length rules for thermoplastic vs. fiberglass-reinforced thermoset pipes.

Test Specimen Information

Pipe Type	Specimen Length
Thermoplastic pipe	6 in. ± 1/8 in. (150 mm ± 3 mm)
RTRP pipe	Lesser of 3× nominal diameter OR 12.0 in. (300 mm)
Pipe > 60 in. (1524 mm) diameter	20% of nominal diameter, rounded to nearest 1 in. (25.4 mm)

Minimum 3 specimens per pipe sample (for QC, a single specimen with thinnest wall at top may be used)

For ID-controlled RTRP pipes with surface irregularities: the outside diameter along the loading line may be hand-sanded smooth (without damaging the reinforcement) to ensure uniform load distribution.

Test equipment required for ASTM D2412 Plastic Pipe Deflection Testing by Compression Loading Test

Ring Stiffness Compression Testing Machine

Constant-rate compression testing machine

Complies with ASTM D695; crosshead speed fixed at 0.50 ±0.02 in (12.5 ±0.5 mm)/min. Large RTRP/RPMP pipes over 24 in allow minor speed deviation.

ISO 9969 Ring stiffness testing for plastic pipe

Parallel rigid steel loading plates

Minimum thickness ≥0.25 in (6 mm), flat, smooth, non-deformable under load.

Plate length ≥ specimen length; plate width ≥ pipe contact width + 6 in (150 mm).

Deflection measuring instrument

Accuracy to 0.010 in (0.25 mm); independent of fixture load to avoid measurement interference.

Can record plate travel or direct inside diameter reduction.

Test Parameters & Stipulations

Loading rate	0.50 ± 0.02 in./min (12.5 ± 0.5 mm/min)
Measurement increments	≤ 5% of average inside diameter (if intermittent)
Termination criteria	Load stops increasing with deflection, OR deflection reaches 30% of avg. ID
Pre-loading	Upper plate contacts specimen with minimal load to establish zero point

Significant events to record: Liner cracking/crazing · Wall cracking · Wall delamination · Rupture — each with corresponding load and deflection.

Pre-contact zero setting: Lower upper plate until light contact only, zero force and deflection sensors before formal compression.

Test process of ASTM D2412 plastic pipe ring stiffness test:

1. Sample preparation:

Depending on the type of plastic pipe being tested, cut the specimen to the lengths specified. Be sure to cut the pipe cleanly. Condition the specimens to the temperature detailed in the specification. Prepare and test at least three specimens for each pipe. Measure the length, average diameter, and average wall thickness of the specimen.

2, Sample installation

Place the specimen horizontally, and the contact surface of the platen at both ends should be parallel to avoid axial displacement. Load the specimen by centering it on the bottom plate and apply just enough force to keep the sample in place with the upper platen.

3, Preloading:

Begin compressing the specimen at the specified rate. Apply an initial load of 50 N to eliminate the gap.

4, Formal loading:

Compressed at a rate of (5±1) mm/min, the force value (F) when the deformation reaches 3% (ΔY=0.03D, D is the initial inner diameter) is recorded.

5. Be aware of line cracking, wall cracking, wall delamination, and break. Record the load and deflection when these events are observed.

6. Stop the test at break, when the load no longer increases with deflection or when the specimen reaches the required maximum deflection.

7, Repeatability verification:

The test was repeated after rotation of the same specimen by 90°, and the average of the results was taken twice.

Test Application (Industry Fields)

ASTM D2412 is extensively used in:

Municipal sewer & stormwater systems — PVC, HDPE, PP pipes (e.g., SDR 35, SDR 26) with specified PS values of 46, 75, 115, or 153 psi

Underground utility conduits — Electrical, telecommunications

Industrial piping — Chemical transport, mining, wastewater

Civil & infrastructure engineering — Buried pipe design

Irrigation & agricultural drainage

GRP/RTRP pipe manufacturing — For fiberglass-reinforced thermosetting pipe quality control

The PS values obtained feed directly into engineering design equations (e.g., the modified Iowa/Spangler equation) to predict buried pipe deflection under earth load.

Related Test Standard:

ASTM D2412	Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
ISO 9969	Thermoplastics pipes — Determination of ring stiffness Key differences: ISO 9969 uses variable compression speed based on pipe diameter; ASTM D2412 uses fixed 12.5 mm/min speed. ISO 9969 calculates stiffness at fixed 3% deflection; ASTM D2412 evaluates multiple deflection levels (2.5/5/7.5%). Different calculation formulas, specimen length rules, conditioning durations, and primary unit systems. Test results from D2412 and ISO 9969 cannot be directly interchanged or compared numerically.
ISO 9967	Thermoplastics pipes - Determination of creep ratio
GB/T 9647	China standard: Thermoplastics pipes—Determination of ring stiffness
ISO 13967	Thermoplastics fittings - Determination of ring stiffness
ISO 13268	Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics shafts or risers for inspection chambers and manholes — Determination of ring stiffness
ASTM D695	Compressive properties of rigid plastics (compression machine compliance)
ASTM F2433	Standard Test Method for Determining Thermoplastic Pipe Wall Stiffness
ISO 13968	Plastics piping and ducting systems. Thermoplastics pipes. Determination of ring flexibility
DIN 16961	Thermoplastics pipes and fittings with profiled wall and smooth pipe inside
ISO 7685	Glass-reinforced thermosetting plastics (GRP) pipes — Determination of initial ring stiffness
EN 1446	Plastics piping and ducting systems - Thermoplastics pipes - Determination of ring flexibility
AS/NZS 1462.22	Methods of test for plastics pipes and fittings Method 22: Thermoplastics pipes – Determination of ring stiffness

Keywords: ASTM D2412 parallel‑plate loading test, plastic pipe stiffness tester ASTM D2412, RTRP RPMP pipe compression test machine, ASTM D2412 pipe load‑deflection testing equipment, ASTM D2412 external loading characteristics test for plastic pipe, parallel‑plate compression tester for thermoplastic and reinforced polymer mortar pipe, measure pipe stiffness and stiffness factor per ASTM D2412, UnitedTest ASTM D2412 compliant plastic pipe test system, load‑at‑specific‑deflection laboratory tester for underground plastic piping

pipe ring stiffness test machine is used to determine the ring stiffness of circular cross-section thermoplastic pipes, according customer’s request, it can also execute compression, ring stiffness, ring softness and creep ratio test.

ASTM D2412 ISO 9969 Plastic Pipe Ring Stiffness Testing Machine — UnitedTest Precision Solutions

Beijing United Test Co., Ltd. (UnitedTest) is a world-leading manufacturer of material testing equipment, specializing in plastic pipe mechanical testing solutions. Our RST Series Pipe Ring Stiffness Testing Machines (10–200 kN capacity) are engineered to determine pipe stiffness (PS) of thermoplastic, RTRP, and RPMP pipes in full compliance with ASTM D2412-26, ISO 9969, ISO 9967, EN 1228, ISO 7685, and GB/T 9647 . Trusted by pipe manufacturers, third-party labs, and research institutions in 90+ countries, UnitedTest delivers turnkey testing solutions for the global plastic piping industry.

Q1: What is ASTM D2412?

A: ASTM D2412-26 is the Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading. It is the latest revision (approved April 1, 2026; published May 2026), replacing D2412-21 . The standard measures how plastic pipes resist deformation under compressive external load using two parallel rigid plates, and determines pipe stiffness (PS), stiffness factor (SF), and load at specific deflections.

Q2: Why is this test important?

A: ASTM D2412 provides data essential for:

Engineering design: PS values feed directly into the modified Iowa (Spangler) equation to predict buried pipe deflection under soil load .

Material comparison: It enables objective comparison of different plastics in pipe form (PVC vs. HDPE vs. PP vs. GRP).

Product specification & QC: Pipe products are classified by PS — e.g., SDR 35 PVC sewer pipe requires minimum PS 46 psi, SDR 26 requires PS 115 psi .

Failure mode identification: Records significant events (liner cracking, wall cracking, delamination, rupture) and their corresponding loads/deflections.

Global trade: Developed under WTO TBT principles, ensuring international acceptance .

Q3: What types of pipes does ASTM D2412 cover?

A: The standard covers three broad categories :

Thermoplastic resin pipe (PVC, HDPE, PP, ABS, etc.)

Reinforced thermosetting resin pipe (RTRP) — i.e., glass-reinforced plastic (GRP) pipe

Reinforced polymer mortar pipe (RPMP)

Q4: How does ASTM D2412 relate to ISO 9969?

A: Both standards use parallel-plate loading to measure pipe stiffness, but with key differences :

Feature	ASTM D2412	ISO 9969
Primary metric	Pipe Stiffness (PS) in psi or kPa	Ring Stiffness (S) in kN/m²
Standard units	Inch-pound (primary)	SI (metric)
Typical deflection	5% and 10%	3%
Calculation	PS = F/∆y	S ≈ F/(∆y × L)
Conversion	S ≈ 0.0186 × PS	PS ≈ 53.7 × S

Q5: How many test specimens are required per pipe batch? What are specimen length rules?

A: Minimum 3 specimens per lot for formal testing; single specimen allowed for rough QC screening.

Thermoplastic pipe (PVC/HDPE/PP): Fixed length 150mm (6in) ±3mm

RTRP/RPMP fiberglass pipe: Min length = smaller of 3×nominal OD or 300mm; pipes >1524mm OD use 20% nominal OD length.

Q6: Can I reuse pipe specimens after one ASTM D2412 compression test?

A: No. Compression creates permanent elliptical deformation, internal micro-cracks and wall damage; re-test data will be completely inaccurate.

Q7: Does UnitedTest manufacture fully compliant ASTM D2412 testing machines?

A: Yes. UnitedTest is a professional manufacturer of ASTM D2412 plastic pipe parallel-plate compression testers (pipe ring stiffness testing machines). Our equipment fully meets all standard requirements including fixed 12.5mm/min speed, precision deflection sensors, standard steel platens, and built-in D2412 calculation software for PS & EI automatic output.

Q8: What pipe sizes & materials can UnitedTest ASTM D2412 tester support?

A: UnitedTest customized testers cover small tubing to large diameter corrugated PVC, HDPE, PP, FRP/RTRP, RPMP pipes for sewer, drainage, irrigation, cable conduit industries; load range from 5kN to 300kN with customizable test space for large OD pipe specimens.

Q9: What after-sales support does UnitedTest provide for ASTM D2412 testing equipment?

A: Global one-year warranty, free software upgrade, remote technical debugging, on-site calibration service, customized compression fixture/platen solutions matching ASTM D2412 & ISO9969 dual standards, and full test operation training for lab operators.

Q10: Why Choose UnitedTest as Your ASTM D2412 Tester Supplier?

A: UnitedTest is a leading industrial mechanical testing machine manufacturer specializing in ASTM D2412 standard plastic pipe external loading characteristic test equipment, widely adopted by plastic pipe factories, third-party material testing labs, municipal engineering institutes, and FRP composite manufacturers worldwide.

Our ASTM D2412 parallel-plate loading testing machine strictly follows ASTM D2412-26 official standard specifications, designed to measure load-deflection performance, Pipe Stiffness (PS), and Stiffness Factor (EI) for all circular cross-section plastic pipes including thermoplastic PVC, HDPE, PP corrugated/solid wall pipe, reinforced thermosetting RTRP fiberglass pipe, and reinforced polymer mortar RPMP pipe.

Professional testing equipment manufacturer with independent R&D workshop, all machines factory calibrated before delivery to meet ASTM D2412 precision limits.

Customization service: Adjust test frame width, platen size, load range, add large pipe support fixtures per customer’s pipe size requirements.

Complete one-stop solution: Supply ASTM D2412 tester + pipe dimension measuring tools + lab operation training + standard test procedure guidance.

Global after-sales support: Online remote troubleshooting, overseas engineer on-site calibration, 1-year full machine warranty, lifetime software free upgrade.

Compliance verification: All test data output fully meets ASTM D2412 test report mandatory item requirements, acceptable for North American product certification and municipal project bidding inspection.

Q11: The Key Compliant Features of UnitedTest ASTM D2412 Tester?

A: Standard fixed crosshead speed servo control system: Stable 12.5 ±0.5 mm/min compression rate, fully matching ASTM D2412 mandatory speed requirement, eliminates speed fluctuation error that affects pipe stiffness test results.

High-rigidity hardened steel parallel platens: Thickness ≥6mm, flat smooth surface without bending under maximum test load, customizable length/width to fit 150mm standard D2412 specimens and large-diameter FRP pipe samples.

High-precision deflection measuring sensor: 0.01mm resolution, accurately record pipe inside diameter reduction during compression, automatically correct curve zero offset as required by ASTM D2412 Annex A1.

Dedicated ASTM D2412 test control software: Pre-programmed standard calculation formulas, auto compute PS at 2.5%,5%,7.5% deflection and flexural rigidity EI (stiffness factor), auto mark crack/delamination failure points, export load-deflection curves, PDF test reports with complete ASTM D2412 required data for certification submission.

Multi-range load cell options: 5kN /10kN /50kN /100kN /300kN load capacity models to cover small tubing and large buried drainage pipes.

Dual standard compatible design: One machine can run both ASTM D2412 (US pipe stiffness test) and ISO 9969 (international ring stiffness test) by switching built-in software modes, reducing lab equipment investment cost.
