ISO 9969 Thermoplastics pipes — Determination of ring stiffness

ISO 9969 specifies a test method for determining the ring stiffness of thermoplastics pipes having a circular cross section.

ISO 9969 requires that at least three samples are taken from the same pipe and labeled A, B and C. These samples are then compressed to at least 3% of the Inner Diameter and ring stiffness calculated for each sample. The ring stiffness is calculated as an average of these calculations.

Test Principle

The ring stiffness is determined by measuring the force and the resulting deflection while compressing a horizontally supported pipe vertically between two parallel flat plates. The compression occurs at a constant deflection speed. A force versus deflection curve is generated, and the ring stiffness (S) is mathematically calculated based on the force required to produce a 3% diametric deflection of the pipe.

A horizontally placed pipe specimen is compressed vertically between two parallel rigid plates at a constant deflection speed matched to the pipe’s inside diameter.

Force and vertical deflection are continuously recorded to generate a force‑deflection curve.

Ring stiffness is calculated using the force required to produce 3.0% diametric deflection of the pipe.

This 3% deflection is the standard reference point for evaluating ring stiffness performance.

Specific Test Method

Only one standardized test method is defined:

Parallel‑plate radial compression method

Constant deflection rate (dependent on pipe inside diameter)

Compression until at least 3% diametric deflection

Calculation of ring stiffness from force at 3% deflection

Applicable to solid‑wall, structured‑wall, corrugated, and helically ribbed thermoplastic pipes.

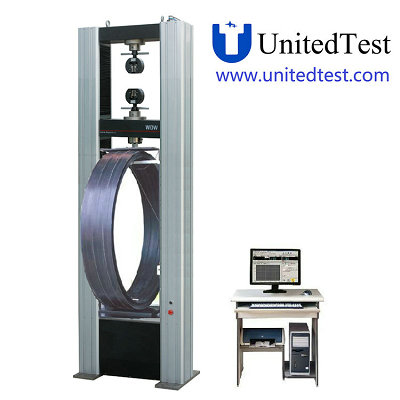

ISO 9969 Testing Machine Required:

Ring Stiffness Compression Testing Machine

Capable of a constant crosshead speed and sufficient force/travel to achieve the specified diametric deflection.

ISO 9969 Ring stiffness testing for plastic pipe

Parallel Compression Plates

A pair of hard, rigid plates with flat, smooth, and clean surfaces.

Their length must be at least equal to the test piece length, and width must cover the contact surface plus 25 mm .

Pipe inner diameter deformation Measuring Devices

Accurate to within ±1 mm for length, ±0.5% for inside diameter, and 0.1 mm (or 1% of deflection) for diametric change .

Understanding Ring Stiffness Testing

Ring stiffness testing involves the application of a uniform load on a test specimen of a plastic pipe to evaluate its resistance to deformation and failure. It essentially measures how rigid or stiff a pipe is when a load is applied. This is critical because a flexible, low-stiffness pipe may buckle or deform under pressure, leading to failures that can have catastrophic consequences including leaks, flooding, and infrastructure damage. Conversely, pipes designed with optimal stiffness can ensure enhanced load-bearing capabilities, resulting in extended service life and reduced maintenance costs.

Test Specimen Information

Item	Requirement
Quantity	3 specimens (marked a, b, c) from the same pipe length
Length	• dₙ ≤ 1500 mm: 300 ± 10 mm • dₙ > 1500 mm: ≥ 0.2 × dₙ • Structured‑wall pipes: full ribs/corrugations; min length 290 mm• Helical rib pipes: dᵢ + 20 mm (290–1000 mm)
Inside diameter (dᵢ)	Average of ≥4 measurements per specimen (per ISO 3126); average of 3 specimens as dᵢ
Age	Routine test: ≥24 h; type test/dispute: (21 ± 2) days
Quality	No obvious defects; ends perpendicular to pipe axis

Test Stipulations

Specimen orientation: Place at the lowest ring‑stiffness position; rotate specimens b and c by 120° and 240° relative to specimen a.

Pre‑load then zero force and deflection sensors; use extrapolation to correct zero error if the force‑deflection curve is distorted.

If $d_{i} \leq 100$ mm, $F_{0} = 7.5$ N.
If $d_{i} > 100$ mm, $F_{0} = 250 \times 1 0^{- 6} \times d_{i} \times L_{1}$ (rounded up to the nearest Newton) .

If wall construction height changes >5%, measure inside diameter change for deflection (mandatory for disputes).

Deflection Speed: Dependent on inside diameter ( $d_{i}$ ):

$d_{i} \leq 100$ mm: $2 \pm 0.1$ mm/min
$100 < d_{i} \leq 200$ mm: $5 \pm 0.25$ mm/min
$200 < d_{i} \leq 400$ mm: $10 \pm 0.5$ mm/min
$400 < d_{i} \leq 710$ mm: $20 \pm 1$ mm/min
$d_{i} > 710$ mm: $0.03 \times d_{i} \pm 5%$ mm/min .

One test per specimen; no repeated loading.

Calculate ring stiffness for each specimen; report the average of three values.

ISO 9969 pipe ring stiffness test process typically involves the following steps:

Prepare and mark 3 pipe specimens; measure length and inside diameter per requirements.

Condition specimens at test temperature for ≥24 h.

Mount the specimen between parallel plates; apply pre‑load force F₀.

Zero the force and deflection gauges.

Compress at the specified constant speed until ≥3% diametric deflection; record force‑deflection data.

Correct the curve origin if needed (extrapolate initial linear portion).

Calculate individual ring stiffness (Sₐ, Sᵦ, Sᶜ) and average ring stiffness S.

Complete the test report with all required data.

Related Test Standard:

ASTM D2412	Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
GB/T 9647	China standard: Thermoplastics pipes—Determination of ring stiffness
ISO 13967	Thermoplastics fittings - Determination of ring stiffness
ISO 13268	Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics shafts or risers for inspection chambers and manholes — Determination of ring stiffness
ASTM F2433	Standard Test Method for Determining Thermoplastic Pipe Wall Stiffness
ISO 13968	Plastics piping and ducting systems. Thermoplastics pipes. Determination of ring flexibility
DIN 16961	Thermoplastics pipes and fittings with profiled wall and smooth pipe inside
EN 1446	Plastics piping and ducting systems - Thermoplastics pipes - Determination of ring flexibility
AS/NZS 1462.22	Methods of test for plastics pipes and fittings Method 22: Thermoplastics pipes – Determination of ring stiffness

Industry Applications

ISO 9969 is used for buried and above‑ground thermoplastic pipes across major sectors:

Municipal engineering: Underground drainage, sewerage, stormwater pipes (PVC‑U, PE, PP)

Potable water supply and gas distribution pipes

Telecommunication / power cable protection conduits

Agricultural irrigation and industrial fluid‑transport pipes

Pipe manufacturing: QC, type approval, product classification, and compliance certification

pipe ring stiffness test machine is used to determine the ring stiffness of circular cross-section thermoplastic pipes, according customer’s request, it can also execute compression, ring stiffness, ring softness and creep ratio test.

Q1: What exactly does the ISO 9969 test measure?

A: ISO 9969 specifies the method for determining the ring stiffness of thermoplastic pipes with a circular cross-section. Essentially, it measures how resistant the pipe is to deformation when subjected to external pressure. The test calculates the force required to deflect the pipe diametrically by 3% .

Q2: Why is knowing the "ring stiffness" of a plastic pipe so important?

A: Many people assume plastic pipes are inherently flexible, but when buried underground, they face immense external soil pressure. If a pipe is too soft (low ring stiffness), it risks collapsing or deforming excessively, leading to blockages or structural failure. This test provides engineers with the critical S-value (kN/m2) needed to select the right pipe class, ensuring the infrastructure remains safe and functional over its lifespan .

Q3: How many samples are needed for the test, and how should they be prepared?

A: You need three test pieces (labeled a, b, and c) cut from the pipe. Before cutting, the pipe must be marked with a longitudinal line along its entire length. The ends of the test pieces must be cut perfectly perpendicular to the pipe's axis. To ensure accurate results, the shortest length measurement on any single test piece cannot be less than 90% of its longest measurement .

Q4: Does the cutting method change for pipes with ribs or corrugations?

A: Yes, it does. For structured wall pipes (like corrugated or ribbed pipes), you must cut the test pieces so that they contain a whole number of ribs or corrugations. The cut must be made exactly at the midpoint between these structures. This ensures the load is applied evenly across the structural features during the compression test .

Q5: How fast should the machine compress the pipe?

A: The compression speed depends entirely on the inside diameter (d_i) of the pipe sample. For example:

Very small pipes (d_i≤100mm) are compressed slowly at 2mm/min.

Medium pipes (200<d_i≤400mm) are compressed at 10mm/min.

Very large pipes (d_i>710mm) are compressed at a speed of 0.03×d_imm/min.

This scaling ensures the material's viscoelastic properties are consistently evaluated across different sizes.

Q6: What is the purpose of the "pre-load force" (F0)?

A: Before the actual test begins, a small pre-load force is applied just to bring the testing machine's plates into firm contact with the pipe. This eliminates any slack in the system. Once this specific pre-load is applied, the dials are zeroed, marking the true starting point of the compression test .

Q7: What happens if the pipe wall changes shape significantly during the test?

A: Normally, the machine measures the deflection by tracking how much the parallel plates move. However, if the pipe wall's construction height changes by more than 5% (meaning the pipe is buckling or crushing rather than smoothly bending), the standard requires you to measure the change in the inside diameter directly instead. This ensures the 3% deflection target is measured accurately.

Q8: Why use 3% diametric deflection as the reference point?

A: 3% deflection is the international industry standard for evaluating the short-term radial bearing capacity of thermoplastic pipes, matching real buried service conditions and engineering design rules.

Q9: When and how to correct the zero point of the force-deflection curve?

A: Correct the zero if the curve’s initial section is distorted. Extrapolate the initial straight-line part back to the horizontal axis; use the intersection as the new (0,0) origin. For disputes, measure the inside diameter change to record deflection.

Q10: Can ISO 9969 results be directly compared with ASTM D2412?

A: No. Although both test ring stiffness of plastic pipes, they use different formulas, test details and data processing. Results cannot be directly interchanged.
