ISO 8521 GRP Pipe Circumferential Hoop Tensile Strength Tester | UnitedTest
UnitedTest manufactures high-precision ISO 8521 compliant tensile strength test machines, professionally designed for testing the initial circumferential tensile wall strength of glass-reinforced thermosetting plastic (GRP) pipes in industrial quality control and material laboratories.
ISO 8521 Glass-reinforced thermosetting plastic (GRP) pipes — Test methods for the determination of the initial circumferential tensile wall strength defines six standardized test methods (Method A, B, C, D, E, and F) for accurate performance evaluation of GRP pipeline materials. This standard measures the initial circumferential tensile wall strength per unit length of GRP pipes, widely known as hoop tensile strength — two interchangeable terms officially recognized by ISO 8521.
All test results are uniformly expressed in newtons per millimetre (N/mm) of pipe circumference. Notably, the term “initial” refers to short-term, instantaneous tensile strength measured at the start of loading, distinguishing it from long-term hydrostatic strength evaluated under alternative pipe testing standards. Our ISO 8521 testing equipment delivers precise, repeatable short-term hoop tensile strength data to verify GRP pipe structural integrity and mechanical reliability.
Core Test Principle
All six methods apply monotonic tensile load in the pipe circumferential direction until wall rupture, record ultimate breaking force Fult, then calculate hoop tensile strength per unit length (N/mm) via standard formulas. The target loading duration for failure is strictly controlled between 1–3 minutes for all test variants.Method-Specific Principles
Method A (Burst): Apply incremental internal hydraulic pressure to intact pipe segment; internal pressure generates uniform circumferential tensile stress until pipe bursts; calculate strength from burst pressure pult and pipe inner diameter di.

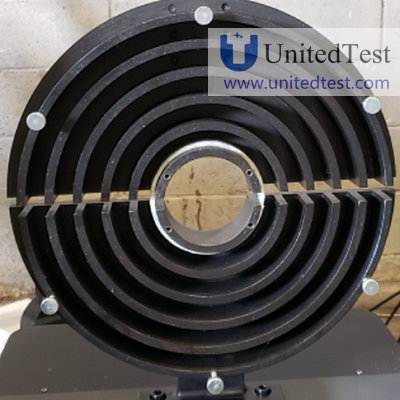

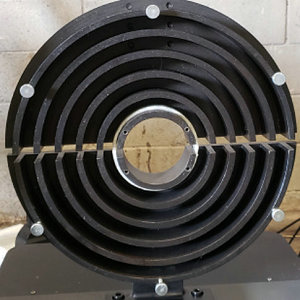

Method B (Split Disc): Insert expandable split disc inside a cut pipe ring; drive disc separation to stretch the ring circumferentially until notch fracture.
C/D/E Strip Tests: Direct uniaxial tension on circumferentially-cut wall strips; Method E adds curved restraint to eliminate strip bending bias.
Method F (Notched Plate): Tensile load on square wall plate with central neck notch; formula accounts for winding angle θ to correct off-axis fibre reinforcement contribution.
Test methods stipulated on the ISO 8521 GRP Pipe Longitudinal Tensile Strength Testing:
| Method | Name | Pipe Applicability | Key Principle |
|---|---|---|---|
| A | Burst (internal pressure) | All types & all sizes — reference method | Hydrostatic pressure → burst |
| B | Split-disc | General GRP pipes; not recommended for helically filament-wound pipes. | Split disc pushes ring outward → rupture |
| C | Strip test | DN ≥ 500 large-bore GRP pipes; split into two specimen cases based on winding angle θ: Case 1: No helical reinforcement or θ > 70° Case 2: Helical layers with θ ≤ 70° (requires notched geometry) | Tensile pull on circumferential strip |
| D | Modified strip test | DN ≥ 500 pipes; simplified small-grip strip test for conformity verification only. | Tensile pull on tapered/clamped strip |

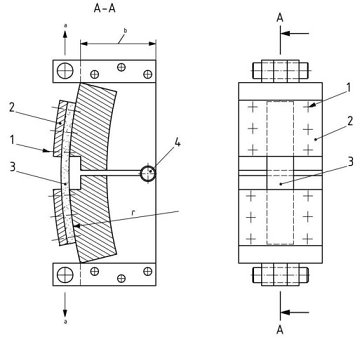

| E | Restrained strip test | DN ≥ 500 pipes; equipped with anti-bending restraining fixture to eliminate specimen bending error. | Tensile pull on strip with anti-bending restraint |
| F | Notched plate test | DN > 500 helically wound pipes with winding angle θ ≠ ~90°; dedicated for off-axis filament-wound GRP pipelines. | Tensile pull on notched square plaque |
Required Test Equipment & Apparatus of ISO 8521 GRP Pipe Longitudinal Tensile Strength Testing

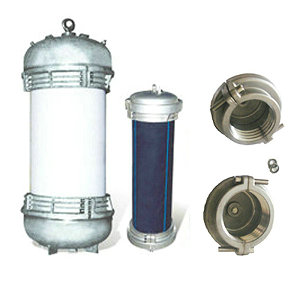

| Equipment for Method A (Burst Test) | Recommend UnitedTest Pipe Hydrostatic Pressure Testing Machine Hydrostatic pressurization system: Complete failure within 1–3 min for DN ≤500 pipes; longer duration allowed for oversized DN>500 pipes; airtight filling design to avoid trapped air. Pressure gauge: Calibrated with ±2.0% full-scale accuracy, unit bar/MPa. End sealing fixtures: Generate uniaxial circumferential stress in the test pipe section. Dimension measuring tool: ±0.1 mm precision for inner diameter, wall thickness. Support bracket: Minimize pipe sagging under self-weight and water filling load. Foil strain gauges (optional): For circumferential tensile modulus calculation.
|
| Universal Constant-Rate Tensile Testing Machine | Recommend UnitedTest Electronic Universal Testing Machine, and Hydraulic type Hoop tensile testing machine. Crosshead drives at uniform controllable speed; load indicator accuracy ±1% of reading, calibrated per ASTM E4 (Force Calibration standard). Must eliminate inertia lag at specified test speeds. |
Self-Aligning Test Fixtures | Split disk width for A/B ≥ specimen width +0.1 in; fixed 2.0 in width for Procedure C. Self-align mounting ensures pulling force is perpendicular to the fixture split axis after load application.
|
Test Fixture for method C/D/E | Method C: Cast-resin end moulds for strip specimen clamping reinforcement. Method D: Tapered wedge clamps, grip span fixed at lg=15±5 mm. Method E: Curved restraining fixture (support radius = DN × 0.5 ±5%) to prevent strip bending.
|
Device for method F | Custom resin casting mould for specimen end reinforcement. Caliper for notch radius r, neck width b, winding angle θ measurement. |
Test Specimen (Test Piece) Specifications
| Method A | Cut straight pipe segments; segment length follows corresponding product standard requirements, no fixed length defined in ISO 8521 itself. |
| Method B | Cut complete circular ring from pipe wall; test section width b ≥15 mm, notch radius r ≥10 mm, total width btot≥25 mm. Ring cutting ends must be smooth and perpendicular to pipe longitudinal axis. |
| Method C Strip Specimen | Cut circumferential wall strips: Case1 (θ>70°): Total width btot≥25±0.5 mm; optional notch design. Case2 (θ≤70°): btot≥2b (b≥25 mm) to avoid shear failure, central V-notch (φ5 mm). Both ends encapsulated with thermosetting resin for clamping protection; specimen length l = 4e ~ 5e (e = wall thickness). |
| Method D Modified Strip Specimen | Minimum test width b ≥10 mm; grip span lg=15±5 mm. Sandwich wall specimens with core shear failure allowed to split sample through core layer (retaining inner/outer skins) and test two halves separately. |
| Method E Restrained Strip Specimen | Test width b ≥10 mm; specimen length 250–350 mm. Case2 helical pipes: Total width btot≥2b to block shear failure; curved fixture matches pipe curvature to eliminate bending deformation. |
| Method F Notched Plate Specimen | Approximate square plate cut from pipe wall with controlled fibre orientation: Neck width b: 25 mm ≤ b ≤ 5e; notch radius r: 0.2e ≤ r ≤0.5e; grip distance lg≥4e. Both ends reinforced with cast thermosetting resin, machined flat and parallel after curing. |
Step-by-Step Test Procedures of ISO 8521 GRP Pipe Longitudinal Tensile Strength Testing:
Step 1: Specimen Preparation & Conditioning Cut, machine, resin-reinforce (if required) samples; condition at test temperature ≥0.5 h.
Step 2: Dimensional Measurement Accurately measure key geometric parameters (inner diameter di, wall thickness e, test width b, notch radius r, winding angle θ) with ±0.1 mm precision tools.
Step 3: Specimen Mounting Fix sample to test equipment per fixture rules:
Method A: Seal pipe ends, fill with water, fully vent trapped air.
B/C/D/E/F: Align specimen centreline with machine loading axis; install restraining fixtures for Method E.
Step 4: Monotonic Loading Apply continuous, constant-speed load until wall rupture, strictly controlling failure time within 1–3 min. Record maximum ultimate force Fult (or burst pressure pult for Method A) and time-to-failure.
Step 5: Result Screening Discard invalid tests per failure location rules; retest replacement specimens if required.
Step 6: Calculation & Reporting Compute individual circumferential tensile strength values, average strength and standard deviation; compile full test report.
Industrial Application Fields
ISO 8521 testing is mandatory quality control and design verification for all GRP/FRP piping systems across sectors:
Municipal engineering: Pressure water supply pipelines, sewage force mains, rainwater drainage pipes (DN≥500 large-diameter trunk lines heavily rely on C/D/E/F strip tests).
Chemical & petrochemical industry: Corrosion-resistant GRP process pressure pipes for acid, alkali, brine media.
Oil & gas: Underground and offshore filament-wound GRP flowlines (Method F is primary test for helical winding structures).
Power generation: Cooling water circulating pipelines for thermal and nuclear power plants.
Marine & offshore: Subsea water injection, seawater desalination pressure piping.
Construction: Fire protection pressure pipes, underground utility GRP conduits.
Related Test Standard:
| ASTM D2290 | Standard Test Method for Apparent Hoop Tensile Strength of Plastic or Reinforced Plastic Pipe |
| ASTM D2105 | Longitudinal tensile test for plastic pipe (measures axial pipe strength, opposite loading direction of D2290). |
| ASTM D1599 | Short-Time Hydraulic Burst Test for Plastic Pipe; Procedure C D2290 yields equivalent burst performance data for 4–8 in PE/PB pipes, used as a faster alternative to full burst hydrotesting. |
| ISO 10468 | Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the ring creep properties under wet or dry conditions |
| ISO 1167 | Thermoplastic pipe – Determination of resistance to internal pressure (burst-based, not split-disk, but functionally related) |
| ISO 7685 | Glass-reinforced thermosetting plastics (GRP) pipes — Determination of initial ring stiffness |
Keywords: UnitedTest ISO 8521 tester, ISO 8521 GRP pipe tensile strength tester, GRP pipe hoop tensile strength test machine, glass-reinforced plastic pipe circumferential tensile tester, ISO 8521 initial circumferential tensile wall strength test, short-term instantaneous hoop strength testing for GRP pipes, six-method GRP pipe mechanical performance tester, N/mm unit GRP pipe tensile strength analysis equipment, GRP thermosetting plastic pipe structural strength tester
Related products and device
Related Standard
ASTM D2290: Standard Test Method for Apparent Hoop Tensile Strength of Plastic or Reinforced Plastic Pipe
This test method covers the determination of the comparative apparent tensile strength of most plastic products utilizing a split disk or ring segment test fixture, when tested under defined conditions of pretreatment, temperature, humidity, and test machine speed. This test method is applicable to reinforced-thermosetting resin pipe regardless of fabrication method. This test method also is applicable to extruded and molded thermoplastic pipe.
ASTM D1598: Standard Test Method for Time-to-Failure of Plastic Pipe Under Constant Internal Pressure.
ASTM D1598 test method covers the determination of the time-to-failure of both thermoplastic and reinforced thermosetting/resin pipe under constant internal pressure.This test method provides a method of characterizing plastics in the form of pipe under the conditions prescribed.
ASTM D1599: Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings.
ASTM D1599 test method establishes the short-time hydraulic failure pressure of thermoplastic or reinforced thermosetting resin pipe, tubing, or fittings. Data obtained by this test method are of use only in predicting the behavior of pipe, tubing, and fittings under conditions of temperature, time, method of loading, and hoop stress similar to those used in the actual test. They are generally not indicative of the long-term strength of thermoplastic or reinforced thermosetting resin pipe, tubing, and fittings
ASTM D1599 is titled "Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings." It is a fundamental short-term, destructive pressure test used to determine the ultimate failure pressure (often called the "burst pressure") of thermoplastic pipe, tubing, or fittings under rapidly applied internal pressure at a specified temperature. Typically completed within 60–70 seconds, mainly for quality control and short-term design validation.
ISO 1167: 2006 Thermoplastics pipes, fittings and assemblies for the conveyance of fluids -- Determination of the resistance to internal pressure.
ISO 1167 test method specifies a general test method for determining the resistance to internal hydrostatic pressure at a given temperature of thermoplastics pipes, fittings and piping systems for the transport of fluids. The method accommodates water-in-water, water-in-air and water-in-liquid tests. It defines uniform hydrostatic pressure testing to evaluate short-term and long-term pressure-bearing durability of thermoplastic fluid-transport piping systems.
Hydrostatic pressure testing is a valuable method for assessing the strength and integrity of pressurized systems, ensuring that they can meet operational demands without failure. Hydrostatic pressure testing can evaluate these items by filling pipelines, tanks, or containers with water before pressure is applied to detect any potential leaks or issues.
Hydrostatic pressure tester is critical across multiple industries, from pipeline engineering to industrial piping. It helps prevent costly failures or leaks by verifying whether the system can safely reach the specified pressure levels.
ASTM D638 determining the tensile properties of unreinforced and reinforced plastics using dumbbell-shaped (dogbone) specimens tested under closely controlled conditions of conditioning, temperature, humidity, and crosshead speed. For measuring the tensile mechanical properties of unreinforced and reinforced plastics, including thermoplastics, thermosets, molded plastics, and plastic composites.
FAQs for ISO 8521 GRP Pipe Circumferential (Hoop) Tensile Strength Test
Q1: What is ISO 8521 used to test?
A1: It specifies six standardized test methods to measure initial circumferential tensile wall strength (also called hoop tensile strength) of glass-reinforced thermosetting plastic (GRP/FRP) pressure pipes, expressed in N/mm (ultimate tensile force per unit circumferential length of pipe wall). It only evaluates short-term initial tensile resistance against internal pressure, no long-term creep performance.
Q2: Why is this test critical for GRP pipe materials?
A2: Under internal fluid pressure, cylindrical pipes generate hoop tensile stress twice as large as longitudinal axial stress — hoop strength is the core limit factor of a pipe’s maximum safe operating pressure (PN).
It verifies filament winding quality, fibre volume fraction and laminate design;
It acts as mandatory batch quality control to avoid pipe burst and leakage in service;
Test data is the baseline for long-term creep and 50-year service life calculation in complementary standards like ISO 10928;
Third-party certification, municipal and chemical pipeline regulatory codes require ISO 8521 test reports for project acceptance.
Q3: What is the difference between “circumferential tensile strength” and “hoop tensile strength”?
A3: They are interchangeable terms per ISO 8521 Clause 1 Note. “Hoop tensile strength” is the widely used industry alias for circumferential tensile wall strength of cylindrical pipes.
Q4: What to do if a sandwich wall GRP specimen fails via core shear instead of tensile rupture?
A4: The original test result is invalid. Prepare a new specimen, split the sample lengthwise through the foam/core layer (keep inner and outer GRP skins intact), test the two separated skins individually, and sum their ultimate breaking forces as the final valid strength result.
Q5: What are the six test methods and their core applicable scenarios?
A5: Method A (Burst Test): Reference method, fits all pipe diameters and all GRP laminate structures; can additionally measure circumferential tensile modulus.
Method B (Split Disc Ring Test): General GRP pipes; not recommended for helically filament-wound pipes.
Method C (Standard Strip Test), D (Modified Strip Test), E (Restrained Strip Test): Only for DN ≥ 500 large-diameter pipes.
Method F (Notched Plate Test): Dedicated for DN > 500 helically wound pipes with winding angle θ ≠ ~90°.
Q6: All six methods have equal validity, can I directly interchange test results from different methods?
A6: No. The standard clarifies that results from different methods are not numerically equivalent by default. You may treat B–F as reference methods only if a complete cross-correlation comparative test programme is completed to build conversion data between methods.
Q7: Which method is the most recommended for factory routine quality inspection?
A7: For small/medium DN pipes: Method A (burst test, gold standard). For DN≥500 large pipes: Method D (modified strip test) is preferred for routine QC, as it uses small strip specimens, consumes less pipe material and shortens test cycle compared to full pipe burst tests.
Q8: Why is Method B unsuitable for helically wound GRP pipes?
A8: The split disc ring loading creates uneven stress distribution on cross-helical fibre layers; the ring specimen geometry cannot fully reflect the actual load-bearing contribution of off-angle helical reinforcements, leading to inconsistent, non-representative failure data.
Q9: What is the mandatory test duration rule for all six methods?
A9: Every specimen must rupture 1–3 minutes after load/pressure initiation. For DN>500 oversized pipes where equipment limits extend test time beyond 3 min, you must run comparative tests with standard 1–3 min loading to evaluate strength reduction caused by prolonged pressurization/tension.
Q10: For notched specimen tests (B/C/E/F), when shall I reject the test data?
A10: If the specimen fracture happens outside the central notched test zone. Only rupture across the notched gauge section counts as a valid test.
Q11: Why do C, E, F specimens require thermosetting resin reinforcement on both ends?
A11: Resin casting thickens the clamping zone to prevent premature clamping-area fracture, ensuring rupture occurs within the designated notched test section (the only valid failure zone for recording results).
Q12: How many test pieces do I need for one pipe batch?
A12: ISO 8521 does not fix a mandatory number of replicates. The required quantity is defined in the corresponding GRP pipe product standard (e.g., ISO 10467).
Q13. What is the biggest mistake labs make with this test?
A13: Mismatching the method to the winding geometry. Specifically:
Using Method B on helically wound pipe (standard says it's "not always suitable").
Using Case 1 specimen shape on a θ ≤ 70° helical pipe (should be Case 2 with btot≥ 2b), leading to shear failure instead of tensile — invalid result.
Ignoring the 3.3·(DN·e)^0.5 end-effect zone in Method A and reporting an end-zone burst as valid.
Always read Test pieces stipulation carefully before cutting specimens.
Q14. What if my pipe is a sandwich (skin–core–skin) construction?
A14: The standard explicitly addresses this in Methods D and E: if the core shows shear failure instead of tensile failure, the result is invalid. Remedy: cut a new specimen and split it longitudinally through the core without cutting the skins, test the two halves separately, and sum the loads to get the final strength . This prevents false rejection of otherwise good sandwich pipe.
Q15: Why This Test Is Important for GRP Materials?
A15:
1. Hoop stress dominates GRP pipe service
Under internal pressure, the circumferential (hoop) stress in a thin-walled cylinder is twice the longitudinal stress (σ_hoop = p·d/2evs. σ_long = p·d/4e). The wall will almost always fail in the hoop direction first. Knowing the initial circumferential tensile wall strength is therefore the single most critical input for pressure rating and wall-thickness design.
2. GRP is anisotropic & construction-dependent
Unlike isotropic metals, GRP's strength depends heavily on:
Fibre winding angle θ (helical vs. circumferential lay-up)
Resin/fibre ratio
Sandwich core integrity
Interface quality
ISO 8521's six methods let you match the test to the construction — e.g., Method F specifically handles helical windings at θ ≠ 90°, while C/D/E handle large-diameter DN ≥ 500 pipes.
3. Quality control & incoming inspection
Manufacturers use ISO 8521 for batch release, process validation, and detecting defects (voids, poor wet-out, delamination). A sudden drop in σ* triggers root-cause investigation.
4. Comparability for procurement
When a specifier writes "GRP pipe shall demonstrate σ_cA ≥ X N/mm by ISO 8521:2020 Method A,"* both vendor and buyer share an unambiguous, internationally recognised basis for acceptance.
5. Foundation for long-term design
ISO 8521 gives the short-term anchor point. That value feeds into ISO 10468 / ISO 10928 regression models to extrapolate the 20- or 50-year hydrostatic design basis (HDB) — the number actually printed on a pipe's pressure class label.
6. Prevents catastrophic failure
GRP pipe bursts in water mains, chemical plants, or power stations can cause injury, environmental release, and costly downtime. A standardised hoop-strength test is the front-line defence against under-designed pipe entering service.
