ASTM E229 Structural Adhesive Shear Strength & Shear Modulus Tester | UnitedTest

ASTM E229 features a napkin-ring torsion shear test method to measure shear strength and shear modulus of structural adhesives within thin constrained bond lines. UnitedTest manufactures ASTM E229 compliant torsion testing machines for accurate structural adhesive glueline performance evaluation.

ASTM E229 is a key industry standard test method dedicated to determining the shear strength and shear modulus properties of structural adhesives. It adopts the professional napkin-ring torsion shear test, also known as the annular bonded ring specimen test, specifically designed for testing thin, constrained adhesive bond lines in structural bonding applications.

This test method evaluates structural adhesive performance under realistic service conditions, where thin adhesive gluelines are restrained by high-modulus adherends and subjected to torsional loading. It delivers precise and reliable shear mechanical property data, enabling engineers and laboratories to analyze adhesive stiffness, bonding stability, and shear failure performance of constrained bond joints. Widely used for structural adhesive formulation optimization, bond line quality verification, material performance comparison, and industrial bonding process validation across automotive, aerospace, construction and composite manufacturing industries.

UnitedTest designs and manufactures high-precision ASTM E229 compliant structural adhesive torsion shear testing machines. Our professional test equipment perfectly simulates standard napkin-ring torsion loading conditions, accurately capturing shear strength and shear modulus data for thin constrained adhesive bond lines, supporting adhesive R&D, production quality control and third-party material certification.

Test Principle:

The test subjects an annular (napkin‑ring) adhesive bond between two rigid loading blocks to pure torsional shear load. Torque is applied around the central axis, creating peripherally uniform shear stress distribution across the thin annular adhesive bond. Torque and rotational deflection are continuously recorded up to joint failure. The total measured deflection includes deformation of both adhesive and metal adherend ring; adherend‑ring elastic deformation must be subtracted to isolate true adhesive shear deformation. Calculations derive adhesive shear strength and shear modulus for thin constrained glue‑lines as used in real bonded assemblies.

Core Test Method

Build specimen with two loading blocks and one or more interlaminar adherend rings separated by thin adhesive layers.

Mount in a torsional shear apparatus or in a universal testing machine using a torsion jig.

Apply torque without bending, peel, transverse shear, or axial force.

Measure torque and relative circumferential displacement simultaneously.

Test machine and fixture required for ASTM E229 Napkin-Ring Torsion Test for Structural Adhesive

Torsion testing machine	Dedicated torsion tester complying with ASTM E4 force‑verification requirements.
Adhesive torsional‑shear jig (napkin‑ring fixture)	Specialised torsion fixture that applies pure torsional load without introducing bending, peel or transverse shear stress on bond‑lines. The fixture uses precision bearings to minimise friction losses and avoids axial force. Can operate either on standalone torsion equipment or adapted universal test machines. Direct torque measurement via load‑cell is recommended.
High‑precision extensometer	Must satisfy ASTM E83. Extensometer is required for low‑strain adhesive bond‑line measurement. Valid options: - Amsler mirror‑type optical lever extensometer (Marten’s optical system); - Miniature electrical resistance strain‑gage rosettes mounted circumferentially across bond‑line.
Auxiliary Tools	Alignment pins and shafts for precise specimen co‑axial positioning; cutting tool to remove adhesive fillets on inner/outer ring edges.

Test Specimen Information:

The “napkin‑ring” specimen assembly consists of two thick rigid loading blocks, with one or more thin interlaminar adherend rings sandwiched in‑between. Annular thin adhesive bond‑lines are formed between blocks and ring(s). 2024‑T4 aluminium is the default reference adherend material; production‑grade substrate materials shall be used if replicating real‑world manufacturing conditions. Either single‑bondline or multi‑bondline set‑ups are allowed. Multi‑bondline configuration increases measurable deformation for high‑modulus, very‑thin adhesive joints.

1. Bonding surfaces flatness requirement: 125 rms surface finish.

2. Adhesive fillets formed at inner / outer ring edges shall be mechanically removed**, unless test evidence proves fillets exert negligible influence on test results. A central hole permits cutter access for fillet trimming.

3. Strict co‑axial alignment must be maintained during bonding by alignment pins, shafts and evenly distributed clamping pressure.

4. **Minimum specimen quantity**: At least three specimens for each adhesive system.

Key Test Parameters & Stipulations

Set loading rate such that specimen failure occurs within 2 min to 5 min after test start. No explicit shear‑rate value is defined.

Calculation stipulations

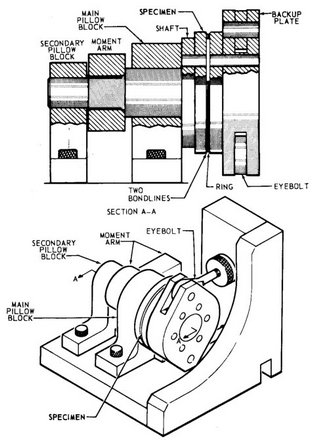

ASTM E229 Napkin-Ring Torsion Test for Structural Adhesive

Shear modulus: calculated from slope of linear‑elastic portion of torque‑deflection curve. For non‑linear adhesives, output value represents apparent shear modulus, not true elastic modulus.

Details ASTM E229 Napkin-Ring Torsion Test for Structural Adhesive Test procedures:

1. Pre‑bond dimensional inspection: Verify loading‑blocks and interlaminar ring dimensions meet drawing tolerances.

2. Surface clean and bond specimens following production‑equivalent specifications. Install alignment shafts/pins to guarantee co‑axial geometry, apply uniform bonding pressure during adhesive cure. Remove adhesive fillets after curing.

3. Mount specimen inside torsional‑shear fixture. Install extensometer / optical measuring instrument correctly. Compensate for fixture deflection if needed.

4. Apply continuous torsional load; simultaneously record torque and deflection data. Adjust loading speed so failure takes place between 2 – 5 minutes.

5. After test, inspect fracture surfaces. Document whether failure is cohesive within adhesive or interfacial adhesion failure. Discard specimens caused by poor surface preparation or mis‑alignment.

6. Process raw data: subtract adherend‑ring elastic deformation, compute shear strength and apparent shear modulus; calculate statistical values from ≥ 3 valid replicates.

Target Industry Application Fields

Even though withdrawn, ASTM E229‑97 methodology has historical significance, mainly applied in:

‑ Legacy US aerospace structural‑adhesive qualification programs

‑ Material R&D for metal‑bonding structural adhesives

‑ Quality‑control and formulation‑evaluation for thin constrained bond‑lines

It generates bond‑line shear‑property inputs for bonded‑joint theoretical design calculations. Modern active standards (ISO 11003‑1 / EN 14869‑1) are preferred for new projects.

Referenced Related Standards

ASTM D5458	Standard Test Method for Peel Cling of Stretch Wrap Film
ASTM D5449	Transverse compressive properties of hoop-wound cylinders
ASTM D5450	Transverse tensile properties of hoop-wound cylinders
ASTM D3518	In-plane shear from ±45° laminate
ISO 11003‑1	Adhesives — Determination of shear behaviour of structural adhesives — Part 1: Torsion test method using butt‑bonded hollow cylinders
ISO 10123	strength of anaerobic adhesives in bonded cylindrical/threaded assemblies (related for cylindrical bonds, not annular torsion).
ISO 4587	single-lap tensile shear (thin adherends); widely used QC, but has peel/stress Concentration artefacts.
EN 14869-1	Structural adhesives - Determination of shear behaviour of structural bonds - Part 1: Torsion test method using butt-bonded hollow cylinders
ASTM E229	Torsional/shear testing of adhesives using napkin-ring/hollow-cylinder-type geometry (closest US analogue to ISO 11003-1).
ASTM D3658	Torque strength of adhesive bonds, e.g., UV-cured/electronics (rotational shear, narrower scope).
ISO 11003‑2	Part 2 of the same series, Tensile test method using thick adherends. It measures adhesive shear properties under thick‑adherend tensile loading, offering an alternative to the torsion approach of Part 1
ASTM D5379	V-notched beam shear test
ASTM D4255	Rail shear test
ASTM D7078	V‑notched rail shear test for flat laminates

Keywords: ASTM E229 structural adhesive shear tester,structural adhesive shear modulus test machine,napkin ring torsion shear test rig,annular bonded ring specimen adhesive test,thin constrained bond line shear strength tester,high modulus adherend adhesive torsion test equipment,structural adhesive glueline performance analyzer,adhesive torsional shear property test apparatus,industrial structural bonding quality control machine,aerospace composite adhesive shear test system,automotive structural adhesive qualification tester,adhesive formulation shear performance verification instrument

NJW series torsion testing machine consist of loading system, weight balancing system, transmission system, data collection system, and computer measuring and control system. Suitable to test the metal material, non-metal material, various kinds of structures like shaft, bolts, alloy components.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Q1: What is ASTM E229‑97 and why is this test important?

A1: ASTM E229‑97 is a historical American standard (withdrawn in 2003 with no official replacement) for measuring shear strength and shear modulus of structural adhesives using napkin‑ring annular torsion specimens. It generates pure‑shear bond‑line properties instead of bulk adhesive properties, minimising peel‑stress edge effects seen in lap‑shear tests. This test delivers critical inputs for bonded‑joint theoretical design, adhesive formulation screening and legacy aerospace metal‑bonding quality control. Even withdrawn, the napkin‑ring specimen methodology is widely referenced in adhesive technical literature for legacy project data correlation.

Q2: What is napkin‑ring specimen and what is the core test principle of ASTM E229?

A2: The napkin‑ring specimen consists of two thick rigid loading blocks with one or more thin interlaminar adherend rings sandwiched in‑between, forming thin annular adhesive bond‑lines. Controlled torsion torque is applied coaxially, creating peripherally uniform shear stress on adhesive bond‑lines. Torque and rotational deflection are continuously recorded up to joint failure. Total measured deflection includes elastic deformation from adherend rings, which must be subtracted to isolate true adhesive shear deformation for calculating shear strength and apparent shear modulus.

Q3: How do you calculate shear modulus following ASTM E229‑97?

A3: Subtract adherend‑ring elastic deflection from total measured deflection to obtain pure adhesive circumferential displacement. Shear modulus is derived from the slope of linear‑elastic segment of torque‑deflection curve. For non‑Hookean (non‑linear) adhesives, the output value is defined as apparent shear modulus, not true elastic modulus. The shear‑strength formula brings minor inherent error for non‑linear adhesive materials.

Q4: What are key differences between ASTM E229‑97 and ISO 11003‑1?

A4: Specimen geometry: ASTM E229 uses flat napkin‑ring blocks; ISO 11003‑1 uses long butt‑bonded hollow cylinders.

Temperature capability: ASTM E229 is room‑temperature‑only; ISO 11003‑1 supports controlled high/low‑temperature testing with environmental chamber.

Loading control: ASTM E229 specifies failure‑time window (2‑5 min); ISO 11003‑1 defines explicit shear‑rate range 0.0005 ~ 0.02 s⁻¹.

Specimen quantity: ASTM E229 minimum 3 specimens; ISO 11003‑1 minimum 5 valid specimens.

Status: ASTM E229‑97 is withdrawn; ISO 11003‑1:2019 is active international standard.

Q5: Why must adhesive fillets be removed for napkin‑ring specimens?

A5: Inner‑ and outer‑edge adhesive fillets introduce extra material volume and local stress‑state deviation, which will distort measured shear‑strength and shear‑modulus results, unless experimental evidence confirms fillet impact is negligible. A central hole in specimen allows cutter access for fillet trimming after curing.

Q6: When should multi‑bond‑line napkin‑ring configuration be used?

A6: For high‑rigidity adhesives with very‑thin bond‑lines, adhesive shear deformation will be extremely small and hard to measure accurately. Adding multiple interlaminar adherend rings creates multi‑bond‑line assembly to amplify total measurable shear displacement and improve test accuracy. Single‑bond‑line is preferred for most general‑purpose structural‑adhesive testing.

Q7. Why not just use single-lap shear?

A7: Single-lap methods include peel, bending and nonuniform shear; they are good for production pass/fail but not for true thin-film shear modulus. E229 isolates torsional shear and reports modulus plus strength from the same specimen family.

Q8: Why choose ASTM E229‑97 Napkin‑Ring Torsion Test System for Structural Adhesive from UnitedTest?

A8: UnitedTest supplies ASTM E229‑97 compliant napkin‑ring torsion test fixture and torsion machine. Measure shear strength & apparent shear modulus for structural adhesives for legacy aerospace‑bonding data correlation. High‑precision extensometer support included.

UnitedTest provides complete torsion test solutions for ASTM E229‑97 napkin‑ring torsion test method, the historical standard for characterising shear strength and apparent shear modulus of structural adhesives in thin constrained bond‑lines. Although ASTM E229‑97 was formally withdrawn in 2003 without replacement, many legacy aerospace and metal‑bonding laboratories still need this napkin‑ring test setup for historical‑data correlation and adhesive R&D research.

Our ASTM E229‑97 test system applies pure torsional shear load on annular napkin‑ring specimens, minimising bending and peel‑stress interference common in lap‑shear testing. It captures torque‑deflection curves and calculates bond‑line shear strength and apparent shear modulus for thin glue‑lines restrained by high‑modulus adherends.

Key machine & fixture features complying with ASTM E229‑97 requirements:

Torsion tester conforming to ASTM E4 force‑verification specification; high‑accuracy torque measurement via load‑cell, low‑friction bearing design to minimise torque loss.
Custom‑engineered napkin‑ring torsion fixture: eliminates axial force, bending and peel stress on bond‑lines; includes alignment pins and shafts for precise specimen co‑axial assembly.
Interface for ASTM Class‑A / B‑1 extensometer: compatible with optical mirror extensometer or circumferential strain‑gage rosettes for tiny bond‑line shear‑strain measurement per ASTM E83.
Supports both single‑bond‑line and multi‑bond‑line napkin‑ring specimens for high‑modulus thin‑bond adhesive measurement.
Test software: supports deflection correction for adherend‑ring and fixture‑jig deformation; computes shear strength and apparent shear modulus; generates report template matching ASTM E229‑97 reporting checklist.

Note: ASTM E229‑97 is limited to room‑temperature testing only. For new‑project material qualification requiring variable‑temperature testing and defined shear‑rate control, UnitedTest also provides test systems for active ISO 11003‑1 and EN 14869‑1 hollow‑cylinder torsion standards.
