ASTM D5379 V-Notched Beam Iosipescu Shear Tester for Composites | UnitedTest

UnitedTest manufactures high-precision ASTM D5379 compliant V-notched beam shear testing machines for characterizing shear properties of advanced fiber-reinforced composite materials.

ASTM D5379 Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method is widely known as the Iosipescu shear test. This standard characterizes the shear behavior of advanced fiber-reinforced polymer composites. It enables measurement of in-plane shear properties within the 1-2 plane and interlaminar shear performance across the 1-3 and 2-3 planes. The test applies to a broad range of composite formats, including continuous unidirectional laminates, woven fabric laminates, balanced symmetric panels, and random short-fiber molded composites such as sheet molding compound (SMC).

The V-notched beam test captures comprehensive shear performance data including shear stress-strain curves, ultimate shear strength, failure strain, and shear elastic modulus. Test results support composite material development, laminate design optimization, incoming material verification, and quality control for composite structural components.

Core Test Principle

This test uses an asymmetric four-point bending compression load applied to a symmetric double V-notched flat beam specimen via a dedicated specialized Losipescu Shear Test Fixture:

1. Two symmetrical 90° V-notches at the specimen center create a narrow gage section between notch roots, concentrating uniform shear stress in the middle zone while minimizing unwanted normal bending stress.

2. Compressive displacement of the two fixture halves generates pure shear deformation across the notched test region.

3. ±45° bonded strain rosettes mounted at the mid-gage section capture tensile/compressive normal strains along ±45° axes; engineering shear strain is calculated as the absolute sum of these two orthogonal strain readings.

4. Shear stress is derived from the applied compressive force divided by the net cross-sectional area between notches.

5. The notch geometry homogenizes shear strain distribution across the test zone; balanced [0/90]ₙₛ laminates deliver the most accurate shear modulus data, reducing orthotropy-induced strain unevenness seen in pure [0]ₙ or [90]ₙ unidirectional panels.

ASTM D5379 Shear Test of Composite by the V-Notched Beam methods

Test Specimen Information

Parameter	Metric (mm)	Imperial (inch)	Tolerance Rule
Total length L	76	3.0	Decimal tolerance per ANSI Y14.5M
Specimen width d2	3.8	0.15	Notch depth = 20% of total width
Net test width between notches w	11.4	0.45	Measured via blade micrometer
Notch root radius r	1.3	0.05	±25 μm / ±0.001 in precision
V-notch angle	90° (45° flank angle)	90°	±0.5° angular tolerance
Recommended thickness h	3–4 mm	0.12–0.16	Thinner (<2.5 mm) specimens require end tabs
Quantity: Minimum 5 replicate specimens per test condition for statistically valid results.
Strain gage layout: Dual ±45° strain elements centered between notch roots; back-to-back rosettes recommended to quantify specimen twisting error.

Required Test Equipment of ASTM D5379 Shear Test of Composite by the V-Notched Beam methods

Tensile Universal testing machine (UTM)

Capable of controlled compression loading with force accuracy within ±1%.

Separate load cell ranges recommended if both modulus (low force) and ultimate shear strength (high force) are measured in one batch.

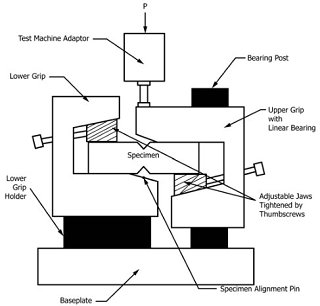

V‑Notched Beam Shear Fixture

- Two wedge-action clamping jaws with thumbscrew adjustment; linear bearing shaft guiding upper grip for parallel motion.

- Specimen alignment pin/tool to center V-notches on the loading force line.

- 13 mm unsupported span between fixture halves; base plate and bearing posts for rigid compression loading.

- Plastic-backed adhesive tape optional to reduce specimen twisting from minor tolerance gaps.

Strain Measurement Hardware

Minimum two bonded resistance strain gages at ±45° to the loading axis;

350 Ω or higher resistance preferred; 1–2 V excitation recommended to minimize heating;

Specialized shear strain gages that span the distance between notch roots are recommended;

Active gage length ~1.5 mm [0.062 in] for most materials.

ASTM D5379 Shear Test of Composite by the V-Notched Beam methods

Test Parameters

Loading mode	Quasi‑static compression
Strain‑controlled rate	0.01 min⁻¹ engineering shear strain rate
Constant head‑speed	2 mm/min [0.05 in/min]
Test duration requirement	Specimen failure must occur within 1–10 minutes of loading start; adjust speed if premature or excessively delayed failure occurs.
Gage section	Centered between V‑notches
Preload	Minimize; 40–80N may be unavoidable
Sampling rate	2–3 readings/sec, ≥100 points/test
Data truncation	If ultimate failure doesn't occur by 5% engineering shear strain, truncate data at this value
Number of specimens	Minimum 5 per test condition
Chord modulus strain range	end strain 4000 ± 200 µε, starting at 1500–2500 µε
Twist limit	If back‑to‑back rosette shows >3% twist, investigate and correct

Test Stipulations

Specimen twisting can occur from fixture out‑of‑tolerance, thin/unstable specimens, or poor installation. Evaluate twist using back‑to‑back rosettes; if >3%, investigate and correct.

Machining quality is critical — poor fiber alignment or notch damage causes high data scatter.

Force eccentricity — twisting affects strength and especially modulus measurements.

Step-by-Step Test Procedures of ASTM D5379 Shear Test of Composite by the V-Notched Beam methods

Strain Gage Installation

Prep specimen surface per ASTM E1237 (no fiber exposure/damage); bond ±45° rosettes centered between notches; apply temperature compensation; wire gages to DAQ and perform pre-test zero calibration.

Fixture Mounting & Alignment

Secure lower fixture half to stationary UTM crosshead, attach upper grip to movable crosshead; align linear bearing shaft to eliminate lateral play; use alignment plate to coplanarize grip back walls; zero load cell force readout.

Specimen Insertion & Clamping

Loosen fixture jaws; insert specimen and engage notch alignment tool to center V-notches on loading axis; lightly tighten lower jaw (avoid over-tightening preload); move crosshead to contact specimen right side with zero force; zero strain gage channels, lightly tighten upper jaw; acceptable minor preload = 40–80 N (10–20 lbf).

Controlled Loading & Continuous Data Recording

Activate UTM at specified strain/displacement rate; record force, displacement, strain continuously at 2–3 Hz sampling; capture force/strain values at onset of ply cracking, maximum load and failure point; stop test at specimen rupture or 5% shear strain threshold.

Post-Test Inspection & Documentation

Record failure location and mode using the standard three-part failure code (Failure Type + Failure Location + Failure Zone); photograph specimen damage; verify twisting percentage from front/back gage data; discard invalid specimens with off-gage failure and retest.

Data Calculation & Statistical Compilation

Compute shear stress-strain curves, ultimate shear strength, ultimate shear strain, chord shear modulus, offset shear strength for each replicate; calculate batch mean, standard deviation and CV for all mechanical properties.

Industrial Application Fields

ASTM D5379 is the primary shear characterization standard for fiber-reinforced composite materials across high-performance industries:

1. Aerospace & Aviation: Carbon/epoxy laminates for fuselage, wing and engine composite components; measure in-plane and interlaminar shear for structural finite element design, material qualification.

2. Automotive Lightweighting: Carbon fiber, glass fiber SMC and woven composite body panels, battery enclosures; evaluate shear nonlinearity for crash simulation and component durability.

3. Wind Energy: Glass/carbon turbine blade laminates; quantify interlaminar shear resistance to predict delamination under cyclic wind loads.

4. Marine & Shipbuilding: Fiber-reinforced hull panels, sandwich composite core materials; characterize shear performance under seawater moisture conditioning.

5. Sports & Recreation: Carbon composite bicycle frames, racquets, protective gear; R&D formulation comparison of matrix resin and fiber architecture shear behavior.

6. Defense & Military: Armor composite panels, unmanned aerial vehicle structures; material specification acceptance testing for military composite standards.

Related Test Standard:

ASTM D5379	Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method
ASTM D7078	Standard Test Method for Shear Properties of Composite Materials by V-Notched Rail Shear Method
GB/T 28889	Test method for in-plane shear properties of composite materials
ASTM D3518	Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate
ISO 14129	Fibre-reinforced plastic composites - Determination of the in-plane shear stress/shear strain response, including the in-plane shear modulus and strength, by the ˝45° tension test method
GOST R 57968	Polymer composites. Test method of samples for shearing
GOST R 57207	Polymer composites. Test method for shear properties of V-notched test samples
GB/T 30970	Test method for the shear properties of polymer matrix composite materials by V-notched beam method
ASTM D4255	Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

ASTM D7078 is the closest sibling — it fills the gap between D5379 (small specimen, edge‑loaded) and D4255 (rail shear, no notches). D7078's side‑clamping allows higher shear forces and avoids stress concentrations from bolt holes.

Keywords: Losipescu Shear Test, V-Notch Shear Testing of Composites ASTM D5379, UnitedTest ASTM D5379 tester, ASTM D5379 V-notched beam shear tester, fiber reinforced composite shear property tester, ASTM D5379 in-plane and interlaminar shear test for composites, Iosipescu shear test for unidirectional and woven composite laminates, sheet molding compound SMC shear strength testing equipment, V-notched beam composite shear stress strain analyzer, fiber reinforced polymer shear elastic modulus test machine

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

ASTM D5379 Iosipescu Fixture V-Notch Shear is used to determine the mechanical strength of composite material, is a four-point asymmetric flexure fixture which tests for shear properties by means of the V-notched beam method.

Q1: What is ASTM D5379, and why is this shear test critical for fiber-reinforced composites?

A: ASTM D5379 is the standard Iosipescu V-notched beam compression shear test for measuring full shear performance of fiber composites. It is uniquely vital for three core reasons:

1. Composites are highly anisotropic; shear failure (delamination, matrix shear yielding) is the most common service failure mode in layered composite structures, and no other single test can fully quantify both in-plane (1-2) and interlaminar (1-3/2-3) shear moduli, strength, and nonlinear stress-strain curves.

2. It generates uniform shear stress in the central gage section via double V-notches, delivering far more accurate shear modulus data than short-beam or ±45° tensile shear tests.

3. Aerospace, automotive, wind energy and defense OEMs mandate D5379 data for structural FEA design, material batch qualification, aging durability assessment, and cross-border regulatory certification.

Q2: What material types does ASTM D5379 cover, and what materials are excluded?

A: Covered materials:

- Unidirectional [0]ₙ / [90]ₙ laminates

- Woven fabric laminates

- Balanced symmetric \[0/90\]ₙₛ quasi-isotropic panels

- Random short-fiber sheet molding compound (SMC)

Excluded materials: Composites with extremely coarse fiber tows (≥12,000 filaments) or large braided architectures—their large repeating unit sizes break the uniform shear field assumption of the standard specimen geometry; scaled-up custom fixtures are not covered in D5379.

Q3: What is the difference between in-plane shear and interlaminar shear measured by D5379?

A: 1. In-plane shear (1-2 / 2-1 planes): Shear within the ply layer, governs intralaminar matrix cracking, fiber rotation; test flat thin laminates cut so fiber axes align with specimen length.

2. Interlaminar shear (1-3 / 2-3 / 3-1 / 3-2 planes): Through-thickness shear between stacked plies, controls delamination risk; requires thick base panels (minimum 20 mm for 1-3/2-3 testing) to create through-thickness fiber orientation for the gage section.

D5379 is the only mainstream ASTM shear test that measures all six material shear planes via simple specimen reorientation.

Q4: How does D5379 compare to ASTM D3518 (±45° tensile shear) and ASTM D2344 (short-beam shear)?

A: 1. ASTM D3518: Only measures in-plane shear, cannot capture interlaminar shear; simpler fixture but generates significant bending stress, lower modulus accuracy, limited to ±45° balanced laminates.

2. ASTM D2344: Fast screening test for approximate interlaminar shear strength only; cannot measure shear modulus or full stress-strain curve, prone to mixed-mode bending-shear failure, unsuitable for structural design allowables.

D5379 is the gold standard for full, design-ready shear property datasets for composite structural analysis.

Q5: Why does my D5379 test produce high scatter in shear modulus results?

A: Top root causes:

1. Specimen twisting >3% (no back-to-back strain rosettes used)

2. Use of pure [0]ₙ or [90]ₙ laminates instead of balanced [0/90]ₙₛ

3. Poor specimen machining: rough notch surfaces, uneven thickness, delamination from improper cutting

4. Incorrect strain gage placement outside the uniform shear zone

5. Excessive jaw preload or fixture misalignment introducing bending eccentricity

Q6: When are end tabs required for D5379 specimens, and what tab material is recommended?

A: Tabs are mandatory for specimens thinner than 2.5 mm to stabilize thin fragile samples, eliminate fixture edge crushing, and reduce twisting during loading. The standard recommended tab material is woven E-glass \[0/90\] laminate bonded with high-elongation tough structural adhesive to match composite compliance.

Q7. What is the main advantage of the V-notch over other shear tests?

A: The primary advantage is the ability to create a near-uniform pure shear stress field within a very small, localized "gage section" between the notches. This allows engineers to test:

Thin laminates where other methods (like rail shear) might crush the specimen.

Specific orientations (In-plane vs. Interlaminar) simply by rotating the coupon relative to the load axis.

Small material volumes, which is useful for expensive or hard-to-manufacture materials.

Q8. What is "Specimen Twisting" and why is it a problem?

A: During loading, eccentricities in the fixture or slight asymmetries in the specimen can cause the coupon to twist (torsion). This introduces normal stresses that contaminate the pure shear measurement, leading to inaccurate modulus readings.

Rule of Thumb: If back-to-back strain gauges show a twist calculation of >3%, the test data for modulus is suspect.

Fix: Ensure the fixture is aligned using the provided alignment tool, check for loose play in the linear bearings, and ensure the specimen is flat and not tapered.

Q9: Why does ASTM D5379 cap all data reporting at 5% engineering shear strain?

A: Many toughened matrix composites, SMC, and off-axis laminates exhibit extreme nonlinear shear deformation beyond 5% strain, with fiber reorientation carrying most post-yield load. This mixed-mode deformation no longer represents pure material shear behavior; truncating data at 5% avoids overestimating shear strength from non-shear post-yield fiber load-bearing.

Q10: What is offset shear strength, and what offset strain value does the standard recommend?

A: Offset shear strength is the shear stress where a line parallel to the chord modulus curve, shifted along the strain axis by a fixed offset, intersects the shear stress-strain curve (analogous to tensile yield strength). The standard recommends a default 0.2% shear strain offset for consistent reporting across labs.

Q11: What is the key difference between ASTM D5379 and ASTM D7078 (V-notched rail shear)?

A: 1. D5379: Compression-loaded small Iosipescu specimen, suited for thin, fine-tow unidirectional/woven laminates, measures all six shear planes; smaller gage section.

2. D7078: Tension-loaded rail-clamped larger specimen, designed for thick panels and coarse large-tow fabrics, higher load capacity, limited primary use for in-plane shear only.

D5379 is preferred for R&D, modulus precision and interlaminar shear testing; D7078 is used for thick structural composite qualification.
