ASTM D4255 Rail Shear Test Machine for Composite In‑Plane Shear Properties | UnitedTest

ASTM D4255 determines in‑plane shear properties of polymer‑matrix composites via rail‑shear fixture, covering two‑rail and three‑rail test configurations. UnitedTest manufactures ASTM D4255‑compliant rail shear testing equipment for composite laminate mechanical performance evaluation and material qualification.

ASTM D4255 is a well‑established standard test method dedicated to measuring in‑plane shear properties of fiber‑reinforced polymer‑matrix composite materials adopting the rail‑shear fixture technique. Two separate test configurations are specified within this standard: Procedure A for two‑rail shear and Procedure B for three‑rail shear. These test setups generate critical measurement outputs including shear stress‑strain curves, shear chord modulus, offset shear stress, as well as maximum in‑plane shear stress for composite laminates.

This standard is applicable to a broad range of composite materials, such as continuous‑fiber laminates, woven‑fabric composites, balanced‑symmetric laminates, and randomly‑oriented short‑fiber polymer‑matrix composites. Users should be aware that shear‑stress gradients and stress concentrations formed within grip areas may negatively affect test reproducibility. For achieving more uniform pure‑shear stress distribution inside specimen gage sections, alternative standards ASTM D5379 and ASTM D7078 are recommended. Widely adopted in composite R&D, incoming material inspection and batch quality assessment, ASTM D4255 supplies fundamental shear‑performance data for aerospace, automotive, wind power and industrial composite component development.

UnitedTest designs and manufactures high‑precision ASTM D4255‑compliant rail shear testing machines. Our complete test systems are equipped with matched rail‑shear fixtures, supporting both two‑rail and three‑rail test procedures, delivering stable and repeatable in‑plane shear test results for composite manufacturers, university research labs and third‑party material‑testing organizations.

Test Principle

Rail shear works by mechanically constraining opposite edges of a composite laminate and applying load through rails.

The rails transfer load into the panel.

This creates in-plane shear stresses in the gauge section.

Strain gauges measure deformations at ±45° to the load direction.

Shear deformation in a composite laminate can be inferred from normal strains measured at +45° and −45° to the loading axis.

Pure shear is approximated, but stress gradients and end effects exist.

Specific Test Method

Procedure A (Two‑Rail Shear)

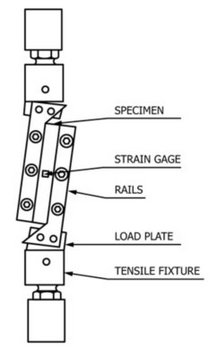

Flat rectangular laminate specimen is clamped between two pairs of parallel loading rails with through bolts. Tensile (or compressive) load applied to the rail pairs introduces shear force across the specimen gage section to drive shear failure. Biaxial strain rosettes are bonded on opposite specimen faces for strain acquisition.

Procedure B (Three‑Rail Shear)

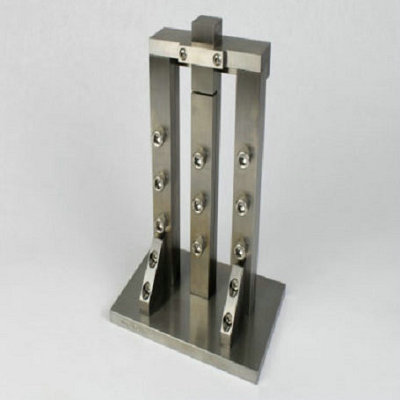

Specimen is secured by three rail pairs: two outer rail pairs fixed to the base plate, one movable central rail pair. Compressive (or tensile) load acts on the middle rail. Two independent shear gage regions are formed on both sides of the center rail. Biaxial strain gages are mounted on opposite faces of each shear zone.

Test Specimen Information

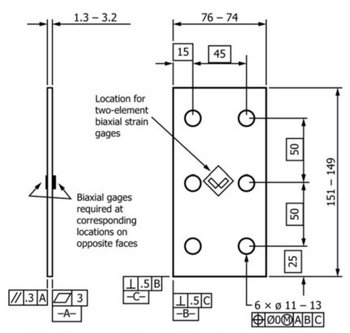

Rectangular flat panels with bolt holes for rail clamping.

- Recommended thickness: 1.3‑3.2 mm. Too‑thin specimens risk buckling; overly‑thick ones may slip in rail clamps.

- Procedure A (two‑rail): 6 clearance holes in specimen plate;

ASTM D4255 Rail Shear Test In-Plane of Polymer Matrix Composite Materials

- Procedure B (three‑rail): 9 clearance holes;

Required Test Equipment of ASTM D4255 Rail Shear Test In-Plane of Polymer Matrix Composite Materials

Universal Testing Machine (UTM)	Complies with ASTM E4 for force verification; equipped with movable crosshead, load cell with ±1 % force accuracy; spherical/ universal joint adapter to mitigate misalignment.
Rail‑shear fixture	Two‑rail fixture for Procedure A; three‑rail fixture for Procedure B. Full machining drawings are available in ASTM Adjunct ADJD4255. Rails can be modified: abrasive cloth, V‑grooves, center punching, extra bolt holes, soft shims, tabbing, thermal‑spray surfaces to improve specimen gripping and prevent slipping.
Strain measurement system	Bonded resistance biaxial strain gages (minimum two gages, on opposite specimen faces, oriented ±45° relative to load direction). Recommended active gage length ~3 mm; 350 Ω or higher resistance; complying with ASTM E251 and E1237 guidance for installation. Three‑element rosettes are permitted as an alternative.
Precision measuring tool	Micrometer (ball‑tip or flat anvil) for thickness measurement; calipers for length and width; dimensional accuracy up to 1 % of specimen dimension.

Main Test Parameters and stipulations

1. Loading rate:

- Strain‑controlled test: standard engineering shear strain rate of 0.01 min⁻¹.

- Constant cross‑head speed: 2.0 mm/min (0.05 in/min). Test duration to failure shall fall between 1 min‑10 min.

2. Bolt‑torque: Tighten rail bolts in multi‑stage sequence (finger‑tight → intermediate torque → final 100 N·m [70 lbf‑ft]); uniform clamping torque is essential to avoid slipping or local crushing damage.

3. Pre‑load: Apply pre‑load less than 5 % of expected failure force, then release to align fixture and zero strain channels before formal loading.

4. Termination: Test stops at 5% engineering shear strain if not failed earlier.

Stipulations:

Buckling control: Percent bending must remain ≤ 10 % both in modulus‑calculation range and at failure strain. Data after buckling onset must be discarded. Buckling failure shall not be counted as material shear‑strength failure.

Failure‑mode validity: Failure at bolt‑hole locations indicates insufficient gripping; test results are invalid and gripping setup must be revised. Delamination is another non‑ideal failure mode for laminates with many 45° plies.

Edge‑effect limitation: Shear‑stress gradients exist at gage‑section ends due to free‑edge boundary conditions, introducing inherent measurement error compared to V‑notched shear methods.

Specimen gage placement: Strain gages must be kept at least four specimen‑thicknesses away from rail edges. For woven fabrics, gage active length shall match or exceed fabric weave unit cell dimension.

Test Procedures of ASTM D4255 Rail Shear Test In-Plane of Polymer Matrix Composite Materials

1. Pre‑define test parameters: sampling plan, specimen geometry, conditioning requirements, target output properties, environmental conditions.

2. Measure specimen gage‑section thickness and length at three positions; record average dimensions. Inspect bolt‑hole quality.

3. Apply biaxial strain gages on both specimen surfaces following standard surface‑preparation guidance (ASTM E1237).

4. Perform moisture/environmental pre‑conditioning (with travelers if needed). Note: gaging before conditioning may block moisture absorption under gages; gaging after conditioning may break equilibrium; record gaging timing.

5. Assemble rail‑shear fixture, inspect for wear, mount specimen, torque clamping bolts in staged uniform tightening sequence.

6. Mount fixture onto test machine, align loading axis; attach strain‑measurement wiring.

7. Apply small pre‑load and release for alignment and zeroing of strain channels.

8. Run test at specified strain‑rate / cross‑head speed, continuously record force‑strain data until specimen failure or 5 % engineering shear‑strain cutoff.

9. Record failure mode, failure location, monitor percent‑bending throughout test.

10. Post‑process data: filter buckling‑corrupted data, compute shear stress, engineering shear strain, chord shear modulus, offset shear stress, statistical metrics (mean, standard deviation, coefficient of variation).

Industry Application Fields

This rail‑shear test serves composite material specification validation, R&D and structural design data acquisition for polymer‑matrix fiber‑reinforced composites.

Aerospace: Qualification of carbon‑fiber composite laminates for secondary structural parts (note: D4255 is less widely used than V‑notched shear methods for primary structures due to stress‑gradient drawbacks).

Automotive composite development: Characterizing short‑fiber and woven‑fabric composite panel shear performance.

Marine composite components: Shear property screening for glass‑fiber reinforced laminates.

Composite material research: Generate full shear stress‑strain curves including nonlinear behaviour, matrix cracking and ply‑delamination transition‑region response.

Material quality control: Compare shear performance across raw‑material batches and laminate manufacturing processes.

Related Standard:

ASTM D5379	Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method
ISO 14129	Fibre-reinforced plastic composites - Determination of the in-plane shear stress/shear strain response, including the in-plane shear modulus and strength, by the ˝45° tension test method
ASTM D3518	Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate
ASTM D7078	Standard Test Method for Shear Properties of Composite Materials by V-Notched Rail Shear Method
ISO 14130	short‑beam interlaminar‑shear test
ASTM D3039	Base tensile‑test standard for polymer‑matrix composites; ASTM D3518 inherits specimen‑making, gripping and machine‑requirements from D3039.
GB/T 28889	Test method for in-plane shear properties of composite materials
ASTM D4255	Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

keywords: ASTM D4255 rail shear tester,polymer matrix composite in‑plane shear property test machine,two‑rail three‑rail shear test rig,fiber‑reinforced composite laminate shear stress‑strain curve measurement,woven fabric composite shear chord modulus test apparatus,short‑fiber random oriented composite shear strength testing equipment,composite material grip‑area stress concentration lab test,ASTM D5379 D7078 pure shear comparison test device,aerospace composite mechanical characterization tester,automotive structural composite quality control system,wind energy composite material qualification test instrument,advanced polymer composite rail‑shear fixture test equipment

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

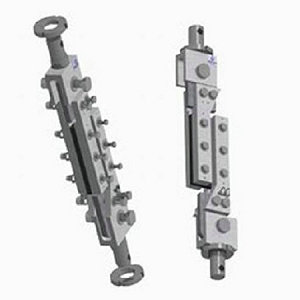

Rail Shear Test fixture are described as Method B in ASTM Standard D4255, mainly used to measure the polymer mechanical strength.

Q1: What is ASTM D4255 test, and why is this test important for composite materials?

A: ASTM D4255 is the rail‑shear test standard for measuring in‑plane shear modulus, offset shear strength, maximum shear stress and full shear stress‑strain curves of polymer‑matrix fiber‑reinforced composites.

Shear is one of the dominant failure modes for composite laminates. Matrix cracking, ply delamination and nonlinear deformation are mostly triggered by in‑plane shear load. This test delivers critical input data for structural FEA simulation, material batch qualification, manufacturing process comparison, and environmental aging evaluation for aerospace, automotive and marine composite components. Even though newer V‑notched shear standards exist, D4255 remains a baseline test for large flat composite panels without machined notches.

Q2: What are the two test procedures defined in ASTM D4255? What is their difference?

A: Procedure A (Two‑Rail Shear): Specimen is clamped between two pairs of loading rails. Tension/compression load is applied to create a single shear gage zone. Shear stress r = P/A.

Procedure B (Three‑Rail Shear): Specimen is fixed by two outer rail pairs and one movable central rail pair. Load applied to the central rail generates two independent shear zones. Shear stress T = P/(2A).

Procedure B provides two shear measurement regions on one specimen, but requires a more complex three‑rail fixture assembly.

Q3: What materials can and cannot be tested under ASTM D4255?

A: ✅ Applicable: unidirectional laminates, woven‑fabric laminates, balanced‑symmetric composite lay‑ups, majority‑random short‑fiber polymer‑matrix composites. Fiber/warp direction must align parallel or perpendicular to fixture rails.

❌ Not suitable: highly unbalanced unsymmetric laminates; metallic, ceramic matrix composites; specimens with fiber oriented at arbitrary angles relative to rails.

Q4: What is the recommended specimen thickness range? Why thickness matters so much?

A: Recommended thickness: 1.3‑3.2 mm (0.050‑0.130 inch).

- Too thin: high risk of out‑of‑plane buckling during loading, invalidating shear test data.

- Too thick: high shear force may cause specimen slipping inside rail clamps, or bolt‑hole premature failure.

Specimen flatness is mandatory to minimize buckling risk.

Q5: My specimens keep breaking at bolt holes, not in gage section. What are the root causes & fixes?

A: Breaking at bolt‑holes indicates insufficient gripping or stress concentration at holes.

Solutions:

1. Torque rail bolts in multi‑stage tightening sequence to ensure uniform clamping force.

2. Modify rail gripping surfaces: add abrasive cloth, V‑grooves, soft metal shims or apply tabbing on specimen clamping area.

3. Use more but smaller‑diameter bolt holes to distribute clamping pressure.

4. Check specimen hole drilling quality; eliminate delamination around drilled holes during specimen machining.

Q6: What are the key test speed requirements for ASTM D4255?

A: - Strain‑controlled test: standard engineering shear strain rate = 0.01 min⁻¹.

- Cross‑head displacement control: 2.0 mm/min (0.05 in/min).

Total test duration from start to failure or cutoff shall keep between 1 min‑10 min. The test shall terminate at 5 % engineering shear strain, even if specimen does not fracture.

Q7: How to calculate offset shear strength in D4255? What offset value is recommended?

A: Shift the chord‑modulus straight line along strain axis to given offset strain value; find intersection point with shear‑stress‑strain curve; the stress at intersection is offset shear stress. 0.2 % offset strain is recommended by default if no other value is specified by customer.

Q8: What are known limitations of ASTM D4255 rail‑shear method?

A: 1. Shear‑stress gradient and free‑edge effects exist inside gage section, so stress state is not perfectly pure shear.

2. Thin specimens are prone to buckling; test repeatability is inferior to V‑notched shear standards D5379 / D7078.

3. Specimens need drilled bolt holes, which introduces extra machining work and possible hole‑edge stress concentration.

4. ASTM committee only provides limited technical maintenance support for this standard; revisions are limited to editorial adjustments only.

Q9: Why choose the ASTM D4255 Rail Shear Testing Machine — Composite Shear Test System from UnitedTest?

A: UnitedTest manufactures ASTM D4255 / D4255M‑20 rail shear test machine and two‑rail / three‑rail shear fixtures for measuring in‑plane shear modulus, offset shear strength and shear stress‑strain curves of fiber‑reinforced polymer‑matrix composite laminates. Complete D4255 composite shear testing solutions for aerospace, automotive composite R&D and quality‑control laboratories.

UnitedTest supplies complete ASTM D4255/D4255M‑20 rail shear testing systems for polymer‑matrix fiber‑reinforced composite materials. Our system includes high‑precision universal testing machine, standard‑compliant two‑rail shear fixture (Procedure A), three‑rail shear fixture (Procedure B), strain‑gage data acquisition module, and dedicated composite test software for automatic calculation of shear stress, engineering shear strain, chord shear modulus, offset shear strength, and statistical results (mean, standard deviation, coefficient of variation) as per ASTM D4255 requirements.

Our ASTM D4255 rail‑shear fixtures strictly follow drawing specifications from ASTM Adjunct ADJD4255. Modifiable rail gripping surfaces support multiple anti‑slip treatments to resolve specimen slipping and bolt‑hole premature‑failure issues. The system supports both ambient and non‑ambient temperature testing when matched with environmental chambers. The software can automatically compute percent‑bending value to identify specimen buckling and filter invalid test data.

Suitable test materials cover unidirectional composite laminates, woven fabric composites, balanced‑symmetric lay‑ups and random short‑fiber reinforced polymer composites. Widely adopted by composite laboratories, aerospace suppliers, automotive composite component manufacturers, university research institutes and third‑party material‑testing organizations for material specification validation, R&D, batch quality inspection and composite structural design data acquisition.
