ISO 11003-1 Structural Adhesive Shear Tester | Torsion Test Machine for Butt-Bonded Hollow Cylinders | UnitedTest

ISO 11003-1 uses torsion testing on butt-bonded hollow cylinders to measure shear modulus, shear strength and failure strain of structural adhesives, supplying critical data for FEA and engineering design. UnitedTest manufactures ISO 11003-1 compliant adhesive torsion shear testing machines.

ISO 11003-1 Adhesives — Determination of shear behaviour of structural adhesives — Part 1: Torsion test method using butt-bonded hollow cylinders.

ISO 11003-1 specifies a torsion-based shear test method for characterizing the shear-stress-shear-strain response of structural adhesive bonded joints. The test employs specimens made of butt-bonded hollow cylinders to obtain key parameters including shear modulus, shear strength and failure strain. These measured material properties provide essential input data for advanced engineering design work such as finite-element analysis (FEA).

This torsion shear test method is widely used in aerospace, automotive, railway and composite industries for structural adhesive formulation development, joint design validation, batch quality control and material certification. It delivers pure shear loading conditions that help engineers predict the performance of adhesive bonds under torsional service loads.

UnitedTest designs and manufactures ISO 11003-1 torsion shear testing machines for structural adhesives. Our precision test systems accurately record torque and angular displacement, generating reliable shear property curves for adhesive R&D and laboratory material qualification.

Test Principle:

Two hollow cylindrical adherends are bonded end‑to‑end (butt‑bonded), forming an annular adhesive bondline. Controlled torque is applied in torsion. The test continuously measures torque and relative rotational displacement of the two adherends until joint failure. The circular symmetry creates a near‑uniform simple‑shear stress state across the annular adhesive layer, eliminating complex stress gradients found in many lap‑shear specimens. Measured torque and corrected displacement are converted to adhesive shear stress and shear strain for constructing shear stress‑strain curves.

Core Test Method

Butt-bond two hollow cylinders coaxially; fill the full annulus with adhesive.

Mount the assembly in a torsion tester; attach a displacement transducer as close as possible to the bond line.

Apply continuous angular displacement at a controlled shear rate; record torque vs displacement.

If the specimen does not fail at low shear rate, increase torque rate until failure, then inspect the fracture surface.

Test machine and fixture required for ISO 11003-1 Structural Adhesive Torsion Test by butt-bonded hollow cylinders

Torsion testing machine

Minimum capacity 300 N·m (preferred 1000 N·m).

A suitably adapted tensile tester can substitute. Torque recording error shall be less than 1 %.

Gripping heads must be precisely aligned to avoid parasitic loads. A thermostatted environmental chamber is required for non‑ambient‑temperature testing.

Displacement sensor (transducer): Mounted as close as possible to the bondline on both adherends. Measuring range adjustable 2 μm‑1000 μm; measurement accuracy ±1 μm.

The sensor assembly must be lightweight and robust to survive shock at specimen rupture.

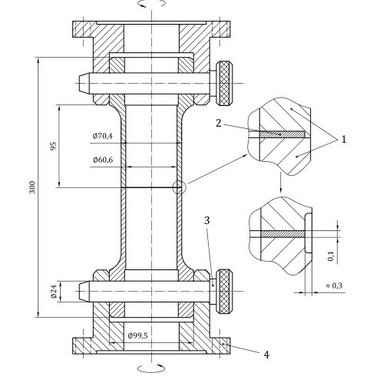

Bonding fixture assembly

Including PTFE alignment plug, temperature‑resistant O‑ring, threaded rod and clamping plates, to maintain coaxial alignment, control bond‑line thickness and prevent adhesive squeeze‑out during adhesive curing.

ISO 11003-1 Structural Adhesive Torsion Test by butt-bonded hollow cylinders

Auxiliary Tools

Thermocouples for specimen‑surface temperature measurement near the bondline; lathe for final removal of the thickness‑setting rim spacer after adhesive curing.

Test Specimen Information:

Substrate: aluminium alloy or steel preferred; any material acceptable if its shear modulus is ≥10× the adhesive modulus.

Surface preparation: per ISO 17212, or any method giving cohesive adhesive failure.

Bonding: coaxial; maximum lateral axis offset ≤0.002 r₀; bond-line thickness variation ≤5% of specified thickness; joint fully filled; fixture prevents movement during cure.

Adhesive thickness: preferred 0.2 mm; 0.05–0.5 mm allowed for special adhesives. Thickness set by a machined rim/spacer on one adherend, then removed after cure.

Geometry rule: r_i≥ 0.8 r₀; adhesive width r₀-r_i should be at least 10× bond thickness (can be reduced to 0.1 r₀ width only if torque capacity prevents failure).

Size	r₀ (mm)	r_i (mm)
A	36	30
B	24	20
C	12	10

Number: at least 5 specimens per adhesive condition.

Key Test Parameters & Stipulations

Adhesive shear‑rate ṙ: 0.0005 s⁻¹ to 0.02 s⁻¹, preferred value = 0.01 s⁻¹. The machine angular displacement rate is calculated from shear‑rate, bond‑line thickness and specimen outer radius by the given formula.

Shear stress at outer radius:

ISO 11003-1 Structural Adhesive Torsion Test by butt-bonded hollow cylinders

Shear strain: Total measured displacement must subtract displacement caused by adherend elastic twist (d_t). d_t can be computed from adherend shear modulus or measured experimentally using un‑bonded reference substrates of identical geometry. For small shear angles, tan γ ≈ γ.

Shear modulus G_a is derived from the slope of the initial linear segment of shear‑stress‑shear‑strain curve.

Details ISO 11003-1 Structural Adhesive Torsion Test by butt-bonded hollow cylinders Test procedures:

1. Assemble specimen in torsion tester; configure thermal chamber if non‑ambient temperature is needed. Eliminate pre‑load on the bond joint before starting the test.

2. Apply continuous torsional deformation at the pre‑set angular rate, record full torque‑displacement curve until joint failure or until maximum target deformation is reached.

3. If no failure occurs at maximum deformation (common under low shear‑rate loading), increase torque rate and repeat test to induce failure.

4. Inspect fracture surfaces after test. Reject specimens with voids, bubbles or incompletely filled bond‑lines. Confirm cohesive failure within adhesive layer is achieved for valid results; classify failure patterns per ISO 10365.

5. Process raw data: subtract adherend twist contribution; compute shear stress, shear strain, shear modulus, peak shear strength and failure strain; compute mean value and standard deviation for valid dataset.

Target Industry Application Fields

Because the output is a full shear law (G, yield/nonlinear shear strain, peak shear stress, failure strain), the method is used where bonded joints are analyzed rather than just pass/fail screened:

Aerospace: composite/metal structural bonding, FEA of shear-dominated joints.

Automotive/rail: body bonding, crash/reinforcement joints, weight-reduction adhesive assembly.

Wind energy: bonded shear webs/flanges where shear stiffness at different temperatures matters.

Marine and offshore: structural epoxy/polyurethane bonds.

Construction/civil: steel–concrete or FRP strengthening adhesives, though site joints often also use lap/shear coupon data.

Electronics/precision: torque-resistant encapsulants/pottings and anaerobic/UV bonds (often supplemented by ASTM D3658-type torque tests).

Adhesive R&D and QC: formulation comparison, surface-treatment validation, temperature/rate sensitivity.

Referenced Related Standards

ASTM D5458	Standard Test Method for Peel Cling of Stretch Wrap Film
ASTM D5449	Transverse compressive properties of hoop-wound cylinders
ASTM D5450	Transverse tensile properties of hoop-wound cylinders
ASTM D3518	In-plane shear from ±45° laminate
ISO 11003‑1	Adhesives — Determination of shear behaviour of structural adhesives — Part 1: Torsion test method using butt‑bonded hollow cylinders
ISO 10123	strength of anaerobic adhesives in bonded cylindrical/threaded assemblies (related for cylindrical bonds, not annular torsion).
ISO 4587	single-lap tensile shear (thin adherends); widely used QC, but has peel/stress Concentration artefacts.
EN 14869-1	Structural adhesives - Determination of shear behaviour of structural bonds - Part 1: Torsion test method using butt-bonded hollow cylinders
ASTM E229	Torsional/shear testing of adhesives using napkin-ring/hollow-cylinder-type geometry (closest US analogue to ISO 11003-1).
ASTM D3658	Torque strength of adhesive bonds, e.g., UV-cured/electronics (rotational shear, narrower scope).
ISO 11003‑2	Part 2 of the same series, Tensile test method using thick adherends. It measures adhesive shear properties under thick‑adherend tensile loading, offering an alternative to the torsion approach of Part 1
ASTM D5379	V-notched beam shear test
ASTM D4255	Rail shear test
ASTM D7078	V‑notched rail shear test for flat laminates

Keywords: ISO 11003-1 structural adhesive shear tester,butt bonded hollow cylinder torsion test machine,adhesive torsion shear property test rig,structural adhesive shear modulus tester,adhesive bond shear strength test equipment,FEA adhesive material characterization instrument,hollow cylinder adhesive torsion test apparatus,structural adhesive failure strain testing machine,adhesive joint torsion shear test system,aerospace structural adhesive lab tester,automotive adhesive bond torsion test rig,composite structural adhesive shear behaviour analyzer

NJW series torsion testing machine consist of loading system, weight balancing system, transmission system, data collection system, and computer measuring and control system. Suitable to test the metal material, non-metal material, various kinds of structures like shaft, bolts, alloy components.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

ISO 11003-1 Structural Adhesive Torsion Testing Machines — Hollow Cylinder Shear Test Systems by UnitedTest

Q1: What is ISO 11003‑1:2019? Why is this test important?

A1: ISO 11003‑1:2019 is an international standard for measuring the full shear‑stress‑strain behaviour of structural adhesives by torsion of butt‑bonded hollow cylinders. Unlike lap‑shear tests which only give ultimate failure strength, this test delivers true shear modulus, shear yield, peak shear strength and failure shear strain of the adhesive inside the actual bond‑line. These material parameters are mandatory inputs for finite‑element analysis (FEA) simulation of bonded joints in aerospace, automotive and other safety‑critical engineering designs. It creates near‑uniform pure‑shear stress status and minimises peel‑stress edge effects that distort lap‑shear test data.

Q2: ISO 11003‑1 vs lap‑shear test (ISO 4587), what is the difference?

A2: Lap‑shear (ISO 4587) is quick quality‑control test to get ultimate shear strength value, but lap‑joint geometry introduces bending and peel stress at overlap edges, cannot provide reliable shear‑modulus and full stress‑strain curve for FEA input. ISO 11003‑1 torsion test produces near‑pure shear status, outputs full elastic‑plastic shear behaviour data, but specimen preparation and equipment cost are higher.

Q3: Why must we correct displacement for adherend twist deformation?

A3: Total measured displacement includes two parts: adhesive shear deformation plus elastic twist of hollow‑cylinder adherends. Without subtracting adherend twist dt, shear‑strain and shear‑modulus will be over‑estimated. You can compute dt by adherend shear‑modulus or measure experimentally using un‑bonded reference hollow cylinders of identical geometry and material.

Q4: What if specimen does not break after reaching maximum shear deformation?

A4: Especially under low shear‑rate loading, adhesive may sustain large deformation without fracture. According to ISO 11003‑1 procedure: increase torque rate and repeat test until joint failure. After test inspect bond‑line for fabrication defects (void, incomplete filling) and only keep cohesive‑failure specimens for data processing.

Q5. What are common reasons for bad data?

A5: Poor coaxiality or uneven bond thickness

Voids/incomplete adhesive fill

Wrong surface pretreatment causing interfacial failure

Ignoring adherend twist correction

Wrong shear/angular rate

Torque sensor resolution insufficient for small specimens

Temperature gradient at the bond line

Q6: Why choose ISO 11003‑1 Torsion Testing Machine for Structural Adhesive from UnitedTest?

A6: UnitedTest designs ISO 11003-1 torsion testing machines for structural adhesives using butt-bonded hollow cylinders. Measure shear modulus, shear stress–strain and bond-line displacement with 300–1000 N·m torque systems, ±1 µm sensors and temperature chambers.

UnitedTest supplies complete turn‑key torsion test systems complying fully with ISO 11003‑1:2019 — Torsion test method using butt‑bonded hollow cylinders for structural adhesives.

This standard‑compliant test equipment is designed to characterise pure‑shear performance of structural adhesives, delivering reliable shear‑modulus, shear strength, yield behaviour and full shear‑stress‑shear‑strain curves required for finite‑element joint simulation in aerospace, automotive, railway and advanced engineering research labs.

Our ISO 11003‑1 torsion tester features:

Torque capacity options: 300 N·m up to 1000 N·m; torque measuring error less than 1 %
High‑accuracy bond‑line displacement transducer: ±1 μm measurement precision
Precision‑aligned specimen gripping assembly to eliminate uncontrolled parasitic loads
Optional integrated thermal environmental chamber for high/low‑temperature adhesive shear testing
Complete custom‑made fixture set for hollow‑cylinder butt‑bonded specimens, including PTFE alignment plug, O‑ring curing jigs
Dedicated test software: auto‑calculates shear‑stress, corrected shear‑strain, shear modulus; exports stress‑strain curves and test‑report template aligned with ISO 11003‑1 reporting requirements.

Different from ordinary lap‑shear test machines, UnitedTest ISO 11003‑1 torsion system creates near‑uniform pure‑shear stress state on annular adhesive bond‑line, removing edge‑peel interference which distorts lap‑shear results. It is the ideal laboratory instrument for adhesive R&D, material qualification and quality‑control for safety‑critical bonded assemblies.

UnitedTest, professional material‑testing‑machine manufacturer, also supports OEM/ODM fixture customisation, on‑site installation, training and calibration services for global customers. Contact us for quotation of ISO 11003‑1 adhesive torsion‑test solution.
