ASTM D7078 V-Notched Rail Shear Tester for Composite Materials | UnitedTest

UnitedTest manufactures precision ASTM D7078 compliant rail shear testing machines built to measure shear properties of high-modulus fiber-reinforced composite materials for aerospace, automotive and advanced composite laboratories.

ASTM D7078 Standard Test Method for Shear Properties of Composite Materials by V‑Notched Rail Shear Method outlines a standardized procedure to characterize shear performance of high-modulus fiber-reinforced composites. Testing is completed by securing a V-notched test specimen between two sets of loading rails and applying tensile force to the rails. This rail shear setup delivers face loading on the specimen, enabling the application of greater shear loads compared to conventional edge-loaded shear test approaches.

The ASTM D7078 V-notched rail shear test captures comprehensive shear property data, including in-plane (1-2) and interlaminar (1-3/2-3) shear moduli, complete shear stress-strain curves, ultimate shear strength, and offset yield shear strength. Test outputs support composite material screening, laminate structural design, process optimization and incoming quality inspection for high-performance composite components.

Core Test Principle

A flat rectangular coupon with two symmetrical centrally located V‑notches is clamped into a two‑piece rail fixture. When the testing machine pulls the fixture halves apart:

the notches raise the shear stress in the gauge section relative to the grip region, localising failure between the notch tips;

the V‑notch geometry makes the shear‑stress distribution more uniform than in an un‑notched coupon;

two strain‑gauge elements oriented at +45° and –45° to the loading axis (centred between the notches) measure the engineering shear strain directly.

Face loading (through the specimen faces) enables higher shear forces than edge‑loaded methods. The larger gauge section compared with D5379 also contributes to a more uniform shear‑stress distribution.

ASTM D7078 V-Notched Rail Shear Test for Composite Materials

Specific Test Method

Specimen placement – The V‑notched coupon is inserted into the two fixture halves with the notches aligned along the loading axis.

Loading – The testing machine applies tension to the fixture, introducing shear forces into the specimen faces.

Measurement – Force is recorded continuously while the ±45° strain gauges capture shear strain.

Test Specimen Information

Parameter	Metric (mm)	Imperial (inch)	Tolerance Rules
Total length L	76	3.0	ANSI Y14.5M geometric tolerance standard
Full specimen width w	56	2.20	Flatness tolerance ±0.51 μm
Notch gap width (gage width) d2	12.7	0.50	Fixed 12.7 mm depth
V-notch angle	90° (45° flank angle)	90°	Angular tolerance ±0.5°
Notch root radius r	1.3	0.05	Precision ±25 μm
Recommended thickness h	2–5	0.08–0.20	Minimum 1.3 mm to avoid buckling

ASTM D7078 V-Notched Rail Shear Test for Composite Materials

Sampling rule: Minimum 5 replicate specimens per test condition.

Required Test Equipment of ASTM D7078 V-Notched Rail Shear Test for Composite Materials

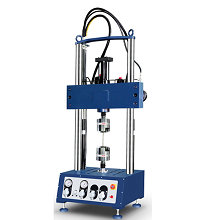

High speed Tensile testing machine

Compliant with ASTM E4 force calibration:

- Stationary + movable crosshead for tensile pulling; optional universal ball joint to correct minor fixture misalignment.

- Load cell accuracy within ±1% full measured range; separate low/high force load cells recommended if both modulus and ultimate strength are tested in one batch.

- Adjustable displacement speed for strain-rate controlled loading.

V‑Notched Beam Shear Fixture

Tensile two-rail clamping fixture, the core unique hardware of D7078:

1. Two independent left/right fixture halves with friction thermal-sprayed clamping plates; three torque-controlled bolts per side to lock specimen side faces.

2. Standard recommended clamping torque: 45–55 N·m (35–40 ft-lb), calibrated torque wrench mandatory for consistent grip pressure.

3. Disposable plastic spacer blocks for precise specimen centering and notch alignment before tightening bolts; spacers removed before loading.

4. Machine adapters to mount each fixture half to upper/lower UTM crossheads.

5. No linear bearing components (distinct from D5379 compression fixture).

Strain Measurement Hardware

1. Dual ±45° resistance strain rosettes (minimum two elements centered between notches): 350 Ω resistance preferred, minimum 3% strain rating (covers full 5% shear strain test limit).

2. Back-to-back front/back rosettes required to quantify specimen twisting error for modulus correction.

3. Data acquisition system: Sampling rate 2–3 Hz, minimum 100 data points per test; half-bridge wiring directly outputs engineering shear strain.

4. Temperature compensation modules for high/low temperature environmental testing.

Test Parameters

Cross‑head speed (constant‑head mode)	2 mm/min (0.05 in/min)
Shear strain rate (strain‑controlled mode)	0.01 min⁻¹ (target failure in 1‑10 min)
Clamping bolt torque	55 N·m (40 ft‑lb) – adjustable 45‑55 N·m depending on material/thickness
Data acquisition rate	2‑3 Hz, minimum 100 data points per test
Chord modulus strain window	4000 µε ±200 µε, starting at 1500‑2500 µε
Twist‑check criterion	At 0.004 engineering shear strain, $
Buckling detection	Opposite‑face strain‑gauge readings diverging > 10 % indicates buckling; data from buckled state are invalid
Truncation	If failure does not occur by 5 % engineering shear strain, data are truncated at that strain

Test Stipulations

Strain‑gauge installation – Surface preparation must not expose or damage reinforcing fibres. Use manufacturer‑recommended adhesives; consider temperature compensation, especially for non‑ambient tests.

Fixture inspection – Gripping surfaces cleaned (brass wire brush), bolt threads lubricated with powdered graphite, wear assessed before each test.

Alignment & twist – At least one specimen per population should be instrumented with back‑to‑back gauges to verify twist ≤ 3 %.

Failure force definition – For [0]ₙ specimens, the small drop from notch‑root cracking is not taken as failure; the ultimate force in the test section is used. For [0/90] tape/fabric, the shear‑failure force may be lower than the maximum force; correlate with visual observation or force‑drop.

Step-by-Step Test Procedures of ASTM D5379 Shear Test of Composite by the V-Notched Beam methods

Strain Gage Bonding & Calibration

Prepare specimen surface per ASTM E1237 (no fiber damage/exposure); mount ±45° rosettes centered between notch roots on front/back surfaces; wire strain channels to DAQ and complete pre-test zero calibration and temperature compensation setup.

Fixture Inspection & Setup

Clean fixture clamping plates of residue; lubricate bolt threads with graphite powder; mount left/right fixture halves to UTM upper/lower adapters; install alignment spacer blocks into fixture cavities.

Specimen Insertion & Torque Clamping

Loosen all six clamping bolts (3 per side); slide specimen into left fixture half against spacer block; torque three left bolts to 45–55 N·m in sequence; attach right fixture half to specimen’s right edge, torque right-side bolts to identical torque; remove plastic alignment spacers completely.

Force & Strain Zeroing

Zero UTM load cell and strain gage channels to eliminate initial preload from clamping; confirm no residual force offset exists before starting loading.

Controlled Tensile Loading & Continuous Data Logging

Activate UTM at specified strain/displacement speed; continuously record force, crosshead displacement and strain at 2–3 Hz; capture data points at initial ply cracking, peak load and specimen fracture; terminate test automatically at specimen rupture or 5% shear strain limit.

Post-Test Damage Documentation

Photograph fractured specimens; classify failure mode using standard three-part failure code (Failure Type + Location + Zone); calculate specimen twist percentage from front/back strain modulus data; discard invalid buckling/grip-fracture specimens and repeat testing.

Data Reduction & Statistical Compilation

Compute shear stress-strain curves, ultimate strength, ultimate strain, chord modulus and offset shear strength for each replicate; calculate batch average, standard deviation and CV for full test reporting.

Related Test Standard:

ASTM D5379	Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method
ASTM D7078	Standard Test Method for Shear Properties of Composite Materials by V-Notched Rail Shear Method
GB/T 28889	Test method for in-plane shear properties of composite materials
ASTM D3518	Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate
ISO 14129	Fibre-reinforced plastic composites - Determination of the in-plane shear stress/shear strain response, including the in-plane shear modulus and strength, by the ˝45° tension test method
GOST R 57968	Polymer composites. Test method of samples for shearing
GOST R 57207	Polymer composites. Test method for shear properties of V-notched test samples
GB/T 30970	Test method for the shear properties of polymer matrix composite materials by V-notched beam method
ASTM D4255	Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

ASTM D7078 is the closest sibling — it fills the gap between D5379 (small specimen, edge‑loaded) and D4255 (rail shear, no notches). D7078's side‑clamping allows higher shear forces and avoids stress concentrations from bolt holes.

Keywords: UnitedTest ASTM D7078 tester, ASTM D7078 V-notched rail shear tester, composite rail shear test machine, high modulus fiber reinforced composite shear property tester, ASTM D7078 face loading V-notched rail shear test, in-plane and interlaminar shear modulus testing equipment for composites, V-notched rail shear method ultimate shear strength analyzer, high-modulus composite shear stress strain curve test machine, rail shear test compared with edge loaded composite shear testing

Designed for dynamic mechanical property testing and impact scenario simulation and validation of materials, accurately capture the mechanical response data of materials under extreme speed loading, providing professional, high-precision testing support for lightweight material research.

Iosipescu Fixture V-Notch Shear is used to determine the mechanical strength of composite material, is a four-point asymmetric flexure fixture which tests for shear properties by means of the V-notched beam method.

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Q1: What is ASTM D7078, and why is this shear test critical for composite materials?

A: ASTM D7078 is the V-notched rail tension shear standard for fiber-reinforced polymer composites, used to measure full shear stress-strain curves, shear chord modulus, ultimate shear strength, and offset shear strength for all six material shear planes. It is irreplaceable for three core reasons:

1. Its wide gage section and side-face tensile clamping support thick, heavy-tow woven/braided composites that cannot be accurately tested by smaller D5379 Iosipescu specimens.

2. It generates uniform shear across a large test zone, eliminating measurement bias from large fabric weave repeating units.

3. Aerospace, wind turbine, and automotive structural design standards mandate D7078 data for thick load-bearing composite panels, as it delivers reliable design allowables for delamination resistance and shear failure prediction.

Q2: What composite materials does D7078 cover, and which are not recommended?

A: Covered: Unidirectional laminates, balanced \[0/90\]ₙₛ panels, woven/knitted/braided textiles, random short-fiber SMC.

Not recommended: Pure \[0\]ₙ unidirectional laminates (overpredicts shear modulus by 5–10%) and pure \[90\]ₙ unidirectional laminates (prone to premature fracture during rail clamping). Balanced \[0/90\]ₙₛ laminates produce the most accurate, low-scatter results.

Q3: What is the core difference between in-plane shear (1-2 plane) and interlaminar shear (1-3/2-3 planes) measured by D7078?

A: 1. In-plane shear (1-2): Shear within individual fiber layers; test standard-thickness coupons cut parallel to fiber direction, used for intralaminar matrix cracking analysis.

2. Interlaminar shear (1-3/2-3): Through-thickness shear between stacked plies, the primary driver of composite delamination; requires thick base panels (minimum 56 mm total width) for specimen machining.

D7078 is one of only two ASTM shear standards capable of testing all six shear planes by adjusting laminate orientation.

Q4: Do D7078 specimens require bonded end tabs like D5379 thin coupons?

A: No. D7078 clamps the full side surfaces of the specimen via rail plates, so grip crushing is eliminated without tabs. Tabs are never required, which cuts specimen machining labor and removes tab-material interface measurement error sources.

Q5: Why is a minimum thickness of 1.3 mm specified for D7078 specimens?

A: Specimens thinner than 1.3 mm easily buckle under tensile shear load. Buckling creates divergent front/back strain gage readings (>10% difference), and data from buckled specimens is invalid and must be discarded.

Q7: How many replicate specimens are required per test condition?

A: Minimum 5 valid specimens, per ASTM E122 statistical sampling guidance. Fewer replicates are only permitted for preliminary screening tests and must be clearly noted in the final test report.

Q8: What are the official standard loading speeds for D7078?

A: 1. Strain-controlled testing (preferred): Constant shear strain rate = 0.01 min⁻¹

2. Displacement-controlled testing: Crosshead speed = 2 mm/min

All tests must complete failure within 1–10 minutes; adjust speed if fracture occurs too fast or is excessively delayed.

Q9: Why does D7078 truncate all test data at 5% engineering shear strain?

A: Beyond 5% shear strain, fiber rotation and matrix softening create mixed tension-shear deformation that no longer represents pure material shear behavior. Even if the specimen remains intact at >5% strain, the strength value at 5% is recorded as the ultimate shear strength to avoid non-representative data.

Q10: What failure modes are invalid and require retesting specimens?

A: Unacceptable failure codes (discarded data): HNA (horizontal edge cracking), VSE (vertical notch-root only cracking), edge crushing, grip-region breakage. Only fractures fully contained in the central gage section (VGN, HGN, AGN, M(hv)GN) produce valid shear strength results.

Q11: For [0]ₙ unidirectional specimens, why ignore early notch-root force drops?

A: Microcracks form at notch roots early in loading, creating a minor temporary force dip, but this only represents localized matrix damage, not full shear failure of the central test zone. Only the final catastrophic gage-section rupture load is recorded as ultimate strength.

Q12: What are the key differences between ASTM D7078 and ASTM D5379 (Iosipescu)?

Feature	ASTM D7078	ASTM D5379
Loading mode	Tensile side-face rail clamping	Compression top/bottom edge bending
Gage width	Wide 31 mm (large textile friendly)	Narrow 11.4 mm (thin prepreg only)
Max load capacity	High for thick heavy-tow panels	Low, limited to thin laminates
End tabs	Never required	Mandatory for h <2.5 mm
Primary use case	Woven/braided/thick structural composites	Thin unidirectional prepreg R&D

Q13: How does D7078 compare to ASTM D3518 (±45° tensile shear) and D2344 (short-beam ILSS)?

A: 1. ASTM D3518: Only measures in-plane shear, cannot test interlaminar shear; generates bending bias and limited to ±45° balanced laminates.

2. ASTM D2344: Fast screening test only for rough interlaminar shear strength; cannot capture full stress-strain curves or shear modulus, not acceptable for formal structural design data.

D7078 delivers complete, design-ready shear datasets for all six shear planes.

Q14: Why was ASTM D7078 created to replace the withdrawn D4255 unnotched rail shear standard?

A: D4255 used unnotched flat specimens that often failed at grip edges instead of the central test zone. The V-notches in D7078 concentrate shear stress between notch roots, guaranteeing gage-section fracture and uniform shear stress distribution for accurate modulus and strength measurements.

Q15: What are the top causes of high scatter (high CV%) in D7078 test results?

A: 1. Specimen twist exceeding 3% without front/back strain correction

2. Use of pure \[0\]ₙ / \[90\]ₙ laminates instead of balanced \[0/90\]ₙₛ

3. Improper V-notch machining (rough surfaces, delamination, out-of-tolerance radius/angle)

4. Uneven clamping torque leading to specimen slippage or edge crushing

5. Buckling of thin specimens (<1.3 mm) during tensile loading

Q16. Why are there V-notches in the specimen? Can't we just use a flat bar?

A: The V-notches serve two vital purposes:

Stress Localization: They increase the shear stress in the center of the coupon relative to the areas under the grips. This ensures the specimen fails in the gauge section (between the notches) rather than slipping or breaking inside the fixture.

Uniformity: They help create a more uniform shear stress distribution across the width of the specimen compared to an un-notched rail shear specimen (like the now-withdrawn D4255).

Q17. What is the "Twist" problem mentioned in the standard, and how is it fixed?

A: "Twist" occurs when the shear forces are not perfectly aligned, causing the specimen to rotate slightly out of plane. This ruins modulus measurements.

Detection: You must install strain gauges on both the front and back of the specimen.

Acceptance: At 0.004 engineering shear strain, the difference between the front and back modulus must be less than 3%. If twist exceeds 3%, you must either fix the fixture/specimen alignment or use the average of the front and back strain readings for your calculations.

Q18. Is buckling a concern in this test?

Answe: Yes, particularly with thin, high-shear-strength specimens or those with a high percentage of ±45° plies. If the specimen buckles, the data is invalid. The standard provides a check: if the strain readings from the back-to-back gauges diverge by more than 10%, the specimen has likely buckled. You must ensure that any reported modulus or strength data were collected before the onset of buckling.

Q19: Industrial Application Fields

ASTM D7078 is the preferred shear test for thick, high-load textile composite structures across these key industries:

1. Aerospace & Aircraft: Thick woven/braided carbon composite wing spars, fuselage panels, landing gear components; FAA-compliant material qualification for primary load-bearing structures requiring high shear load capacity.

2. Wind Energy: Large glass/carbon woven turbine blade root laminates, thick spar caps; evaluate interlaminar shear resistance under extreme cyclic wind loads.

3. Automotive EV Lightweighting: Thick composite battery trays, structural chassis braided components; test shear performance under crash impact and thermal aging.

4. Marine & Offshore: Thick FRP hull panels, composite ship superstructures, underwater buoyancy modules; seawater-conditioned shear property characterization.

5. Defense Military: Thick armor composite panels, UAV thick structural laminates, braided rocket motor casings; high-shear-load material acceptance testing.

6. Civil Infrastructure: Thick composite bridge decks, FRP reinforcement girders; long-term environmental aging shear performance tracking.

7. Advanced Composite R&D: Textile/braided/preform composite formulation comparison; study the effect of weave architecture, tow size and fiber volume fraction on shear nonlinearity.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
