EN 14869-1 Structural Adhesive Shear Tester | Butt-Bonded Hollow Cylinder Torsion Test Machine | UnitedTest

EN 14869-1 uses torsion testing of butt-bonded hollow cylinders to evaluate full shear stress-strain performance of structural adhesive bonds and supply data for finite element joint simulation. UnitedTest manufactures EN 14869-1 compliant torsion shear testing machines for structural adhesive lab analysis.

EN 14869-1 Structural adhesives — Determination of shear behaviour of structural bonds — Part 1: Torsion test method using butt-bonded hollow cylinders.

EN 14869-1 specifies a hollow-cylinder torsion test method for characterizing the complete shear stress-strain performance of structural adhesive bonded joints. Measured material data serves as critical input parameters for finite-element joint simulation and structural design calculation.

Compared to the base ISO 11003-1:2001 standard, EN 14869-1 incorporates additional safety clauses, a dedicated formal terminology section, alternative options for bond-line thickness control, updated European normative references, and revised figures and calculation sub-clauses for more standardized European laboratory testing.

This torsion shear test method is widely used in aerospace, automotive, railway and composite industries for structural adhesive formulation development, bonded joint design validation, batch quality inspection and European material certification. It generates pure shear loading conditions to assess adhesive bond behaviour under torsional loads.

UnitedTest designs and manufactures EN 14869-1 torsion shear testing machines for structural adhesives. Our precision test rigs accurately capture torque and angular displacement data to produce reliable shear property curves for adhesive R&D and material qualification in European compliance labs.

Test Principle:

The method characterizes the shear behaviour of a structural adhesive in a bonded joint. Two hollow cylinders are bonded coaxially on an annular butt face. The machine applies torsion, and the standard records:

torque, and

relative displacement of the two adherends at/near the bond line,

until a target deformation is reached or the joint fails. From these data it derives shear stress, shear strain, shear modulus and maximum/peak shear stress (shear strength). The stated purpose is to provide shear stress–strain data, including shear modulus, for advanced design work such as finite element analysis (FEA).

In simple terms: pure torsional shear in an annular adhesive layer, with correction for the twist of the metal/plastic cylinders themselves.

Test machine and fixture required for EN 14869-1 butt-bonded hollow cylinder adhesive torsion testing

Torsion testing machine	Minimum torque capacity of 300 N·m, preferred capacity 1000 N·m. A suitably modified tensile tester can substitute. Torque recording error must be below 1 %. Gripping heads must maintain precise co‑axial alignment to avoid parasitic side loads. A thermostatted environmental chamber is mandatory for non‑ambient‑temperature testing.
High‑precision displacement transducer	Mounted as close as physically possible to the bond‑line on both upper and lower adherends. Adjustable measuring range: 2 μm‑1000 μm; measurement accuracy ±1 μm. Sensor assembly must be lightweight and mechanically robust to survive high acceleration shock at specimen rupture.
Bonding fixture assembly	PTFE alignment plug, temperature‑resistant O‑ring, threaded rod and top/bottom clamping plates, to keep cylinders co‑axial, prevent adhesive squeeze‑out and prohibit relative movement during adhesive curing.
Auxiliary Tools	Thermocouples for monitoring specimen surface temperature near bond‑line; lathe for removing machined rim spacer after curing; non‑adherent flexible bands or glass‑bead spacers (alternative bond‑thickness control method defined in this European standard).

Test Specimen Information:

Substrate: Preferred substrates: aluminium alloy or steel. Alternative adherend materials are permitted only when the adherend shear modulus is at least ten times larger than the shear modulus of the test adhesive, to minimise substrate twist interference with adhesive‑deformation readings.

EN 14869-1 butt-bonded hollow cylinder adhesive torsion testing

Bond‑line thickness: Preferred thickness 0.2 mm; permissible range 0.05 mm‑0.5 mm.

Size	r₀ (mm)	r_i (mm)
A	36	30
B	24	20
C	12	10

Bond zone annular width shall be minimum 10 × bond‑line thickness; may reduce down to 0.1r₀ when available machine torque cannot trigger specimen fracture.

Alignment tolerances: maximum lateral axis offset ≤ 0.002 r₀; bond‑thickness variation ≤ 5 % of target thickness.

Minimum of five valid specimens for each adhesive condition. Specimens containing bubbles, voids or incompletely filled bond‑lines must be discarded from data processing.

Key Test Parameters & Stipulations

Adhesive shear‑rate ṙ: 0.0005 s⁻¹ to 0.02 s⁻¹, preferred value = 0.01 s⁻¹. Torsion‑machine angular displacement rate is calculated from shear‑rate, bond‑line thickness and specimen outer radius. The strain formula is valid **only for small shear angles** (explicit note added in EN 14869‑1).

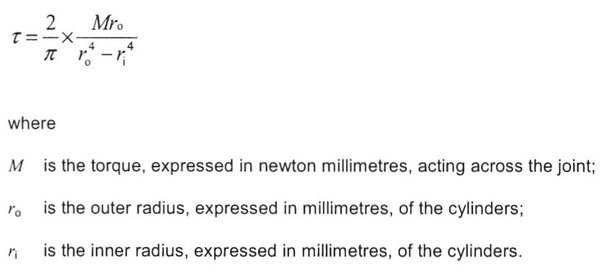

Outer‑radius shear‑stress formula

EN 14869-1 butt-bonded hollow cylinder adhesive torsion testing

Shear strain: Total measured displacement must subtract displacement caused by adherend elastic twist (d_t). d_t can be computed from adherend shear modulus or measured experimentally using un‑bonded reference substrates of identical geometry. For small shear angles, tan γ ≈ γ.

Shear modulus G_a is derived from the slope of the initial linear segment of shear‑stress‑shear‑strain curve.

Compute arithmetic mean and standard deviation for shear modulus, peak shear strength, corresponding shear strain and failure‑point stress‑strain values from valid specimens.

Details EN 14869-1 butt-bonded hollow cylinder adhesive torsion testing Test procedures:

Condition/adherend prepare per EN 13887 or equivalent.

Align cylinders with PTFE plug/O‑ring/rod‑plate jig; apply adhesive to fill annulus.

Cure with fixture fixed; control temperature/pressure/time per adhesive spec.

Remove rim/spacer if used; measure final bond thickness and radii.

Mount in torsion machine; fit near‑bond displacement transducer; set temperature if non‑ambient.

Zero the joint load.

Set angular rate from α = γ̇·d/r₀; preferred γ̇ = 0.01 s⁻¹.

Apply torsion and record torque vs displacement to failure or target strain.

If no failure, raise torque rate and repeat.

Measure/correct adherend twist, calculate shear properties, inspect fracture surfaces, and report.

Target Industry Application Fields

EN 14869‑1:2004 applies for safety‑critical structural‑adhesive bonding within European industries:

- Automotive lightweight multi‑material assembly

- Aerospace structural bonding

- Railway vehicle engineering

- Heavy mechanical engineering

- Construction structural bonding

Engineers use this test output for adhesive formulation R&D, material qualification, joint finite‑element simulation and batch quality‑control of safety‑relevant bonded components across EU markets.

Referenced Related Standards

ASTM D5458	Standard Test Method for Peel Cling of Stretch Wrap Film
ASTM D5449	Transverse compressive properties of hoop-wound cylinders
ASTM D5450	Transverse tensile properties of hoop-wound cylinders
ASTM D3518	In-plane shear from ±45° laminate
ISO 11003‑1	Adhesives — Determination of shear behaviour of structural adhesives — Part 1: Torsion test method using butt‑bonded hollow cylinders
ISO 10123	strength of anaerobic adhesives in bonded cylindrical/threaded assemblies (related for cylindrical bonds, not annular torsion).
ISO 4587	single-lap tensile shear (thin adherends); widely used QC, but has peel/stress Concentration artefacts.
EN 14869-1	Structural adhesives - Determination of shear behaviour of structural bonds - Part 1: Torsion test method using butt-bonded hollow cylinders
ASTM E229	Torsional/shear testing of adhesives using napkin-ring/hollow-cylinder-type geometry (closest US analogue to ISO 11003-1).
ASTM D3658	Torque strength of adhesive bonds, e.g., UV-cured/electronics (rotational shear, narrower scope).
ISO 11003‑2	Part 2 of the same series, Tensile test method using thick adherends. It measures adhesive shear properties under thick‑adherend tensile loading, offering an alternative to the torsion approach of Part 1
ASTM D5379	V-notched beam shear test
ASTM D4255	Rail shear test
ASTM D7078	V‑notched rail shear test for flat laminates

Keywords: EN 14869-1 structural adhesive shear tester,butt bonded hollow cylinder torsion test machine,structural bond torsion shear property test rig,EN14869 adhesive shear stress strain test equipment,finite element joint simulation adhesive tester,structural adhesive bond line thickness control test apparatus,EN 14869-1 torsion shear testing system,European structural adhesive lab tester,aerospace composite adhesive torsion test machine,automotive structural bond shear performance analyzer,structural adhesive joint simulation test instrument,EN standard adhesive torsion shear test rig

NJW series torsion testing machine consist of loading system, weight balancing system, transmission system, data collection system, and computer measuring and control system. Suitable to test the metal material, non-metal material, various kinds of structures like shaft, bolts, alloy components.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

EN 14869‑1 Adhesive Torsion Test Machine | Hollow Cylinder Shear Tester | UnitedTest

Q1: What is EN 14869‑1:2004 and why is this test important?

A1: EN 14869‑1:2004 is a European CEN standard, modified adoption of ISO 11003‑1:2001, for torsion shear testing of butt‑bonded hollow‑cylinder structural adhesive joints. It generates full shear‑stress‑strain curves, shear modulus, peak shear strength and failure strain for adhesives inside real bond‑lines. These parameters are mandatory for finite‑element joint simulation and EU‑market structural adhesive qualification. Unlike lap‑shear tests that only output breaking force, this standard delivers near‑pure‑shear data with minimal peel‑stress artefacts for safety‑critical bonded assemblies for European automotive, aerospace and railway industries.

Q2: What key differences between EN 14869‑1 and original ISO 11003‑1:2001?

A2: EN 14869‑1 adds an explicit safety clause for laboratory operation, missing in ISO 11003‑1:2001.

Adds formal terms‑and‑definitions section referencing EN 923.

Two permitted bond‑thickness control methods: machined rim spacer (ISO original) or embedded spacers (glass beads, net, cloth) with outer non‑adherent restraining band (European extension).

Updated European normative references (EN 13887 for surface preparation).

Explicit note that shear‑strain formula is valid only for small shear angles.

Revised figures and adjusted calculation sub‑clauses.

Note: ISO 11003‑1:2019 fixed the angular displacement formula error present in ISO 11003‑1:2001, which EN 14869‑1 still inherits.

Q3: Why must adherend twist deformation d_t be corrected?

A3: Raw measured displacement mixes adhesive shear deformation and elastic twisting of hollow‑cylinder substrates. Without subtracting adherend twist, shear strain will be overestimated and shear‑modulus calculation will produce wrong results. You can calculate d_t using adherend shear‑modulus or measure experimentally using identical un‑bonded hollow‑cylinder reference samples.

Q4: What to do if specimen does not fracture during EN 14869‑1 test?

A4: Ductile structural adhesives may sustain large shear deformation without rupture especially under low shear‑rate. Increase torque rate and repeat test to trigger failure. After test inspect bond‑line for voids or incomplete filling. Only specimens achieving cohesive failure can be counted for final data processing.

Q5: Which industries apply EN 14869‑1 testing?

A5: European‑based automotive lightweight multi‑material assembly, aerospace bonding, railway vehicle manufacturing, mechanical engineering and construction structural bonding. Test data supports adhesive R&D, batch QC, material selection and FEA simulation for safety‑critical bonded components for EU market certification.

Q6: Why choose EN 14869‑1 Torsion Testing Machine for Structural Adhesive from UnitedTest?

A6: UnitedTest manufactures EN 14869‑1 compliant torsion testing machine for structural adhesive shear‑behaviour characterisation. Measure shear modulus, full shear‑stress‑strain curve for butt‑bonded hollow‑cylinder specimens, with full fixture kits for European standard requirements.

UnitedTest delivers complete turn‑key torsion test systems fully compliant with **EN 14869‑1:2004**, the European standard for determining shear behaviour of structural bonds using butt‑bonded hollow cylinders. Derived from modified ISO 11003‑1:2001, this test system is widely adopted by European R&D labs, material qualification institutes and manufacturers of safety‑critical structural adhesives.

Our EN 14869‑1 torsion tester measures true bond‑line shear modulus, peak shear strength, yield performance and full shear‑stress‑strain curves required for finite‑element joint simulation for automotive, aerospace, railway and construction bonding applications.

Key machine features complying with EN 14869‑1 requirements:

- Torque capacity 300 N·m up to 1000 N·m, torque measurement error less than 1 %

- High‑precision bond‑line displacement transducer: ±1 μm measuring accuracy, robust anti‑shock design for specimen‑failure impact

- Precision‑aligned gripping assembly eliminating uncontrolled parasitic side‑loads

- Optional integrated thermal environmental chamber for high‑low‑temperature adhesive shear testing

- Complete custom fixture kit: PTFE alignment plug, O‑ring curing jigs, supports **two bond‑thickness control workflows**: machined rim spacer and glass‑bead/net embedded spacers (EN‑specific requirement)

- Dedicated test software: auto‑calculates shear stress, twist‑corrected shear strain and shear modulus; generates test‑report template matching EN 14869‑1 reporting checklist, exports stress‑strain curves.

Different from lap‑shear testers, UnitedTest EN 14869‑1 torsion test rig creates near‑uniform pure‑shear stress distribution across annular adhesive bond‑line, minimising edge peel‑stress distortion which corrupts lap‑shear test results.

As an original manufacturer, UnitedTest provides fixture customisation, on‑site commissioning, operator training and calibration support for global customers. Contact us for quotation of your EN 14869‑1 structural‑adhesive torsion‑testing solution.
