EN 1228 GRP Pipe Initial Specific Ring Stiffness Tester | UnitedTest

EN 1228 determines the initial specific ring stiffness of GRP and FRP thermosetting plastic pipes, based on ISO 7685 guidelines. UnitedTest manufactures fully EN 1228 compliant ring stiffness testing machines for industrial plastic pipe quality control.

EN 1228 is the official European standard for plastics piping systems, specializing in the determination of initial specific ring stiffness for glass-reinforced thermosetting plastics (GRP) pipes, also widely known as fiberglass-reinforced plastic (FRP) pipes. This standard covers composite pipes reinforced with polyester, epoxy, and vinylester glass fibers, delivering critical mechanical performance data for rigid pipeline structural validation. Developed based on the ISO 7685 international framework, EN 1228 provides standardized testing methodologies to measure radial load resistance and initial structural rigidity of GRP pipe specimens under controlled laboratory conditions.

Initial specific ring stiffness is a core mechanical parameter that defines a GRP pipe’s ability to resist external radial deformation during installation and long-term underground service. EN 1228 test results support pipe material formulation optimization, production batch consistency inspection, engineering design verification, and compliance certification for municipal, industrial, and drainage pipeline projects. It serves as the authoritative testing benchmark for all common GRP pipe specifications across European and global plastic piping industries.

UnitedTest designs and manufactures high-precision EN 1228 compliant GRP pipe ring stiffness testing machines. Our professional test equipment strictly follows ISO 7685-based standard protocols, delivering accurate, repeatable initial specific ring stiffness measurements for FRP and GRP composite pipes, ideal for pipe factory quality assurance, third-party laboratory testing, and civil engineering material R&D.

Test Principle & Test Method

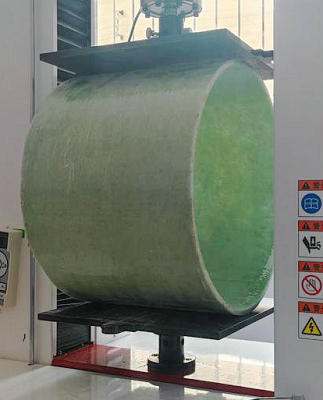

A cut length of pipe — a complete ring — is placed horizontally between two parallel load-application surfaces and compressed vertically so that its diameter is reduced. The test determines either:

the deflection produced under a controlled load, or

the load required to produce a controlled deflection.

From the load–deflection relationship, the initial specific ring stiffness S₀ is calculated. It represents the pipe’s resistance to ring/diametric deformation under external load, which is the key property for buried or externally loaded pipe design.

EN 1228 GRP pipes initial ring stiffness test

Method A Constant Load	Apply compressive load so that a relative deflection of 3.0±0.5% is reached. Keep the load constant for 2 minutes. At the end of the holding period, record the final load and final deflection.
Method B Constant Deflection	Apply compressive load until the initial relative deflection specified by the referring standard is reached. Keep the deflection constant for 2 minutes. At the end of the holding period, record the final deflection and final load.

Method A

Constant Load

Apply compressive load so that a relative deflection of 3.0±0.5% is reached.

Keep the load constant for 2 minutes.

At the end of the holding period, record the final load and final deflection.

Method B
Constant Deflection

Apply compressive load until the initial relative deflection specified by the referring standard is reached.

Keep the deflection constant for 2 minutes.

At the end of the holding period, record the final deflection and final load.

Test Equipment Required for EN 1228 GRP pipes initial ring stiffness test:

Ring Stiffness Compression Testing Machine

Capable of applying compression without shock through two parallel load-application surfaces.

Suitable for constant-rate loading (Methods A and B) or dead-weight loading (Method A only).

Load accuracy: ±1% of the maximum indicated load.

UnitedTest manufactures universal ring stiffness testers fully compatible with ISO 7685, EN 1228, ISO 9969 and ISO 10468 GRP creep tests.

Load Application Surfaces

A pair of plates, a pair of beam bars, or one plate + one beam bar; contact faces flat, smooth, clean and parallel; length ≥ test piece length; rigid so no visible deformation occurs.

— Plates: Width ≥ 100 mm

— Beam bars Rounded edges, flat face, no sharp edges; width (20 ± 2) mm for pipes DN ≤ 300; (50 ± 5) mm for pipes DN > 300; no other part of the bar may contact the specimen.

Pipe inner diameter deformation Measuring Devices

Dimensions (length, diameter, wall thickness): ±0.1 mm; vertical deflection: ±1.0 % of maximum measured value

Test Specimen Information

Form	A complete ring cut from the pipe to be tested.
Length	As specified by the referring standard, with permissible deviation ±5%.
Cut quality	Ends smooth and perpendicular to the pipe axis.
Reference lines	Straight lines drawn on the inside or outside surface along the specimen length. Placed at 60° intervals around the circumference — six lines total. These define three diametrically opposed pairs for testing.
Dimensions measured	Length: measured along each of the 6 reference lines (±0.2 mm); average length L (m) from 6 values. Wall thickness: measured at each end of each reference line (±0.2 mm); average thickness e (m) from 12 values. Mean diameter dₘ: measured as internal diameter dᵢ between each diametrically opposed pair of reference lines at mid-length, or external diameter dₑ at the mid-points of reference lines (±0.5 mm); then dₘ = dᵢ + e = dₑ − e.

Core Test Parameters & Test Stipulations

Parameter	EN 1228 Value
Test temperature	As specified by the referring standard
Relative deflection target — Method A	(3 ± 0.5) % (i.e. 2.5 %–3.5 %)
Relative deflection target — Method B	As specified by the referring standard
Time to reach target deflection	(60 ± 10) s
Holding period (load or deflection constant)	2 min
Load application modes	(a) substantially constant rate, or (b) three stages of loading over (60 ± 10) s total
Load accuracy	±1 % of max indicated load
Recovery between tests (dispute)	15 min minimum
Deflection coefficient f	f = [1860 + (2500 × y/dₘ)] × 10⁻⁵

Step-by-Step Test Procedures of EN 1228 GRP pipes initial ring stiffness test

1. Condition test pieces ≥ 0.5 h at the referring-standard test temperature.

2. Position the ring with one pair of diametrically opposed reference lines contacting the plates/beam bars; ensure uniform, non-tilted contact.

3. Apply load to reach the target relative deflection within (60 ± 10) s, either at a constant rate or in three loading stages.

4. Hold:

- Method A → keep load constant for 2 min, record load & final deflection;

- Method B → keep deflection constant for 2 min, record deflection & final load.

5. Repeat at the remaining two reference-line pairs, allowing recovery between tests.

6. Calculate S₀ for each position, average the three values.

Related Test Standard:

ISO 9969	Thermoplastics pipes — Determination of ring stiffness
ASTM D2412	Standard Test Method for Determination of External Loading Characteristics of Plastic Pipe by Parallel-Plate Loading
ISO 10471	GRP pipes — Determination of long-term extreme bending strain and relative ring deflection under wet conditions
ISO 11296-3	Plastics piping systems for renovation of underground drainage — Part 3: Lining with close-fit pipes
ISO 13268	Thermoplastics piping systems for non-pressure underground drainage and sewerage — Thermoplastics shafts or risers for inspection chambers and manholes — Determination of ring stiffness
ISO 10466	GRP pipe — ring deflection under long-term/wet conditions; complementary performance test
ISO 10468	GRP pipe ring creep test (long-term deflection prediction under sustained load), analogous to ISO 9967 for thermoplastics; initial ring stiffness from ISO 7685 is core input for creep factor calculations.
ISO 7685	Glass-reinforced thermosetting plastics (GRP) pipes — Determination of initial ring stiffness
EN 1228	Glass-reinforced thermosetting plastics (GRP) pipes - Determination of initial specific ring stiffness
EN 1446	European ring-flexibility test for thermoplastic pipes (parallel to EN 1228 but for flexible pipes)
JIS K 7032	Plastics piping systems -- Glass-reinforced thermosetting plastics (GRP) pipes -- Determination of initial specific ring stiffness
ISO 13968	Ring flexibility of thermoplastic pipes — similar compression setup but to higher deflection

Industry Applications

EN 1228 is used wherever GRP/FRP pipes are buried, supported, or externally loaded:

Municipal sewer and stormwater drainage — gravity and pressure GRP pipelines

Water transmission and irrigation — large-diameter GRP mains

Industrial plants — chemical, petrochemical, power-plant cooling water, desalination

Oil & gas and firewater systems — GRE/GRP flowlines and risers where externally loaded

Marine and offshore — seawater intake/discharge lines

Infrastructure and civil engineering — culverts, duct banks, trenchless liners

Manufacturing QA and type testing — verification of SN class and production consistency

Third-party certification laboratories — compliance with EN/product standards.

EN 1228 GRP pipes initial ring stiffness test

Keywords: EN 1228 GRP pipe ring stiffness tester, initial specific ring stiffness test machine, fiberglass reinforced plastic FRP pipe rigidity test, glass reinforced thermosetting plastics pipe mechanical test, EN 1228 ISO 7685 compliant pipe testing equipment, polyester epoxy vinylester GRP pipe stiffness analyzer, industrial plastic piping system stiffness verification rig, underground GRP pipeline deformation resistance tester, composite pipe radial load performance test, civil engineering drainage pipe quality control machine, GRP pipe structural rigidity laboratory instrument, UnitedTest EN 1228 pipe test equipment

pipe ring stiffness test machine is used to determine the ring stiffness of circular cross-section thermoplastic pipes, according customer’s request, it can also execute compression, ring stiffness, ring softness and creep ratio test.

EN 1228 GRP Pipe Initial Specific Ring Stiffness Testing Machine Manufacturer | UnitedTest FRP Pipe Ring Rigidity Tester

Q1: What is the difference between Method A and Method B in EN 1228?

A: Method A (Constant Load): Compress the GRP ring to reach a relative deflection of (3 ± 0.5) % within (60 ± 10) s, then keep the load constant for 2 minutes and record the final deflection.

Method B (Constant Deflection): Compress to reach the relative deflection specified by the referring product standard within (60 ± 10) s, then keep the deflection constant for 2 minutes and record the final load.

Both methods capture the short-term viscoelastic relaxation unique to rigid GRP thermosetting composites.

Q2: Why is EN 1228 testing critically important for GRP pipes and materials?

A: 1. Underground pipeline safety: Buried GRP pipes bear sustained soil backfill load; insufficient initial specific ring stiffness leads to ovalization, joint separation, leakage or collapse during service life.

2. Mandatory engineering design input: Civil engineers use S₀ to compute allowable burial depth, backfill compaction and pipe–soil interaction for municipal, chemical and industrial GRP pipelines.

3. Manufacturing quality control & R&D: GRP producers adjust fiber winding angle, fiber content, wall thickness and resin formula using S₀ data to balance performance and cost.

4. Certification & trade compliance: Third-party type testing, municipal tender inspection and import/export certification all require valid EN 1228 / ISO 7685 test reports.

5. Baseline for long-term creep prediction: Initial specific ring stiffness is the essential input to ISO 10468 GRP creep testing for forecasting multi-decade buried-pipe deflection.

6. Rigid-composite vs flexible-plastic distinction: Unlike flexible thermoplastics (ISO 9969 / EN 1446), rigid GRP shows minimal creep — the 2-minute hold in Methods A/B captures its unique short-term relaxation, which thermoplastic ring stiffness tests cannot measure.

Q3: What is the difference between EN 1228 (GRP) and ISO 9969 / EN 1446 (thermoplastic) ring stiffness tests?

A: 1. Test object: EN 1228 for rigid GRP/FRP reinforced thermosetting pipes; ISO 9969 / EN 1446 for flexible HDPE/PVC/PP thermoplastic pipes.

2. Core procedure difference: EN 1228 adds a mandatory 2-minute static holding stage to capture GRP's slight viscoelastic relaxation; ISO 9969 runs continuous speed-driven compression without load/deflection holding.

3. Fixture options: EN 1228 allows beam bars (rounded-edge) in addition to flat plates; ISO 9969 primarily uses flat parallel plates.

4. Parameter philosophy: EN 1228 deliberately leaves test parameters (deflection, specimen length/count, temperature) to the referring standard; ISO 9969 fixes them in the standard body.

5. Application linkage: EN 1228 data feeds ISO 10468 GRP creep testing; ISO 9969 data feeds ISO 9967 thermoplastic creep testing.

Q4: Which industries need EN 1228 testing?

A: 1. GRP/FRP pipe manufacturing factories for batch quality control and new composite material R&D;

2. Third-party testing & certification laboratories for type testing, export inspection and municipal tender compliance;

3. Municipal engineering institutes, highway & tunnel construction units for buried GRP pipeline design verification;

4. Industrial wastewater, chemical plant, landfill leachate and brine pipeline project inspection departments;

5. University composite material research laboratories studying glass-fiber-reinforced thermosetting pipe mechanics.

Q5: What must an EN 1228 test report include?

A: Reference to EN 1228 and the referring standard; full pipe identification; dimensions and number of test pieces; positions in the pipe from which pieces were taken; equipment details (beam bars and/or plates used); test temperature; test method (A or B) and load-application condition (a) or b)); individual load and deflection values; initial specific ring stiffness of each test piece; any factors affecting results; test date.

Q6: How fast is the load applied?

A: The target relative deflection is normally reached in 60 ± 10 s, either at a substantially constant rate or in three loading stages.

Q7: What makes GRP ring stiffness testing different from simple compression?

A: GRP is anisotropic and structurally layered. Ring stiffness depends on diameter, wall thickness, fibre layout, resin system, and curing. Testing a full ring at multiple circumferential positions captures directional behavior better than a small coupon test.

Q8: Why choose UnitedTest for GRP pipe ring stiffness test?

A: UnitedTest is a professional EN 1228 ring stiffness testing machine manufacturer for GRP/FRP composite pipes. Our RST series testers fully comply with EN 1228:1996, ISO 7685, ISO 9969, ISO 10468 and EN 1446 standards. Integrated machines support Method A constant load and Method B constant deflection for GRP pipe initial specific ring stiffness testing, with interchangeable flat plate and rounded-edge beam bar fixtures. Custom 20kN/50kN/100kN/200kN load capacity for DN50–DN4000 large-diameter FRP pipes, factory-direct supply, OEM & ODM available with global after-sales service.

Our RST series GRP ring stiffness tester covers the full pipe diameter range: small DN50–DN630 compact model, medium DN630–DN1500 standard model, and extra-large DN1500–DN4000 oversized machine for big winding GRP sewer pipes. Multiple load capacity options (20kN, 50kN, 100kN, 200kN) fit all SN-class GRP pipes from SN2 up to SN10000.

Core Advantages of UnitedTest EN 1228 Compliant Tester

1. 100% Full Compliance with EN 1228:1996 Clauses

Servo closed-loop control accurately realizes both official test methods: Method A constant load holding and Method B constant deflection locking for 2 minutes. Interchangeable flat plates (width ≥ 100 mm) and standard rounded-edge beam bars (20±2 mm for DN ≤ 300, 50±5 mm for DN > 300) meet all fixture requirements. High-precision load cell (±1% FS accuracy) and displacement sensor (±1% deflection precision) eliminate measurement error; built-in software auto-calculates initial specific ring stiffness S₀ with the standard deflection coefficient formula f = [1860 + (2500 × y/dₘ)] × 10⁻⁵, and exports standardized PDF test reports with raw load-deflection data.

2. Multi-Standard Integrated Design: EN 1228 + ISO 7685 + ISO 9969 + ISO 10468

One machine completes GRP composite pipe initial specific ring stiffness tests (EN 1228 / ISO 7685), thermoplastic pipe ring stiffness QC tests (ISO 9969) and long-term GRP creep performance tests (ISO 10468) without extra fixture replacement — drastically cutting laboratory equipment investment for pipe manufacturers and third-party certification labs. Heavy-duty rigid frame ensures stable long-duration load holding required by both EN 1228 and ISO 10468.

3.Specialized Fixtures for GRP Pipe Testing

Equipped with dedicated beam-bar accessories for FRP pipes, with diameter-dependent flat contact width as required by EN 1228 (DN ≤ 300: 20±2 mm; DN > 300: 50±5 mm), avoiding uneven contact and invalid test results. All contact surfaces are flat, smooth, clean, parallel and rigid to the standard's requirement of no visible deformation.

4. Wide Application Compatibility for All GRP Pipes

Suitable for all glass-fiber-reinforced thermosetting pipelines: winding GRP sewer pipe, filament-wound FRP drainage pipe, chemical corrosion-resistant GRP industrial fluid pipe, landfill leachate pipe, highway culvert composite pipe and irrigation large-diameter GRP mains.

5. Global Customization & Complete After-sales Support

UnitedTest accepts OEM & ODM customization: custom test chamber stroke, load range, extra-large test space for oversized GRP pipes and special fixtures matching regional testing standards. We provide door-to-door installation, on-site operator training, 24-month full warranty and overseas engineer after-sales service for European, Southeast Asian, Middle Eastern, Australian and South American GRP pipe factories & inspection laboratories.

Target Customers of UnitedTest EN 1228 GRP Pipe Test Equipment

- GRP/FRP composite pipe production factories for daily ring stiffness quality inspection and new glass-fiber composite material formula R&D;

- Third-party testing & certification laboratories for EN/ISO standard type testing and import & export commodity inspection;

- Municipal engineering design institutes, chemical plant pipeline departments and highway tunnel construction units for buried composite pipe performance verification;

- University polymer & composite material research laboratories for thermosetting FRP pipe mechanical property academic study.

If you are searching for a reliable EN 1228 GRP pipe ring stiffness tester manufacturer, FRP initial specific ring stiffness testing machine, ISO 7685 GRP pipe ring rigidity equipment, ISO 10468 GRP creep test machine or large-diameter winding FRP pipe stiffness tester, contact UnitedTest for free technical consultation and factory-direct quotation.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
