ISO 8510-1 90 Degree Peel Tester for Flexible-to-Rigid Adhesive Bond Assemblies | UnitedTest

UnitedTest manufactures precision ISO 8510-1 compliant 90° peel testing machines, purpose-built to measure peel resistance of flexible-to-rigid adhesive bonded assemblies for adhesive R&D laboratories and industrial quality control facilities.

ISO 8510-1 — Adhesives — Peel test for a flexible-bonded-to-rigid test specimen assembly — Part 1: 90° peel sets a standardized testing protocol to assess peel resistance of bonded assemblies containing at least one flexible adherend under controlled laboratory conditions.

During the ISO 8510-1 test, tensile force is loaded perpendicularly (normal) to the bond plane via the stripped segment of the flexible adherend, creating a consistent 90° peeling angle throughout the test cycle.

The system records average peel force in newtons across a designated specimen length. Users can further convert the raw force data into peel strength values calculated per unit bond width for standardized cross-comparison of different adhesive formulations and bonding processes. Reliable test results support adhesive performance screening, bonding process optimization, batch quality inspection and material certification.

Test Principle

Standardized flexible and rigid adherends are surface-treated, coated with test adhesive, and fully cured under controlled pressure/temperature to form a uniform bonded joint.

The rigid T-piece substrate is fixed to the stationary tensile grip; the free end of the flexible adherend connects via a minimum 600 mm wire to the self-aligning moving load sensor grip.

The tensile machine pulls upward at a constant crosshead speed, generating a near-90° separating force perpendicular to the bond plane, continuously recording force vs. displacement via autographic chart recorder.

Valid force data is collected over a 100 mm total bonded segment (50 mm left + 50 mm right of the T-piece center line).

Average peel resistance is calculated from the steady flat region of the force curve for each replicate specimen.

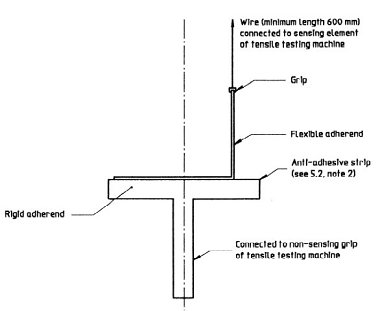

ISO 8510-1 90 degree Peel Test for Flexible-to-Rigid Adhesive Joints

Specific Test Method Defined in ISO 8510-1

One unified test: 90° perpendicular vertical peel

Pulling force acts approximately normal (90°) to the plane of the adhesive bond line during continuous separation of the flexible adherend.

Two equipment execution options:

Basic configuration: Standard universal tensile machine (peel angle drifts slightly during testing, acceptable for routine QC).

Precision constant-angle setup: Equipped with a dedicated roller peeling fixture to maintain an exact fixed 90° peel angle throughout the entire test length (required for arbitration testing).

Specimen design feature: A mild steel T-piece serves as the rigid substrate base for stable clamping; an anti-adhesive strip is embedded at the bond starting edge to create a consistent pre-peel tab and eliminate manual pre-peel error.

Test Specimen Specifications

1. Adherend Dimension Rules

Rigid adherend base (Mild Steel T-piece): Stem size 75 mm × 25 mm × 10 mm; bonded flat surface width = 25.0 mm ±0.5 mm, minimum length = 150 mm.

Flexible adherend: Exact dimensions 250 mm × 25.0 mm ±0.5 mm; must bend slightly above 90° without permanent dimensional deformation (not suitable for ultra-flexible rubber/fabric optimized for ISO 8510-2).

Standard reference substrate thicknesses (custom dimensions permitted via written buyer-supplier agreement):

Metals = 1.5 mm; Plastics = 1.5 mm; Wood = 3 mm; Compounded rubber = 2 mm.

Fixed valid test bonded segment: 100 mm total length centered on the T-piece midline (50 mm on each side of center).

2. Sampling Quantity

A minimum of 5 identical replicate specimens must be tested per adhesive formulation to generate statistically reliable average peel resistance results.

Test Equipment of ISO 8510-1 90 degree Peel Test for Flexible-to-Rigid Adhesive Joints

CRE Universal Testing Machine (UTM)

CRE (constant grip separation rate) tensile tester with continuous force recording function.

Force measurement accuracy within ±2% of full scale; measured peel load must fall between 10%–80% of the machine’s total capacity to guarantee precision.

Fast sensor response time to capture fluctuating peel force without signal lag.

Minimum 600 mm flexible connecting wire linking the flexible adherend grip to the machine load cell, to maintain vertical pull geometry.

Peeling test fixture

Stationary grip: Clamps the stem of the mild steel T-piece rigid adherend.

Self-aligning moving grip: Symmetrically holds the flexible adherend to distribute tension evenly and prevent twisting.

Standard mild steel T-piece fixture (75 mm × 25 mm × 10 mm stem) as the reference rigid substrate base.

If alternative rigid materials are used, they must be securely bonded to the T-piece with high-strength auxiliary adhesive that does not fail during testing.

Optional roller peeling accessory: Mandatory if a perfectly constant 90° peel angle is required for arbitration tests.

Specimen Fabrication

Pneumatic/hydraulic bonding press delivering uniform pressure up to 1 MPa; parallel platens with optional 10 mm thick Shore A 45 rubber resilient pad for even pressure distribution across bond surfaces.

Mandatory Test Parameters & Stipulations:

Valid Peel Distance Requirement

Testing must continue until at least 50 mm bonded length is peeled on both sides of the T-piece center line (100 mm total measured segment).

Crosshead Travel Speed

Standard constant grip separation rate: 50 mm/min ±5 mm/min.

Step-by-Step Test Procedure ISO 8510-1 90 degree Peel Test for Flexible-to-Rigid Adhesive Joints

1, Condition specimens in one of the standard atmospheres specified in ISO 291.

2, Prepare the bond per adhesive manufacturer's instructions and ISO 4588 (or manufacturer's alternative):

Place anti-adhesive strip at the commencement end

Apply adhesive to the bonding surfaces

Press together using a pneumatic/hydraulic press (up to 1 MPa)

Cure per manufacturer's recommendations

3, Determine adhesive thickness (by weighing or another suitable technique).

Set up the tensile testing machine:

Place the stem of the T-piece in the grip at the non-sensing end of the machine

Position the specimen so the centreline of the machine coincides with the centre of the bonded area and is normal to the plane of the bond

Connect the free end of the flexible adherend to the wire by means of its self-aligning grip

4, Set the machine in motion at a constant rate of grip separation (50 mm/min ± 5 mm/min recommended).

5, Record the force as a function of grip separation, preferably autographically (force-vs-displacement trace).

6, Continue the test until a bonded length of at least 50 mm each side of the centre of the T-piece has separated.

7, Note the type of failure: adhesive failure, cohesive failure, or adherend failure.

Industry Fields & Applications

ISO 8510-1 targets manufacturing sectors using semi-rigid flexible substrates bonded to rigid metal/plastic/wood components (materials that crack under 180° bending):

Automotive Industry: Stiff plastic interior trim, rigid composite decorative panels bonded to steel vehicle frames; hard rubber sealing strips prone to creasing in 180° tests.

Aerospace & Composite Manufacturing: Thin rigid carbon fiber prepreg sheets bonded to aluminum alloy structural parts.

Construction Industry: Stiff PVC wall panels, hard plastic decorative cladding glued to concrete or metal building substrates.

Electronics Hardware: Rigid thin plastic circuit carrier films bonded to aluminum heat sinks.

Furniture Manufacturing: Hard plastic veneer sheets, rigid melamine film bonded to solid wood boards.

Adhesive R&D Laboratories: Comparative formulation screening for structural adhesives intended for semi-rigid flexible substrates incompatible with 180° peel testing.

EU Third-Party Material Certification: Supplementary standardized test for CE marking qualification of structural adhesives used with low-flexibility adherends.

Related Test Standard:

ISO 29862	Self adhesive tapes — Determination of peel adhesion properties
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ASTM D3330	Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
JIS Z 0237	Testing methods of pressure-sensitive adhesive tapes and sheets
ASTM D6862	90° peel, Rigid-to-flexible bonds; Perpendicular pull vs. D903's 180°
ASTM D1002	Lap Shear Test of Adhesively Bonded Metal Specimens
ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ISO 8510-1	90° peel Flexible-to-rigid bonded assembly
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
FINAT FTM 2	90° peel Self-adhesive label materials
EN 1939	Standard for self-adhesive tape peel testing, covering stainless steel substrate and backing peel tests, consistent with D3330’s 180°/90° peel logic;
ASTM D903	Standard Test Method for Peel or Stripping Strength of Adhesive Bonds

Keywords: UnitedTest ISO 8510-1 tester, ISO 8510-1 90° peel tester, flexible rigid adhesive 90 degree peel test machine, adhesive peel strength per unit width testing equipment, ISO 8510-1 perpendicular normal force 90° peel test for adhesives, average peel force newton measurement adhesive tester, flexible adherend bonded assembly 90-degree peel analyzer, convert peel force to peel strength per unit width lab equipment, ISO 8510-1 adhesive peel resistance testing instrument for material R&D

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Adhesion strength 90 degree peeling test fixture is a professional device used to measure the peel strength of adhesives at a 90° angle. It evaluates the resistance of the bonded interface to peeling by simulating a vertical peeling scenario.

Adhesives 180 degree peel test fixture used to measure the strength of adhesives, tapes, and other materials when peeled at 180 degrees, ensuring that their adhesive performance meets standard requirements. Conform with standard ISO 8510-2.

Q1: What is ISO 8510-1:1990, and what materials does it test?

A: ISO 8510-1:1990 is Part 1 of the ISO 8510 series, specifying a standardized 90° vertical peel test for bonded joints with one rigid adherend and one semi-flexible/stiff flexible adherend.

Test objects: Cured structural liquid adhesives (epoxy, PU, contact glue, wood glue, construction structural adhesives).

Exclusion: Not applicable to soft rubber, textile fabrics, or PSA self-adhesive tapes (those use ISO 8510-2 / ISO 29862).

Core feature: Pulling force acts perpendicular (normal) to the bond plane, avoiding sharp 180° bending that cracks low-flexibility substrates.

Q2: What is the key difference between ISO 8510-1 and ISO 8510-2?

A: The two parts target different flexibility grades of flexible substrates, with distinct geometry and test speed:

Item	ISO 8510-1 (90° Peel)	ISO 8510-2 (180° Peel)
Applicable substrate	Stiff / low-flex films, hard plastic, rigid composite (cracks when folded 180°)	Highly flexible rubber, fabric, thin soft film (no cracking under 180° bend)
Peel geometry	Vertical pull at ~90° normal to bond plane	Reverse folded 180° parallel peel
Standard crosshead speed	50 mm/min ±5 mm/min	100 mm/min ±10 mm/min
Rigid base fixture	Mandatory mild steel T-piece	Flat rigid strip (no T-piece required)
Valid peel measurement range	50 mm on each side of T-piece center (100 mm total bonded length)	Continuous 125 mm bonded overlap segment

Q3: Why is ISO 8510-1 testing still important even though it is withdrawn?

A: Unique test geometry for stiff flexible substrates: It is the only legacy ISO standard designed for semi-rigid films that fail 180° peel via substrate cracking, delivering true adhesive peel strength rather than substrate breaking force.

Real-world vertical load simulation: Many industrial parts (wall cladding, automotive hard trim, rigid electronic films) bear straight vertical stripping loads matching the 90° test geometry.

Historical EU compliance data: Thousands of supplier qualification reports, material dossiers and CE certification records rely on ISO 8510-1 data for long-term traceability.

Adhesive formulation benchmark: Provides low-speed (50 mm/min) peel data for viscoelastic structural adhesives sensitive to pulling rate, complementing faster 180° test results.

Defect diagnosis tool: Combined with ISO 10365 failure mode codes, it distinguishes weak interfacial adhesion vs insufficient bulk adhesive cohesion for rigid film bonding systems.

Q4: What are the mandatory dimensions for ISO 8510-1 test specimens?

A: Rigid base: Mild steel T-piece with stem 75 mm × 25 mm × 10 mm; bonded flat surface width = 25.0 mm ±0.5 mm, minimum length 150 mm.

Flexible adherend: Fixed size 250 mm × 25.0 mm ±0.5 mm; only needs minor bending above 90° without permanent creasing/cracking.

Standard reference substrate thicknesses (custom sizes allowed via buyer-supplier written agreement): Metals 1.5 mm, Plastics 1.5 mm, Wood 3 mm, Hard Rubber 2 mm.

Valid measured bonded zone: 50 mm left + 50 mm right of the T-piece central line (100 mm total).

Q5: What is the anti-adhesive strip used for in ISO 8510-1 specimen making?

A: A thin non-stick strip is placed at the starting edge of the bond line to create a uniform pre-separated tab. It eliminates inconsistent manual pre-peeling and removes unstable initial peak forces from the valid measurement zone, improving data repeatability.

Q6: How many replicate specimens must be tested for valid ISO 8510-1 results?

A: A minimum of 5 identical bonded specimens per adhesive formulation is required to calculate statistically meaningful average, maximum and minimum peel force values.

Q7: Why do my replicate specimens show large scatter in peel force results?

A: Top common root causes:

Uneven metal surface treatment (non-compliant with ISO 4588 cleaning/abrasion rules).

Variable adhesive coating thickness or inconsistent pressing pressure during curing.

Stiff flexible adherend cracking mid-test (data reflects substrate tensile strength, not true adhesive peel resistance).

Unstable vertical pulling wire causing peel angle deviation away from 90°.

Specimens removed from conditioning chamber for extended time before testing (moisture/temperature drift).

Air bubbles trapped within the bond line during lamination.

Q8. Is the peel angle exactly 90°?

A: If a constant angle of exactly 90° is required, you must incorporate a roller peeling device into the tensile testing machine. Otherwise, the force is applied "approximately normal to the plane of the bond."

Q9: What is the fixed crosshead speed for ISO 8510-1? Can I use other speeds?

A: The mandatory recommended speed is 50 mm/min ±5 mm/min. Alternative speeds are permitted only with formal written consent between adhesive purchaser and supplier, and must be clearly recorded. Adhesive peel resistance is highly rate-dependent; speed deviation generates incomparable force readings.

Q10: How much bonded length do I need to peel to collect valid average force data?

A: You must peel a minimum of 50 mm bonded length on both sides of the T-piece center line (100 mm total). Force curves outside this central zone (initial startup peaks) are excluded from average peel force calculation per the standard.

Q11. Why do packaging and label manufacturers care about ISO 8510-1?

A: In packaging, a label or film is peeled from a rigid container at approximately 90° during normal use. ISO 8510-1 directly measures the film-to-container peel adhesion — a critical quality parameter. Poor adhesion leads to:

Labels falling off during shipping or on the shelf

Inconsistent opening behavior of packaging seals

Reduced brand perception and potential regulatory compliance issues

ISO 8510-1 provides the standardized methodology for this measurement, and its global recognition means suppliers worldwide can speak the same language.

Q12. What are the most common mistakes in running ISO 8510-1?

A: Assuming the angle is exactly 90° — without a roller peeling device, it won't be; decide early if this matters for your application

Wrong peel speed — must be 50 mm/min ± 5 mm/min unless otherwise agreed

Improper T-piece fabrication — stem must be exactly 75 × 25 × 10 mm for standardize

Non-parallel platens in the bonding press — causes uneven pressure; use the 10 mm Shore A ~45 rubber pad if needed

Short flexible adherend — must be 250 mm long to allow proper gripping and alignment

Not reporting failure mode — renders the result ambiguous

Testing fewer than 5 specimens — reduces statistical confidence

Not determining adhesive layer thickness — mandatory per §10(e)

Ignoring the wire-length requirement — the flexible-adherend grip must connect to the sensor via a wire of minimum 600 mm to ensure self-alignment

Q13. How should I set up an ISO 8510-1 program for incoming inspection?

A: Fabricate mild-steel T-pieces (75 × 25 × 10 mm stem; head 25.0 ± 0.5 mm wide, ≥ 150 mm long)

Prepare bonded specimens per adhesive manufacturer's instructions and ISO 4588

Condition in ISO 291 standard atmosphere

Test 5+ specimens at 50 mm/min ± 5 mm/min using a tensile tester with roller peeling device (if constant 90° is required)

Record autographic force-vs-displacement traces

Calculate mean, max, min peel force over 50 mm each side of T-piece centre

Report failure mode for every specimen

Since no formal precision statement exists, establish in-house reference ranges

Flag batches that deviate significantly from qualified baseline.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
