ASTM D1876 Adhesive T-Peel Test Machine | Peel Resistance Tester | UnitedTest

ASTM D1876 standard test method measures T-peel resistance of adhesive joints with flexible adherends via constant-rate tension testing. UnitedTest manufactures ASTM D1876 compliant peel testing machines for adhesive bond strength evaluation and industrial quality control.

ASTM D1876 is a widely recognized industrial standard for determining the peel resistance performance of structural and industrial adhesives using the classic T-peel test method. This testing procedure is specifically designed for adhesive joints constructed with two flexible adherends, utilizing a T-shaped test specimen pulled at a constant tension rate to accurately measure the continuous separation force required to split bonded interfaces progressively.

Unlike shear-focused adhesive tests, ASTM D1876 exclusively targets peel-mode bond failure characteristics, delivering precise peel strength data that reflects real-world peeling stress conditions for flexible bonded assemblies. It serves as a fundamental quality benchmark for adhesive formulation comparison, surface treatment optimization, bonding process validation, and finished product durability inspection across packaging, automotive, aerospace, textile and composite bonding industries.

UnitedTest designs and manufactures high-precision ASTM D1876 compliant T-peel testing machines. Our calibrated test equipment ensures stable constant-rate tension loading, providing repeatable and accurate peel resistance test results for adhesive manufacturers, material research laboratories and third-party industrial certification institutions.

Test principle

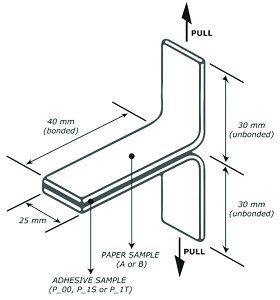

Two flexible adherends are bonded over part of their length, leaving unbonded tabs. The tabs are bent apart 90° in opposite directions and clamped in a tensile machine so the assembly looks like a “T.” The machine pulls the two arms apart at a constant rate; the adhesive bond line propagates (peels) progressively.

The result is reported as T‑peel strength = average load per unit bond‑line width required to keep separating the two flexible adherends under the specified conditions.

Because both arms are flexible, much of the measured energy includes bending/deformation of the adherends as well as adhesive fracture; therefore D1876 is best used for comparison under identical specimen construction and test conditions.

ASTM D1876 T-Peel Resistance Test of Adhesives

Test Specimen Information

Standard specimen width: 25 mm (1 inch). Other widths are permitted only when machine grips can apply uniform load across full specimen width.

Preparation: Bonded panels are cut into test strips. One end keeps 76 mm (3 inch) un‑bonded tabs; these tabs are bent perpendicular to glue‑line for grip mounting.

Sample quantity: At least 10 valid specimens for each adhesive system.

Special note: For fully‑bonded samples with no pre‑made un‑bonded tabs, one end may be chilled with dry ice to embrittle adhesive, then carefully pried open to create clamping tabs (this technique does not work for all adhesives and substrates).

Adherend requirement: Both adherends shall be flexible, capable of bending without fracture during T‑peel deformation.

Test Equipment of ASTM D1876 T-Peel Resistance Test of Adhesives

CRE Universal Testing Machine (UTM)

CRE (constant rate of grip separation) tensile tester with force measurement accuracy within ±2% full scale.

The load range shall be chosen so that actual test load falls between 15 %‑85 % of load‑cell full‑scale capacity.

Crosshead speed must remain stable under fluctuating peel loads; spring‑pendulum mechanical weighing systems are discouraged.

Continuously record load vs cross‑head movement or load vs peeled‑distance, with force measurement accuracy within ±1 % of reading.

Peeling test fixture

Firm clamping without slippage during peeling.

Pneumatic side‑action grips are preferred for flexible thin adherends to avoid slipping; mechanical screw‑type grips are also acceptable if no slip occurs

Cutting tool

Cut bonded panels without damaging the adhesive bond zone.

Mandatory Test Parameters & Stipulations:

1. Cross‑head speed: 254 mm per minute. This cross‑head rate produces actual bond‑separation (peel front advancement) speed of 127 mm (5 inch) per minute

2. Effective evaluation segment: Calculate average peel load over **minimum 127 mm (5 inch) bond‑peeling length after the initial force peak; ignore the initial peak value from starting‑up effect

3. Conditioning parameter: Normally condition specimens for 7 days at 23 °C ±1 °C, RH 50 % ±2 %. Conditioning may be omitted or shortened if adhesive manufacturer explicitly specifies. Laminates with purely‑metal adherends may skip conditioning unless required by bonding procedure

4. Adhesive layer thickness: Measure average glue‑line thickness with resolution to 0.025 mm (0.001 inch); report measurement method, positions and thickness range in final report

5. Report requirements: Report adhesive identification, adherend details, bonding process parameters, glue‑line thickness, specimen dimensions & quantity, conditioning history, machine parameters, load‑acquisition method, individual‑specimen max/min/average peel load, overall average T‑peel strength, and failure mode for every test piece.

Standard Step-by-Step Test Procedure ASTM D1876 T-Peel Resistance Test of Adhesives

1. Prepare bonded panels strictly following adhesive‑manufacturer bonding specifications (surface preparation, mixing, coating, assembly dwell time, curing pressure‑temperature‑time).

2. Cut finished bonded panels into standard‑width specimens without damaging bond area; prepare un‑bonded bent tabs for clamping. Prepare ≥10 replicates per adhesive system.

3. Pre‑condition specimens under specified temperature‑humidity environment for required duration (7‑day default or manufacturer‑specified shorter time).

4. Set‑up universal tensile machine, select proper load‑cell range, configure cross‑head speed to 254 mm/min, activate continuous load‑displacement recording function.

5. Mount bent un‑bonded tabs of T‑specimen into upper and lower machine grips, ensure secure clamping and no pre‑load on bond zone before starting test.

6. Start tensile test; continuously record load‑versus‑displacement curve until more than 127 mm of bond‑line has been peeled apart after initial peak force.

7. Repeat test for all replicate specimens.

8. Process recorded curves: exclude initial peak, calculate average peel resistance over the valid 127 mm peeling length; record maximum, minimum and average peel‑load for each sample; characterize failure mode for every specimen by visual inspection after test completion

Industry Application Fields

Although the supplied D1876 notes Al 2024‑T3 for structural adhesives, it also explicitly allows fabrics, plastic films and foils, so it is used in:

Aerospace / structural metal bonding – aluminum‑to‑aluminum flexible skins, surface‑treatment qualification.

Automotive – interior films/textiles, flexible trim laminates, foil/film bonding.

Packaging and flexible laminates – multilayer films, pouches, peelable seals (often together with PSA/180° methods for complementary data).

Textiles / coated fabrics – bonded fabrics, waterproof laminates, footwear laminates.

Electronics – flexible circuits, bonded films/foils where both layers are flexible.

Adhesive R&D and QC – comparing formulations, surface treatments, cure cycles and environmental durability.

Related Test Standard:

ISO 29862	Self adhesive tapes — Determination of peel adhesion properties
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ASTM D3330	Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
JIS Z 0237	Testing methods of pressure-sensitive adhesive tapes and sheets
ASTM D6862	90° peel, Rigid-to-flexible bonds; Perpendicular pull vs. D903's 180°
ASTM D903	General peel‑or‑stripping‑strength test for adhesive bonds (covers 180° peel and other peel geometries, not limited to T‑peel configuration).
ASTM D1002	Lap Shear Test of Adhesively Bonded Metal Specimens
ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ISO 8510-1	90° peel Flexible-to-rigid bonded assembly
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
EN 2243-2	Aerospace structural adhesive T peel test for metal‑metal flexible‑sheet assemblies
GB/T 2790	180° peel, Adhesives (flexible-to-rigid)
GB/T 2792	180° peel, Pressure-sensitive adhesive tapes
PSTC-101	Pressure-Sensitive Tape Council: fully aligned with ASTM D3330 test geometry, roller weight, peel rate and conditioning parameters; widely used alongside ASTM D3330 for US tape manufacturers;
AFERA 4001	Peel adhesion standard matching core test principles of ASTM D3330 with minor dimensional tolerance differences for European tape widths;
FINAT FTM 1	FINAT testing standard to determine the adhesion or peelability characteristics of self-adhesive, pressure sensitive materials.
EN 1939	Standard for self-adhesive tape peel testing, covering stainless steel substrate and backing peel tests, consistent with D3330’s 180°/90° peel logic;
ASTM D903	Standard Test Method for Peel or Stripping Strength of Adhesive Bonds

Keywords: ASTM D1876 T-peel test machine,adhesive peel resistance tester,flexible adherend adhesive bond test rig,constant rate tension peel strength equipment,adhesive interface separation force measurement,peel mode adhesive failure test apparatus,industrial structural adhesive T-peel testing system,automotive flexible material bonding quality tester,aerospace adhesive durability verification machine,packaging adhesive peel performance analyzer,adhesive formulation comparison test instrument,bonded flexible assembly mechanical strength tester

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Q1: What is ASTM D1876 T‑Peel Test, and why is this test important?

A: ASTM D1876 is the standard T‑peel test to measure peel resistance of adhesive bonds between two flexible adherends using T‑shaped specimens. It is critical because many real‑world bonded component failures happen via peel mode rather than pure shear or tension, which lap‑shear tests cannot simulate. This test delivers repeatable comparative data for adhesive R&D, incoming material inspection, quality control and supplier‑buyer acceptance. It also identifies failure modes (cohesive / adhesive / mixed failure), helping engineers optimize surface treatment, adhesive formulation and curing cycles. Note: It provides relative comparison data, not direct structural design load values.

Q2: Can ASTM D1876 be used for rigid‑to‑rigid or rigid‑to‑flexible bonded joints?

A: No. This standard is exclusively for flexible‑to‑flexible adherends that can bend without fracture during peeling. If you test rigid substrates, use ASTM D903 (general peel‑stripping test) or ASTM D1002 (lap‑shear for rigid metal bonds) instead.

Q3: What is the mandatory cross‑head test speed for ASTM D1876?

A: The standard‑required cross‑head speed is 254 mm/min (10 inch/min)* Under this setting, the actual peel‑front advancing speed equals 127 mm/min (5 inch/min). Peel strength of adhesives is rate‑dependent; test results at different speeds cannot be directly compared. Never alter speed unless agreed by both supplier and purchaser.

Q4: Which segment of force‑displacement curve shall I use to calculate average peel strength?

A: Discard the initial starting peak force. Calculate average peel load over a minimum 127 mm (5‑inch) steady peeling length after the initial peak. You may integrate curve area or average ≥10 discrete stable load readings from this segment. Report average peel strength in N/mm or kN/m (force per specimen width).

Q5: How many specimens are required for one test group per ASTM D1876?

A: A minimum of ten valid replicate specimens for each adhesive‑substrate system. Invalid specimens include samples with grip slippage, premature substrate tearing before stable peel segment, or misaligned clamping causing twisting load.

Q6: What are standard specimen dimensions for ASTM D1876?

A: Nominal specimen width = 25 mm (1 inch). One end retains un‑bonded bent tabs for fixture clamping. If no natural un‑bonded tab exists, you may carefully pry open one end (e.g., cool with dry‑ice to embrittle adhesive) to create clamping tabs. Other widths are allowed only when test grips apply uniform full‑width clamping force without edge stress concentration.

Q7. How is T‑peel strength calculated and reported?

A: Average peel load over the evaluated length is divided by specimen width. Report includes adhesive ID, batch and source; adherend material, thickness, surface prep and orientation; application and cure data; glue‑line thickness; specimen dimensions and cutting method; conditioning; machine type and speed; average/maximum/minimum peel load; average T‑peel strength; and failure mode per ASTM D907 (cohesive, adhesive, adherend or mixed).

Q8: What is the difference between ASTM D1876 and ISO 11339?

A: ISO 11339 is the international equivalent T‑peel standard for flexible‑to‑flexible bonds. Test principle and core parameters are nearly identical; minor differences lie in specimen tolerances and reporting format. When exporting products, check whether customer specifies ASTM D1876 or ISO 11339 for compliance.

Q9: Why are my ASTM D1876 test results showing high data scatter?

A: Common root causes:

1. Inconsistent adhesive glue‑line thickness across specimens

2. Variation in surface preparation, mixing or curing conditions

3. Grip slippage, specimen misalignment, twisting or side‑load during test

4. Non‑uniform peeling front, unstable stick‑slip peeling behaviour

5. Contamination on bonding surfaces.

Review specimen preparation and fixture alignment first; ensure load readings sit between 15 %‑85 % of load‑cell full‑scale capacity.

Q10: How do I interpret failure modes after T‑peel test?

A: Cohesive failure: Adhesive splits internally; adhesive residue appears on both adherends. This is preferred, indicating adhesive interface strength > bond‑line bulk strength.

Adhesive (interfacial) failure: Clean separation; adhesive remains entirely on one side. It signals poor surface bonding or insufficient surface treatment.

Mixed‑mode failure: Combination of cohesive + interfacial failure.

Substrate failure: Flexible adherend tears before adhesive debonds; bond strength exceeds substrate strength.

All failure modes for every replicate specimen must be documented in the test report.

Q11: Is ASTM D1876 applicable for pressure‑sensitive adhesive tapes (PSA)?

A: It works for flexible PSA‑to‑flexible‑substrate laminates. For standard 180° peel of PSA tapes against rigid backing, use ASTM D3330 instead, as test geometry differs significantly.

Q12. When should I choose a different peel method instead of D1876?

A: Use D1876 when both adherends are flexible. Use 180° peel (D903/D3330) for flexible film/tape against rigid substrate, floating‑roller (D3167) for rigid‑to‑flexible structural adhesive, and climbing‑drum (D1781) for face sheet peeled from honeycomb or sandwich core.

Q13: Why choose ASTM D1876 T‑Peel Test Machine & Fixtures from UnitedTest?

A: UnitedTest manufactures ASTM D1876 T‑peel test machines & dedicated fixtures for measuring peel resistance of adhesive‑bonded flexible‑to‑flexible adherends. Compliant with ASTM D1876‑08(R2023) and ISO 11339 for aerospace, automotive, packaging, electronics adhesive quality control.

UnitedTest is a professional manufacturer of universal tensile testing machines and custom test fixtures fully compliant with ASTM D1876‑08 (Reapproved 2023) Standard Test Method for Peel Resistance of Adhesives (T‑Peel Test) and equivalent ISO 11339 international standard.

Our ASTM D1876 T‑peel testing systems are designed to evaluate T‑peel strength of adhesive joints made from flexible adherends: metal foils, polymer films, flexible composites, textile laminates, flexible circuit materials and multi‑layer packaging films.

Many bonded product field failures occur under peel loading instead of pure shear. The ASTM D1876 T‑peel test provides repeatable comparative peel‑resistance data for adhesive formulation development, incoming material verification, production quality control, and customer acceptance testing across multiple industries:

✅ Aerospace thin foil bonding

✅ Automotive flexible interior laminates

✅ Flexible packaging & converting industry

✅ Electronics flexible circuit bonding

✅ Adhesive R&D laboratories & third‑party test labs

UnitedTest ASTM D1876‑compliant machine key features

1. Standard cross‑head speed: Stable 254 mm/min (10 in/min) as required by ASTM D1876; wide adjustable speed range for alternative test conditions.

2. High‑precision load‑cell: Force measurement accuracy within ±1 % reading; multiple load‑cell options from small‑range low‑force up to high‑force capacity.

3. Dedicated anti‑twist T‑peel fixtures: Specially engineered for flexible thin substrates, preventing specimen slippage, torsion and side‑loading that cause scattered test results. Pneumatic or mechanical clamping options are available.

4. Professional test software: Real‑time load‑displacement curve recording; automatically excludes initial peak force; calculates average peel strength over user‑defined stable peeling length; supports N/mm, kN/m, lb/in width‑normalized units. Users can record specimen failure mode directly inside test reports.

5. Full traceable calibration according to ASTM E4 requirements; test‑report export in PDF / Excel formats.

What you can test on UnitedTest D1876 T‑peel system

- Peel resistance of structural adhesives bonding flexible‑to‑flexible substrates

- Evaluate influences of surface pre‑treatment, glue‑line thickness, mixing and curing cycles

- Distinguish cohesive failure, adhesive interfacial failure, mixed‑mode and substrate tearing failure modes

- Run parallel tests following ISO 11339 T‑peel requirements for global export‑oriented products

Important note: ASTM D1876 delivers comparative relative peel‑performance data for flexible adherend bonds. It is not intended to supply direct structural design load values. UnitedTest’s engineering team can support you to select proper load‑cell, fixtures and set‑up guidance for your specific adhesive‑substrate combinations.
