ISO 11339 Adhesive T-Peel Tester for Flexible Bonded Assemblies | UnitedTest

UnitedTest manufactures high-precision ISO 11339 compliant T-peel testing machines for evaluating peel resistance of flexible-to-flexible adhesive bonded assemblies in material laboratories and manufacturing quality control.

ISO 11339 Adhesives — T-peel test for flexible-to-flexible bonded assemblies specifies a standardized T-peel testing procedure dedicated to measuring peel resistance of adhesive joints created between two flexible adherends configured into a T-shaped test specimen. Initially developed for thin flexible metal substrates, this standard is also applicable to all types of bendable flexible adherend materials. It is important to note that ISO 11339 generates comparative adhesive bond performance data and is not intended to supply parameters for structural engineering design calculations. Test results support adhesive formulation screening, surface treatment optimization, and batch quality inspection for flexible bonded components.

Test Principle

The core principle relies on steady tensile separation of a T-shaped bonded assembly:

Two flexible adherends are bonded together along one edge, with unbonded tails bent oppositely to form a vertical "T" geometry.

Tensile force is applied to the free unbonded ends at a constant crosshead speed. The angle between the bond line and pulling force is unfixed during testing.

The bond is peeled progressively from the open edge along the bonded length at a stable separation rate, and the continuous peeling force is recorded throughout the test.

Specific Test Methods & Parameters

Parameter	Requirement
Specimen shape	T-shaped — two flexible adherends bonded along part of their length, with unbonded tabs bent in opposite directions to 90°
Preferred width	25 mm (other widths allowed if stated in report)
Minimum number of specimens	5
Preferred steel adherend thickness	0.5 mm ± 0.02 mm (low-carbon steel, type XES)
Preferred aluminium adherend thickness	0.7 mm ± 0.02 mm or 0.5 mm ± 0.02 mm (type 5754, H111)
Preferred crosshead rate	100 mm/min (for metals); 10 mm/min (for other adherends)
Minimum bonded length separated	≥ 150 mm
Force measurement accuracy	± 2 %
Thickness measurement accuracy	± 0.01 mm

Test Equipment required for ISO 4587 Adhesives Tensile Shear Test of rigid bond material:

Tensile testing machine

Must maintain a constant, preset crosshead speed; the preferred rate is 100 mm/min for metal adherends, 10 mm/min for non-metallic flexible substrates.

Force measurement accuracy: ±2% of full-scale load; capable of plotting continuous force vs. crosshead displacement curves.

Specimen Grips

Equipped with self-aligning wedge grips that fully clamp the outer 25 mm section of each unbonded specimen tail.

Grips automatically align under tensile load to distribute force evenly across specimen width.

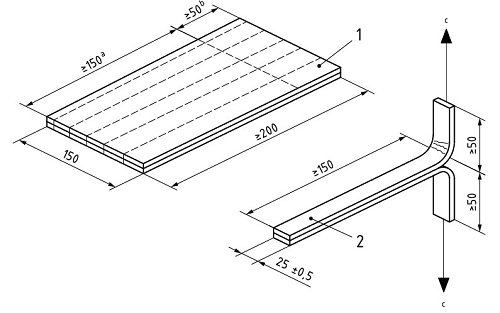

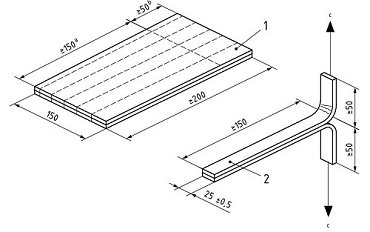

Detailed Test Specimen Specifications

Specimen width: 25 mm (preferred); alternative widths are allowed only if fully documented in the test report.

Bonded length ≥150 mm; each unbonded vertical tail segment ≥50 mm; raw bonded panel size ≥200 mm × 150 mm before cutting specimens.

Quantity: 5 identical specimens per test group.

Specimens are milled or bandsawn from large bonded panels to avoid damaging the adhesive joint; edge-cut specimens must be labeled separately in reports.

A flexible adherend is defined as material bendable to 90° without cracking or fracture. Preferred standard substrates:

Low-carbon XES steel: 0.5 mm ±0.02 mm

5754 H111 aluminium: 0.5 mm ±0.02 mm or 0.7 mm ±0.02 mm

Other flexible materials (plastic films, composite foils, thin laminates) are permitted with thickness recorded in reports.

After bonding, specimens are bent manually (without damaging the joint) to form a T-shape: two free tails bent perpendicular to the bonded plane in opposite directions for gripping.

Standard Test Procedures of ISO 11339 T-peel test for Adhesives

Pre-measure the average adhesive layer thickness for all ≥5 specimens with the precision thickness tester.

Mount each T-shaped specimen symmetrically into tensile machine grips; if one adherend is stiffer, attach the less flexible material to the moving crosshead grip to avoid uneven peeling.

Set the constant crosshead separation rate (100 mm/min for metals, 10 mm/min for other flexible substrates) and start the machine.

Continuously record force-displacement curves throughout peeling.

Continue peeling until at least 150 mm of bonded length is fully separated.

Classify the failure mode (cohesive, adhesive, substrate failure, mixed) per ISO 10365 and document for each specimen.

Industrial Application Fields

ISO 11339 T-peel testing is widely adopted across manufacturing sectors requiring flexible-to-flexible adhesive bonding quality control and material comparison:

Automotive Industry: Thin metal foil laminates, flexible interior trim adhesives, composite flexible foils, lightweight vehicle composite bonding

Aerospace: Thin aluminium alloy flexible assemblies, lightweight structural adhesive quality screening

Flexible Packaging: Plastic film lamination, multi-layer food packaging adhesives, foil-polymer composite bonds

Electronics: Flexible circuit film bonding, thin copper foil-laminate adhesive joints

Construction & Composite Materials: Flexible waterproof membrane lamination, thin metal-plastic composite panels

General Adhesive R&D: New adhesive formulation comparison, surface treatment performance validation, batch production quality inspection

The test only serves comparative screening: direct adhesive performance comparison is valid only when specimen geometry, substrates, and test environments are identical across samples.

Related test standard:

ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ASTM F88	Standard Test Method for Seal Strength of Flexible Barrier Materials
GB/T 2791	Adhesives，T peel strengthtest method for a flexible-to-flexible test specimen assembly
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
GB/T 2790	Adhesives, 180°peel strength test method for a flexible-bonded-to-rigid test specimen assembly

Importance of ISO 11339 T-Peel Test for Adhesive & Flexible Substrate Materials

Quantify Interfacial Bond Performance: Peel resistance directly reflects the interfacial adhesion between adhesive and flexible substrates, identifying weak bonding caused by poor surface treatment, incomplete curing, or low adhesive tack.

Standardized Comparative Evaluation: Global unified test rules eliminate lab-to-lab variation, enabling manufacturers, raw material suppliers, and third-party labs to consistently compare different adhesive formulations, substrate materials, or pretreatment processes.

Quality Control for Mass Production: Routine T-peel testing validates batch consistency of adhesives and laminated composite products, preventing defective bonded components from entering finished goods.

Failure Mode Analysis: Combined with ISO 10365 failure classification, the test differentiates root causes of bond failure: cohesive failure (adhesive itself weak), adhesive failure (poor substrate interface), or substrate tearing (adhesive stronger than base material), guiding formulation or process optimization.

Regulatory & Supply Chain Compliance: As an internationally recognized ISO standard, test reports following ISO 11339 satisfy quality audit requirements for cross-border industrial supply chains in automotive, aerospace, and packaging sectors.

Adhesive R&D Optimization: Researchers use standardized T-peel data to adjust adhesive polymer chemistry, curing parameters, or surface activation methods to improve flexible lamination durability.

Simulate Real-World Service Stress: Flexible bonded products frequently undergo bending and peeling loads during use; the T-peel test replicates this service loading mode to predict in-service bond reliability (note: data cannot replace full structural design calculations).

Keywords: UnitedTest ISO 11339 tester, ISO 11339 T-peel tester, flexible-to-flexible adhesive T-peel test machine, adhesive peel resistance testing equipment, ISO 11339 T-shaped flexible adherend bond peel test, T-peel test for thin flexible metal adhesive assemblies, comparative adhesive bond performance laboratory tester, flexible substrate adhesive peel strength evaluation machine, flexible bonded joint quality control T-peel testing instrument

tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Q1: What is the core purpose of ISO 11339?

A1: This standard specifies a T-peel laboratory test method to measure peel resistance of adhesives bonding two flexible substrates formed into a T-shaped specimen. It generates comparable peel force data to evaluate interfacial bonding performance, though it cannot provide structural design calculation data.

Q2: What unit is used to express the final test result (peel resistance)?

A2: The normalized core metric is Newtons per 100 mm width (N/100mm). Raw peeling force is recorded in Newtons (N) for each specimen separately.

Q3: What is defined as a "flexible adherend" under this standard?

A3: A flexible adherend is a substrate that can be bent to any angle up to 90° without cracking or breaking, such as thin steel/aluminum sheets, plastic films, composite foils, flexible circuit substrates. Rigid thick panels cannot be tested by this method.

Q4: What is the preferred specimen width for testing? Can I use other widths?

A4: The preferred width is 25 mm. Other widths are allowed, but you must fully record the actual width in the test report and normalize all results to N/100 mm width for consistent comparison.

Q5: How many specimens do I need to test for one batch of adhesive?

A5: A minimum of 5 identical specimens must be tested per test group. Edge-cut specimens taken from the edge of bonded panels must be recorded separately in the report, as their bonding performance often differs from central specimens.

Q6: What thickness of metal adherends does the standard recommend?

A6: XES low-carbon steel: 0.5 mm ±0.02 mm

5754 H111 aluminum: 0.5 mm ±0.02 mm or 0.7 mm ±0.02 mm

For non-metallic flexible substrates, measure and record the actual thickness in the report.

Q7: Why do I need to bend specimens into a T shape before clamping?

A7: The two unbonded tails are bent in opposite directions to be perpendicular to the bonded layer, forming a T geometry. This setup allows the tensile machine to apply continuous peeling force along the bond line, which matches the test principle of progressive separation of the adhesive joint.

Q8: Why do we normalize force to N/100mm instead of using raw force values?

A8: Raw peeling force changes proportionally with specimen width. Normalizing to a fixed 100 mm width eliminates the influence of different specimen widths, enabling fair comparison of adhesive performance across tests with different sample widths.

Q9: Why is the ISO 11339 T-peel test important for adhesive and flexible substrate materials?

A9: Quantifies interfacial bonding quality: Peel resistance directly reflects how well adhesive adheres to flexible substrates, exposing weak bonds caused by poor surface treatment, incomplete curing or low adhesive tack;

Enables global unified comparison: Standardized rules remove laboratory bias, allowing consistent cross-supplier/cross-factory performance evaluation;

Supports mass production QC: Routine testing verifies batch consistency of adhesives and laminated products to avoid defective finished goods;

Identifies root failure causes: Combined with ISO 10365 failure classification, it distinguishes whether failure comes from weak adhesive bulk or poor substrate interface, guiding formulation and process optimization;

Meets international supply chain audit requirements: ISO-standardized test reports are recognized for cross-border trade in automotive, aerospace and packaging industries;

Simulates real service loads: Flexible products frequently bear bending and peeling stress in use; this test replicates such loading to predict long-term bond reliability (note: results cannot be used for structural mechanical design).

Q10: What are the limitations of the ISO 11339 test?

A10: It only provides comparative performance data, not mechanical data for structural engineering design;

It is only applicable to flexible-to-flexible bonded assemblies, cannot test rigid-rigid or rigid-flexible joints (use ISO 11340 for rigid-flexible 180° peel);

No official interlaboratory precision data to judge result reproducibility between different labs;

Test data does not fully replicate long-term aging, environmental corrosion or cyclic fatigue service conditions.

Q11: How long of the bonded area must I peel during the test?

A11: Continue the test until at least 150 mm of the bonded length is fully separated.

Q12: Which part of the peeling curve should I use to calculate average peeling force?

A12: Ignore the initial 25 mm and final 25 mm of the peeling distance; only analyze the stable middle 100 mm segment of the curve to eliminate unstable startup and end-point interference.

Q13: How to handle specimens with two adherends of different flexibility?

A13: Mount the less flexible (stiffer) adherend to the moving crosshead grip to ensure uniform peeling along the entire bond width and avoid skewed, uneven separation.

Q14: How to classify joint failure after testing?

A14: All failure modes shall be identified and recorded following ISO 10365, including cohesive failure, adhesive interfacial failure, substrate tearing failure, and mixed failure modes.

Q15: What are some best practices for reliable T‑peel testing?

A15: Ensure perfect alignment of the specimen in the grips to avoid torsional forces.

Calibrate equipment regularly and use a low‑inertia clamping device.

Condition specimens in the specified ISO 291 atmosphere and report the conditions.

Use a high data‑acquisition rate (e.g., up to 5 kHz) to capture all peaks and troughs in the force curve – too low a bandwidth may "dull" the results and lead to artificially low peel‑resistance values.

Run at least 5 specimens and report average, max, and min values for statistical robustness.

Document the failure mode per ISO 10365 – this provides critical diagnostic information about joint quality (adhesive failure at interface, cohesive failure within adhesive, or substrate failure).

When one adherend is more flexible than the other, attach the less flexible adherend to the movable grip.
