ASTM D903 180 Degree Peel Strength Tester for Structural Adhesive Bonds | UnitedTest

UnitedTest manufactures high-precision ASTM D903 compliant peel testing machines dedicated to measuring 180° peel strength of permanent liquid structural adhesive bonds for material labs, adhesive manufacturers and industrial quality control workshops.

ASTM D903 — Standard Test Method for Peel or Stripping Strength of Adhesive Bonds provides a universal standardized testing procedure to assess the 180° peel resistance of joints bonded with permanent liquid adhesives. This standard is explicitly excluded for pressure-sensitive adhesive (PSA) tape testing.

The test quantifies comparative stripping force needed to detach a flexible substrate from a paired rigid or flexible adherend under regulated bonding preparation, environmental conditioning and tensile test parameters.

The core testing principle of ASTM D903 focuses on calculating the average load per unit bond width for progressive 180° separation between two bonded parts, carried out at a fixed test speed of 152 mm (6 inches) per minute. Final peel strength test data is recorded as kg/mm or lb/in of bond width. Accurate peel test outputs support adhesive formulation comparison, surface treatment optimization and finished bonded component reliability verification.

Test Principle

The physical principle relies on constant-speed tensile stripping of a flexible adherend at a fixed 180° angle to measure steady-state interfacial bond strength: A flexible adherend (film, foil, fabric, rubber, thin plastic, or coated sheet) is bonded to a second member (which may be flexible or rigid) over a 152.4 mm (6 in.) bond length. The free end of the flexible member is folded back 180° and gripped by the moving crosshead of a tensile tester.

Two substrates (one flexible, one rigid/flexible) are permanently bonded with liquid adhesive per manufacturer’s curing instructions and fully conditioned to reach adhesive cure equilibrium.

The free end of the flexible strip is manually pre-peeled for ~25 mm (1 in) to create a tab for tensile machine clamping.

The tensile crosshead pulls the flexible adherend backward at a fixed jaw travel speed to maintain a steady 180° peel angle, continuously recording tensile load via autographic chart.

Average stable peel load across at least half of the total bonded area is normalized by specimen width to calculate peel/stripping strength (kg/mm or lb/in), excluding unstable initial peak forces from startup separation.

The test captures comparative bond performance and identifies failure modes (cohesive failure inside adhesive layer, adhesive failure at substrate interface, substrate tearing).

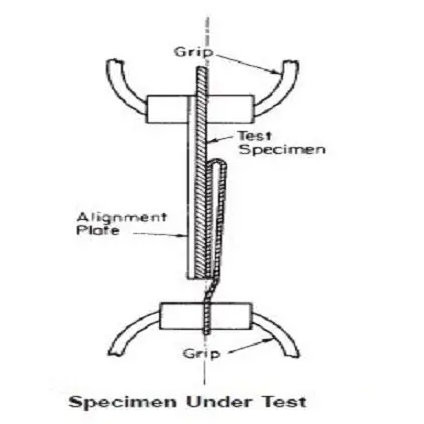

ASTM D903 Peel or Stripping Strength test of Adhesive Bonds

Specific Test Methods in ASTM D903

ASTM D903 contains one unified core 180° peel test procedure with no separate sub-methods (unlike the six A–F variants in D3330). The single test geometry applies to all adhesive-bonded assemblies meeting the specimen definition:

Mandatory 180° reverse peel configuration: One flexible adherend folded backward parallel to the rigid substrate to maintain a consistent 180° separation angle during continuous stripping.

Universal specimen format: 25 mm (1 in) wide bonded strips with fixed 152.4 mm (6 in) overlapping bond length, suitable for metal, plastic, wood, rubber, fabric adherends.

Flexible backing provision: Highly extensible flexible materials require a non-stretch reinforcing backing to preserve the standardized 152.4 mm/min peel separation rate.

Test Specimen Specifications

Dimension	Flexible member	Second member
Length	304.8 mm (12 in.)	203.2 mm (8 in.)
Width	25 mm (1 in.)	25 mm (1 in.)
Bonded length	152.4 mm (6 in.) at one end	—
Unbonded portions	Folded face-to-face for gripping	—

Thickness: Must be thick enough to withstand the expected tensile pull but ≤ 3 mm (1/8 in.)

Number of specimens: At least 10 per adhesive

Preparation: Specimens may be cut from larger bonded panels (~152.4 mm wide) to yield 5 standard strips per panel

Test Equipment of ASTM D903 Peel or Stripping Strength test of Adhesive Bonds

CRE Universal Testing Machine (UTM)

Power-driven CRE (constant rate of extension) tester, pendulum-type, or inclined balance machine.

Load measurement accuracy within ±1% of true tension value.

Crosshead travel speed fixed at 305 mm (12 in)/min, which delivers a standardized separation peel rate of 152.4 mm (6 in)/min, uniform through full test travel.

Peeling test fixture

Non-slip symmetric wedge grips to eliminate specimen slippage during pulling.

Optional alignment plate mounted to stationary grip to hold specimens flat and maintain planar 180° peel geometry.

Auxiliary Supplies

Surface cleaning solvents (per adhesive manufacturer’s surface prep guidelines).

Cutting tools to slice bonded master panels into standard 25 mm wide specimens.

Mandatory Test Parameters & Stipulations:

Crosshead moving rate: 305 mm (12 in) per minute constant travel speed.

Resultant standardized peel separation speed: 152.4 mm (6 in) per minute (fixed for all comparative testing).

Strict 180° reverse peel angle maintained for the full test duration using alignment plates or light tare weights.

Minimum stripping distance requirement: Peel at least 50% of the total 152.4 mm bonded area to capture stable average load values.

Data calculation rule: Draw a best-fit average load line over the steady flat region of the autographic chart; subtract tare alignment weight to correct final peel strength values.

Standard Test Procedure

Condition all specimens for 7 days at 23 ± 1°C and 50 ± 2% RH (unless otherwise specified).

Test promptly after removing specimens from the conditioning atmosphere, preferably under the same conditions.

Hand-separate the free end of the 25 mm flexible member from the other member for ~1 in. (25 mm).

Mount in tester: Clamp the free end of the 8-in. member in one grip; turn back the flexible member and clamp it in the other grip.

Align: Either attach a minimum weight to the free end or use an alignment plate to keep the specimen in the plane of the clamps. Account for any added weight in the load calculation.

Symmetrically grip the 1-in. flexible member in the power-actuated clamp without twisting.

Zero the autographic mechanism and chart, then start the machine.

Peel at ~180° for a sufficient distance — at least half the bonded area, even if a peel value stabilizes earlier.

Record the autographic force-vs-displacement trace.

Industry Fields & Applications

Flexible packaging & labels	Laminating adhesive qualification; label stock & release-liner QC; bond integrity across product shelf life
Automotive	Trim bonding, protective films, gasket-to-metal bonds, interior decorative films
Electronics	Battery electrode coating adhesion (active material to foil collector); flexible circuit bonding; display films
Aerospace	Composite-to-core bonding; structural adhesive qualification (often paired with D3167)
Footwear & textiles	Sole bonding; coated-fabric and leather laminates
Adhesives & sealants R&D	Formulation development for PSAs, hot-melts, solvent-borne adhesives; cure monitoring
Construction	Membrane-to-substrate bonds; laminated building materials

Related Test Standard:

ISO 29862	Self adhesive tapes — Determination of peel adhesion properties
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ASTM D3330	Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
JIS Z 0237	Testing methods of pressure-sensitive adhesive tapes and sheets
ASTM D6862	90° peel, Rigid-to-flexible bonds; Perpendicular pull vs. D903's 180°
ASTM D1002	Lap Shear Test of Adhesively Bonded Metal Specimens
ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
PSTC-101	Pressure-Sensitive Tape Council: fully aligned with ASTM D3330 test geometry, roller weight, peel rate and conditioning parameters; widely used alongside ASTM D3330 for US tape manufacturers;
AFERA 4001	Peel adhesion standard matching core test principles of ASTM D3330 with minor dimensional tolerance differences for European tape widths;
FINAT FTM 1	FINAT testing standard to determine the adhesion or peelability characteristics of self-adhesive, pressure sensitive materials.
EN 1939	Standard for self-adhesive tape peel testing, covering stainless steel substrate and backing peel tests, consistent with D3330’s 180°/90° peel logic;
ASTM D903	Standard Test Method for Peel or Stripping Strength of Adhesive Bonds

Keywords: UnitedTest ASTM D903 tester, ASTM D903 peel strength tester, 180 degree peel test machine for structural adhesive, adhesive stripping strength testing equipment, ASTM D903 152mm/min 180° peel test for liquid structural adhesives, average load per unit width adhesive peel strength analyzer, difference between ASTM D903 and PSA tape peel test equipment, flexible to rigid substrate adhesive stripping tester, ASTM D903 lb/in kg/mm peel strength laboratory instrument

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Adhesion strength 90 degree peeling test fixture is a professional device used to measure the peel strength of adhesives at a 90° angle. It evaluates the resistance of the bonded interface to peeling by simulating a vertical peeling scenario.

Q1. What exactly does ASTM D903 measure?

A: It measures the comparative peel or stripping strength of an adhesive bond — specifically, the average load per unit width of bond line needed to progressively separate one adherend from another at approximately 180° and at a separation rate of 152.4 mm (6 in.) per minute. Results are reported in kg/mm or lb/in of width.

The key word is comparative: D903 is designed to compare adhesive bonds under standardized conditions, not to predict real-world service life.

Q2: Why is ASTM D903 testing important for structural adhesive materials?

A: Uniform engineering comparison benchmark: Fixed specimen geometry, peel speed, and 7-day conditioning eliminate lab-to-lab result drift, enabling fair comparison between adhesive formulations, surface treatments, or curing cycles.

Safety-critical structural design reference: Provides standardized peel strength data for load-bearing assemblies in aerospace, automotive, marine and military manufacturing to avoid premature bond failure under peel loads.

Adhesive R&D optimization: Quantifies how resin, hardener, primer, or filler changes affect interfacial bonding and peel resistance, accelerating new adhesive development.

Production QC verification: Confirms consistency of factory bonding processes (mix ratio, clamping pressure, cure time) by testing replicate bonded panels from production batches.

Failure mode diagnosis: Distinguishes cohesive, adhesive, or substrate rupture failure to identify root defects like poor surface cleaning, incomplete curing, or incompatible substrate chemistry.

Regulatory & military compliance: Officially approved by U.S. Department of Defense and recognized by the FDA for medical device structural bonding qualification, satisfying cross-border component certification requirements.

Baseline for durability aging tests: Serves as a control reference to measure bond degradation after heat, moisture, or chemical accelerated weathering.

Q3: What is the biggest difference between ASTM D903 and ASTM D3330?

Item	ASTM D903	ASTM D3330
Test object	Cured structural liquid adhesives (permanent bonds)	Pre-manufactured PSA self-adhesive tapes
Conditioning	Mandatory 7-day cure equilibrium aging	Minimum 24 h tape roll conditioning, 1-minute dwell after lamination
Specimen	Custom bonded panels (adhesive applied in lab)	Standard 24 mm tape strips laminated to stainless steel plates
Peel speed	152.4 mm/min separation rate	5 mm/min peel crosshead speed
Test variants	Only one single 180° peel procedure	Six separate test methods (A–F for 180°, 90°, liner release, double-sided tape)
Lamination tool	No standard weighted roller; manual clamping during curing	Mandatory 2040 g standard rubber roller for consistent contact

Q4: What are the mandatory specimen size rules for ASTM D903?

A: Flexible adherend: 25 mm (1 in) width × 304.8 mm (12 in) total length

Rigid counter adherend: 25 mm width × 203.2 mm (8 in) total length

Fixed bonded overlap region: 152.4 mm (6 in) bond line length

Maximum allowed thickness for all adherends: ≤3 mm; standard reference thicknesses defined for metal, plastic, wood, rubber and fabric substrates.

Master bonded panels (152.4 mm wide) are recommended; one panel can be cut into five independent 25 mm wide specimens for batch consistency testing.

Q5: How many replicate specimens do I need to test per adhesive system?

A: A minimum of 10 identical specimens must be tested for statistically valid average peel strength results. Any specimen with obvious manufacturing flaws (air bubbles, incomplete bonding, surface contamination) must be discarded and replaced with new samples.

Q6: What if my flexible material stretches significantly under pulling load?

A: Highly extensible flexible adherends require a non-extensible rigid backing film to maintain the standardized 152.4 mm/min peel separation rate. The backing material type and application method must be fully documented in the final test report to avoid invalid comparison with unbacked specimens.

Q7: How much of the bonded length do I need to peel to collect valid data?

A: You must peel at least 50% of the total 152.4 mm bonded overlap area. The initial short pre-peel tab (~25 mm / 1 in) is only for clamping and is excluded from average force calculation, as startup separation creates unstable peak stress that does not represent steady-state peel resistance.

Q8: What are the three main failure modes, and which one indicates optimal adhesive performance?

A: Cohesive failure (preferred): The adhesive layer splits internally; this proves the bond interface between adhesive and substrate is stronger than the bulk adhesive material, representing ideal bonding quality.

Adhesive interfacial failure: Clean separation occurs at the boundary between adhesive and substrate; low peel strength with this failure mode signals poor surface preparation, insufficient primer, or chemical incompatibility between adhesive and substrate.

Substrate rupture: The flexible/rigid base material tears before the adhesive bond separates; this means the adhesive joint exceeds the maximum peel resistance capacity of the substrate itself.

All failure modes must be fully documented in every test report alongside numerical strength values.

Q9: Why do my replicate specimens show large scatter in peel strength results?

A: Top common root causes:

Inconsistent surface preparation (uneven solvent cleaning, incomplete abrasion, leftover surface contaminants)

Variations in adhesive mixing ratio, open time, clamping pressure or curing duration during specimen fabrication

Specimens removed from conditioning chamber too long before testing (moisture/temperature drift)

Unstable 180° peel angle during pulling (no alignment plate used, specimen twisting in grips)

Crosshead speed drift or uncalibrated tensile tester load cell

Air bubbles trapped inside the bond line during adhesive lamination

Flexible adherend overstretching without rigid backing reinforcement

Q10: What other ASTM peel standards are related to D903, and how do they differ?

A: ASTM D1876 (T-Peel Test): Tests two flexible adherends peeled into a T-shape; designed for flexible-to-flexible thin laminates, different geometry and stress distribution than D903’s single-flexible 180° peel.

ASTM D3330: Exclusively for PSA pressure-sensitive adhesive tapes, not structural liquid adhesives.

ASTM D1002: Single-lap shear test for metal adhesive bonds; measures shear strength instead of peel stripping resistance.

ASTM D3807: Cleavage peel test for rigid plastic structural joints under high cleavage loads.

ASTM D907: Supporting terminology standard defining all adhesive technical vocabulary referenced within D903.

Q11: Which industrial fields rely heavily on ASTM D903 testing?

A: Aerospace & Automotive: Structural metal/composite bonding, vehicle interior trim adhesive joint qualification

Marine & Shipbuilding: Fiberglass lamination adhesives, hull structural bonding durability testing

Furniture & Woodworking: Wood veneer, plywood, and furniture assembly structural glue QC

Construction: Wood structural adhesives, waterproof membrane bonding performance verification

Military & Defense: DoD structural adhesive material procurement and qualification testing

Medical Device Manufacturing: FDA-recognized test for rigid/ flexible medical component bonded assemblies

Adhesive R&D Labs: Comparative screening of epoxy, polyurethane, cyanoacrylate and contact adhesive formulations

Third-Party Independent Material Certification Labs: Neutral standardized testing for supplier qualification and commercial dispute resolution

Q12: Why must the peel angle stay strictly 180° throughout the test?

A: 180° reverse peel creates consistent bending energy on the flexible adherend, forming the standardized loading geometry defined by the standard. Any deviation (e.g., accidental 90° or tilted peeling) changes the stress distribution at the bond line and produces incomparable force readings. An alignment plate mounted on the stationary grip or light tare weights are used to hold specimens planar during pulling.

Q13. What's the difference between "peel strength" and "stripping strength" in D903?

A: They are used interchangeably in the standard. Both refer to the average load per unit width required to separate the bond at ~180° and 152 mm/min. The dual terminology exists because "peel" is more common in flexible adherend contexts, while "stripping" is traditional in wood/adhesive-bond nomenclature.

Q14. What does "flexible" mean in D903?

A: The standard defines flexible as a material of proper flexural strength and thickness to permit a turn-back at approximately 180° in the expected loading range without failing. At least one of the two adherends must be flexible — this is what enables the 180° peel geometry.

Q15. Why do battery manufacturers care about D903?

A: In lithium-ion batteries, the electrode active material (e.g., graphite or NMC) is coated onto a metal foil (copper or aluminum) using an adhesive binder. D903-style 180° peel testing directly measures the foil-to-coating adhesion — a critical quality parameter. Weak adhesion leads to capacity fade, internal short circuits, and safety hazards. D903 provides the standardized methodology for this measurement.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
