ISO 29862 Tape adhesion peeling test, Self adhesive tapes

Information on the most widely used ASTM standards within the materials testing industry

Descriptions of the most prominent lSO standards within the materials testing industry

Standards including EN, DIN, JlS, and more

Mechanical testing of polymer materials in the automotive industry is directly related to the safety of components and the reliability of the entire vehicle. UnitedTest can cover mechanical performance testing for automotive interior and exterior parts, as well as functional components, adapting to automaker standards and providing comprehensive testing solutions including tensile, impact, and fatigue tests.

Mechanical testing in the battery industry determines the tensile and puncture resistance of core components such as separators and electrodes, directly affecting battery safety and cycle life. UnitedTest can cover full-dimensional mechanical testing of battery materials, compatible with national and international standards, and provide customized testing solutions.

Mechanical testing in the consumer goods industry determines product durability and safety, such as impact resistance for toys and fatigue resistance for home appliances, making it core to compliance and quality. UnitedTest can cover mechanical tests for all categories of consumer goods, including tensile, impact, and hardness tests, compatible with national and international standards, and offers customized testing solutions.

In the field of medical and biomedical sciences, mechanical testing determines the safety and compatibility of implanted devices and biomaterials, making it a core part of regulatory approval. UnitedTest can cover a full range of tests including tensile, fatigue, and wear tests, compatible with national and international standards, and provides customized biomechanical testing solutions.

Material strength is a course that most engineering fields are required to study in university education. This interesting course is very practical and makes use of testing equipment in the materials laboratory.

Mechanical testing of industrial products and components is essential to ensure their load-bearing, fatigue resistance, and impact resistance, directly preventing production accidents and ensuring stable operation of equipment. UnitedTest can cover a full range of tests including tensile, hardness, and fatigue, complying with national and international standards, and provides customized industrial mechanical testing solutions.

Mechanical testing in the plastic pipe industry determines ring stiffness, impact resistance, and tensile performance, directly preventing pipe bursts and deformation risks. UnitedTest can cover full-dimensional mechanical testing of pipes, complies with ISO,ASTM,EN et.c, international standards, and provides customized testing solutions.

In the construction engineering and building materials industry, mechanical testing determines the compressive and tensile properties of materials such as concrete and steel, which is core to ensuring the safety and durability of buildings. UnitedTest can cover the full range of building material mechanical tests, complies with ISO, ASTM international standards, and provides customized testing solutions for compressive, tensile, and other properties.

Mechanical testing in the food and beverage industry involves the compressive and tensile performance of packaging and the safety of food texture, directly ensuring storage, transportation safety, and the eating experience. UnitedTest can cover all-dimensional mechanical testing for packaging and food texture, comply with national and international standards, and provide customized testing solutions.

Mechanical testing in the packaging industry determines the packaging's resistance to compression, impact, and tension, directly ensuring the safety of contents during storage and transportation. UnitedTest can cover comprehensive mechanical testing for packaging, complying with ISO, ASTM Standards, and provides customized testing solutions for compression, drop, tear, and more.

Mechanical testing in the transportation industry concerns the load-bearing and fatigue resistance performance of core components such as vehicles, tracks, and containers, directly ensuring transport safety and equipment durability. UnitedTest can cover mechanical testing for all types of transportation materials, complying with national and international standards, and provides customized testing solutions including tensile, fatigue, and impact tests.

Metallurgical testing examines the properties of metallic materials to determine if a particular metal is appropriate for its intended use.

Testing of polymer materials covers mechanical, thermal, and chemical properties, verifying strength, heat resistance, composition, and ensuring product quality and compliance.

UnitedTest offer world-class testing solution in testing for polymeric materials, including elastomers, thermoplastics, composites, coatings, and structural adhesives in a variety of industries.

Testing of rubber and elastomers is used to assess the various properties and performance of materials under different conditions. This is crucial for ensuring the safety, functionality, and quality of rubber and elastomer products used in industries such as automotive, construction, consumer goods, and aerospace.

Conduct adhesive testing using various testing methods to determine their performance and characteristics in applications across multiple industries such as aerospace, automotive, construction, packaging, industrial, medical, and energy, thereby supporting application development and quality assurance.

UnitedTest supply machine and testing solution for tension, compression, fracture toughness, direct shear, triaxial and ultrasonic velocity are common concrete and rock testing applications.

UnitedTest has helped a number of companies involved in the wood, paper, cardboard, and corrugated industry with their testing needs. Our materials testing systems are capable of testing raw materials, components, and finished products.

UnitedTest testing system is trusted by leading medical device manufacturers, universities, and medical research laboratories worldwide. Whether testing tissues or bioresorbable materials, stents, or sutures, UnitedTest offers a variety of single-actuator and dual-actuator systems to meet your biomedical testing needs.

Mechanical testing in the textile fabric industry determines core properties such as fabric tensile strength, tear resistance, and wear resistance, directly affecting product durability and safety. UnitedTest can cover comprehensive mechanical tests for textiles, complying with national standards / ISO standards, and provides customized testing solutions including tensile, tear, and puncture tests.

The mechanical testing of industrial components directly determines the load-bearing, fatigue resistance, and wear resistance of the parts, helping to avoid equipment failure risks. UnitedTest can cover a full range of tests including tensile, hardness, and fatigue, is compatible with ISO/ASTM/GB standards, and provides customized mechanical testing solutions for industrial components.

Mechanical testing in the glass-ceramics industry determines core properties such as flexural strength, hardness, and fracture toughness, directly helping to avoid brittleness and failure risks. UnitedTest can cover comprehensive testing for flexural strength, hardness, and fracture toughness, compatible with national and ISO/ASTM standards, and provides customized testing solutions.

Tensile test evaluates material resistance to stretching, measuring strength/elongation critical for quality control. UnitedTest offers universal tensile testers (10-600KN) compliant with ASTM/ISO standards, providing tailored solutions for metals, polymers, medical & industrial materials.

Compression test assesses material resistance to compressive loads, measuring strength/deformation critical for quality validation. UnitedTest offers compression testing machines compliant with ASTM/ISO standards, providing tailored solutions for concrete, plastics, metals and industrial components.

Flexural & Bend tests evaluate material resistance to bending forces, measuring strength, stiffness and ductility for quality assurance. UnitedTest provides flexural testing machines (3-point/4-point bend) compliant with ASTM/ISO standards, offering tailored solutions for composites, plastics, metals and construction materials.

Torsion Test evaluates material resistance to rotational forces, measuring torsional strength/ductility critical for fasteners, insulators, shafts. UnitedTest offers torsion testers compliant with ASTM A938/ISO 16047, providing tailored solutions for automotive, aerospace, fastener industries.

Fatigue Test assesses material durability under cyclic loading, critical for predicting service life of industrial components. UnitedTest offers fatigue testing systems (axial/bending/torsion) compliant with ASTM E466/ISO 12106, providing tailored solutions for automotive, aerospace and manufacturing sectors.

Peel Test measures material adhesion strength by evaluating resistance to peeling forces, critical for adhesives, films, packaging. UnitedTest offers peel testers compliant with ASTM D903/ISO 8510, covering 90°/180° peel tests, and tailored solutions for packaging, automotive, textile industries.

Impact Test evaluates material resistance to sudden shock loads, critical for assessing toughness and fracture risk. UnitedTest offers impact testers (Charpy/Izod/fall weight) compliant with ASTM E23/ISO 148, providing tailored solutions for metals, plastics, glass and industrial components.

Tear & Shear Test evaluates material resistance to tearing and shearing forces, measuring critical strength parameters for quality control. Tear tests (Elmendorf/trouser/trapezoidal) assess resistance to crack propagation in films/fabrics, while shear tests measure resistance to parallel forces in joints/bolts. UnitedTest provides universal testing machines (10KN-600KN) with specialized fixtures for both tests, compliant with ASTM D624/D3164 and ISO standards, serving automotive, packaging and construction industries.

Hardness test measures material's resistance to permanent indentation, critical for quality control. UnitedTest offers universal hardness testers (Rockwell/Brinell/Vickers) compliant with ASTM/ISO standards, plus tailored hardness testing solutions for diverse industrial needs.

Biaxial/triaxial tests evaluate material performance under multi-axis loads, critical for biomaterials, metals and composites. UnitedTest provides compliant testing machines (ASTM/ISO) for planar biaxial, static/fatigue triaxial tests, with tailored solutions for industrial & biomedical needs.

Friction and wear tests assess material resistance to friction, abrasion and wear, critical for industrial material performance validation. UnitedTest offers tribometers compliant with ASTM G99/ISO standards, covering pin-on-disk, four-ball tests, and tailored friction & wear testing solutions for diverse industries.

Pressure test evaluates material/component resistance to static/dynamic pressure, critical for sealing, strength and safety validation. UnitedTest offers pressure testing machines compliant with ASTM/ISO standards, covering burst, hold-pressure tests, and tailored solutions for industrial, automotive & medical sectors.

Fire test assesses material flammability, heat resistance and fire-retardant performance, critical for safety compliance across industries. UnitedTest offers fire testing equipment compliant with ASTM/ISO/UL standards, providing tailored fire test solutions for building materials, plastics and industrial components.

Non-destructive Test (NDT) evaluates material/component integrity without damage, critical for safety & quality across industries. UnitedTest offers ultrasonic/X-ray/magnetic particle NDT equipment compliant with ASTM/ISO standards, plus tailored NDT solutions for aerospace, automotive & manufacturing sectors.

ISO 29862 Standard | Peel Adhesion Strength Test Machine for PSA Self-Adhesive Tapes | UnitedTest

UnitedTest is a professional manufacturer that designs and produces fully ISO 29862 compliant universal tensile peel testers dedicated to pressure-sensitive adhesive (PSA) tape performance testing for adhesive factories, packaging labs and third-party material certification institutes globally.

ISO 29862 Self adhesive tapes — Determination of peel adhesion properties is the authoritative international standard governing peel adhesion force measurement for all self-adhesive tapes under strictly regulated laboratory environments. This specification standardizes complete test protocols to quantify peel adhesion strength of pressure-sensitive adhesive tape substrates.

The standard features four official core test procedures for 180° peel adhesion testing, alongside two mandatory normative annexes that supplement low-temperature peel evaluation and 90° peel test methods. Covering multiple mainstream peel test modes in one unified standard, ISO 29862 acts as a universal benchmark for daily production quality control, raw adhesive material comparison, new tape formulation R&D and cross-regional product compliance verification for tape manufacturers, testing laboratories and industrial end users across all continents.

Our UnitedTest peel adhesion testing machine supports flexible fixture switching for 90° peel and 180° peel tests, optional temperature-controlled chambers for low-temperature ISO 29862 annex testing, and built-in software pre-programmed with all standard calculation templates. The equipment fully complies with specimen preparation, peeling speed, contact pressure dwell time and data reporting requirements defined in ISO 29862, delivering consistent, audit-ready peel strength test data for PSA masking tape, packaging tape, double-sided adhesive tape and industrial adhesive film validation.

ISO 29862 Tape adhesion peeling test, Self adhesive tapes

Core Test Principle

All test methods share the same fundamental mechanical principle:

A standardized tape specimen is uniformly bonded onto a rigid substrate with controlled rolling pressure to form consistent adhesive joints. The tensile tester pulls the free tape end at a constant linear speed under fixed peel angle (180° default, optional 90°). The machine records continuous real-time force to separate tape from substrate/backing/liner. The initial 25 mm peeling force data is discarded to eliminate unstable startup tension; the average force of the subsequent stable 50 mm peeling segment is defined as the official peel adhesion value, reflecting the intrinsic interfacial bonding strength between adhesive and mating surface.

Key distinction across methods lies in the contact interface: steel plate, tape backing, double-sided tape two adhesive faces, or release liner.

ISO 29862 Tape adhesion peeling test, Self adhesive tapes

Four Core Specific Test Methods:

All primary methods adopt 180° peel angle at standard ambient climate; Annex A and B extend test conditions to low temperature and 90° peel angle respectively.

Method 1: 180° Peel Adhesion to Standard Stainless Steel Substrate	Single-sided self-adhesive tape bonding performance on standardized metal surface (industry reference benchmark)
Method 2: 180° Peel Adhesion to Tape’s Own Backing	Interlayer adhesion between adhesive layer and the flexible backing film of identical tape (assess backing-adhesive bonding stability)
Method 3: 180° Peel Adhesion for Double-Sided & Transfer Tapes	Separate testing of open side (exposed adhesive after liner removal) and closed side (adhesive covered by original liner) of double-sided tapes / carrier-free transfer adhesive films; uses 25 μm PET supporting film to fix the non-test adhesive face
Method 4: 180° Liner Release Adhesion Test	Annex A: Low-temperature peel adhesion (specimens conditioned & tested at custom low temperature for 16–24 h, simulating cold environment usage) Annex B: 90° vertical peel adhesion (uses dedicated 90° peel fixture to maintain constant perpendicular peeling angle, matching real-world vertical stripping scenarios)

Test Specimen (Sample & Test Piece) Specifications

Test piece dimensions: Length ~300 mm; width controlled 8.5–34 mm; if raw tape exceeds 34 mm width, cut down to target range; if narrower than 8.5 mm, stack multiple strips to reach equivalent width

Roll pre-treatment: Discard 3–6 outer wrap layers from tape roll before cutting specimens to avoid surface contamination

Unwinding speed for test pieces: 500–750 mm/s from freely rotating roll; if high unwind tension prevents this, adopt closest feasible speed

Operation time limit: Apply cut test piece to panel within 5 min of unwinding/liner removal; complete peeling test within 1 min after final roller compaction (standard dwell time = 1 min; extended dwell time must be documented in report)

Specimen quantity: Single test piece for Method 1/3/4; two matching tape strips required for Method 2 backing-to-adhesion test.

Required Test Equipment of ISO 29862 Tape adhesion peeling test, Self adhesive tapes

CRE Constant Rate Extension Tensile Tester	Recommend UnitedTest brand universal testing machine. Electronic load cell with ≤2% full-scale reading error; minimum 1 data point per mm peeled travel; dual aligned parallel clamps; crosshead moving speed controlled at (5.0 ± 0.2) mm/s.
T Peeling test fixture	Standard stainless steel panels: Stainless steel, 125 mm × 50 mm × ≥1.1 mm, 2R bright annealed finish, surface roughness 50 nm ±25 nm, scratch/stain-free; 2 kg standard rolling roller: Steel core, 6 mm thick Shore A 80±5 rubber coating; diameter (85±2.5) mm, width (45±1.5) mm, total mass (2.0±0.1) kg, rolling speed (10.0±0.5) mm/s; 1 kg roller for narrow test strips (8.5–17 mm width). Light hand roller: Lightweight rubber roller to pre-lay tape and eliminate air entrapment before standard rolling.

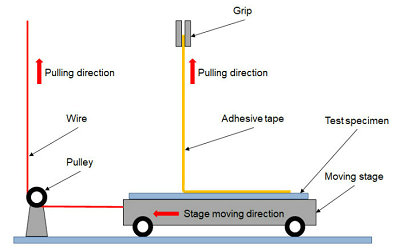

90° peel test fixture	Horizontal sliding panel holder connected to tester crosshead via deflection pulley to sustain fixed 90° peel angle
Test piece cutter	Equipped with solid/snap-off sharp blades to produce straight, damage-free parallel tape strips.

Key Test Parameters

Mechanical Motion Parameters

Tester crosshead peeling speed: (5.0 ±0.2) mm/s;

Standard roller rolling speed: (10.0 ±0.5) mm/s;

Tape unwinding speed for specimen cutting: 500–750 mm/s.

Dimension & Force Calculation Parameters

Standard roller mass: 2.0 ±0.1 kg (1.0 kg roller for narrow strips 8.5–17 mm);

Stainless steel panel roughness: 50 nm ±25 nm;

Rubber roller hardness: Shore A 80 ±5;

Supporting PET film thickness (Method 3): 25 ±2 μm;

Result unit normalization: Convert raw measured force to N per 10 mm width (N/10 mm), recorded to 0.1 N/10 mm precision.

Standardized General Test Procedures of ISO 29862 Tape adhesion peeling test, Self adhesive tapes

1, Pre-condition all tape samples and clean test panels under standard 23 °C / 50% RH environment for ≥16 h;

2, Clean rigid test substrate following solvent wiping specification and fully dry for ≥10 min;

3, Cut qualified test pieces from tape roll after removing outer wraps, unwind at regulated speed;

4, Fold 12 mm adhesive-to-adhesive tab at one specimen end for tensile jaw clamping;

5, Pre-lay tape onto substrate with light hand roller to expel air bubbles;

6, Apply standard heavy roller bidirectional compaction passes per method requirements;

7, Complete peel test within 1 min after rolling compaction (standard dwell time);

8, Mount panel fixture on one tensile tester jaw, tape tab on movable jaw;

9, Start crosshead at 5.0 mm/s constant speed, peel 25 mm and discard initial force data;

10, Capture average force over the next 50 mm stable peeling travel as peel adhesion force;

11, Normalize raw force to N/10 mm based on actual test piece width;

12, Repeat parallel specimens, compile data and fill full compliant test report.

Related Test Standard:

ISO 29862	Self adhesive tapes — Determination of peel adhesion properties
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ASTM D3654	Standard Test Methods for Shear Adhesion of Pressure-Sensitive Tapes
ASTM D3330	Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape
JIS Z 0237	Testing methods of pressure-sensitive adhesive tapes and sheets
LST EN 1939	Self adhesive tapes - Determination of peel adhesion properties
GBT 2792	Measurement of peel adhesion properties for adhesive tapes
EN 12481	Self adhesive tapes – Terminology
ISO 29863	Self adhesive tapes – Measurement of tack (initial quick-stick tack test, complements peel adhesion for full PSA property profiling)
ISO 29864	Self adhesive tapes – Measurement of tensile strength and elongation (measures tape backing mechanical strength, paired with peel test for full product performance evaluation)
ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
PSTC-1	USA Pressure Sensitive Tape Council: North American mainstream peel test standard, similar 180° peel mechanism but differs in roller mass and conditioning timeline
FINAT Test Method	Liner release adhesion test for label stock, shares interface testing logic with ISO 29862 Method 4

Keywords: UnitedTest ISO 29862 peel adhesion tester, ISO 29862 self-adhesive tape peel strength test machine, PSA pressure-sensitive adhesive tape 90° 180° peel testing equipment, low temperature peel adhesion test bench compliant with ISO 29862, four 180° peel test methods for adhesive tape, ISO 29862 normative annex low temperature and 90° peel test, pressure sensitive adhesive tape peel adhesion force measurement, universal adhesive tape QC comparison tester, industrial self-adhesive peel strength analyzer

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Adhesion strength 90 degree peeling test fixture is a professional device used to measure the peel strength of adhesives at a 90° angle. It evaluates the resistance of the bonded interface to peeling by simulating a vertical peeling scenario.

T-Peel Resistance Test Fixture for Adhesives is based on ASTM D1876 standard, used to measure the adhesion strength of adhesive maeterial. ASTM D1876 peel strength test method is commonly used to measure the strength of adhesive bonds between two sealed materials.

Q1: What is ISO 29862, and what does it test?

A1: ISO 29862:2024 is the global international standard for measuring peel adhesion of all pressure-sensitive self-adhesive tapes. It defines four core 180° peel test methods plus two normative annexes for low-temperature and 90° peel testing, quantifying the force required to peel tape away from standard substrates, tape backing, double-sided adhesive surfaces, or release liners under strictly controlled lab conditions.

Q2: Why is the ISO 29862 peel test important for adhesive tape materials?

A2: Unified Global Benchmark for Fair Comparison: Standardized substrate, climate, rolling pressure and peel speed eliminate lab-to-lab deviation, enabling consistent cross-brand, cross-batch tape performance comparison for manufacturers and buyers worldwide.

Production Quality Control & Batch Consistency Check: Quantifiable peel force values act as pass/fail acceptance criteria; detect uneven adhesive coating, defective backing-lamination or contaminated raw materials within a single roll, between rolls and production lots.

Adhesive Formulation R&D Optimization: Guide chemists to adjust PSA polymer composition, coating thickness, crosslinking degree and backing material by measuring peel strength changes on different interfaces (steel, backing, liner).

Predict Practical Application Performance: Differentiate critical functional attributes: metal bonding capacity, tape self-lamination compatibility, liner unwinding smoothness, and low-temperature cold resistance (via Annex A), matching tape selection to end-use substrates and environment.

Risk Avoidance for End Users: Prevent product failure issues such as tape delamination, label liner difficult peeling, double-sided tape layer separation, and masking tape adhesive residue transfer in automotive, electronics and construction assembly.

Regulatory & Supply Chain Compliance: Standardized test reports meet international trading, factory audit and customer specification requirements, resolving technical disputes via repeatable, auditable test data.

Distinguish Failure Modes: Test observation records adhesive transfer, substrate rupture or cohesive failure inside adhesive layer, helping engineers identify root causes of bonding failure rather than only providing a single force value.

Support Product Specification Documentation: Standard N/10 mm peel adhesion figures become official technical data sheets for product marketing, tendering and customer technical evaluation.

Q3: What are the standard dimensions and preparation rules for test pieces?

A3: Length: ~300 mm; width range: 8.5 mm to 34 mm. If raw tape is narrower than 8.5 mm, stack multiple strips to reach equivalent width; cut wider tape down to within 8.5–34 mm.

Discard 3–6 outer wraps from tape rolls before cutting specimens to avoid surface contamination.

Unwind test pieces at 500–750 mm/s from freely rotating rolls; apply tape to panels within 5 minutes of unwinding/liner removal.

Q4: What is the standard dwell time between tape lamination and peeling test? Can I use a longer dwell time?

A4: The default standard dwell time is 1 minute; each test piece must be peeled within 1 min after final roller compaction. Peel adhesion strength rises with extended dwell time at different rates for different tape formulations. If a longer dwell time is selected for special testing purposes, the exact dwell duration must be clearly recorded in the test report.

Q5: Why do we discard the first 25 mm peeling force data and only average the next 50 mm?

A5: The initial 25 mm peeling segment contains unstable startup tension from clamping friction, tab bending and uneven initial separation. The following continuous 50 mm peeling travel delivers stable, consistent interfacial separation force, which represents the true steady-state peel adhesion of the tape-substrate bond.

Q6: What rolling speed and pressure rules apply during tape lamination?

A6: Standard heavy roller moves at (10.0 ±0.5) mm/s; apply two bidirectional full-length passes for Method 1/2/4, one bidirectional pass for Method 3 double-sided tape PET film lamination. The roller’s fixed 2 kg mass provides standardized lamination pressure; no extra manual force can be applied on the roller during rolling.

Q7: Can ISO 29862 peel test data directly predict long-term structural bonding performance of tapes?

A7: No. The standard explicitly states peel adhesion test results cannot provide direct structural design data. Peel stress distribution varies heavily with adhesive viscoelasticity, backing rigidity and substrate stiffness. Even tapes with identical adhesive chemistry but different backing designs cannot be reliably ranked only by peel values.

Q8: What tape types are NOT suitable for ISO 29862 testing, and why?

A8: Tapes with extremely rigid backings, stiff liners, or highly stretchable backing films under low force are not recommended. These characteristics create extreme test result variability caused by backing deformation during peeling, which distorts the true interfacial adhesive bond strength reading.

Q9: What causes high variability in repeated ISO 29862 test results, and how to reduce deviation?

A9: Common error sources:

Finger contact or contamination on stainless steel panels; insufficient solvent cleaning.

Air bubbles trapped between tape and substrate during lamination (must discard such specimens).

Inconsistent roller rolling speed or extra hand pressure on the roller.

Violating 16 h sample conditioning or 1 min standard dwell time.

Uncalibrated tensile tester load cell or low data acquisition rate.

Solutions: Follow full panel cleaning protocol, use light hand roller to remove air, strictly control roller speed/weight, fully comply with conditioning and dwell timing, and calibrate the tensile tester regularly.

Q10: Which industries widely adopt ISO 29862 as a mandatory test standard?

A10: ISO 29862 testing is widely adopted across all PSA tape manufacturing and downstream industries:

Packaging industry: Carton sealing tapes, protective film, double-sided foam mounting tapes

Automotive manufacturing: Masking tapes, wire harness fixing tapes, interior bonding double-sided tapes

Electronics & electrical: High-temperature polyimide tapes, ESD shielding tapes, transfer adhesive films for component bonding

Construction & building: Waterproof butyl tapes, decorative mounting tapes, window sealing double-sided tapes

Printing & labeling: Label liner release tapes, adhesive transfer films for graphic mounting

Medical supplies: Single/double-sided medical adhesive tapes, skin-safe PSA films

General consumer goods: Office stationery tapes, household masking tapes, craft transfer tapes

Core usage scenarios: Raw material incoming inspection, production line quality control, new adhesive formulation R&D comparison, supplier qualification, cross-brand tape performance benchmarking, and product batch consistency verification.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
