ISO 4578 High-Strength Adhesive Peel Resistance Tester | Floating-Roller Method | UnitedTest

ISO 4578 defines the floating-roller peel method to test peel resistance of high-strength adhesive bonds between rigid and flexible adherends. UnitedTest manufactures ISO 4578 compliant peel testing machines for adhesive formulation comparison, surface treatment validation and bonded joint ageing evaluation.

ISO 4578 is an international standard for adhesives, specifying the floating‑roller peel test method to quantify peel resistance of high‑strength adhesive bonds formed between one rigid adherend and one flexible adherend under controlled specimen preparation and test conditions. This standard is widely used for laboratory comparative assessment of different adhesive grades, surface modification treatments, bonding process parameters, and the performance difference between aged and unaged bonded joints.

Compared with alternative peel testing techniques, the floating‑roller method specified in ISO 4578 produces highly repeatable test results, even when the flexible adherend cannot perfectly conform to the roller surfaces. Peel resistance is calculated as the average force per unit specimen width along the bond line needed to continuously separate the two adherends, with results reported in kN/m of specimen width. This test delivers reliable benchmark data for quality control, material qualification and research & development across automotive, aerospace, composite and structural bonding sectors.

UnitedTest designs and manufactures precision ISO 4578 floating-roller peel resistance testing machines. Our test systems deliver stable controlled tensile loading and accurate force measurement, supporting repeatable peel strength testing of high-strength adhesive bonded assemblies for material labs, adhesive producers and third-party certification organizations.

Test Principle

A bonded specimen is mounted in a peel fixture containing freely rotating rollers. The unbonded end of the flexible adherend is gripped by the tensile machine and pulled so the flexible layer peels from the rigid layer. The roller arrangement keeps the peeled flexible strip aligned with the machine grips and maintains a consistent peel geometry/angle during propagation.

Test Equipment required for ISO 4578 Floating roller Peel Test for Adhesives

Tensile testing machine

- Maintains constant crosshead speed; capable of capturing maximum load. Measured load must fall between 15 %‑85 % of the load‑cell full‑scale capacity. Force measurement accuracy: ±1 %.

- Equipped with self‑aligning grips to clamp 25 mm of the flexible adherend free end. Grips must self‑align under load so the flexible adherend aligns with the pull‑force centreline.

- Supports autographic force‑versus‑displacement chart recording; inertialess test equipment is recommended.

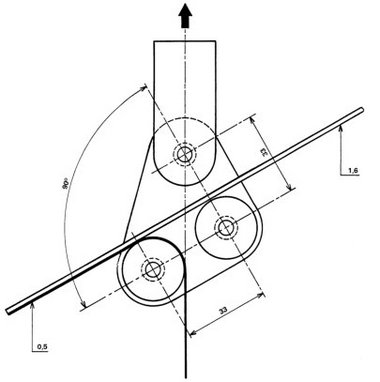

Floating‑roller peel test fixture

Mounted on one cross‑arm of the tensile tester, fitted with two freely‑rotating 25 mm‑diameter dual‑bearing rollers.

Roller geometry, angle and bearing condition are critical for valid test results and require careful maintenance.

ISO 4578 Floating roller Peel Test for Adhesives

Detailed Test Specimen Specifications

Construction: rigid adherend + flexible adherend, properly surface‑treated and bonded. May be made individually or cut from a larger bonded panel.

Preferred width: 25 mm ±0.5 mm;

Thickness (metal example in ISO 4578):

Flexible adherend: 0.5 mm ±0.02 mm (can be thicker for non‑metal flexible adherends).

Rigid adherend: 1.6 mm ±0.1 mm.

Rigid adherend must be stiff enough that it does not bend/distort during peel; if it bends, redesign with a stiffer rigid layer.

Surface preparation:

Metals: ISO 4588 or adhesive manufacturer instructions.

Plastics: ISO 13895 or adhesive manufacturer instructions.

Bondline thickness: measure total bonded thickness minus the two adherend thicknesses; report average adhesive layer thickness.

Number of specimens: minimum 5 if not specified elsewhere.

Test parameters and conditions

Crosshead separation rate: 100 mm/min ±5 mm/min unless otherwise specified.

Peel record length: autographic force vs. displacement over at least 115 mm of bond line, ignoring the first 25 mm of peel.

Standard Test Procedures of ISO 4578 Floating roller Peel Test for Adhesives

1. Mount the specimen into the floating‑roller fixture. Secure the bent free end of flexible adherend into the tensile‑machine moving grip.

2. Run the test at constant cross‑head rate of 100 mm/min. If rigid adherend bends/distorts during peeling, redesign for higher rigid‑adherend stiffness to guarantee uniform peeling behaviour.

3. Continuously record force versus cross‑head displacement (peel distance) for at least 115 mm of bond‑line peeling. Discard data from the first 25 mm of peeling (initial transient zone).

4. Invalid test rule: Discard the complete specimen result if bond failure occurs outside the defined peeling zone of the roller fixture.

5. Process recorded force‑displacement curve to get average, maximum and minimum peel‑resistance values.

6. Compile full test‑report documentation covering standard reference, adhesive/adherend identity, bonding parameters, bond‑line thickness, specimen information, conditioning, test speed, calculation method, force results and failure mode classification (per ISO 10365).

Industrial Application Fields

ISO 4578 floating‑roller peel test targets high‑strength structural adhesive joints between rigid and flexible substrates. It is widely used for quality control, material qualification and adhesive formulation development in these sectors:

- Automotive industry: structural bonding of metal‑to‑metal, metal‑to‑thin composite parts, bonded trims, flexible skins to rigid brackets, structural adhesive qualification.

- Aerospace components evaluation for high‑strength adhesive assemblies, metal‑to‑metal structural adhesives, bonded panels, sometimes compared with climbing‑drum peel for sandwich structures.

- General metal‑bonding, structural plastics bonding

- Adhesive R&D: comparing peel performance of different structural adhesives

- Manufacturing incoming‑material inspection and batch‑release verification for bonded components.

- Electronics – flexible circuits/films to rigid boards or carriers (often alongside 90°/T‑peel methods).

- Packaging & laminates – multilayer films, foil‑to‑rigid layers, high‑strength laminating adhesives.

The floating‑roller design reduces variability compared to fixed‑angle peel tests, making it well‑suited for high‑strength bonds where unstable peeling or changing peel angle would distort test outcomes.

Related test standard:

ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ASTM F88	Standard Test Method for Seal Strength of Flexible Barrier Materials
GB/T 2791	Adhesives，T peel strengthtest method for a flexible-to-flexible test specimen assembly
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies
ISO 4578	Adhesives - Determination of peel resistance of high-strength adhesive bonds - Floating-roller method
GB/T 7122	Determination of peel resistance of high-strength adhesive bonds—Floating-roller method
ASTM D3167	Standard Test Method for Floating Roller Peel Resistance of Adhesives
ISO 14676	floating‑roller wet‑peel evaluation of surface treatment effectiveness for aluminium.
EN 1464	Adhesives - Determination of peel resistance of adhesive bonds - Floating roller method
EN 2243-2	Aerospace series - Non-metallic materials - Structural adhesives - Test method - Part 2: Peel metal-metal
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
GB/T 2790	Adhesives, 180°peel strength test method for a flexible-bonded-to-rigid test specimen assembly

Importance of ISO 4578 Floating roller Peel Test for Adhesives

Quantifies rigid‑to‑flexible peel strength in kN/m, which shear or lap‑shear alone do not capture.

Better repeatability than some fixed‑angle peel methods because the roller self‑aligns the flexible arm and reduces operator‑dependent peel‑angle error.

Sensitive to surface preparation – detects poorly cleaned/etched metals or untreated plastics when used with ISO 4588/ISO 13895.

Supports durability evaluation – combined with ISO 9142 ageing, it shows how humidity, heat, salt, fluids, etc. reduce peel resistance.

Failure‑mode diagnosis – with ISO 10365 you can distinguish adhesive failure (weak interface/surface prep), cohesive failure (adhesive internal strength) and substrate failure, guiding formulation or design changes.

Comparability – only meaningful when adherend material/dimensions, surface prep, bondline, width, rate and atmosphere are identical; the standard fixes those variables so different adhesives or processes can be compared.

Keywords: ISO 4578 floating roller peel tester,high strength adhesive bond peel resistance test machine,rigid flexible adherend adhesive peel test rig,adhesive joint ageing performance test equipment,adhesive formulation comparison testing system,bond surface treatment validation tester,peel resistance per unit width measurement apparatus,structural adhesive floating roller peel test machine,aerospace composite adhesive bond tester,automotive adhesive bonding quality control instrument,lab comparative adhesive performance analyzer,high repeatability adhesive peel strength test device

tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

ASTM D3167 ISO 4578 Floating peel test fixture consists of two roller bearings fixed in a frame, which is connected to the testing system through a rotatable adapter. This design ensures that the specimen is immediately aligned when force is applied.

Q1: What is ISO 4578 floating‑roller peel test used for?

A: ISO 4578 measures peel resistance of high‑strength adhesive joints where one adherend is rigid and the other is flexible. It applies for structural adhesives used in automotive, aerospace and metal‑bonding applications. It is not designed for low‑strength pressure‑sensitive tapes.

Q2: Why is ISO 4578 test important for adhesive material evaluation?

A: Lap‑shear strength only tells shear performance, but real‑world bonded components often suffer peel‑type loading. The floating‑roller fixture maintains stable peel angle during testing and delivers more repeatable, less‑scattered test data than fixed‑angle peel tests. It gives quantitative peel resistance values (kN/m), helps rank structural adhesives, verify surface treatment effect, classify failure modes and provides engineering input for component design.

Q3: What is the key difference between ISO 4578 floating‑roller test vs ISO 8510‑2 (180° peel test)?

A: ISO 4578: Floating‑roller mechanism, dedicated for high‑strength structural adhesive bonds. The dual‑bearing floating rollers automatically keep stable peel geometry while peeling proceeds, reducing angle drift.

ISO 8510‑2: Conventional fixed‑geometry 180° peel, better for medium‑low strength bonds such as tapes and laminatesISO. For high‑strength joints, fixed‑angle peel often suffers large data scatter.

Q4: What specimen dimensions are mandatory under ISO 4578?

A: Preferred specimen width: 25 mm ±0.5 mm (alternative width is allowed but must be reported)

Metal flexible adherend thickness: 0.5 mm ±0.02 mm

Rigid adherend thickness: 1.6 mm ±0.1 mm

Minimum valid replicates: 5 specimens unless material specification specifies other quantity. Specimens can be individually prepared or cut from bonded panels, cutting must not damage bond interface.

Q5: What is the standard test speed for ISO 4578 test?

A: Default cross‑head separation speed is 100 mm/min ±5 mm/min. If you adopt other speed, you must document this clearly in the final test report.

Q6: Which peel length data should I use to calculate average peel resistance?

A: Ignore the first 25 mm (initial transient region) and ignore the final 20 mm of peeling. Calculate average peel force over 115 mm effective bond‑line peeling distance. If failure occurs outside the peeling zone defined by fixture rollers, discard this specimen result completely.

Q7. What materials is it for?

A: Rigid‑to‑flexible bonded assemblies: metal‑to‑metal foil, rigid plastic or composite‑to‑flexible strip, laminates, automotive skins/trim, aerospace panels, electronics flexible‑to‑rigid bonds, etc. It is not ideal for two very rigid substrates or very low‑strength tapes.

Q8: My rigid adherend bends during peeling, what should I do?

A: Rigid‑adherend bending / distortion invalidates test results. You must redesign specimen to use thicker / stiffer rigid adherend to guarantee uniform stable peeling.

Q9. How are results calculated?

A: Average peel resistance = average force in the stable region ÷ specimen width, reported in kN/m. Methods allowed: planimeter, gravimetric chart weighing, best straight line through the curve, or computer integration. Also report max/min force per specimen and failure mode per ISO 10365.

Q10: Why choose ISO 4578 Floating‑Roller Peel Test Machine & Test Fixture from UnitedTest?

A: UnitedTest manufactures complete ISO 4578 floating‑roller peel test solutions for high‑strength adhesive bond peel resistance measurement. Compliant with ISO 4578:1997 standard, our UTM plus dedicated floating‑roller peel fixture delivers repeatable peel‑strength test data for automotive, aerospace and structural‑adhesive laboratories.

UnitedTest is a professional manufacturer of material testing equipment, supplying full ISO 4578‑compliant test systems for measuring peel resistance of high‑strength rigid‑to‑flexible adhesive bonds.

Our ISO 4578 floating‑roller peel test solution includes high‑precision universal tensile testing machine and dedicated floating‑roller peel test fixture, fully meeting ISO 4578:1997 requirements for structural‑adhesive peel evaluation.
