ASTM D3167 Floating Roller Peel Tester | Adhesive Peel Resistance Machine | UnitedTesT

ASTM D3167 floating roller peel test measures peel resistance of adhesive bonds between rigid and flexible adherends, delivering reliable reproducibility for low and high strength bonds. UnitedTest manufactures ASTM D3167 compliant peel testing equipment for adhesive acceptance testing and production process control.

ASTM D3167 is a widely adopted standard test method for measuring the relative peel resistance of adhesive joints formed by one rigid adherend bonded to one flexible adherend under controlled specimen preparation and test environments. This floating roller peel test achieves excellent reproducibility across both low-strength and high-strength bonded assemblies, with straightforward specimen preparation and simple operational procedures. While the standard references metal-to-metal peel strength and uses clad aluminum as the default reference material, its scope applies generally to all rigid-to-flexible adhesive assemblies.

This test method is commonly deployed for material acceptance inspection and manufacturing process quality control. It serves as a practical alternative to ASTM D1781 climbing drum peel testing when climbing drum test apparatus is unavailable. ASTM specifies that ASTM D3167 applies a larger peel angle, which makes this test more severe and demanding for adhesive bond evaluation. It is widely used in aerospace, automotive, composite and metal bonding industries to validate adhesive formulations, surface pretreatment processes and batch-to-batch bond consistency.

UnitedTest designs and manufactures high precision ASTM D3167 floating roller peel resistance testing machines. Our test instruments maintain stable peel angle and constant tensile loading to capture repeatable peel force data, supporting adhesive labs, bonding manufacturers and third-party certification bodies for material qualification and process validation.

Test Principle

A laminated specimen consisting of a rigid layer bonded to a flexible layer is mounted in a floating‑roller (roller‑drum) peel fixture. The free end of the flexible adherend is gripped by the tensile machine and pulled at a controlled crosshead speed. The flexible layer peels from the rigid layer over freely rotating rollers, so the peel occurs at a controlled/consistent angle. The testing machine records load versus head movement (load versus distance peeled), and the average peel load per unit specimen width is calculated.

The floating rollers keep the flexible adherend aligned over the mandrel/roller and reduce variations caused by manual peel‑angle control.

ASTM D3167 Peel Resistance Adhesives Test - Floating Roller

Test Sample Information

Construction: two adherends properly surface‑prepared and bonded per the adhesive manufacturer’s recommendations. One is made rigid, the other flexible.
Default thickness if not specified in the material specification:

Flexible adherend: 0.63 mm (0.025 in.)
Rigid adherend: 1.63 mm (0.064 in.)

Specimen width: default 12.7 mm (0.5 in.) cut from bonded panels by a method not deleterious to the bond; shearing, milling, or band saw may be used. Other widths are permitted if grips/fixture are wide enough to load uniformly.
Release/masking: at least 30.5 mm of the flexible member in the unbonded region should be masked with PTFE release tape or equivalent so the rigid member does not adhere in that area. This makes it easier to bend the flexible end for testing.
Pre‑bend: bend the unbonded end of the flexible adherend perpendicular to the rigid adherend and peel it away at least 30.5 mm before mounting.
Sampling: for each test temperature, take two specimens from each of three bonded panels unless otherwise specified.

Test Equipment required for ASTM D3167 Peel Resistance Adhesives Test - Floating Roller

Tensile testing machine

Autographic recording: load as one axis, crosshead separation as the other.

Load accuracy: ±1%.

Crosshead speed used for the test: 152 mm/min (6 in./min).

Operating load should fall between 15% and 85% of full‑scale machine capacity.

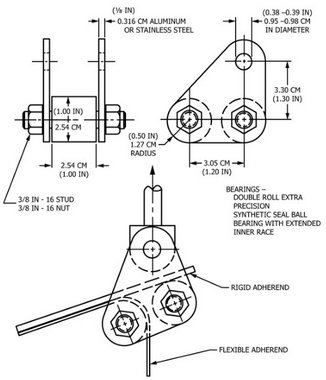

Floating‑roller peel test fixture

Self‑aligning grips that firmly engage the outer 25.4 mm (1 in.) of the flexible adherend; when load is applied, the pull direction should pass through the centerline of the grip assembly.

Floating‑roller peel fixture, attached to one cross‑arm.

Rollers: 1 in. (25.4 mm) diameter, and they must roll freely.

The fixture supports the rigid adherend and guides the flexible adherend around the roller/mandrel to maintain the controlled peel angle.

ASTM D3167 Peel Resistance Adhesives Test - Floating Roller

Main Test Parameters

Nominal cross‑head speed: 152 mm/min (6 in/min). Any modified test speed must be clearly reported.
Valid evaluation peel length: Discard initial 25.4 mm (1 in) peel (start‑up transient region). Compute average peel force over minimum 76.2 mm (3 in) of stable bond‑line peeling travel.
Force recording: Continuous force‑displacement trace is required.
Calculation approaches for average peel load:

Preferred: Planimeter integration of recorded curve area.
Alternative: Take discrete load readings at fixed cross‑head intervals (minimum six readings after discarding initial 25.4 mm peel).

Details Test Procedure of ASTM D3167 Peel Resistance Adhesives Test - Floating Roller:

1. Install specimen into floating‑roller fixture as per standard drawing. Secure the pre‑bent unbonded end of flexible adherend inside the tensile‑machine grip jaw.

2. Run test at constant cross‑head speed of 152 mm/min. If rigid adherend bends or distorts under peeling load, use stiffer/thicker rigid backing material to guarantee even, stable peeling. Distortion invalidates test data.

3. Continuously record load vs cross‑head displacement throughout the peeling process.

4. Ignore data for first 25.4 mm peel. Collect valid data over at least 76.2 mm peeling distance.

5. Calculate average peel resistance from the force trace, also capture maximum and minimum force values for each specimen.

6. Inspect fracture surface and classify failure mode: adhesive failure, cohesive failure (adhesive or substrate), mixed‑mode failure.

7. Compile complete test report following ASTM D3167 reporting checklist.

Industrial Application Fields

Aerospace metal bonding: default clad aluminum 2024‑T3; qualification of structural adhesives for panels, skins, and rigid‑to‑flexible assemblies.
Automotive: bonded trims, flexible skins to rigid brackets, structural adhesive incoming inspection.
General industrial adhesives: metal‑to‑metal and rigid‑to‑flexible laminates where peel performance matters.
Quality assurance / process control: acceptance testing, batch‑to‑batch consistency, cure and surface‑treatment verification.
Research and development: comparing adhesive formulations under controlled peel angle, especially over a wide strength range.

Because it uses a controlled roller angle and autographic load recording, it is suited to both low‑strength and high‑strength adhesive systems.

Related test standard:

ISO 11339	Adhesives — T-peel test for flexible-to-flexible bonded assemblies
ASTM F88	Standard Test Method for Seal Strength of Flexible Barrier Materials
GB/T 2791	Adhesives，T peel strengthtest method for a flexible-to-flexible test specimen assembly
ASTM D1876	Standard Test Method for Peel Resistance of Adhesives (T-Peel Test)
ISO 4587	Adhesives - Determination of tensile lap-shear strength of rigid-to-rigid bonded assemblies
ISO 4578	Adhesives - Determination of peel resistance of high-strength adhesive bonds - Floating-roller method
GB/T 7122	Determination of peel resistance of high-strength adhesive bonds—Floating-roller method
ASTM D3167	Standard Test Method for Floating Roller Peel Resistance of Adhesives
ISO 14676	floating‑roller wet‑peel evaluation of surface treatment effectiveness for aluminium.
EN 1464	Adhesives - Determination of peel resistance of adhesive bonds - Floating roller method
EN 2243-2	Aerospace series - Non-metallic materials - Structural adhesives - Test method - Part 2: Peel metal-metal
ISO 8510-2	Adhesives - Peel test for a flexible-bonded-to-rigid test specimen assembly - Part 2: 180° peel
GB/T 2790	Adhesives, 180°peel strength test method for a flexible-bonded-to-rigid test specimen assembly

Importance of ASTM D3167 Peel Resistance Adhesives Test - Floating Roller

Real‑world loading simulation: Bonded structural components often experience peel‑type stresses in service. Lap‑shear strength alone cannot predict how an adhesive joint will resist peel failure.
Improved reproducibility: Floating‑roller fixture stabilises peel angle, delivering consistent test data for both low‑strength and high‑strength adhesive‑bonded metal assemblies.
Process‑control tool: Enables manufacturers to validate surface treatments, curing cycles, adhesive batch‑to‑batch consistency and screen different adhesive formulations.
Failure‑mode diagnosis: Visual classification of cohesive / adhesive / mixed failure modes helps identify root causes for poor joint performance (interfacial contamination, incomplete cure, brittleness).
Engineering and procurement reference: Provides quantitative peel‑resistance metrics for material specifications, vendor acceptance criteria and component design inputs for North‑American industrial projects. Without this standardised floating‑roller protocol, peel‑test results across different laboratories would lack comparability.

Keywords: ASTM D3167 floating roller peel tester,adhesive peel resistance test machine,rigid flexible adherend adhesive bond test rig,metal to metal adhesive peel strength tester,clad aluminum floating roller peel test equipment,adhesive acceptance testing machine,bonding process control test system,alternative to ASTM D1781 climbing drum peel test,high peel angle adhesive bond test apparatus,low high strength adhesive peel test rig,aerospace composite adhesive peel tester,automotive metal adhesive bonding quality analyzer

tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

ASTM D3167 ISO 4578 Floating peel test fixture consists of two roller bearings fixed in a frame, which is connected to the testing system through a rotatable adapter. This design ensures that the specimen is immediately aligned when force is applied.

ASTM D3167 Floating‑Roller Peel Test Machine & Fixture | UnitedTest

Q1: What is ASTM D3167 floating‑roller peel test used for?

A: ASTM D3167 measures relative peel resistance of adhesive joints consisting of one rigid adherend bonded to one flexible adherend. It is widely used for metal‑to‑metal structural adhesive bonds for acceptance testing, process control and adhesive formulation comparison. This test creates a more severe peel loading compared to the ASTM D1781 climbing‑drum peel test.

Q2: Why is ASTM D3167 test important for adhesive material evaluation?

A: Lap‑shear strength only describes joint performance under shear stress. Real‑world bonded components frequently suffer peel‑type loads. The floating‑roller fixture stabilises peel angle and delivers reproducible test results for both low‑strength and high‑strength metal‑bonded assemblies. It provides quantitative peel resistance data (lbf/in or kN/m), enables failure‑mode diagnosis, supports vendor acceptance criteria and quality‑control monitoring for aerospace and automotive bonded parts.

Q3: What is the key difference between ASTM D3167 and ISO 4578 floating‑roller peel test?

A: ASTM D3167: Default cross‑head speed 152 mm/min (6 in/min), preferred specimen width 12.7 mm (0.5 in), reference adherend thickness: flexible 0.63 mm, rigid 1.63 mm; minimum valid peel travel length 76.2 mm (3 in); widely used for North‑American aerospace and defence projects.

ISO 4578: Default cross‑head speed 100 mm/min, preferred width 25 mm, different reference adherend thickness, 115 mm valid peeling length.

Critical note: Test results from these two standards cannot be directly compared, due to different speed, specimen dimension and evaluation length settings.

Q4: What are the mandatory specimen dimensions for ASTM D3167?

A: Preferred specimen width: 12.7 mm (0.5 inch); alternative widths allowed only if fixture and grips can apply uniform load and width is fully reported.

Default reference thickness (if material specification does not define): flexible adherend 0.63 mm, rigid adherend 1.63 mm. Adherend thickness heavily influences peel‑strength readings.

Reference substrate material: 2024‑T3 clad aluminium alloy (ASTM B209).

Unbonded peel‑initiation section ≥ 30.5 mm created by PTFE release film during panel fabrication.

Sample quantity: two specimens from each of three separate bonded panels for each test temperature (minimum six specimens). Specimens shall be cut without damaging bond interface.

Q5: What is the standard cross‑head test speed for ASTM D3167?

A: Nominal cross‑head separation speed is 152 mm/min (6 in/min). Any modified test speed must be clearly documented in test reports.

Q6: Which section of peel curve should be selected for calculating average peel resistance?

A: Discard data from initial 25.4 mm (1 inch) peel (transient starting zone). Calculate average peel load over minimum 76.2 mm (3 inch) stable peeling length of bond‑line.

Q7. How is it different from climbing drum peel?

A: D3167 is an alternative to ASTM D1781 climbing drum peel when climbing‑drum equipment is not available. ASTM states D3167 is “more severe” because the peel angle is greater. D1781 is often preferred for sandwich/composite facing peel, while D3167 is common for rigid‑to‑flexible metal bonding qualification.

Q8: My rigid adherend bends or distorts during peeling test. What should I do?

A: Rigid‑adherend bending invalidates test results. You must redesign specimen with thicker or stiffer rigid backing material to ensure uniform, stable peeling throughout the test process.

Q9: What valid calculation methods for average peel load are permitted in ASTM D3167?

A: Preferred: Planimeter to integrate area under force‑displacement curve.

Alternative: Discrete load readings taken at fixed cross‑head intervals (minimum six readings after discarding initial 25.4 mm peel). Each test report must record calculation method, plus maximum and minimum peel load for every specimen.

Q10: Can I compare ASTM D3167 test data with ASTM D1781 climbing‑drum peel results directly?

A: Not directly. ASTM D3167 floating‑roller uses a larger, more severe peel angle which typically yields lower peel‑strength values compared to ASTM D1781 climbing‑drum test. It can serve as practical alternative equipment choice when climbing‑drum fixture is unavailable, but numerical results are not interchangeable.

Q11: why choose ASTM D3167 Floating‑Roller Peel Test Machine & Fixture from UnitedTest?

A: UnitedTest manufactures full ASTM D3167‑10(R17) floating‑roller peel test systems for structural adhesive peel‑resistance measurement. Our UTM and dedicated floating‑roller peel fixture deliver repeatable test results for aerospace, automotive metal‑bonded adhesive joints, fully compliant with ASTM D3167 standard requirements.

UnitedTest is a professional material‑testing‑equipment manufacturer supplying complete ASTM D3167 floating‑roller peel‑resistance test solutions for rigid‑to‑flexible adhesive‑bonded assemblies, especially metal‑to‑metal structural adhesive joints.

Our integrated test solution combines high‑precision universal tensile testing machine and purpose‑built ASTM D3167 floating‑roller peel fixture, strictly following drawing dimensions and specifications defined in ASTM D3167.

✅ Core advantages of UnitedTest ASTM D3167 test setup

Dedicated floating‑roller peel fixture: 25.4 mm (1‑inch) diameter dual precision ball‑bearing rollers, free‑rolling movement, accurate roller angle geometry to guarantee stable severe peel angle throughout peeling cycle.
Universal tensile tester conforming to ASTM E4 force‑verification requirements; force measurement accuracy ±1 %; load working range covers 15 %‑85 % load‑cell capacity; supports standard 152 mm/min cross‑head speed plus custom‑configurable test speeds.
Self‑aligning specimen grip securely clamps 25.4 mm (1 inch) section of flexible adherend end; pull force aligns with grip assembly centre‑line when load is applied.
Test software supports force‑versus‑cross‑head‑displacement real‑time recording. Software enables average‑peel‑load computation, auto‑capture maximum and minimum peel force values.
Built‑in report template matches full ASTM D3167 reporting checklist: adhesive identification, adherend parameters, bond‑line thickness, conditioning record, failure‑mode documentation (cohesive / adhesive / mixed failure).
Instrument calibration traceable to ASTM E4 standards.

✅ Typical application industriesAerospace structural adhesive qualification, automotive metal‑bonding R&D and quality control, defence‑industry bonded‑component acceptance, adhesive manufacturer laboratories, third‑party inspection institutes, university material‑science research labs.

✅ Why choose ASTM D3167 floating‑roller peel test? ASTM D3167 floating‑roller method creates a more severe peel angle than ASTM D1781 climbing‑drum peel test. It provides good reproducibility for both low‑strength and high‑strength metal‑bonded adhesive joints, and serves as alternative test solution when climbing‑drum test hardware is unavailable.

UnitedTest supplies standard‑configured ASTM D3167 test systems as well as custom‑modified fixtures, multiple force‑range frames, and hands‑on technical guidance covering specimen preparation and standard‑compliant test operation. Contact our engineering team for your ASTM D3167 floating‑roller peel‑test quotation.
