ASTM F2663 Tire Bead Unseating Test Machine for Tubeless Tires | UnitedTest

UnitedTest manufactures ASTM F2663 compliant bead unseating testers to evaluate tubeless passenger, light truck and temporary spare tires’ resistance against bead unseating and rim flange slip for tire lab quality and safety testing.

ASTM F2663 Standard Test Method for Bead Unseating of Tubeless Passenger and Light Truck Tires

ASTM F2663 quantifies the resistance of tubeless tires against bead unseating, which refers to tire bead slipping off the rim flange and resulting in sudden air loss. It covers passenger tires, light‑truck tires, and temporary spare tires. This standard defines only test methodology without setting mandatory tire performance limit values. UnitedTest provides fully ASTM F2663 compliant tire bead unseating testing equipment for tire manufacturers, third-party laboratories and automotive material safety evaluation.

It answers one question: if a lateral load is applied to the sidewall near the rim, does the bead stay seated — and with how much margin?

Test principle

A tire is mounted dry (no lubricant) on a clean, dry, painted, corrosion‑free test rim, inflated to a specified pressure, and conditioned. A cast‑aluminum bead unseating block ("shoe") is pressed quasi‑statically into the outer sidewall at a geometrically defined point. The load travels through a pivoting load arm held essentially parallel to the wheel assembly, and is transmitted into the fixture at a spherical attachment point on the block centerline.

The physical model: the block pushes the sidewall inward/downward toward the rim flange, which levers the bead over the rim hump and off the bead seat. The moment the bead clears the retaining portion of the rim, inflation pressure escapes — detected as audible air loss / a pressure drop — and the force trace peaks. The peak force is the bead unseating resistance.

ASTM F2663 – Bead Unseating of Tubeless Passenger and Light Truck Tires

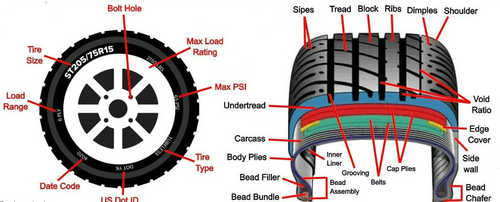

Test Specimen Information

Specimens are production tubeless tires: passenger‑car tires, light‑truck (LT / C‑type) tires, temporary spare tires.
Pre‑test record data: tire manufacturer brand, TIN serial number, tire outer diameter, rim code, section width, tire size designation, load‑range / load‑index classification, tire type.
Visual inspection: Check for excessive mould lubricant, surface defects or damage that may affect bead‑seating performance.

Test Equipment of ASTM F2663 – Bead Unseating of Tubeless Passenger and Light Truck Tires

Force‑loading test machine	Ram travel speed set to 50.8 ± 1.6 mm/min (2.0 ± 0.0625 in./min), delivering compressive load onto the spherical connection point of the fixture arm. Force‑indicating device: Accuracy within ±1 % of indicated operating‑range force; force response time ≤ 3.0 seconds from zero to full‑scale reading. Pressure gauge: Measurement tolerance ±3.5 kPa (0.5 psi).

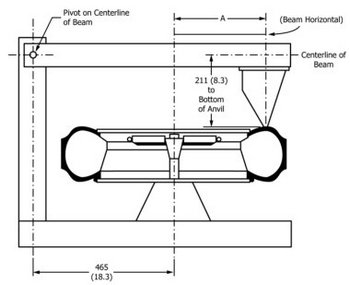

Bead‑unseating fixture	Custom pivoting fixture assembly, holding tire‑rim assembly securely, with pivoting load arm kept parallel (±2°) relative to the tire assembly during testing.
Bead‑unseating blocks (3 types, cast‑aluminum)	- Type 2A: for small‑diameter rims - Type 2B: for intermediate‑size rims - Type 2C: for large‑diameter rims up to 30‑inch rim‑code size. Matching steel adapters for RJS‑style test machine
Test rims/wheels	Clean, dry, painted, corrosion‑free test rims complying with tire‑rim industry dimensional standards (TRA / ETRTO / JATMA).

Key test parameters:

Loading rate	50.8 ± 1.6 mm/min (2.0 ± 0.0625 in./min)
Conditioning temperature	Any known temperature in 24 ± 8 °C (75 ± 15 °F); 24 h conditioning
Temperature stability during test	≤ +2.6 °C / −5.8 °C (+5 °F / −10 °F) from start
Pressure tolerance	±3.5 kPa (0.5 psi)
Block contact point ("A" dimension)	A = 0.75 × [0.5(OD − RD)] + 0.5 RD, tolerance ±1.5 mm (0.06 in.)
Initial contact force	< 2.5 daN (5 lbf)
Load arm attitude	Level / parallel to the tire within ±2°
Number of measurements	5 at equally spaced locations (72° apart); result = the minimum of the five
Termination criteria	Bead unseats, audible air loss (pressure drop), or the applicable standard's limit is reached without the block touching the rim

Test Procedures of ASTM F2663 – Bead Unseating of Tubeless Passenger and Light Truck Tires

1 Mount room‑temperature cleaned tire bead onto dry, corrosion‑free test rim without lubricant or adhesive.

2 Inflate tire up to maximum sidewall‑labelled inflation pressure to fully seat beads; visually confirm proper bead seating.

3 Reduce inflation pressure down to the test‑inflation value specified in Table 1 or Table 2 according to tire category and load identification.

4 Condition assembled tire‑rim unit for continuous 24 h under controlled ambient temperature. Avoid large temperature swings.

5 Readjust tire inflation pressure to target value within ±3.5 kPa tolerance.

6 Measure tire overall width and section width at six circumferentially‑even points and calculate average values.

7 Measure tire outer diameter via circumference‑tape method.

8 Mark five equally‑spaced radial test locations on valve‑side tire sidewall.

9 Secure tire‑rim assembly inside the standardized bead‑unseating fixture.

10 Select the proper 2A/2B/2C block, calculate dimension A and set block contact position on tire sidewall.

11 Bring unseating block into light contact (< 2.5 daN) with tire sidewall, adjust pivoting arm to be parallel (±2°) to tire assembly.

12 Double‑check and correct tire inflation pressure.

13 Apply compressive load at specified constant ram speed until bead unseating (air escape audible / pressure loss), or reach standard load‑limit value. Record maximum force value. Subtract fixture tare weight as‑needed.

14 If bead unseats: Reinflate tire to maximum rated pressure for bead re‑seating, confirm bead fitment, reset pressure to test‑inflation value.

15 Repeat loading test for remaining four marked circumferential positions (total five measurement points).

16 Calculate test result: adopt the minimum force value among five test runs.

Similar test standard

ASTM F2663	Standard Test Method for Bead Unseating of Tubeless Passenger and Light Truck Tires
ASTM F1502	Standard Test Method for Static Measurements on Tires for Passenger Cars, Light Trucks, and Medium Duty Vehicles
FMVSS 109	(USA Federal Motor Vehicle Safety Standard): Federal tire‑safety regulation that specifies bead‑unseating performance requirements; ASTM F2663‑21 provides updated improved laboratory test procedure supporting FMVSS 109 testing
SAE J918c	Historical SAE tire‑performance document containing bead‑unseating‑relevant test content, listed in F2663‑21 bibliography.
GB/T 4504	Chinese national standard for tubeless‑passenger‑tire bead‑unseating resistance test.
ISO 10191	Passenger car tyres — laboratory test methods; references ASTM F2663‑15 for the bead‑unseating test of diagonal, bias‑belted and non‑radial T‑type tyres, and ASTM F414 for the plunger test .
ASTM F414	Companion laboratory test (plunger/energy absorption = tire strength). The two are normally run in the same lab and are cited together by ISO 10191.
GB/T 4502	Chinese equivalent: block speed 50 ± 2.5 mm/min, blocks A/B/C chosen by rim nominal diameter (10–19 in → A or B; 20–28 in → C; T‑type → A), minimum values tabulated .
ISO 3894	Road vehicles — Wheels/rims for commercial vehicles — Test methods
SAE J328	Passenger‑car and light‑truck wheel fatigue performance and laboratory test procedures.
JIS D4103	Japanese automotive‑wheel performance and durability‑test specification.

Industry Application

Tire manufacturers — design validation and batch quality control for PCR, LT/C‑type and T‑type spare tires.
Regulatory compliance / type approval — the reference laboratory procedure behind the US DOT bead‑unseating requirement; also used for China (GB/T 4502) and ISO 10191 verification.
Independent test & certification labs — pass/fail testing for market access.
Automotive OEMs — supplier qualification and fitment approval (rim/tire interface).
Rim/wheel makers — evaluating bead‑seat contour, flange geometry, hump profile, and coating/paint effects on bead retention.
R&D and failure analysis — benchmarking bead design, apex/filler stiffness, chafer compounds; root‑cause work on bead separation or sudden deflation complaints.
Fleet / off‑road and LT segments — where curb strikes, potholes and low‑pressure running raise unseating risk.
