ASTM D3518 ±45° Laminate In‑Plane Shear Test Polymer Composites

Information on the most widely used ASTM standards within the materials testing industry

Descriptions of the most prominent lSO standards within the materials testing industry

Standards including EN, DIN, JlS, and more

Mechanical testing of polymer materials in the automotive industry is directly related to the safety of components and the reliability of the entire vehicle. UnitedTest can cover mechanical performance testing for automotive interior and exterior parts, as well as functional components, adapting to automaker standards and providing comprehensive testing solutions including tensile, impact, and fatigue tests.

Mechanical testing in the battery industry determines the tensile and puncture resistance of core components such as separators and electrodes, directly affecting battery safety and cycle life. UnitedTest can cover full-dimensional mechanical testing of battery materials, compatible with national and international standards, and provide customized testing solutions.

Mechanical testing in the consumer goods industry determines product durability and safety, such as impact resistance for toys and fatigue resistance for home appliances, making it core to compliance and quality. UnitedTest can cover mechanical tests for all categories of consumer goods, including tensile, impact, and hardness tests, compatible with national and international standards, and offers customized testing solutions.

In the field of medical and biomedical sciences, mechanical testing determines the safety and compatibility of implanted devices and biomaterials, making it a core part of regulatory approval. UnitedTest can cover a full range of tests including tensile, fatigue, and wear tests, compatible with national and international standards, and provides customized biomechanical testing solutions.

Material strength is a course that most engineering fields are required to study in university education. This interesting course is very practical and makes use of testing equipment in the materials laboratory.

Mechanical testing of industrial products and components is essential to ensure their load-bearing, fatigue resistance, and impact resistance, directly preventing production accidents and ensuring stable operation of equipment. UnitedTest can cover a full range of tests including tensile, hardness, and fatigue, complying with national and international standards, and provides customized industrial mechanical testing solutions.

Mechanical testing in the plastic pipe industry determines ring stiffness, impact resistance, and tensile performance, directly preventing pipe bursts and deformation risks. UnitedTest can cover full-dimensional mechanical testing of pipes, complies with ISO,ASTM,EN et.c, international standards, and provides customized testing solutions.

In the construction engineering and building materials industry, mechanical testing determines the compressive and tensile properties of materials such as concrete and steel, which is core to ensuring the safety and durability of buildings. UnitedTest can cover the full range of building material mechanical tests, complies with ISO, ASTM international standards, and provides customized testing solutions for compressive, tensile, and other properties.

Mechanical testing in the food and beverage industry involves the compressive and tensile performance of packaging and the safety of food texture, directly ensuring storage, transportation safety, and the eating experience. UnitedTest can cover all-dimensional mechanical testing for packaging and food texture, comply with national and international standards, and provide customized testing solutions.

Mechanical testing in the packaging industry determines the packaging's resistance to compression, impact, and tension, directly ensuring the safety of contents during storage and transportation. UnitedTest can cover comprehensive mechanical testing for packaging, complying with ISO, ASTM Standards, and provides customized testing solutions for compression, drop, tear, and more.

Mechanical testing in the transportation industry concerns the load-bearing and fatigue resistance performance of core components such as vehicles, tracks, and containers, directly ensuring transport safety and equipment durability. UnitedTest can cover mechanical testing for all types of transportation materials, complying with national and international standards, and provides customized testing solutions including tensile, fatigue, and impact tests.

Metallurgical testing examines the properties of metallic materials to determine if a particular metal is appropriate for its intended use.

Testing of polymer materials covers mechanical, thermal, and chemical properties, verifying strength, heat resistance, composition, and ensuring product quality and compliance.

UnitedTest offer world-class testing solution in testing for polymeric materials, including elastomers, thermoplastics, composites, coatings, and structural adhesives in a variety of industries.

Testing of rubber and elastomers is used to assess the various properties and performance of materials under different conditions. This is crucial for ensuring the safety, functionality, and quality of rubber and elastomer products used in industries such as automotive, construction, consumer goods, and aerospace.

Conduct adhesive testing using various testing methods to determine their performance and characteristics in applications across multiple industries such as aerospace, automotive, construction, packaging, industrial, medical, and energy, thereby supporting application development and quality assurance.

UnitedTest supply machine and testing solution for tension, compression, fracture toughness, direct shear, triaxial and ultrasonic velocity are common concrete and rock testing applications.

UnitedTest has helped a number of companies involved in the wood, paper, cardboard, and corrugated industry with their testing needs. Our materials testing systems are capable of testing raw materials, components, and finished products.

UnitedTest testing system is trusted by leading medical device manufacturers, universities, and medical research laboratories worldwide. Whether testing tissues or bioresorbable materials, stents, or sutures, UnitedTest offers a variety of single-actuator and dual-actuator systems to meet your biomedical testing needs.

Mechanical testing in the textile fabric industry determines core properties such as fabric tensile strength, tear resistance, and wear resistance, directly affecting product durability and safety. UnitedTest can cover comprehensive mechanical tests for textiles, complying with national standards / ISO standards, and provides customized testing solutions including tensile, tear, and puncture tests.

The mechanical testing of industrial components directly determines the load-bearing, fatigue resistance, and wear resistance of the parts, helping to avoid equipment failure risks. UnitedTest can cover a full range of tests including tensile, hardness, and fatigue, is compatible with ISO/ASTM/GB standards, and provides customized mechanical testing solutions for industrial components.

Mechanical testing in the glass-ceramics industry determines core properties such as flexural strength, hardness, and fracture toughness, directly helping to avoid brittleness and failure risks. UnitedTest can cover comprehensive testing for flexural strength, hardness, and fracture toughness, compatible with national and ISO/ASTM standards, and provides customized testing solutions.

Tensile test evaluates material resistance to stretching, measuring strength/elongation critical for quality control. UnitedTest offers universal tensile testers (10-600KN) compliant with ASTM/ISO standards, providing tailored solutions for metals, polymers, medical & industrial materials.

Compression test assesses material resistance to compressive loads, measuring strength/deformation critical for quality validation. UnitedTest offers compression testing machines compliant with ASTM/ISO standards, providing tailored solutions for concrete, plastics, metals and industrial components.

Flexural & Bend tests evaluate material resistance to bending forces, measuring strength, stiffness and ductility for quality assurance. UnitedTest provides flexural testing machines (3-point/4-point bend) compliant with ASTM/ISO standards, offering tailored solutions for composites, plastics, metals and construction materials.

Torsion Test evaluates material resistance to rotational forces, measuring torsional strength/ductility critical for fasteners, insulators, shafts. UnitedTest offers torsion testers compliant with ASTM A938/ISO 16047, providing tailored solutions for automotive, aerospace, fastener industries.

Fatigue Test assesses material durability under cyclic loading, critical for predicting service life of industrial components. UnitedTest offers fatigue testing systems (axial/bending/torsion) compliant with ASTM E466/ISO 12106, providing tailored solutions for automotive, aerospace and manufacturing sectors.

Peel Test measures material adhesion strength by evaluating resistance to peeling forces, critical for adhesives, films, packaging. UnitedTest offers peel testers compliant with ASTM D903/ISO 8510, covering 90°/180° peel tests, and tailored solutions for packaging, automotive, textile industries.

Impact Test evaluates material resistance to sudden shock loads, critical for assessing toughness and fracture risk. UnitedTest offers impact testers (Charpy/Izod/fall weight) compliant with ASTM E23/ISO 148, providing tailored solutions for metals, plastics, glass and industrial components.

Tear & Shear Test evaluates material resistance to tearing and shearing forces, measuring critical strength parameters for quality control. Tear tests (Elmendorf/trouser/trapezoidal) assess resistance to crack propagation in films/fabrics, while shear tests measure resistance to parallel forces in joints/bolts. UnitedTest provides universal testing machines (10KN-600KN) with specialized fixtures for both tests, compliant with ASTM D624/D3164 and ISO standards, serving automotive, packaging and construction industries.

Hardness test measures material's resistance to permanent indentation, critical for quality control. UnitedTest offers universal hardness testers (Rockwell/Brinell/Vickers) compliant with ASTM/ISO standards, plus tailored hardness testing solutions for diverse industrial needs.

Biaxial/triaxial tests evaluate material performance under multi-axis loads, critical for biomaterials, metals and composites. UnitedTest provides compliant testing machines (ASTM/ISO) for planar biaxial, static/fatigue triaxial tests, with tailored solutions for industrial & biomedical needs.

Friction and wear tests assess material resistance to friction, abrasion and wear, critical for industrial material performance validation. UnitedTest offers tribometers compliant with ASTM G99/ISO standards, covering pin-on-disk, four-ball tests, and tailored friction & wear testing solutions for diverse industries.

Pressure test evaluates material/component resistance to static/dynamic pressure, critical for sealing, strength and safety validation. UnitedTest offers pressure testing machines compliant with ASTM/ISO standards, covering burst, hold-pressure tests, and tailored solutions for industrial, automotive & medical sectors.

Fire test assesses material flammability, heat resistance and fire-retardant performance, critical for safety compliance across industries. UnitedTest offers fire testing equipment compliant with ASTM/ISO/UL standards, providing tailored fire test solutions for building materials, plastics and industrial components.

Non-destructive Test (NDT) evaluates material/component integrity without damage, critical for safety & quality across industries. UnitedTest offers ultrasonic/X-ray/magnetic particle NDT equipment compliant with ASTM/ISO standards, plus tailored NDT solutions for aerospace, automotive & manufacturing sectors.

ASTM D3518 Composite ±45° Laminate In‑Plane Shear Tester | UnitedTest

ASTM D3518 test method characterizes in‑plane shear response of continuous‑fibre polymer matrix composites via uniaxial tension on balanced symmetric ±45° laminates, delivering shear stress‑strain curves, shear modulus and shear strength data. UnitedTest manufactures ASTM D3518 compliant composite shear testing machines for material R&D and quality control.

ASTM D3518 is a leading industrial standard dedicated to evaluating the in‑plane shear performance of continuous‑fibre reinforced polymer matrix composite materials. The test methodology uses balanced, symmetric ±45° composite laminates under precise uniaxial tension loading, converting measured axial and transverse strain data into accurate shear strain values to fully define material shear behavior.

This standard generates comprehensive shear performance outputs, including complete shear stress‑strain curves, chord shear modulus, maximum shear stress, and offset shear strength, providing essential mechanical property data for composite laminate qualification, formulation optimization, structural simulation calibration, and production batch consistency verification. Widely implemented across aerospace, automotive, wind energy, marine and advanced manufacturing sectors, ASTM D3518 delivers repeatable, benchmarkable shear property results for laminated composite structures.

UnitedTest designs and manufactures high‑precision ASTM D3518 compliant in‑plane shear testing machines. Our professional test equipment supports accurate tension loading and multi‑axis strain measurement for ±45° composite coupons, ensuring reliable shear modulus and shear strength testing for composite manufacturers, engineering laboratories and third‑party material certification institutions.

Test Principle

A balanced‑symmetric ±45° composite laminate coupon is subjected to uniaxial tensile loading. Longitudinal strain e_x (along specimen axis) and transverse strain e_y(perpendicular to specimen axis) are captured by strain‑sensing devices.

Engineering shear strain is calculated: r12=e_x- e_y

Specific Test Method

It is the ±45° laminate tensile in‑plane shear test, built upon the tensile test framework defined in ASTM D3039/D3039M for polymer‑matrix composites.

1. Manufacture balanced‑symmetric ±45° laminate specimens; repeated identical‑orientation adjacent plies are prohibited.

2. Mount specimen into tensile grips, apply constant‑rate uniaxial tension.

3. Continuously record tensile force, longitudinal strain and transverse strain.

4. Terminate test either on specimen failure or at 5 % engineering shear strain.

5. Compute in‑plane shear stress‑strain curve, chord shear modulus, maximum shear stress, maximum shear strain and optional offset shear strength.

Test Specimen Information

Lay‑up rule: Balanced, symmetric ±45° laminate; repeating adjacent plies of identical orientation are forbidden. Suitable for continuous‑fibre unidirectional and woven‑fabric polymer‑matrix laminates (thermoset or thermoplastic matrix).

Recommended geometry: Rectangular tensile coupon, typical dimensions: total length 250 mm, width 25 mm, thickness 2‑3 mm, following ASTM D3039 coupon format. End‑tabs may be bonded to specimen ends to prevent grip‑triggered premature failure.

Specimen quantity: Minimum five valid replicates. Specimens that fail within grips/tabs must be discarded and retested.

Required Test Equipment of ASTM D3518 In-Plane Shear Test for Polymer Composites

Universal Testing Machine (UTM)	Compliant with ASTM D3039 requirements, either electromechanical or servohydraulic type, high‑frame alignment accuracy, precise constant‑crosshead‑speed control. Force measurement performance shall meet general ASTM E4 requirements.
Tensile grips	Wedge or hydraulic grips for composite tensile coupons; bonded end‑tabs are optional for suppressing grip‑area failure.
Strain measurement system	Strain gauges, contact extensometers or non‑contact optical extensometers (DIC). Must capture both axial and transverse normal strains on specimen gauge length.
Precision measuring tool	Micrometer with resolution ≤ 0.01 mm to measure specimen width and thickness for cross‑sectional‑area calculation.

Main Test Parameters

Standard cross‑head speed	1‑2 mm/min (no fixed mandatory value; test speed shall be documented in report)
Test termination cutoff	5 % (50 000 µε) engineering shear strain
Nominal chord‑modulus calculation window	Start:1500‑2500 µε; strain span:4000±200 µε (2000 ~ 6000 µε shear strain)
Conditioning standard	ASTM D5229/D5229M (moisture absorption & equilibrium conditioning)
Reporting precision	Three significant figures for stress, modulus and strain values
Statistical output	Mean value, sample standard deviation, coefficient of variation (CV %)

1. Stress‑field limitation: The gauge section does not achieve pure shear. Normal‑stress components, surface‑ply weakness and ply‑thickness effects strongly influence test results. The measured maximum shear stress is not equivalent to true material pure‑shear strength.

2. Ply‑thickness and ply‑count effects: Surface plies are weaker due to lower constraint. Thicker individual plies worsen bias‑laminate damage development. When comparing different materials, ply thickness and stacking sequence must be matched. Repeating adjacent plies are prohibited.

3. Offset shear strength (recommended 0.2 % offset) may be reported as an optional supplementary property.

Test Procedures of ASTM D3518 In-Plane Shear Test for Polymer Composites

1. Fabricate balanced‑symmetric ±45° composite panels, no repeated adjacent plies. Machine specimens according to ASTM D3039 specimen‑preparation guidance; bond end‑tabs if needed. Inspect specimen geometry, flatness and edge quality.

2. Perform specimen conditioning per ASTM D5229 or project‑specific requirements.

3. Measure specimen width and thickness to calculate cross‑sectional area A.

4. Install strain‑gauges / extensometers to capture longitudinal e_x and transverse e_y strains at specimen gauge section.

5. Align and mount specimen in tensile grips. Set constant cross‑head test speed.

6. Start test; continuously record tensile force and dual‑direction strain data throughout loading.

7. Automatically stop test either when specimen fractures or when engineering shear strain reaches 5 %. Record failure mode. Discard data for grip‑region failures.

8. Process data: compute shear stress‑strain curves, chord shear modulus (document actual strain range), maximum shear stress, maximum shear strain and optional offset shear strength.

9. Compute statistics: average value, standard deviation, coefficient of variation for each property. Compile full test report complying with ASTM D3518 reporting requirements.

Industry Application Fields

ASTM D3518 generates in‑plane‑shear data for polymer‑matrix continuous‑fibre composites, widely applied in:

Aerospace: Composite material qualification, laminate design input for aircraft structures; approved by US Department of Defense;

Automotive lightweighting: Composite material R&D and incoming‑material quality inspection;

Wind‑energy industry: Characterise blade‑laminate shear performance;

Marine composite structures, industrial composite component development;

Composite research labs for material screening, matrix‑formulation comparison and FEA simulation input parameters.

Related Standard:

ASTM D5379	Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method
GOST R 57968	Polymer composites. Test method of samples for shearing
ISO 14129	Fibre-reinforced plastic composites - Determination of the in-plane shear stress/shear strain response, including the in-plane shear modulus and strength, by the ˝45° tension test method
ASTM D3518	Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate
ASTM D7078	Standard Test Method for Shear Properties of Composite Materials by V-Notched Rail Shear Method
ISO 14130	short‑beam interlaminar‑shear test
ASTM D3039	Base tensile‑test standard for polymer‑matrix composites; ASTM D3518 inherits specimen‑making, gripping and machine‑requirements from D3039.
GB/T 28889	Test method for in-plane shear properties of composite materials
ISO 527‑5	Tensile‑property standard for unidirectional fibre‑reinforced plastics. ISO 14129 harmonises document format, specimen‑size rules and modulus‑measurement strain references with ISO 527‑5
ASTM D4255	Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

keywords: ASTM D3518 composite in-plane shear test,±45 degree laminate tensile shear tester,polymer matrix composite shear stress strain curve test,continuous fibre composite chord shear modulus measurement,balanced symmetric composite laminate shear strength test,offset shear strength testing machine,advanced composite mechanical property analyzer,aerospace composite laminate quality control rig,wind energy composite material shear performance test,automotive structural composite coupon test equipment,composite structural simulation calibration tester,industrial polymer composite shear characterization apparatus

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Hydraulic wedge test grips are a robust and versatile solution for tensile testing of high-strength materials. It can be used in both static and dynamic materials testing applications – from 20KN to 500 kN force capacity for dynamic tests, and up to 600 kN for static tests.

Q1: What is ASTM D3518 test?

A1: ASTM D3518 is an ASTM standard test method for polymer‑matrix fibre‑reinforced composites. It uses uniaxial tension of balanced‑symmetric ±45° laminates to obtain in‑plane shear stress‑strain curves, chord shear modulus, maximum shear stress, maximum shear strain and optional offset shear strength.

Q2: Why is ASTM D3518 important for composite materials?

A2: In‑plane shear properties are critical input data for composite laminate FEA and structural design. This test captures the highly nonlinear shear stress‑strain behaviour of polymer‑matrix composites, which is matrix‑dominated and reflects fibre‑matrix interface quality. Compared with high‑cost tube torsion pure‑shear coupons, it uses simple flat tensile specimens and standard universal testing machines, suitable for R&D, quality assurance, material specification qualification and material screening. It is formally accepted by US DoD for aerospace composite material evaluation.

Q3: What materials are suitable for ASTM D3518? Are there restrictions?

A3: Suitable for continuous‑fibre reinforced polymer‑matrix laminates (carbon, glass, aramid fibres), both unidirectional and woven fabrics, thermoset and thermoplastic matrix.

Key restrictions: Must be balanced symmetric ±45° laminate; adjacent repeating plies of identical orientation are strictly prohibited. Not applicable for discontinuous‑fibre composites. Ply thickness and ply count will heavily affect test results, so keep stacking sequence identical for material comparison.

Q4: What are key specimen requirements for ASTM D3518?

A4: Specimen follows ASTM D3039 tensile coupon format, typical size: total length 250 mm, width 25 mm, thickness 2‑3 mm. Laminate lay‑up must be balanced and symmetric ±45°, no adjacent duplicate‑orientation plies. At least 5 valid specimens are required. Specimens failing inside grips or end‑tabs must be discarded. Specimens must be flat, twist‑free, with no machining damage on edges.

Q5: Why stop test at 5 % engineering shear strain? Is specimen fracture preferred?

A5: This test cannot produce pure shear stress state. At large shear strain above 5 %, progressive ply damage, fibre rotation and normal‑stress coupling will distort measured shear‑strength values. The standard defines maximum shear stress as the peak stress before fracture OR stress at 5 % shear strain (whichever occurs first). This 5 % cutoff aligns with ISO 14129 standard.

Q6: What is offset shear strength in ASTM D3518?

A6: Offset shear strength is an optional reported property. You offset the chord‑modulus line (recommended offset 0.2 % strain) horizontally and find its intersection point with shear‑stress‑strain curve. The corresponding shear stress value is offset shear strength. It helps compare yield‑like shear behaviour for nonlinear composite material.

Q7: Why are my ASTM D3518 test results scattered / high coefficient of variation?

A7: Common root causes:

1. Non‑balanced / non‑symmetric lay‑up or adjacent repeating plies;

2. Machining damage on specimen edges, specimen twist or bending;

3. Poor strain‑gauge bonding, mis‑aligned extensometer;

4. Bad specimen alignment inside tensile grips, grip‑induced premature failure;

5. Large difference in ply thickness / ply count between test batches;

6. Variation in void content or fibre volume fraction of composite panels.

All invalid grip‑failure specimens shall be rejected according to standard requirements.

Q8: Can a regular universal tensile machine run ASTM D3518?

A8: Yes, but three critical prerequisites must be satisfied: excellent machine‑frame alignment, stable constant cross‑head speed control, and capability to acquire external dual‑direction strain signals. Simple displacement‑only data cannot replace real strain measurement for modulus calculation.

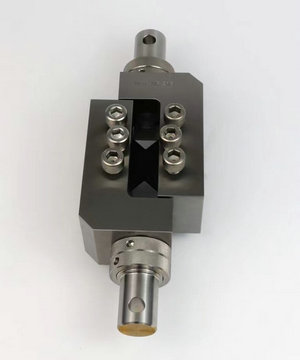

Q9: What other composite shear test standards relate to ASTM D3518?

A9: ‑ ISO 14129: European ±45° tension in‑plane shear test;

‑ ASTM D5379/D5379M: Iosipescu V‑notched beam in‑plane shear test (different loading principle);

‑ ASTM D3039/D3039M: base tensile test standard for polymer‑matrix composites (ASTM D3518 inherits specimen and machine requirements);

‑ ISO 14130: short‑beam test for inter‑laminar shear strength, not in‑plane shear.

Important: ASTM D3518 measures in‑plane shear, not inter‑laminar shear; do not mix‑up these two properties.

Q10: What mandatory content should be included in ASTM D3518 test report?

A10: Must include: standard designation & revision year, actual strain‑range used for chord‑modulus calculation, individual & statistical results (mean, standard deviation, CV %) for modulus, maximum shear stress, maximum shear strain, optional offset shear strength, failure mode, notes on 5 % strain truncation, specimen stacking‑sequence, conditioning method, test environment, and any deviation from standard procedure.

Q11: Does ASTM D3518 give true pure‑shear strength of composite material?

A11: No. The gauge section does not achieve pure‑shear stress state. Normal‑stress components and surface‑ply early damage cause the measured maximum shear stress to underestimate the real pure‑shear strength. Use this strength data with caution for design work.

Q12: Why UnitedTest ASTM D3518 ±45° Composite Shear Testing Machine | In-Plane Shear Tester | UnitedTest?

A12: UnitedTest supplies ASTM D3518‑compliant universal testing machines for polymer‑matrix composite ±45° laminate in‑plane shear test, measuring shear modulus, maximum shear stress and offset shear strength.

UnitedTest is a professional manufacturer of material testing machines, delivering complete turn‑key test solutions for ASTM D3518: In‑Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate.

Our electromechanical and hydraulic universal testing machines fully satisfy ASTM D3518 requirements for continuous‑fibre‑reinforced thermoset and thermoplastic composite laminates. The system generates full shear‑stress‑shear‑strain curves, chord shear modulus, maximum in‑plane shear stress, maximum shear strain and optional 0.2 % offset shear strength for balanced‑symmetric ±45° composite coupons.

Key machine capabilities for ASTM D3518 testing:

‑ High‑stiffness test frame with superior alignment performance, conforming to ASTM E4 and ASTM D3039 requirements;

‑ Force measurement accuracy meets standard requirements; supports configurable constant cross‑head test speed;

‑ Compatible with strain gauges, contact extensometers and digital image correlation (DIC) for dual‑direction longitudinal & transverse strain acquisition;

‑ Pre‑integrated ASTM D3518 calculation logic inside test software: shear stress, engineering shear strain, flexible‑range chord shear modulus calculation, offset shear strength computation;

‑ Automatically outputs statistical results: mean value, standard deviation, coefficient of variation (CV %); exports full‑compliance test reports with mandatory reporting items;

‑ Supports wedge grips, hydraulic tensile grips and custom composite end‑tab fixtures for ±45° laminate coupons;

‑ Load‑capacity range covers 5 kN ~ 300 kN for carbon‑fibre, glass‑fibre and aramid‑fibre composite materials;

‑ Optional environmental chamber for high‑ / low‑temperature testing, compatible with ASTM D5229 moisture‑conditioning workflow.

UnitedTest ASTM D3518 test solutions are widely deployed in aerospace composite qualification (US DoD‑relevant material testing), automotive lightweight composite R&D, wind‑turbine blade material quality inspection, marine composite development and composite research laboratories.

Our test systems also support correlated composite standards: ISO 14129, ASTM D3039, ASTM D5379, ISO 14130 and other polymer composite mechanical‑test standards. Contact UnitedTest engineering team for fixture selection, specimen‑preparation guidance and quotation for your ASTM D3518 in‑plane‑shear test setup.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
