ISO 14129 Composite In‑Plane Shear Property Tester | ±45° Tension Test | UnitedTest

ISO 14129 specifies the ±45° tension test method for fibre‑reinforced plastic composites to obtain in‑plane shear stress‑strain response, shear modulus and shear strength. UnitedTest manufactures ISO 14129 compliant universal testing machines for composite laminate mechanical characterization and quality certification.

ISO 14129 is an international standard for fibre‑reinforced plastic composites, describing the ±45° tension test method to determine in‑plane shear stress‑shear strain response, including key parameters of in‑plane shear modulus and in‑plane shear strength. A flat composite coupon with fibres oriented at +45° / −45° relative to the uniaxial loading direction is subjected to tensile pulling force. In‑plane shear behaviour of the laminate is back‑calculated from measured axial load data together with longitudinal and transverse strain readings.

This test setup does not apply pure shear load directly to specimens. Instead, the specially laid‑up ±45° composite laminate transforms axial tension force into a shear‑dominated material response along the principal material directions. Widely used for composite material R&D, laminate formulation screening, process optimization and incoming material inspection, ISO 14129 delivers critical shear performance data for aerospace, automotive, wind energy and industrial composite component validation.

UnitedTest develops and manufactures high‑precision ISO 14129‑compliant testing equipment for fibre‑reinforced plastic composites. Our test systems support accurate uniaxial tension loading and multi‑directional strain acquisition for ±45° composite coupons, generating repeatable in‑plane shear modulus and shear strength results for composite manufacturers, research laboratories and third‑party test institutions worldwide.

Test Principle

A rectangular flat laminate specimen with balanced‑symmetrical ±45° fibre orientation is subjected to uniaxial tensile loading. By measuring longitudinal strain (along specimen axis) and transverse strain (perpendicular to specimen axis), in‑plane shear strain is calculated as r₁₂-e_x-e_y. In‑plane shear stress is derived from applied tensile force.

Important note: This loading condition does not produce pure shear, normal stress components still exist inside the laminate. Compared with ideal tube torsion test, this method tends to deliver lower ultimate shear strength and strain values. The test shall stop at shear strain r₁₂=0.05(5 %) if specimen does not fracture earlier, to avoid errors caused by fibre rotation and temperature rise at large deformation.

Specific Test Method

It is the ±45° tension (off‑axis tensile) test for in‑plane shear property measurement:

1. Prepare balanced‑symmetric ±45_n composite laminates;

2. Mount specimen into tensile grips, apply constant‑rate tensile displacement;

3. Continuously record tensile load, longitudinal strain and transverse strain;

4. Terminate test either at specimen fracture or at shear strain r₁₂=0.05;

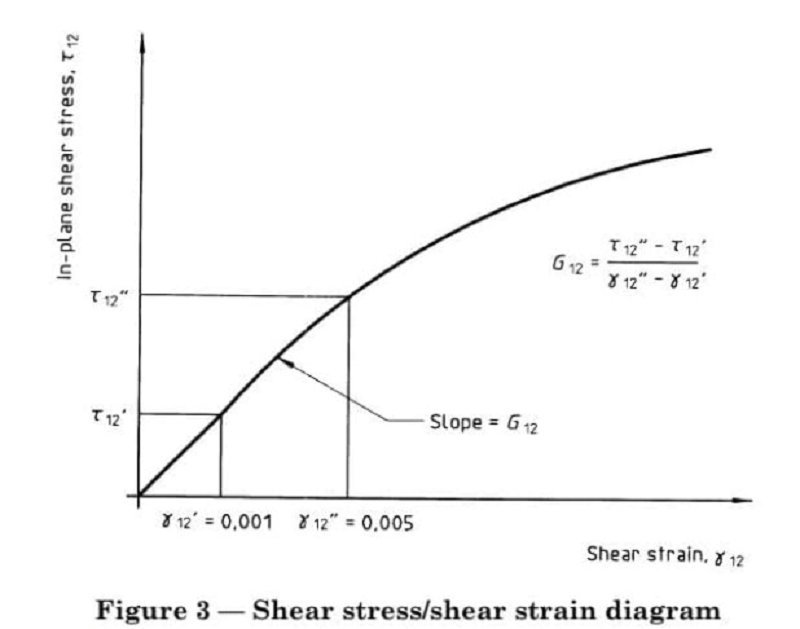

5. Compute in‑plane shear stress, shear strain, chord shear modulus G₁₂ and in‑plane shear strength from recorded data.

Test Specimen Information

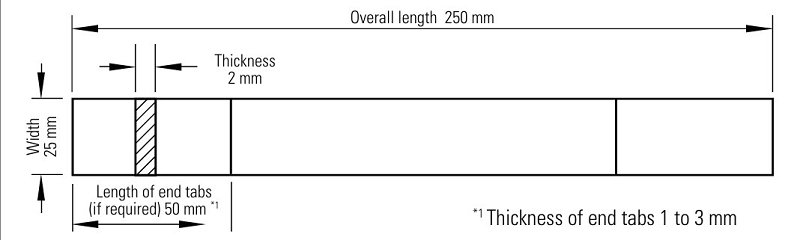

Geometry: Rectangular strip: total length = 250 mm, width = 25 ± 0.5 mm, nominal thickness = 2 ± 0.2 mm

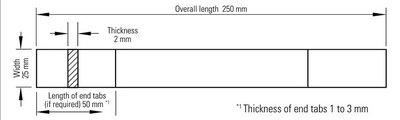

ISO 14129 In-Plane Shear Stress/Shear Strain Response Test

Specimen quantity: Minimum 5 valid specimens. Specimens fractured within grips/tabs shall be discarded and retested

End tabs: 50 mm‑long end tabs are commonly bonded at both ends with high‑elongation adhesive (tab thickness: 0.5–2 mm, 90° non‑tapered geometry). Unbonded tabs or no tabs are allowed if failure does not occur inside grips.

Required Test Equipment of ISO 14129 In-Plane Shear Stress/Shear Strain Response Test

Universal Testing Machine (UTM)

Complies with ISO 5893, force reading error less than ±1 % of full‑scale range, constant‑crosshead‑speed control capability.

Grips for flat composite coupons.

Strain measurement system

Strain gauges or extensometers, accuracy within ±1 % full‑scale, to capture both axial and transverse strains on specimen gauge section.

Auxiliary Accessories

Cutting/machining tools for composite panels, high‑elongation adhesive for bonding end tabs, coolant for specimen machining to avoid heat accumulation.

Main Test Parameters

Standard crosshead speed	2 mm/min (if material specification does not specify)
Termination shear strain limit	=0.05 (5 %)
Modulus calculation strain window
Dimension measurement precision	width: 0.1 mm; thickness: 0.02 mm
Conditioning & test atmosphere	Follow ISO 291 when no material‑specific requirement exists
Reporting precision	Stress and modulus values to three significant figures

Adhesive for end tabs shall have high elongation, shear strength > 30 MPa, higher elongation than the tested composite material.

Test Procedures of ISO 14129 In-Plane Shear Stress/Shear Strain Response Test

1. Fabricate composite panel following ISO 1268 or agreed procedure with balanced‑symmetric ±45° lay‑up. Machine specimens complying with ISO 2818, apply end tabs if required.

2. Inspect geometry and surface quality, reject defective specimens.

3. Perform conditioning according to ISO 291 or material specification.

4. Measure specimen width and thickness at specimen mid‑point.

5. Mount strain gauges / extensometers along and perpendicular to specimen axis.

6. Install specimen into test machine grips, set cross‑head speed (normally 2 mm/min).

7. Continuously collect tensile force, longitudinal and transverse strain data throughout loading.

8. Stop test when specimen fractures OR shear strain reaches 0.05. Record failure load and failure mode. Discard results for grip‑region fracture.

9. Calculate shear stress‑strain curves, G₁₂ modulus and shear strength for each valid replicate. Compute arithmetic mean, standard deviation and 95 % confidence interval as required.

Industry Application Fields

This test characterizes in‑plane shear behaviour of fibre‑reinforced polymer laminates, widely used in:

Aerospace: qualification of carbon‑fibre composite laminates for aircraft structures;

Automotive: composite component material development for lightweight vehicles;

Wind‑energy: mechanical property evaluation of wind‑turbine blade composite materials;

General composite R&D, material batch acceptance, laminate formulation comparison for thermoset and thermoplastic FRP laminates (unidirectional‑ply or woven‑fabric laminates, excluding coarse fabrics).

Related Standard:

ASTM D5379	Standard Test Method for Shear Properties of Composite Materials by the V-Notched Beam Method
GOST R 57968	Polymer composites. Test method of samples for shearing
ISO 14129	Fibre-reinforced plastic composites - Determination of the in-plane shear stress/shear strain response, including the in-plane shear modulus and strength, by the ˝45° tension test method
ASTM D3518	Standard Test Method for In-Plane Shear Response of Polymer Matrix Composite Materials by Tensile Test of a ±45° Laminate
ASTM D7078	Standard Test Method for Shear Properties of Composite Materials by V-Notched Rail Shear Method
ISO 14130	short‑beam interlaminar‑shear test
GB/T 28889	Test method for in-plane shear properties of composite materials
ISO 527‑5	Tensile‑property standard for unidirectional fibre‑reinforced plastics. ISO 14129 harmonises document format, specimen‑size rules and modulus‑measurement strain references with ISO 527‑5
ASTM D4255	Standard Test Method for In-Plane Shear Properties of Polymer Matrix Composite Materials by the Rail Shear Method

keywords: ISO 14129 composite in‑plane shear tester,plus minus 45 degree tension test machine,fibre‑reinforced plastic composite shear property test rig,composite laminate in‑plane shear modulus strength measurement apparatus,±45° flat composite coupon tensile test equipment,composite shear stress shear strain response analyzer,fiber reinforced composite uniaxial tension shear test device,aerospace composite laminate mechanical characterization tester,wind turbine composite material quality control machine,polymer composite principal direction shear performance test system,composite coupon strain acquisition testing instrument,advanced composite material lab certification test equipment

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens.

Hydraulic wedge test grips are a robust and versatile solution for tensile testing of high-strength materials. It can be used in both static and dynamic materials testing applications – from 20KN to 500 kN force capacity for dynamic tests, and up to 600 kN for static tests.

Q1: What is ISO 14129 test?

A1: ISO 14129:1997 is an international standard for fibre‑reinforced plastic composites. It uses the ±45° tension test to measure in‑plane shear stress‑strain response, in‑plane shear modulus G₁₂ and in‑plane shear strength T_12M of balanced‑symmetric composite laminates.

Q2: Why is ISO 14129 test important for composite materials?

A2: In‑plane shear properties are core input data for FEA simulation and laminate structural design. Shear behaviour reflects matrix performance and fibre‑matrix interface quality. Compared with complex tube‑torsion pure‑shear tests, ISO 14129 uses simple flat specimens and common universal tensile testers, suitable for R&D, batch quality control and material‑to‑material comparison across labs. It captures the full nonlinear shear stress‑strain curve, not only single‑point modulus/strength values.

Q3: Which materials are suitable for ISO 14129 test? Are there material limitations?

A3: Suitable for thermoset and thermoplastic matrix laminates made from unidirectional plies or woven fabrics, with balanced‑symmetric ±45° lay‑up.

Not suitable for coarse fabrics. Test results are sensitive to ply quantity and ply distribution; always use identical ply count for material comparison.

Q4: What is the difference between ISO 14129 and ASTM D3518?

A4: Both implement ±45° tensile in‑plane‑shear test and share the same 5 % shear‑strain failure criterion. ISO 14129 is European‑origin ISO standard; ASTM D3518 is US‑origin standard. There are minor differences in specimen‑preparation notes and report‑item requirements. Test data from the two standards cannot be directly mixed for comparison without validation.

Q5: Can ordinary universal tensile machine perform ISO 14129 test?

A5: Yes, but the machine must meet three key requirements: high‑frame alignment accuracy, stable constant‑crosshead‑speed control (standard speed 2 mm/min), and capable to receive external strain‑gauge / extensometer signals. Displacement‑only reading cannot substitute direct strain measurement for ISO 14129 modulus calculation.

Q6. Why use a ±45° tensile specimen instead of a pure shear test?

A6: A ±45° laminate converts axial tension into a shear-dominated state in the material’s 1–2 direction. It is simpler, cheaper, and uses a standard universal testing machine—no special shear fixture required.

Q7. Is ISO 14129 good for shear modulus or shear strength?

A7: It is reliable for shear modulus. For ultimate shear strength, results can be conservative for high-shear-elongation materials because fibre rotation, heating, and flat load–strain behaviour make true failure hard to define. That’s why the test stops at γ₁₂ = 0.05 if no failure occurs.

Q8. Can UnitedTest machines perform ISO 14129?

A8: Yes. UnitedTest can supply universal tensile testing machines, composite grips, extensometers / strain gauge systems, and custom fixtures configured for ISO 14129, ASTM D3518, ISO 527-5, and other FRP standards.

Q9: Why choose ISO 14129 ±45° Composite Shear Testing Machine — by UnitedTest?

A9: UnitedTest supplies ISO 14129 compliant universal testing machines for fibre‑reinforced plastic composite ±45° tension in‑plane shear test, measuring shear modulus G₁₂ and shear strength.

ISO 14129 Universal Testing Machine for Fibre‑Reinforced Plastic Composites

UnitedTest is a professional manufacturer of material testing machines, providing complete test solutions for ISO 14129:1997‑ ±45° tension test to determine composite in‑plane shear stress‑strain response, shear modulus and shear strength by UnitedTest.

Our universal testing machines (WDW‑series electromechanical UTM, hydraulic UTM models) fully satisfy ISO 14129 requirements for fibre‑reinforced thermoset and thermoplastic composite laminates. It obtains key composite material parameters: in‑plane shear modulus G₁₂, in‑plane shear strength T_12M, and full shear‑stress‑shear‑strain curves for balanced‑symmetric ±45° composite specimens.

✅ Core machine capabilities for ISO 14129 test:

- High‑stiffness test frame with excellent alignment performance, conforming to ISO 5893 machine requirement;

- Force measurement accuracy ≤ ±1 % full‑scale; supports constant cross‑head speed setting (standard 2 mm/min);

- Compatible with strain‑gauge signal acquisition and contact‑type / non‑contact extensometer;

- Test software pre‑integrates ISO 14129 calculation formulas: shear stress, shear strain, chord shear modulus G₁₂ calculation;

- Automatically generates complete ISO‑standard test reports including mean value, standard deviation, confidence interval and failure‑mode record;

- Supports wedge grips, hydraulic tensile grips and custom fixture accessories for composite laminate specimens;

- Covers load range 5 kN ~ 300 kN for different carbon‑fibre / glass‑fibre composite material gradesUnitedTest.

This ISO 14129 ±45° in‑plane shear test solution is widely adopted in aerospace composite R&D, automotive lightweight composite development, wind‑turbine‑blade material quality control, composite‑lab material characterisation and incoming‑material inspection.

UnitedTest testing machines also support correlated composite standards: ASTM D3518, ISO 527‑5, ISO 14130 and other polymer‑composite test standards. If you need specimen‑preparation guidance, fixture selection advice or quotation for ISO 14129 composite‑shear‑test system, please contact our engineering team.
