carbon black dispersion test machine

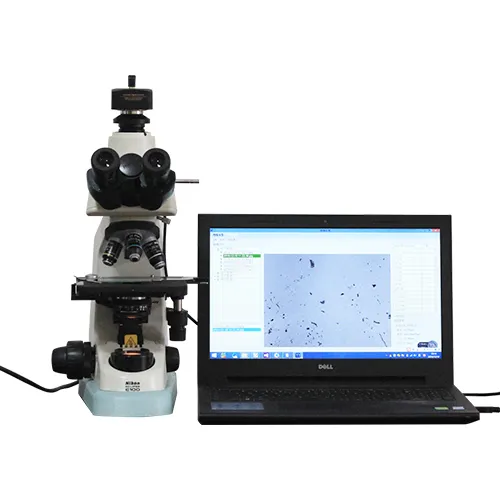

Carbon black dispersion tester

Model: UT3600, ISO 18553. ASTM D5596, ASTM D3849, ISO 11345, ASTM D2663.

UNITEDTEST UT3600 Carbon black dispersion tester is designed according ISO 18553 standard, used to measure the carbon black dispersion in polyolefin pipes, fittings and compounds. Adaptive to measuring software, and the microscope, measure the size, form, dispersion condition of the carbon black granule, can built the internal connection of this parameter with mechanical property, anti-static function, moisture absorption performance etc., it's an necessary instruments for quality control, new product R&D department. Conform with standard ISO 18553. ASTM D3849, ASTM D5596, ISO 11345, ASTM D2663.

General Introduction

UnitedTest is professional carbon black dispersion tester manufacturer. Our UT3600 carbon black dispersion analyzer complies with ISO 18553, ASTM D5596, ASTM D3849, ISO 11345, ASTM D2663 for polyolefin pipe, rubber, geosynthetic carbon black dispersion test, including sample fixtures, microscopic imaging, automatic agglomerate counting and dispersion rating.


UNITEDTEST UT3600 Carbon black dispersion tester is designed according ISO 18553 standard, used to measure the carbon black dispersion in polyolefin pipes, fittings and compounds. Adaptive to measuring software, and the microscope, measure the size, form, dispersion condition of the carbon black granule, can built the internal connection of this parameter with mechanical property, anti-static function, moisture absorption performance etc., it's an necessary instruments for quality control, new product R&D department. Conform with standard ISO 18553. ASTM D5596, ASTM D3849, ISO 11345, ASTM D2663.


** Professional image method, with high inspection accuracy, and inspection accuracy is traceable.

** Wide measuring parameter include carbon black granule size (equivalent diameter, line of apsides, area, perimeter etc.) and form (roundness, rectangle, length-width ration etc.,)

** Professional analysis system, ensure carbon black compounds measuring result accuracy and reliable, automatically finish the process of image collection to result output.

Carbon black dispersion tester


Test Principle

Carbon black dispersion tester uses optical microscope to capture micrographs of polymer or rubber specimen. The image software identifies carbon black particles and agglomerates, counts the number of oversized agglomerates, measures agglomerate dimension, then calculates dispersion rating. Poor carbon black dispersion creates large agglomerates, which cause stress concentration, reduce UV resistance, tensile strength and service life of final polymer and rubber products.

Key Features

  • What Is a Carbon Black Dispersion Tester? ​
  • Features
  • Standard
  • Test Fixtures & Sample Preparation Details
  • Application
  • Step-by-Step Test Process
  • Keywords

A carbon black dispersion tester (also called a carbon black dispersion analyzer, carbon black dispersionometer) is an optical image-analysis instrument that measures how uniformly carbon black pigment is distributed inside a polymer or rubber matrix. It combines a transmitted/reflected-light microscope, a 5-megapixel CMOS digital camera, an oblique 30° illuminator, and particle-analysis software to detect, size and count carbon black agglomerates, then convert the result into a standard dispersion grade or rating.


The instrument answers three questions that visual inspection cannot answer reliably:

How big are the largest carbon black agglomerates (µm)?

How many agglomerates are present per unit area, and what area fraction do they occupy?

What standard grade does the material achieve — ISO 18553 grade, ISO 11345 rating (1–10), or ASTM D2663 rating (1–5)?


Poor dispersion is not a cosmetic problem. Oversized carbon black agglomerates act as stress concentrators and UV-shielding gaps, directly reducing hydrostatic strength, ESCR (environmental stress crack resistance), tensile strength, abrasion resistance and outdoor weathering life of PE/PP pipes, geomembranes, cables and tyre compounds.

1, The professional image analysis method is used to determine the dispersion grade of carbon black with high detection accuracy.

2, The particle size of carbon black can be analyzed from micron to millimeter

3, Equipped with professional microscope and 5 million CMOS image transmitter

4, There are four kinds of image sizes: 640*480,1024*768,1280*1024,2592*1944   Rich image processing functions to meet a variety of image processing needs

5, The software has automatic and manual carbon black image segmentation

6, The software can meet the requirement of local analysis

7, Equipped with micrometer scale, it can calibrate the pixel size, and the software has the function of moving the ruler, which can measure the distance between any two points

8, Customers can establish their own standard library.

9, The output results cover the number, size and area of carbon black pellets, and can be output in the form of data report and excel.

10, Provide image gray scale distribution map, particle size distribution map, particle size distribution map.

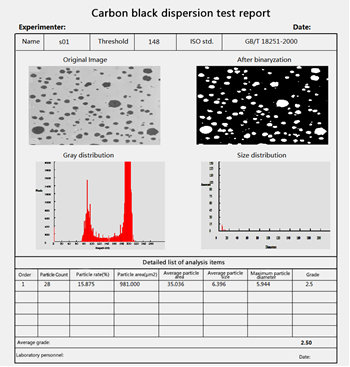

11, The report results include: sample name, standard name, original image, gray scale map, etc.The report output format is various, you can choose the image format or PDF format to save.

12, The software tries out various mainstream operating systems and has good compatibility with win10.

13, Using USB 2.0 data interface, it can adapt to a variety of acquisition devices (such as: camera or digital camera).


ISO 18553 Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds

ASTM D5596 Standard Test Method for Microscopic Evaluation of the Dispersion of Carbon Black in Polyolefin Geosynthetics

GB/T 18251 Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds

NF T51-142 Plastics. Polyethylene and polyethylene copolymere compounds. Evaluation of the degree of dispersion of carbon black. Test method.

IEC 60811-607 Electric and optical fibre cables — Test methods for non-metallic materials — Part 607: Physical tests — Test for the assessment of carbon black dispersion in polyethylene and polypropylene

MS 1442 Methods of test for the assessment of carbon black dispersion in polyethylene using a microscope

KS K 0759 Test method for carbon black dispersion of polyolefin geosynthetics

ASTM D3849 Standard Test Method for Carbon Black—Morphological Characterization of Carbon Black Using Electron Microscopy


ISO 11345 Rubber - Assessment of carbon black and carbon black/silica dispersion - Rapid comparative methods

GB/T 6030 Rubber. Assessment of carbon black and carbon black/ silica dispersion. Rapid comparative methods

ASTM D2663 Standard Test Methods for Carbon Black—Dispersion in Rubber


UnitedTest supplies matched fixtures to satisfy different standard specimen requirements:


1. Polyolefin compression fixture (ISO 18553): Heat compression fixture to prepare thin film specimen from PE pipe compound. The compression procedure produces a thin transparent slice for transmitted light microscopic observation to check carbon black clusters.

2. Microtome sample holder: Clamp solid plastic or rubber blocks for microtome sectioning, get flat thin cross-section slices without destroying carbon black agglomerate original morphology.

3. Rubber fresh-cut sample fixture (ISO 11345 / ASTM D2663): Special clamping stage to fix vulcanized rubber sample, support razor cutting to create fresh undisturbed rubber surface for reflected light microscopic inspection.

4. Geosynthetic flat sample fixture (ASTM D5596): Large flat sample stage to fix geomembrane and polyolefin geotextile samples, keep sample flat without wrinkles during imaging.

5. Standard calibration slide: For pixel calibration, magnification verification and software particle measurement accuracy check.


UnitedTest carbon black dispersion tester is widely used in polymer laboratories, HDPE pipe factory QC lab, geosynthetic material manufacturer, rubber compounding factory, tire & elastomer industry, plastic raw material supplier, third-party material testing institute, research university.

  • HDPE pipe, PP pipe and pipe fittings carbon black dispersion quality control (ISO 18553)

  • Geomembrane, polyolefin geotextile carbon black dispersion test (ASTM D5596)

  • Rubber compound, tire rubber, elastomer carbon black / silica dispersion evaluation (ISO 11345, ASTM D2663)

  • Carbon black raw material morphology inspection for compound formulation R&D (ASTM D3849 supporting)

  • Incoming material inspection, production batch monitoring, failure analysis and new formula development.


1. Sample preparation: Use compression fixture or microtome to prepare thin slice for polyolefin; cut fresh surface for rubber sample following standard requirements.

2. Mount specimen on corresponding fixture, place on microscope stage.

3. Adjust light source and objective magnification (30× / 100× / 400× as standard required), focus image clearly.

4. Capture multiple random fields of view automatically or manually.

5. Software analyzes each field: detect carbon black agglomerates, count quantity, measure size distribution, compute dispersion grade.

6. Review data, add sample information, export PDF test report with images, statistical chart and dispersion result.

7. Clean fixtures and microscope stage after test.


carbon black dispersion tester, carbon black dispersion analyzer, carbon black dispersion test machine, UnitedTest carbon black dispersion tester, ISO 18553 carbon black dispersion tester, ASTM D5596 carbon black dispersion tester, ASTM D3849 carbon black morphology tester, ISO 11345 rubber carbon black dispersion tester, ASTM D2663 carbon black dispersion in rubber, carbon black dispersion test fixture, polyolefin pipe carbon black dispersion tester, HDPE pipe carbon black dispersion testing equipment, rubber compound carbon black dispersion detector, carbon black agglomerate counting microscope, carbon black particle size distribution test system, laboratory carbon black dispersion measurement instrument

carbon black dispersion tester for polyolefin pipes and fittings ISO 18553, microscopic evaluation of carbon black dispersion polyolefin geosynthetics ASTM D5596, rubber carbon black and silica dispersion rapid test ISO 11345, ASTM D2663 carbon black dispersion test machine for rubber compound, carbon black agglomerate size counting and dispersion rating software, carbon black dispersion test sample preparation fixture, professional carbon black dispersion tester manufacturer UnitedTest, UT3600 carbon black dispersion analyzer for plastic and rubber lab, carbon black dispersion test equipment for polymer quality control, carbon black dispersion microscope imaging system

Main Technical Specification

Measuring range1 μ m-1cm
Camera imaging pixel5 million pixel digital camera
Image size640 * 480
1024 * 768

1280 * 1024

2592 * 1944

Sample window aperture4mm
Test area2mm * 1.5mm
Optical magnification5, 10, 40,100 times
The illumination angle of light source30 °
Optical systemfinite distance achromatic correction system
Power220V, 50HZ


Main accessories

ItemQuantity
Professional microscope1   set
digital camera1   set
Slide2 boxes
Cover glass1 set
Cedar oil1 bottle
Special ruler1 pc
CD1 pc
data line1   set
Documents (Manual, packing list, certificate)


Standard

ISO 18553 Carbon black dispersion Test for polyolefin pipes, fittings and compounds –

ISO 18553 Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds.

ISO 18553 standard describes a method with two procedures for the assessment of carbon black or pigment particle and agglomerate size, and the rating of dispersion in polyolefin pipes, fittings and compounds.


Applicable materials: Polyolefin (HDPE, MDPE, PP) pipes, injection-moulded fittings, and pre-compounded raw pellets. ISO 18553 test, carbon black dispersion test for polyolefin, pigment dispersion assessment, ISO 18553 polyolefin pipe carbon black dispersion testing machine, carbon black agglomerate test HDPE pipe, pigment dispersion rating for PP pipe fittings, polyolefin compound pigment dispersion analysis equipment, carbon black dispersion test method for polyethylene raw pellets

IEC 60811-4-1 Testing methods for Insulating and sheathing materials of electric and optical cables –

IEC 60811-4-1:2004 specifying five specialized test methods for polyethylene (PE) and polypropylene (PP) compounds used as insulating and sheathing materials in electric and optical fiber cables for power distribution, telecommunications, shipboard, and offshore applications.

Test Methods specific to polyethylene and polypropylene compounds – Resistance to environmental stress cracking – Measurement of the melt flow index – Carbon black and/or mineral filler content measurement in polyethylene by direct combustion - Measurement of carbon black content by thermogravimetric analysis (TGA) – Assessment of carbon black dispersion in polyethylene using a microscope.

ASTM D2663 Carbon black dispersion test in Rubber –
ASTM D2663: Standard Test Methods for Carbon Black—Dispersion in Rubber
ASTM D2663 defines four independent test methods to quantify and qualify carbon black dispersion within vulcanized/unvulcanized rubber compounds. It describes four distinct test methods (A, B, C, D) with differing precision, equipment needs, and applicability.
Target materials: All carbon black-filled rubber elastomers (NR, IR, SBR, BR, IIR, EPDM, CR, silicone rubber), including vulcanized finished rubber products and unvulcanized mixing batches/masterbatches.
ASTM D5596 Test of Dispersion of Carbon Black in Polyolefin Geosynthetics –

ASTM D5596 Standard Test Method for Microscopic Evaluation of the Dispersion of Carbon Black in Polyolefin Geosynthetics

ASTM D5596 dedicated microscopic carbon black dispersion test exclusively designed for geosynthetic polyolefin products to assess carbon black agglomerate size and dispersion quality.


Applicable materials: Polyolefin geosynthetics (HDPE geomembranes, geonets, geogrids, geocomposites, polyolefin geopipes) with carbon black loading<5 wt%. The material must be continuous solid polyolefin capable of thin microtome slicing. Elastomeric ultra-flexible geosynthetics are permitted with low-temperature pre-stiffening treatment.

Exclusions: Rubber materials, colored pigment-only polyolefins, rigid plastic pressure pipes, non-continuous porous geotextiles that cannot be microtomed.

ISO 11345 Rubber Carbon Black Dispersion Test by Rapid comparative methods –

ISO 11345 Rubber: Assessment of Carbon Black and Carbon Black/Silica Dispersion — Rapid Comparative Methods

ISO 11345 specifies qualitative visual methods for the rapid and comparative assessment of the degree of macrodispersion of carbon black and carbon black/silica in rubber. Ratings are made relative to a set of standard reference photographs, and results are expressed on a numerical scale from 1 to 10. In addition, a method is given for rating the presence of large agglomerates on a numerical scale (ratings 1 to 10).


Target materials: All vulcanized/unvulcanized rubber compounds filled with carbon black (CB), reinforcing carbon black (RCB), semi-reinforcing carbon black (SRCB), or carbon black + silica hybrid fillers. Covers NR, SBR, BR, EPDM, IIR and other common elastomers.

ASTM D3849 Carbon Black Morphological Characterization by Electron Microscopy –

ASTM D3849 Standard Test Method for Carbon Black‑Morphological Characterization of Carbon Black Using Electron Microscopy

ASTM D3849 define the test for the digital measurement of carbon black particle size statistics via transmission electron microscopy. The method makes use of fractal geometry to derive particle size statistics for both aggregates and primary particles using only measured values of aggregate perimeter and area. It covers two core parts: (1) semi‑quantitative morphological characterization (particle and aggregate size, shape) of carbon black via transmission electron microscopy (TEM); (2) mean‑particle‑size (MPS) certification using Statistical Thickness Surface Area (STSA) correlation instead of raw‑TEM data.

FAQ

Q1: What standards does UnitedTest UT3600 carbon black dispersion tester support?

A1: UT3600 supports ISO 18553, ASTM D5596, ISO 11345, ASTM D2663 for routine optical microscopic dispersion test, and can export image data for ASTM D3849 carbon black morphology auxiliary analysis.


Q2: What samples can this carbon black dispersion analyzer test?

A2: It can test polyolefin compounds, HDPE / PP pipe slices, polyolefin geosynthetics, vulcanized rubber, rubber compound and carbon black filled polymer materials.


Q3: Do you supply all required test fixtures together with the machine?

A3: Yes, UnitedTest provides matched standard fixtures including compression fixture, microtome holder, rubber sample clamp, flat geosynthetic stage and calibration block as optional or full package. Custom fixture is available for special sample shape.


Q4: Does the software automatically calculate dispersion grade and generate ISO/ASTM test report?

A4: Yes. The professional image analysis software can automatically count agglomerates, measure size, calculate dispersion rating, insert sample photos and generate editable PDF test report directly meeting standard documentation requirements.


Q5: What is the difference between ISO 18553 and ASTM D2663?

A5: ISO 18553 focuses on carbon black dispersion inside polyolefin pipe and plastic compound using thin compression slices. ASTM D2663 is for rubber material, using fresh-cut rubber surface and multiple rating methods for rubber carbon black dispersion.


Q6: Can UnitedTest provide installation, training and calibration service?

A6: UnitedTest as professional manufacturer offers global technical support, equipment installation guidance, operation training, instrument calibration and after-sales maintenance service.


Q7: What magnification lens is equipped for carbon black dispersion test?

A7: Standard set includes objective lenses to achieve 30×,100×,400× magnification, covering ISO 11345, ASTM D5596 and ISO 18553 microscopic inspection magnification requirements.


Q8: Standards Covered — Quick Comparison?

A8:

StandardFull titleMaterial scopeSample formMagnificationOutput scaleMethod type
ISO 18553Assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compoundsPE / PP pipes, fittings, compounds; CB < 3 wt%, pigment < 5 wt%Microtome slice (20 ± 5) µm black, (40 ± 10) µm pigmented; or hot-compression filmOptical microscope / digital imagingGrade 0–7.0 (0.5 steps) + appearance rating A1–EParticle/agglomerate sizing (primary / arbitration) + optional appearance rating
ASTM D5596Microscopic Evaluation of the Dispersion of Carbon Black in Polyolefin GeosyntheticsGeomembranes, geogrids, geonets, geocomposites; CB < 5 wt%; continuous solid polyolefin cross-sectionMicrotome thin section 8–20 µm (10–15 µm preferred)50×–200×, evaluate at 100×Qualitative category vs. reference chartTransmitted-light microscopy, random field of view (Rf)
ISO 11345Rubber — Assessment of carbon black and carbon black/silica dispersion — Rapid comparative methodsNR, SBR, BR, EPDM, IIR; vulcanized & unvulcanized; CB / RCB / SRCB / CB-silicaFresh cut face (~8 mm × 10 mm cross-section), 30° oblique illumination×30 (A, B) and ×100 (C, D, E)Rating 1–10 (half-values allowed)Methods A–D comparative; Method E quantitative (nodules ≥ 23 µm)
ASTM D2663Standard Test Methods for Carbon Black — Dispersion in RubberCarbon-black-loaded rubber compounds (vulcanized & unvulcanized)Microtome thin section / cut surfaceOptical microscope 75–100×; profilometer; interference microscopeRating 1–5 (A, B) / Dispersion index 0–100 (C, D)A visual · B agglomerate count · C stylus profilometer · D IFM
ASTM D3849Carbon Black — Morphological Characterization Using Electron MicroscopyDry carbon black, CAB chip dispersion, CB recovered from compoundTEM/SEM specimenElectron microscopeParticle/aggregate size & shapeNot an optical dispersion test — laboratory electron microscopy
