ASTM D5596 Dispersion of Carbon Black Tester for Polyolefin Geosynthetics | UnitedTest

ASTM D5596 is a specialized microscopic carbon black dispersion testing standard developed to evaluate carbon black dispersion quality and measure carbon black agglomerate size within polyolefin geosynthetic materials.

This test method applies to polyolefin geosynthetics containing less than 5 wt% carbon black, including HDPE geomembranes, geonets, geogrids, geocomposites and polyolefin geopipes. Samples need to be continuous solid polyolefin suitable for thin microtome slicing. Elastomeric highly flexible geosynthetics can be tested after low-temperature pre-stiffening treatment.

Notably, ASTM D5596 excludes rubber materials, polyolefins formulated solely with colored pigments, rigid plastic pressure pipes, and discontinuous porous geotextiles that cannot be processed via microtomy. Proper carbon black dispersion guarantees UV resistance and long-term service performance of geosynthetics used in civil engineering projects.

UnitedTest supplies professional testing equipment compliant with ASTM D5596 for carbon black microscopic dispersion inspection of geosynthetic materials.

ASTM D5596 Test of Dispersion of Carbon Black in Polyolefin Geosynthetics

Test Principle

Carbon black is added to polyolefin geosynthetics to provide long-term resistance to ultraviolet (UV)-induced degradation. To achieve effective UV protection, carbon black must be dispersed uniformly throughout the as-manufactured material.

The test principle is straightforward:

A thin cross-section (8–20 µm) is cut from the geosynthetic using a microtome.

The thin section is placed on a microscope slide and examined under transmitted light at 100× magnification.

Within each Random Field of View (Rf), the largest carbon black agglomerate or inclusion is located.

The area of that largest agglomerate is calculated (non-spherical agglomerates are measured by diametric area of best fit).

Ten such readings are recorded and the result is expressed rounded to the nearest whole number.

The method provides a qualitative evaluation based on the calculated area of carbon black agglomerates within microscopic fields of view. Large agglomerates indicate poor dispersion, which compromises UV protection and creates stress concentration points.

Specific Test Method

ASTM D5596 describes a single unified test method consisting of two integrated parts:

Part 1: Microtome Specimen Preparation

The sample is clamped in a microtome sample holder, which can be raised/lowered in ~1 µm increments.

A rigid knife is slid manually across the sample, producing thin sections 8 to 20 µm thick (optimally 10–15 µm for adequate light transmission).

For flexible/elastomeric materials, the sample may be cooled to −15°C using tetrafluoroethane stiffening spray, or packed in dry ice to reach ~−30°C for 15 minutes before microtoming.

Five specimens are mounted to each slide.

Part 2: Microscopic Evaluation

Each thin section is examined at 100× magnification.

Within each Random Field of View (Rf), the largest carbon black agglomerate or inclusion is identified.

Its area is calculated using a calibrated reticle.

The procedure is repeated until ten readings are obtained — with no more than two readings from each of no fewer than five thin sections.

Test Specimen Information

Parameter	Requirement
Material scope	Polyolefin geosynthetics with < 5% carbon black by weight
Number of samples	Five samples selected randomly across the full roll width
Sampling by product type	• Geomembranes: ~2.54 cm (1 in.) specimens • Geonets: 5 strands across roll width • Geogrids: 5 nodes across roll width • Pipe/geocomposite polyolefin components: random selection
Specimen orientation	Cut in the cross-machine direction for geomembranes; non-oriented geosynthetics can be prepared without regard to processing direction
Thin section thickness	8 to 20 µm (optimal 10–15 µm)
Number of thin sections	Minimum 5 sections per sample (to obtain 10 readings)
Readings	10 total readings, max 2 per thin section
Mounting	5 specimens per slide, covered with etched random-field cover slide
Special cases	• Extruded/oriented geogrids: microtome specimens cut from non-oriented bars (uniaxial) or non-oriented nodes (biaxial) • Flexible materials: freeze to −30°C with dry ice or spray with tetrafluoroethane

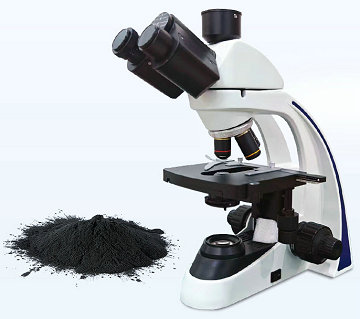

Test Equipment of ASTM D5596 Test

Binocular/trinocular transmitted light microscope

10× wide-field eyepieces, 5× to 20× objectives delivering final magnification of 50×–200× (100× reference magnification preferred).

Fitted with calibrated stage reticle for dimensional measurement and movable XY stage.

Sliding or rotary microtome

Equipped with sample clamp and steel/glass cutting knives; for slicing thin polymer sections 8–20 μm thick.

Tools

Standard glass slides + thin coverslips: For mounting microtome slices.

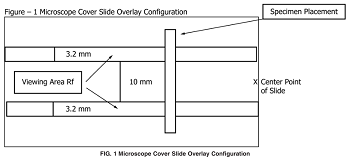

Glass etcher + straightedge: To draw standardized overlay lines defining the fixed Rf viewing area.

Calibrated stage micrometer: To calibrate microscope reticle for accurate agglomerate dimension calculations.

ASTM D5596 Test of Dispersion of Carbon Black in Polyolefin Geosynthetics

Fixed Critical Test Parameters

Parameter	Standard Value
Microsection target thickness	10–15 μm (acceptable range: 8–20 μm; slices ≥20 μm are invalid due to poor light transmission)
Standard Random Field of View (R<span mathnormal mtight">f) dimension	10 mm long × 6.4 mm wide (two parallel 3.2 mm wide viewing zones centered on slide midline)
Recommended microscope magnification	100× (50×–200× acceptable for measuring agglomerates)
Cooling for soft flexible PE	Tetrafluoroethane spray to -15°C; or dry ice soaking to -30°C for 15 min pre-stiffening
Mounting requirement	Five slices mounted evenly spaced per glass slide, sealed with inert clear adhesive
Data output rule	Record 10 maximum agglomerate size values, round final results to nearest whole micrometer

Step-by-Step Test Procedures of ASTM D5596 Test of Dispersion of Carbon Black in Polyolefin Geosynthetics

Step 1 Raw Sample Sampling

Cut 5 random samples across the full geosynthetic roll width following product-specific sampling rules for geomembrane/geonet/geogrid.

Step 2 Specimen Stiffening & Microtome Slicing

Treat soft flexible PE samples with tetrafluoroethane spray (-15°C) or pack with dry ice to reach -30°C for 15 min to rigidify the polymer matrix.

Mount stiffened sample block in microtome clamp, cut thin cross-machine direction slices targeting 10–15 μm thickness (8–20 μm acceptable). Discard torn/smeared slices.

Step 3 Slide Mounting

Place 5 intact thin slices evenly spaced on one glass slide; apply a drop of inert clear mounting medium, cover with coverslip, and flatten slices to eliminate curling.

Step 4 Microscope & Overlay Setup

Calibrate microscope reticle with stage micrometer, set magnification to 100× (50–200× allowed). Activate transmitted light mode.

Place the standardized glass overlay mask over the coverslip to mark the two fixed 3.2 mm wide Rf viewing windows.

Step 5 Microscopic Evaluation & Data Capture

Position each mounted slice under the microscope stage aligned with overlay template.

Examine each full Rf field, identify the largest carbon black agglomerate in view, measure its maximum linear dimension via calibrated reticle, record the value.

Repeat until a total of 10 valid agglomerate size readings are collected across all five specimens; cut extra slices if fewer than 10 usable fields are found.

Step 6 Result Calculation & Test Reporting

Round all 10 agglomerate readings to whole micrometer values, compile all data into the formal test report per Clause 8 reporting requirements.

Related & Similar Standards

ISO 18553	Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds
ASTM D5596	Standard Test Method for Microscopic Evaluation of the Dispersion of Carbon Black in Polyolefin Geosynthetics
GB/T 18251	Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds
NF T51-142	Plastics. Polyethylene and polyethylene copolymere compounds. Evaluation of the degree of dispersion of carbon black. Test method.
IEC 60811-607	Electric and optical fibre cables — Test methods for non-metallic materials — Part 607: Physical tests — Test for the assessment of carbon black dispersion in polyethylene and polypropylene
MS 1442	Methods of test for the assessment of carbon black dispersion in polyethylene using a microscope
KS K 0759	Test method for carbon black dispersion of polyolefin geosynthetics
ISO 11345	Rubber - Assessment of carbon black and carbon black/silica dispersion - Rapid comparative methods
ASTM D2663	Standard Test Methods for Carbon Black—Dispersion in Rubber

Keywords: ASTM D5596, carbon black dispersion test, polyolefin geosynthetics carbon black dispersion, ASTM D5596 carbon black dispersion testing machine, microscopic carbon black agglomerate test for HDPE geomembrane, carbon black dispersion analyzer for geogrids and geocomposites, polyolefin geosynthetic microtome dispersion test equipment, carbon black inspection for geosynthetic geopipes ASTM D5596, geosynthetic material UV stabilizer carbon black dispersion test

Carbon black dispersion tester is designed according ISO 18533 standard, used to measure the carbon black dispersion in polyolefin pipes, fittings and compounds. Adaptive to measuring software, and the microscope, measure the size, form, dispersion condition of the carbon black granule.

Electricity hot blast drying oven is mainly used to measure the dimension change of plastic material after heating, suitable for plastic pipe, plastic sheet etc.

Q1: What is ASTM D5596, and what materials does it test?

A: ASTM D5596 is the dedicated ASTM test method for microscopic assessment of carbon black agglomerate dispersion in polyolefin geosynthetics, developed by ASTM D35 Geosynthetics Committee. It applies to solid continuous HDPE geomembranes, geonets, geogrids, geocomposite polyolefin pipe components with carbon black loading less than 5 wt%. It cannot test porous geotextiles, rubber, colored-only plastics, or rigid polyolefin pressure pipes.

Q2: What is the core difference between “dispersion” and “distribution” per ASTM D5596?

A: Per Note 1 of the standard, this test only measures dispersion: how well large carbon black clusters are broken into small particles. It cannot evaluate distribution, which means the uniform spatial spread of fine carbon black particles across the entire polymer sheet. Even good dispersion results do not guarantee even carbon black distribution throughout the geosynthetic matrix.

Q3: Why is ASTM D5596 carbon black dispersion testing mandatory for geosynthetic products?

A: Geosynthetics (landfill liners, mining containment geomembranes) are engineered for 50+ year service life, and poor carbon black dispersion creates severe risks:

UV degradation failure: Large agglomerates leave unprotected polyethylene zones exposed to sunlight, leading to rapid cracking, brittleness and liner leakage.

Stress crack initiation: Oversized black clusters act as internal defect points, triggering pinholes, tears under ground settlement, hydrostatic load or thermal cycling.

Weak fusion welds: Agglomerates disrupt hot-welded seams during field installation, forming leak-prone joints.

Loss of long-term mechanical performance: Poor mixing reduces tensile strength, tear resistance and chemical resistance of the geomembrane.

Environmental hazard prevention: Damaged liners allow toxic landfill leachate or mining tailings to contaminate groundwater, leading to costly remediation and regulatory penalties.

QC verification of compound mixing: Consistent fine agglomerate size confirms UV stabilizers and antioxidants are homogenized in the polyolefin resin.

Q4: Can carbon black content be too high?

A: Yes. GRI-GM13 specifies carbon black content between 2.0% and 3.0% by mass — a range, not simply a minimum.

Below 2.0%: Insufficient UV protection → fails UV resistance

2.0–3.0%: Optimal range for UV protection and dispersion

Above 3.0%: Risks poor dispersion (agglomerate formation), increased melt viscosity, and reduced mechanical properties and weld strength

As noted in industry guidance: "More carbon black should not automatically be considered better. Excessive carbon black or an incorrect formulation can affect processing, mechanical behavior, dispersion, and consistency."

Q5: What is the key difference between ASTM D5596 and ISO 18553?

A: Target product: D5596 = civil geosynthetics (geomembranes, geogrids); ISO 18553 = polyolefin fluid transport pressure pipes.

Grading logic: D5596 only records the single largest agglomerate per standardized viewing field Rf; ISO 18553 counts total agglomerate quantities across multiple size bins to calculate an average numerical grade.

Alternative procedures: D5596 has no compression screening method; ISO 18553 allows compression film testing for raw pellets as a secondary screen.

Sampling rules: D5596 samples geosynthetic rolls across full width; ISO 18553 samples pipe wall cross-sections per pipe diameter size.

Q6: What magnification range is allowed for microscopic observation? What is the preferred magnification?

A: Final microscope magnification must fall between 50× and 200×; 100× is the official preferred magnification for consistent agglomerate sizing across labs.

Q7: What agglomerate data do I need to record during microscopy? Do I count every small cluster?

A: For each Rf field, only measure and record the maximum linear dimension of the single largest carbon black agglomerate/inclusion in view. There is no requirement to count smaller agglomerates or calculate total agglomerate area percentage, unlike ISO 18553 or ASTM D2663. Collect 10 separate maximum agglomerate readings total per test batch.

Q8: Why do flexible polyethylene geosynthetics require cooling before microtoming? What cooling methods are allowed?

A: Soft flexible PE deforms easily at room temperature, causing carbon black agglomerates to smear and distort during slicing, which produces falsely small agglomerate measurements. Permitted cooling treatments:

Tetrafluoroethane stiffening spray to cool samples to -15 °C

Dry ice soaking for 15 minutes to cool samples, knives and clamps to -30 °C

Q9: What is the acceptable thickness range for microtome slices? What thickness is recommended?

A: Valid slice thickness range: 8–20 μm. The standard recommends 10–15 μm as optimal. Slices thicker than 20 μm block light transmission and make agglomerates hard to identify; slices thinner than 8 μm are prone to tearing during handling.

Q10: What mandatory information must be included in an official ASTM D5596 test report?

A: Full geosynthetic identification: product type, manufacturer batch code, roll origin, carbon black weight percentage loading

Standard reference: ASTM D5596-03 (Reapproved 2021)

Microtome slice thickness and cooling/stiffening treatment used

All 10 individual maximum agglomerate size values (rounded to whole micrometers)

Qualitative visual grade from ADJD5596 chart (if performed)

Any deviations from the standard procedure and abnormal sample conditions

Test date and laboratory operator information

Q11: Why do my measured agglomerate sizes appear smaller than actual factory mixing defects?

A: The most frequent causes are:

Uncooled flexible PE leading to carbon black smearing during slicing

Dull microtome knives stretching and flattening agglomerates

Using reactive mounting solvents that dissolve the polyolefin matrix

Examining slices thicker than 20 μm with poor light transmission

Q12: Do I need to calibrate the microscope before every test batch?

A: Yes. The calibrated stage micrometer must be used to recheck the reticle scale before each testing session to ensure accurate micrometer agglomerate dimension calculations. Uncalibrated optics produce invalid size data.

Q13: Which industries and applications use ASTM D5596?

A: Primary users include:

HDPE/LLDPE geomembrane manufacturers — quality control and batch release for landfill liners, mining heap leach pads, wastewater containment

Geosynthetic producers — geonets, geogrids, geocomposites

Testing laboratories — independent verification (ISO 17025 accredited)

Specifying engineers — reviewing compliance with GRI-GM13, EN ISO 13438, and similar specifications

Regulatory agencies — EPA Subtitle D landfill compliance

Procurement and CQA teams — construction quality assurance for geosynthetic installations

R&D and formulation development — optimizing carbon black grade, loading, and compounding.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
