ISO 11345 Carbon Black Dispersion Tester by UnitedTest

ISO 11345 defines rapid qualitative visual testing methods for comparative evaluation of macrodispersion of carbon black and combined carbon black/silica fillers in rubber materials.

Test operators evaluate dispersion quality against standardized reference photographs, assigning dispersion ratings on a numerical scale of 1 to 10. The standard also provides an evaluation procedure to quantify large filler agglomerates, which are scored using a separate 1–10 rating scale.

This standard applies to both vulcanized and unvulcanized rubber compounds loaded with carbon black (CB), reinforcing carbon black (RCB), semi-reinforcing carbon black (SRCB), or hybrid carbon black-silica reinforcing fillers. Applicable elastomers include NR, SBR, BR, EPDM, IIR and other widely used rubber materials.

Uniform filler dispersion directly impacts rubber mechanical strength, abrasion resistance and ageing stability. UnitedTest develops and manufactures professional testing instruments supporting ISO 11345 for rubber compound quality control, mixing process optimization and laboratory material research.

ISO 11345 Rubber Carbon Black Dispersion Test by Rapid comparative methods

Test Principle

Carbon black/silica agglomerates trapped inside rubber matrix deform the material surface when cleanly cut, creating tiny convex bumps or concave depressions on the fresh fracture/cut plane.

30° oblique reflected lighting amplifies these surface irregularities, making subsurface filler clusters visible as bright white nodules under microscopy/CCD imaging.

For qualitative Methods A/B/C/D: The test specimen’s surface texture is visually matched side-by-side against graded reference micrographs (1 = heavy agglomeration, 10 = flawless uniform dispersion) to assign a numerical rating.

For quantitative Method E: Image software isolates all surface nodules ≥23 μm, calculates their total area proportion of the field of view, and mathematically converts this area percentage into a standardized 1–10 dispersion score.

Fundamental logic: Higher numerical ratings mean fewer, smaller filler agglomerates, superior mixing homogeneity and better rubber mechanical performance.

Five Distinct Specific Test Methods

ISO 11345 defines five independent standardized test methods split by magnification and detection mode (visual microscope / split-field CCD imaging / quantitative image analysis):

A	Visual Microscopic Inspection at ×30	Low-magnification subjective visual inspection of fresh cut rubber surfaces, matched against ×30 reference photo series. Best for quick rough screening of severe large agglomerates on production lines; low equipment cost.
B	Split-Field Microscopic Inspection at ×30	Digital side-by-side split-screen comparison at ×30; test surface image projected next to stored standard micrographs on a monitor for more consistent human rating than Method A.
C	Visual Microscopic Inspection at ×100	Higher-resolution binocular visual inspection at ×100; four dedicated reference photo sets for CB / RCB / RCB+silica / SRCB. Captures small-to-medium agglomerates invisible at ×30.
D	Split-Field Microscopic Inspection at ×100	Automated split-screen digital comparison at ×100, same filler-specific reference charts as Method C; reduces human subjective bias vs manual visual grading.
E	Large-Agglomerate Count at ×100	Fully objective software-driven test: CCD captures surface, algorithm calculates total area of nodules ≥23 μm diameter (caused by subsurface agglomerates), converts area percentage into a 1–10 numerical dispersion score via standard formula. Only quantitative method in this standard.

All methods output a numerical rating from 1 (very poor, massive agglomerates) to 10 (excellent, no agglomerates ≥23 μm); fractional half-values (e.g., 5.5) are permitted for finer comparison. Four separate reference chart libraries exist for different filler combinations to eliminate matching error.

Test Specimen Information

Parameter	Vulcanized Compound	Unvulcanized Compound
Cross-section	~8 mm thickness × 10 mm width	Same dimensions
Surface preparation	Cut with sample cutter; do not touch rated surface; replace blade before edge wear causes lined cuts	First compress into a slab between thin plastic sheets at ~1 kPa for 5 min at 105°C to remove air holes; cut with sharp razor blade heated to ~100°C
Cutting direction	Vertical cutting action	Vertical cutting action
Surface quality	Free from distortion and blemishes	Minimize distortion via even, slow cutting pressure
Number of tests	Minimum 5 tests on different parts of each test piece	Same

Test Equipment for ISO 11345 Rubber Carbon Black Dispersion Test by Rapid comparative methods

Shared General Equipment for all tests:

Vertical sample cutter with single-edge razor blade: Creates flat, uniform fresh rubber cut surfaces free of smearing artifacts.

Oblique light source (30° incidence angle): Highlights surface bumps/depressions generated by subsurface filler agglomerates (key optical principle).

Standard reference photographic charts.

Clean glass sample holders for cut rubber specimens.

Method A & C

Binocular reflected-light microscope with adjustable magnification (30× / 100× objective lenses).

Eyepiece reticle (optional for rough agglomerate sizing).

Method B & D

CCD video camera mounted on microscope objective (30× or 100×).

Split-field optical projection unit or digital image memory bank storing all 1–10 reference micrographs.

Color/monochrome monitor for side-by-side test vs standard image comparison.

Microcomputer + control keyboard for switching reference images (Figure 2 apparatus diagram).

Method E

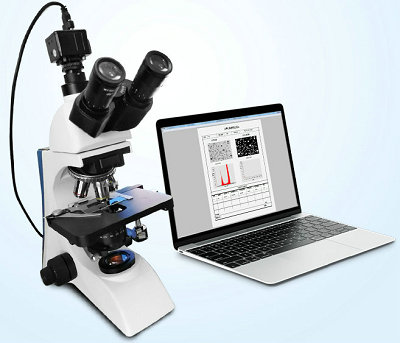

Full Method D CCD microscope hardware + dedicated image processing software.

Key Test Parameters

Rating scale	1 to 10 (whole numbers; fractional ratings permitted)
Magnification (Methods A, B)	×30
Magnification (Methods C, D, E)	×100
Oblique illumination angle	30° (to accentuate surface detail)
Camera resolution (Methods A, C)	≥ 2 megapixels
Min. number of tests per test piece	5
Agglomerate threshold (Method E)	≥ 23 µm diameter (smaller ignored)
Maximum white area (Method E, rating 1)	19% of test area
Minimum white area (Method E, rating 10)	0%

General Test Procedures ISO 11345 Rubber Carbon Black Dispersion Test

Step 1 Specimen Cutting

Use vertical razor cutter to slice a smooth fresh cross-section from the rubber slab; discard outer oxidized surfaces, only test newly cut internal material. Prepare 5 independent cut specimens per batch.

Step 2 Equipment Setup

For A/C (visual microscope): Adjust objective lens to ×30 or ×100, align light source to exactly 30° oblique angle.

For B/D/E (CCD digital systems): Power on microscope, light source, camera and computer; complete full warm-up cycle, load the matching filler-type reference micrograph library into digital memory.

Step 3 Specimen Mounting

Place the cut rubber piece onto the holder with the cutting edge oriented vertically relative to the light beam to standardize surface reflection.

Step 4 Image Capture & Rating Assignment

Methods A/C (Manual Visual): Visually compare specimen surface texture to the corresponding Annex reference photos, assign the closest 1–10 rating (half fractions permitted). Repeat across all 5 cut surfaces.

Methods B/D (Split-Field CCD): Project reference images one-by-one side-by-side with the live specimen monitor view; select the best matching reference grade for each of the 5 replicates.

Method E (Quantitative Analysis): Capture 5 non-overlapping surface images, run software thresholding to count ≥23 μm white nodules, calculate automatic y-value dispersion rating for each field, average results.

Step 5 Result Compilation

Average the five independent ratings from the five cut locations to generate the final overall dispersion score for the rubber compound, document all raw replicate values in the formal test report.

Step 6 Mandatory Test Report Content

Full rubber compound identification: Polymer base, filler type (CB/RCB/Silica blend), filler loading %, mixing process details

Exact test method used (A/B/C/D/E) and magnification (×30 / ×100)

All five individual replicate ratings plus final averaged dispersion score

Reference chart set selected for testing (CB / RCB / RCB+Silica / SRCB)

Any deviations from standard procedure, equipment model, test date and operator ID

Related & Similar Standards

ISO 18553	Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds
ASTM D5596	Standard Test Method for Microscopic Evaluation of the Dispersion of Carbon Black in Polyolefin Geosynthetics
GB/T 18251	Method for the assessment of the degree of pigment or carbon black dispersion in polyolefin pipes, fittings and compounds
NF T51-142	Plastics. Polyethylene and polyethylene copolymere compounds. Evaluation of the degree of dispersion of carbon black. Test method.
IEC 60811-607	Electric and optical fibre cables — Test methods for non-metallic materials — Part 607: Physical tests — Test for the assessment of carbon black dispersion in polyethylene and polypropylene
MS 1442	Methods of test for the assessment of carbon black dispersion in polyethylene using a microscope
KS K 0759	Test method for carbon black dispersion of polyolefin geosynthetics
ISO 11345	Rubber - Assessment of carbon black and carbon black/silica dispersion - Rapid comparative methods
ASTM D2663	Standard Test Methods for Carbon Black—Dispersion in Rubber

Keywords: ISO 11345 test, rubber carbon black dispersion test, carbon black silica dispersion in rubber, ISO 11345 carbon black dispersion testing machine, rapid comparative carbon black dispersion test for rubber compounds, carbon black silica hybrid filler dispersion analyzer, EPDM rubber carbon black agglomerate test equipment, unvulcanized rubber macrodispersion test ISO 11345, rubber mixing quality inspection carbon black dispersion tester

Carbon black dispersion tester is designed according ISO 18533 standard, used to measure the carbon black dispersion in polyolefin pipes, fittings and compounds. Adaptive to measuring software, and the microscope, measure the size, form, dispersion condition of the carbon black granule.

Electricity hot blast drying oven is mainly used to measure the dimension change of plastic material after heating, suitable for plastic pipe, plastic sheet etc.

Q1: What is ISO 11345:2006, and what materials does it test?

A: ISO 11345:2006 is an international standard developed by ISO/TC 45/SC 2 for fast comparative evaluation of filler macrodispersion in rubber. It applies to vulcanized and unvulcanized rubber filled with pure carbon black (CB), reinforcing carbon black (RCB), semi-reinforcing carbon black (SRCB), or carbon black-silica hybrid fillers. It covers all common elastomers like NR, SBR, BR, EPDM, IIR. It only works for rubber, and excludes thermoplastics (polyolefin pipes, geosynthetics).

Q2: What does “rapid comparative methods” mean in the standard title?

A: All five test workflows under ISO 11345 are designed for quick on-site factory QC screening, rather than high-precision referee arbitration. They use direct visual or digital side-by-side comparison against standard reference micrographs to rank batches fast, without complex cryogenic slicing or quantitative area calculation required by referee standards like ASTM D2663 Method B.

Q3: Why is ISO 11345 carbon black/silica dispersion testing critical for rubber manufacturing?

A: Uniform filler dispersion directly determines rubber performance and product service life:

Mechanical property loss prevention: Large filler agglomerates act as internal defects, reducing tensile strength, tear resistance, abrasion resistance and tire rolling resistance. Ratings 8–10 deliver near-maximum mechanical performance; ratings below 5 cause severe performance degradation.

UV & ozone ageing protection: Poor dispersion leaves unshielded polymer areas, leading to surface cracking, brittleness and premature failure of outdoor rubber (tires, hoses).

Production cost control: Real-time in-line testing lets mixing operators adjust mixer time/temperature mid-batch, reducing scrap waste from poorly mixed rubber.

Supply chain standardization: The unified 1–10 global rating scale eliminates subjective visual disputes between masterbatch suppliers, compounders and tire manufacturers across international markets.

Additive homogenization indicator: Good carbon/silica dispersion serves as a proxy that antioxidants and anti-ozonants are evenly blended into the rubber matrix.

Safety risk reduction: Agglomerate-induced microcracks trigger tire burst, hose rupture and conveyor belt failure under cyclic load.

Q4: What is the difference between macrodispersion and microdispersion per ISO 11345?

A: ISO 11345 only evaluates macrodispersion: breaking down large visible filler clusters ≥23 μm. It cannot assess microdispersion (nanoscale primary carbon aggregate breakdown), which requires advanced lab transmission electron microscopy (TEM).

Q5: Can I use fractional ratings instead of whole numbers?

A: Yes. Half-step fractional ratings (e.g., 6.5, 9.5) are permitted for finer differentiation between batches with similar dispersion quality; whole integer ratings are acceptable for routine factory screening.

Q6: Why do digital CCD instruments (B/D/E) require a warm-up period before testing?

A: The lamp, CCD sensor and computer imaging system need thermal stabilization to maintain consistent brightness and contrast during imaging. Skipping warm-up causes uneven lighting and inaccurate visual matching or pixel counting in Method E.

Q7: What are the key differences between ISO 11345 and ASTM D2663 (rubber dispersion standards)?

A: Testing format: ISO 11345 uses bulk cut reflected surfaces for fast screening; ASTM D2663 Method B uses cryogenic ultra-thin transmitted microtome slices for official arbitration.

Rating scale: ISO 11345 = 1 (worst) to 10 (excellent); ASTM D2663 visual scale = 1–5, quantitative output = % dispersed carbon black.

Filler coverage: ISO 11345 has dedicated charts for carbon black/silica hybrid rubber; older D2663 versions focus solely on carbon black.

Arbitration status: ISO 11345 = screening only; ASTM D2663 Method B = binding referee test for commercial disputes.

Q8: How many separate test areas must I examine per rubber batch?

A: A minimum of five distinct fresh cut surfaces from different locations of the rubber slab is mandatory. Single-spot testing is prohibited, as agglomerates may cluster locally and skew results.

Q9: Do I need cryogenic cooling to prepare test pieces for ISO 11345, like ASTM D2663?

A: No. ISO 11345 tests bulk cut rubber surfaces, not ultra-thin cryo-slices. You only need a vertical single-edge razor cutter to create a fresh flat cross-section at room temperature, with no low-temperature pre-treatment required.

Q10: Why must light hit the specimen at exactly 30° oblique angle?

A: Vertical perpendicular light cannot reveal tiny surface bumps/depressions caused by subsurface filler agglomerates. 30° oblique reflected light creates shadow contrast to visualize agglomerate nodules clearly; any other lighting angle will underestimate agglomerate quantity and size.

Q11: What mandatory content must be recorded in an official ISO 11345 test report?

A: Full rubber compound details: polymer base, filler type (CB/RCB/SRCB/RCB+Silica), filler loading percentage, mixing process information.

Exact test method used (A/B/C/D/E) and magnification (×30 / ×100).

Which Annex reference chart set was selected for comparison.

All five individual replicate ratings plus the final averaged overall dispersion score.

Any deviations from standard procedure, equipment model, test date and operator ID.

Q12: What's the key test application (Industry Fields) of ISO 11345?

A: ISO 11345:2006 serves the rubber manufacturing industry, specifically:

Tire manufacturers — Method E was specially requested by manufacturers of extruded profiles for the automotive industry; the standard's development was driven by requests from tyre manufacturers and filler producers for higher magnification and photographic reference standards for silica

Rubber compounding & mixing operations — rapid factory-floor QC during mixing and downstream processing

Carbon black and silica producers — supplier quality verification

Industrial rubber goods — belts, hoses, seals, gaskets

Footwear and consumer rubber products

Rubber testing laboratories — comparative assessment

R&D and formulation development — especially for carbon black/silica dual-filler systems (green tires, low rolling resistance)

The methods are primarily intended as rapid factory controls to assure adequate carbon black dispersion during production — providing fast feedback to mixing operators.

Q13: How do I ensure reliable ISO 11345 results?

A:Always conduct minimum 5 tests on different parts of the test piece

Use fresh, sharp razor blades; replace before edge wear

For unvulcanized compounds, strictly follow the pre-compression protocol (1 kPa, 5 min, 105°C)

Maintain 30° oblique illumination; align illuminator parallel to cutting direction

Select the correct reference set for the filler type (Annex A–E)

Use fractional ratings for borderline cases

For critical applications, use multiple operators; report average rating

For Method E, calibrate the image-processing system to ensure uniform illumination and dust compensation

Use control samples to monitor operator consistency over time

Prefer split-field methods (B, D) when objectivity is prioritized

For quantitative data, use Method E or complement with ASTM D2663

Document all deviations in the test report

Q14: What does a poor dispersion rating mean for actual rubber performance?

A: A low rating (1–4) indicates:

Rating	Classification	Performance Impact
1–2	Very poor	Structural flaws; considerably inferior physical properties — severe risk of premature failure
3–4	Poor	Significantly reduced tensile strength, abrasion resistance, and increased hysteresis
5–6	Doubtful	Risk of sub-standard performance; may not meet specification
7	Acceptable	Meets minimum performance requirements
8	Good	Strong performance
9–10	Excellent	Near-optimum physical properties

Specific consequences for tire applications:

Tread life reduction — Poor carbon black dispersion directly reduces abrasion resistance

Increased rolling resistance — Higher hysteresis from poor dispersion reduces fuel efficiency

Heat build-up — Increased hysteresis leads to greater heat generation, accelerating degradation

Sidewall cracking — Undispersed agglomerates act as crack initiation sites

Silica dispersion issues (green tires) — Poor CB/silica co-dispersion negates the fuel-efficiency benefits of silica reinforcement

For extruded profiles (Method E relevance):

Surface bumps ≥ 23 µm are visible defects affecting appearance and weatherproofing

A rating of 1 (19% white area) indicates severe surface defect density

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
