IEC 60811-605 Carbon Black & Mineral Filler Tester for Cable Polyethylene Compounds | UnitedTest

IEC 60811-605 specifies physical test methods to measure carbon black for UV stabilization and mineral filler percentage in polyethylene and polyolefin cable compounds. UnitedTest manufactures IEC 60811-605 compliant testing machines for electric and optical fibre cable non-metallic material quality inspection.

IEC 60811-605 belongs to the standard series for electric and optical fibre cables, covering test methods for non-metallic cable materials, Part 605 focusing on physical measurement of carbon black and mineral filler within polyethylene compounds. This standard defines testing procedures to quantify carbon black loaded for UV stabilization purpose, alongside mineral filler content (%) in polyethylene and polyolefin compounds.

It clarifies application boundaries: these test approaches cannot be applied to halogenated compounds. Method A is limited to polyethylene and polypropylene compounds, while Method B works for general polyolefin compounds. The key measured parameters include carbon black content percentage and mineral filler content percentage, supporting cable raw material qualification, formulation validation and production quality control for cable manufacturers and independent laboratories.

UnitedTest develops and manufactures professional IEC 60811-605 testing equipment, ideal for fibre optic cable and power cable non-metallic material analysis. Our test machine delivers stable and repeatable measurement results for carbon black and mineral filler content in polyolefin cable materials, helping cable producers meet IEC regulatory requirements and verify anti-UV additive formulations.

Two specific test methods

Method A: Direct combustion method (reference method in case of dispute)

- Applicability: Only for polyethylene and polypropylene compounds

- Status: Definitive reference method when test results are contested; Method B serves as an alternative screening techniquecdn.standa....

Method B: Thermogravimetric analysis (TGA)

- Applicability: General polyolefin compounds (PE, PP etc.)

- Status: Convenient alternative; if disagreement arises, Method A prevails as the referee test.

	Method A	Method B (TGA)
Test specimen information	Sample source: Outer sheath / covering material taken from one cable end; cut into pieces ≤ 5 mm in any dimension Test‑piece mass: (1.0 ± 0.1) g** polyethylene compound sample for each run.	Specimen mass: 5 mg ~ 10 mg; material should be prepared as thin sheets covering crucible bottom for good thermal contact.
Test principle	Direct combustion: Heat specimen under inert nitrogen atmosphere: polyolefin polymer decomposes and volatilises; residue contains carbon black plus mineral fillers (mass B) Switch to air/oxygen flow to fully burn away carbon black; only non‑combustible mineral ash remains (mass C) Calculate percentages from original sample mass A, intermediate residue B and final ash C:	1. Heat sample in TGA instrument under dry nitrogen up to 850 °C: polyolefin polymer degrades and evaporates; carbon black and mineral fillers stay as residues 2. At 850 °C switch purge gas to synthetic air (80 % N₂ + 20 % O₂). Carbon black oxidises and is lost as gas; mineral filler ash remains behind. 3. Carbon‑black content equals the mass loss occurring during the air‑combustion segment (850 °C‑950 °C); final residual mass gives mineral‑filler ash content
Key test parameters	- Nitrogen flow rate: 1.7 ± 0.3 L/min; oxygen in nitrogen < 0.5 % (0.01 % maximum for doubtful cases) - Furnace temperature profile: - 0‑10 min: ramp to 300‑350 °C - 10‑20 min: ramp to ~450 °C - 20‑30 min: ramp to 600 ± 5 °C, hold for further 10 min under nitrogen - Post‑combustion carbon‑black burning: furnace temperature 600 ± 20 °C under air‑oxygen atmosphere - Weighing resolution: all residue weighings accurate to 0.0001 g	- Starting temperature: 100 °C - Heating rate: 20 K/min - Final temperature: 950 °C - Gas program: dry nitrogen from 100 °C to 850 °C; synthetic air from 850 °C to 950 °C - Pre‑test nitrogen purging: minimum 5 min before heating starts to eliminate residual oxygen inside furnace chamber

Test Equipment required for IEC 60811-605 Cable Compounds Carbon Black and Mineral Filler Content Test

Method A hardware

- Combustion boat (~75 mm long)

- Combustion tube (hard‑glass / silica / porcelain; bore ~30 mm; length 400 ± 50 mm)

- Tube furnace

- Thermometer covering 300 °C‑650 °C

- Desiccator

- Analytical balance (readability to 0.0001 g)

- Nitrogen supply (low‑oxygen grade), air/oxygen supply

Method B hardware

- TGA Tester: Carbon content tester

- Gas selector unit to switch between nitrogen and synthetic air

- Plotter / data‑recording device

- High‑precision analytical balance

- Alumina or platinum TGA crucibles

Gas reagents:

- Dry nitrogen, oxygen content < 10 mg/kg

- Dry synthetic air (80 % nitrogen + 20 % oxygen)

Test procedure of IEC 60811-605 Cable Compounds Carbon Black and Mineral Filler Content Test

Method A procedure summary

Pre‑heat empty combustion boat to red‑hot state; cool ≥ 30 min inside desiccator; weigh accurately.
Load (1.0 ± 0.1) g chopped polyolefin sample into boat; weigh boat plus sample to calculate net sample mass A.
Insert boat inside combustion tube; assemble thermometer and nitrogen inlet; set nitrogen flow rate.
Apply staged furnace heating profile up to 600 °C and hold; maintain nitrogen flow throughout pyrolysis phase.
Stop heating; cool assembly (nitrogen still flowing); remove boat; cool in desiccator for 20‑30 min and weigh to get residue mass B.
Re‑insert boat to combustion tube; switch gas to air/oxygen, heat at 600 ± 20 °C to burn all carbon black away.
Cool and weigh boat to record final mineral‑ash residue C.

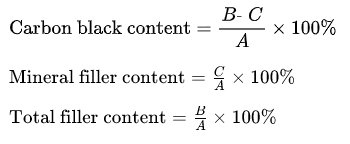

Compute carbon‑black, mineral‑filler and total‑filler percentages with given formulas.

Method B (TGA) procedure summary

Set‑up TGA instrument parameters as specified (start temp 100 °C, heating rate 20 K/min, end 950 °C; gas‑switch point 850 °C).
Load 5‑10 mg thin‑sheet test specimen inside TGA crucible.
Purge furnace chamber with dry nitrogen for ≥ 5 min to achieve oxygen‑free environment before heating begins.
Execute temperature‑ramp program: heat under nitrogen until 850 °C, then automatically switch gas to synthetic air and keep heating until 950 °C.
Record continuous mass‑loss curve.
Evaluate: mass loss between 850 °C‑950 °C under synthetic air corresponds to carbon‑black content; residual mass at 950 °C equals mineral‑filler ash content.

Industry Application Fields

Power & energy cables	Verification of UV-stabilised PE/PP sheaths on LV/MV/HV extruded cables — IEC 60811-605 is referenced by product standards such as IEC 60840 (30 kV–150 kV)
Optical fibre & telecommunication cables	Outdoor dielectric sheaths and jackets exposed to sunlight
Communication, control, shipboard & offshore cables	The IEC 60811 series explicitly covers these applications
Cable compound manufacturers	Formulation control, batch release, certificate of analysis
Independent testing/certification labs	Type tests, routine tests, dispute arbitration (Method A as referee)
Utilities / EPC procurement & QA	Incoming inspection, anti-adulteration check of sheath compound

Related standard:

ISO 11358-1	Plastics -- Thermogravimetry (TG) of polymers -- Part 1: General principles
ASTM D1603	Standard Test Method for Carbon Black In Olefin Plastics
ISO 4437	Plastics pipes and fittings -- Polyethylene (PE) pipes for water supply -- Specifications
ISO 6964	Polyolefin pipes and fittings, covers same subject as ASTM D1603 but differs in technical details of procedure and parameters, not technically equivalent
ASTM D4218	Alternative ASTM test for carbon‑black in polyethylene compounds using direct muffle‑furnace technique (air‑atmosphere calcination method, faster for routine QC).
IS 4984 / IS 2530	India pipe standards that call up D1603/ISO 6964 for 2.5 ± 0.5 % carbon black
IEC 60811-605	Electric and optical fibre cables - Test methods for non-metallic materials - Part 605: Physical tests - Measurement of carbon black and/or mineral filler in polyethylene compounds

Why this test matters for the material

UV stability is dose-dependent. Carbon black is by far the most effective and economical UV screen/absorbent for polyolefins. Below the effective threshold (cable sheath specifications commonly work in the ~2–3 % range), photo-oxidation starts at the surface, causing chalking, micro-cracking, loss of elongation at break, and eventually sheath splitting — water ingress, corrosion, and electrical failure.

Too much carbon black is equally damaging: higher cost, poorer processability/extrusion surface, reduced elongation and impact behaviour, and potential effects on dielectric and tracking performance. The measurement is therefore a two-sided acceptance check, not a "more is better" check.

Mineral filler content is a formulation fingerprint. It affects density, stiffness, dimensional stability, cost, and indicates whether the supplier's declared compound is actually delivered — the fastest way to detect formulation drift or dilution.

Filler level drives other properties. Carbon black and mineral loading influence mechanical strength, thermal ageing, ESCR, melt flow and shrink-back behaviour, so this test is a prerequisite for interpreting other IEC 60811 results.

Compliance and traceability. Because the method is cited by cable product standards, a valid report per IEC 60811-605 (with IEC 60811-100 reporting rules) is what turns a material claim into certifiable evidence for type approval and third-party certification.

Keywords: IEC 60811-605 tester,carbon black mineral filler test machine,polyethylene cable compound analyzer,polyolefin carbon black content tester,electric optical fibre cable material test equipment,UV stabilizer carbon black measurement rig,polypropylene cable filler detector,halogenated compound material testing,non-metallic cable material physical test apparatus,power cable raw material quality control tester,optic cable formulation verification machine,polymer filler percentage testing system,cable additive composition analyzer

Carbon black content tester is used to measure the carbon content in PE, PP, PB etc. , sample under nitrogen condition, through high temperature pyrolysis, then measure the weight to get the carbon level.

Ash Content Test Furnace (Muffle Furnace) analysis and determination and general small steel quenching, annealing, tempering and other heat treatment heating, high temperature furnace can also be used for metal, ceramic sintering, dissolution, analysis and other high temperature heating.

Q1: What is IEC 60811‑605 test for?

A1: IEC 60811‑605:2012 defines two physical laboratory test methods to measure carbon‑black content and mineral‑filler (ash) content inside polyethylene / polypropylene (polyolefin) cable insulation and sheath materials for electric & optical‑fibre cables. Carbon black mainly provides UV‑resistance for outdoor cable jackets. It includes Method A (direct combustion) and Method B (TGA thermogravimetric analysis)

Q2: Why is the IEC 60811‑605 test important for cable polyolefin materials?

A2: Carbon‑black dosage directly determines UV weathering resistance. Insufficient carbon‑black will cause outdoor PE cable sheaths to crack, embrittle and fail prematurely under sunlight exposure.

Mineral filler percentage influences material stiffness, shrinkage, cost and thermal performance of cable compounds.

Validates incoming raw material quality and compounding formulation during cable manufacturing.

Provides an agreed arbitration test for contractual disputes, third‑party certification and cable‑product standard compliance (e.g. IEC 60502 power cables).

Q3: What is the difference between Method A and Method B? Which one is referee method?

A3: Method A (Direct Combustion): Reference / arbitration method, applies for PE & PP compounds; uses tube‑furnace combustion boat gravimetry with large ~1 g sample. If lab results conflict, Method A result shall govern.

Method B (TGA‑Thermogravimetric Analysis): Alternative screening method, suitable for general polyolefins; requires only tiny 5‑10 mg specimen, fast test cycle, uses TGA instrument with gas‑switching from nitrogen to synthetic air at 850 °C. When test data disagree, Method A is the official referee method per IEC 60811‑605 clause 4.3 note.

Q4: What samples can NOT be tested by IEC 60811‑605?

A4: These test procedures are NOT valid for halogenated polymer compounds (e.g. PVC). Halogen decomposition products interfere weight‑measurement accuracy and give wrong carbon‑black / ash readings.

Q5: What industries use this IEC 60811‑605 test?

A5: Cable manufacturing (power cables, control cables, optical‑fibre cables, offshore / shipboard cables), cable material compounders, third‑party testing laboratories, cable certification bodies, raw‑material incoming‑quality inspection labs for polyolefin insulation and sheath compounds.

Q6: Can I only test carbon‑black content, not mineral filler?

A6: Method A simultaneously outputs carbon‑black percentage, mineral‑filler percentage and total‑filler percentage via gravimetric formulas. If your material contains zero mineral filler, residue C will be near zero. Method B reports carbon‑black mass‑loss from 850‑950 °C and final ash (mineral‑filler) residue at 950 °C.

Q7. What happens if the carbon black content is too low?

A7: UV light penetrates the sheath, chains scission, and the surface chalks, embrittles and micro-crazes. Cracks propagate into the insulation, water and oxygen ingress accelerates, mechanical elongation collapses, and ultimately the sheath splits — leading to corrosion, tracking and premature cable failure. Typical cable compound specifications sit in the 2 %–3 % range, with dispersion quality (ISO 18553) equally critical.

Q8. What happens if it is too high?

A8: Excess carbon black raises compound cost and viscosity, degrades extrudate surface finish, reduces elongation at break and low-temperature flexibility, and can agglomerate into defects that act as stress concentrators or electrical weak points. Testing is therefore a two-sided acceptance check — "more" is not automatically "better."

Q9. Is carbon black content the same as carbon black dispersion?

A9: No — and this is the most common confusion in the industry. Content (IEC 60811-605) tells you how much carbon black is in the compound. Dispersion (ISO 18553, microscopy) tells you how well it is distributed. A compound can pass at 2.5 % content yet fail in service because of agglomerates visible only under a microscope. Both are normally specified together.

Q10: Why choose UnitedTest IEC 60811-605 Carbon Black Content Tester — Direct Combustion & TGA Solutions for Cable Compounds?

A10: UnitedTest IEC 60811‑605 Carbon Black & Mineral Filler Content Tester. Direct combustion Method A & TGA‑compatible for PE/PP cable sheath & insulation compound testing. Complies with IEC 60811‑605:2012 for electric & optical‑fibre cable material quality control.

UnitedTest is professional manufacturer of cable non‑metallic material testing instruments, supplying fully‑compliant test equipment for IEC 60811‑605:2012, the international standard for measuring carbon‑black content and mineral‑filler (ash) content in polyethylene and polypropylene compounds for electric cables and optical‑fibre cables.

Our IEC 60811‑605 test system supports Method A direct‑combustion reference method, the official arbitration test when material‑test results are disputed. It precisely simulates standard‑specified temperature ramps, nitrogen‑air gas switching, gravimetric weighing workflow for cable sheath / insulation PE‑PP samples. It helps cable factories, compound producers and third‑party laboratories verify UV‑stabilising carbon‑black loading and mineral‑filler percentage of polyolefin cable materials.

Why select UnitedTest IEC 60811‑605 test equipment:

1. Strictly follows IEC 60811‑605:2012 procedure parameters for tube‑furnace temperature profile, nitrogen flow rate, gas‑switch sequence for direct‑combustion Method A.

2. Supports full‑gravimetric calculation for carbon‑black content, mineral‑filler content and total‑filler content as per standard formulas.

3. Widely used in power‑cable factories, optical‑fibre‑cable manufacturers, independent testing labs, material R&D laboratories for incoming‑material inspection, production quality‑control and pre‑certification material evaluation.

4. Professional after‑sales service: installation guidance, parameter setup training, standard‑procedure operation training for IEC 60811‑605 test work‑flow.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
