ISO 6964 Polyolefin pipes and fittings -- Determination of carbon black content by calcination and pyrolysis -- Test method

ISO 6964 specifies three test methods for determining the carbon black content of polyolefin compositions used in pipes and fittings, and provides a basic specification for polyethylene pipes and fittings. Carbon black is a critical additive in these materials, primarily used as a UV stabilizer to prevent degradation from sunlight exposure. Accurate determination of its content is essential for quality control, product performance, and compliance with material specifications.

ISO 6964 Carbon Black Content Measuring of Polyolefin pipes and fittings

Test Principle:

The core principle for all three methods is identical:

Pyrolysis: Decompose the polyolefin matrix in an inert atmosphere (nitrogen or sealed crucible) at 550°C, leaving a residue of carbon black + inorganic fillers;

Calcination: Oxidize the carbon black in air/oxygen at 900°C, leaving only inorganic ash;

Calculation: Carbon black content = mass loss between pyrolysis residue and final ash; The carbon black content is calculated from the mass difference: % Carbon Black = [(m1 - m2) / m0] x 100.

m0 = mass of original test portion (g)

m1 = mass of residue after pyrolysis at 550°C (g)

m2 = mass of residue after calcination at 900°C (g)

Method-Specific Principles

Method A: Controlled nitrogen flow prevents oxidation during pyrolysis, ensuring complete polymer decomposition without carbon black loss;

Method B: Covered crucible traps decomposition gases, creating an inert atmosphere inside the crucible during heating at 550°C;

Method C: TGA records mass changes continuously during programmed heating, first in nitrogen (polymer decomposition) then in air (carbon black oxidation).

Details test methods:

Method	Type	Primary Application	Key Characteristics
Method A	Electrical tube furnace (pyrolysis + calcination)	Preferred for routine analysis; provides high precision	Requires nitrogen atmosphere for pyrolysis, followed by calcination in air
Method B	Muffle furnace (two variants: B1 conventional, B2 microwave)	Simplified procedure; suitable for labs without tube furnace	Uses covered crucible to create inert atmosphere during pyrolysis at 550°C
Method C	Thermogravimetric analysis (TGA)	Rapid analysis; small sample size; provides additional thermal data	Automatic heating in programmed atmospheres (inert then oxidizing)

Test Equipment required for ISO 6964:

Common Equipment for All Methods	Analytical balance (precision: ±0.1 mg); Desiccator with suitable desiccant (silica gel or anhydrous calcium chloride); Sample preparation tools (knife, mill, or microtome for cutting small pieces); Oven (105°C ±3°C) for drying samples if needed.
Method A: Electrical Tube Furnace	Horizontal tube furnace (550°C ±10°C for pyrolysis, 900°C ±25°C for calcination). Quartz combustion tube (length 600-800 mm, diameter 30-40 mm). Silica combustion boat (50-60 mm length, with handle).
Method B: Muffle Furnace	Muffle furnace (550°C ±10°C for pyrolysis, 900°C ±25°C for calcination). Porcelain or silica crucibles (30-50 ml capacity) with tight-fitting lids. Crucible tongs for safe handling of hot crucibles.
Method C: Thermogravimetric Analysis	TGA Tester: Carbon content tester Programmable temperature controller (up to 1000°C) Atmosphere control system (nitrogen then air/oxygen)

Test Specimen Information:

Sampling Requirements:

Laboratory sample: minimum 5 g, taken from multiple locations (for pipes: at least three different cross-sections)

Test portion: 1.0-2.0 g for Methods A and B; 10-50 mg for Method C (TGA)

Sample preparation:

Cut into small pieces (<2 mm size) to ensure complete pyrolysis

Avoid contamination (use clean tools, handle with gloves)

Dry at 105°C for 1 hour if moisture is present (then cool in desiccator).

Test procedure of ISO 6964 Carbon Black Content Measuring of Polyolefin pipes and fittings:

1: General Preparatory Steps

Prepare representative test portion of specified mass;

Dry if necessary and cool in desiccator;

Weigh accurately to nearest 0.1 mg (m0).

2: Method A (Electrical Tube Furnace)

Place weighed sample in silica boat; insert into cold end of quartz tube;

Purge tube with nitrogen (500-1000 cm³/min) for 5 minutes;

Move boat to center of tube preheated to 550°C ±10°C; maintain nitrogen flow;

Pyrolyze for 30 minutes; move boat to cold end while maintaining nitrogen flow;

Remove boat; cool in desiccator; weigh residue (m1);

Transfer boat to muffle furnace at 900°C ±25°C; calcine for 15 minutes;

Cool in desiccator; reweigh residue (m2);

Calculate carbon black content;

3, Method B (Muffle Furnace)

Place weighed sample in covered crucible;

Heat in muffle furnace at 550°C ±10°C for 30 minutes (lid on);

Remove; cool in desiccator; weigh residue (m1);

Remove lid; return to muffle furnace at 900°C ±25°C for 15 minutes;

Cool in desiccator; reweigh residue (m2);

Calculate result;

4, Method C (Thermogravimetric Analysis)

Place small test portion (10-50 mg) in TGA sample pan;

Heat from ambient to 550°C at 10°C/min in nitrogen atmosphere (flow rate 50 cm³/min);

Hold at 550°C for 10 minutes to complete polymer decomposition;

Switch atmosphere to air (flow rate 50 cm³/min);

Heat to 900°C at 10°C/min; hold for 5 minutes to burn off carbon black;

Record mass changes automatically; TGA software calculates carbon black content;

Related standard:

ISO 11358-1	Plastics -- Thermogravimetry (TG) of polymers -- Part 1: General principles
ASTM D1603	Standard Test Method for Carbon Black In Olefin Plastics
ISO 4437	Plastics pipes and fittings -- Polyethylene (PE) pipes for water supply -- Specifications

Importance of ISO 6964 for Polyolefin Pipe Materials

Carbon black content is critical for polyolefin pipe performance, and ISO 6964 provides the gold standard for its determination for several reasons:

UV Resistance & Long-Term Durability

Carbon black acts as a UV stabilizer, protecting polyolefins from degradation caused by sunlight

Minimum 2.0% carbon black content is required to ensure pipes survive 50+ years of outdoor exposure

Too little carbon black: rapid UV degradation, cracking, and potential pipe failure

Too much carbon black: reduces impact resistance and flexibility

Quality Assurance & Compliance

Ensures batch-to-batch consistency in pipe production

Verifies adherence to international and national standards for water/gas pipe materials

Facilitates compliance with regulatory requirements for public utilities

Supports product certification and third-party verification

Performance Optimization

Balances UV protection with other critical properties (impact strength, flexibility, creep resistance)

Prevents overuse of expensive carbon black while maintaining performance

Reduces waste from out-of-specification materials

Optimizes formulation costs without compromising long-term durability

Safety & Reliability

Prevents catastrophic pipe failures due to UV degradation, which could cause water/gas leaks

Ensures public safety by maintaining the integrity of critical infrastructure

Supports risk assessment and quality control throughout the pipe lifecycle

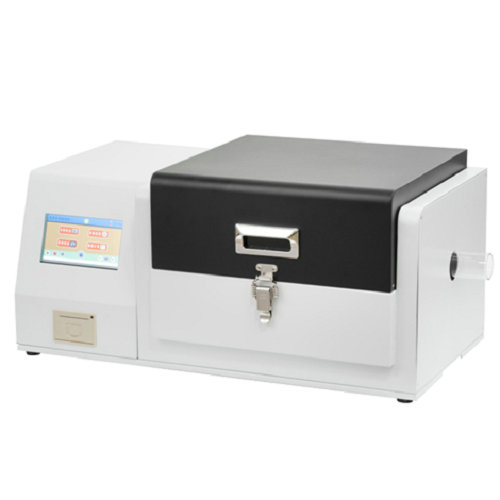

Carbon black content tester is used to measure the carbon content in PE, PP, PB etc. , sample under nitrogen condition, through high temperature pyrolysis, then measure the weight to get the carbon level.

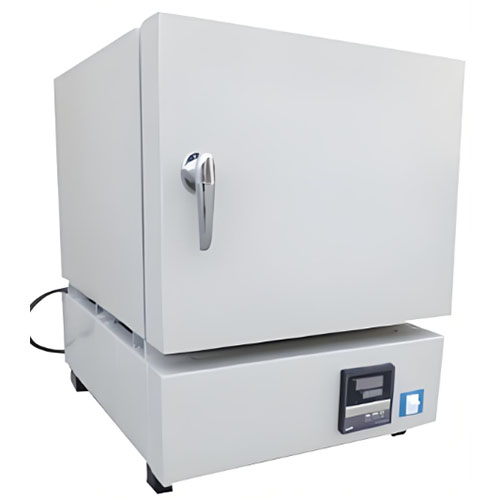

Ash Content Test Furnace (Muffle Furnace) analysis and determination and general small steel quenching, annealing, tempering and other heat treatment heating, high temperature furnace can also be used for metal, ceramic sintering, dissolution, analysis and other high temperature heating.

Q1: What is the main purpose of ISO 6964?

A: ISO 6964 specifies standard test methods to accurately measure the carbon black content in polyolefin materials (mainly polyethylene and polypropylene) used for pipes and fittings, using calcination and pyrolysis techniques.

Q2: Which test method should I select?

A: Use Method A for high‑accuracy and compliance testing.

Use Method B for daily quality control with basic furnace equipment.

Use Method C for fast, automated analysis in modern laboratories.

Q3: What are common causes of wrong or inaccurate results?

A:Incomplete pyrolysis or calcination (temperature too low or time too short).

Sample not representative or not cut small enough.

Residual moisture in samples or residues.

Loss of residue during transfer or handling.

Incorrect furnace atmosphere (oxidation during pyrolysis).

Q4: Why is testing carbon black content in polyolefin pipes so critically important?

A: This test is fundamental for ensuring the long-term performance and safety of polyolefin (like PE and PP) pipes. Carbon black is the primary, most cost-effective ultraviolet (UV) stabilizer added to these materials. Without a sufficient and well-dispersed amount (typically 2-2.5% for PE pipes), the polymer chains degrade rapidly when exposed to sunlight. This leads to embrittlement, surface cracking, loss of mechanical strength, and ultimately, premature pipe failure. Verifying the correct carbon black content is a direct check of the product's ability to withstand outdoor storage/installation and meet its expected service life, often rated for 50+ years.

Q5: Are there any major safety warnings for conducting this test, especially the Pyrolysis method?

A: Yes. The standard implies critical safety precautions:

Toxic Fumes: Pyrolyzing polymers releases complex, potentially toxic hydrocarbon fumes. All thermal decomposition must be conducted in an efficiently ventilated fume cupboard.

High Temperature: Handling furnaces at 550-850°C requires extreme care to prevent severe burns. Proper insulated gloves and tools are mandatory.

Gas Handling: When using the tube furnace, proper procedures to purge the system with nitrogen are needed to prevent explosive mixtures from forming inside the hot tube.

Material Safety Data Sheets (MSDS) for all chemicals and gases used should be consulted.
