ASTM D1603 Carbon Black Content Tester for Olefin Plastics | UnitedTest

ASTM D1603 uses inert atmosphere pyrolysis-gravimetric methods to measure carbon black content in polyethylene, polypropylene and polybutylene plastics. UnitedTest manufactures ASTM D1603 compliant carbon black testing machines for olefin plastic material analysis and quality control.

ASTM D1603 is a globally recognized standard test method dedicated to determining carbon black content in olefin-based plastics, including polyethylene, polypropylene, and polybutylene materials. This industry-standard testing procedure adopts precise inert-atmosphere pyrolysis-gravimetric measurement technology to accurately quantify the mass percentage of carbon black additives within olefin plastic compounds, delivering reliable and repeatable material composition data for plastic manufacturing and laboratory analysis.

It is critical to note that the ASTM D1603 test method is not applicable for modified plastics containing interfering substances. Materials with non-volatile inorganic fillers, brominated flame-retardant additives, acrylic modifiers, or polar-monomer-modified polymers will compromise test accuracy and produce inconsistent carbon black content results. This specification ensures standardized, error-free carbon black detection for pure olefin plastic formulations used in industrial production, packaging, piping, and polymer product manufacturing.

UnitedTest designs and manufactures high-precision ASTM D1603 carbon black content testing machines. Our professional test equipment strictly follows inert atmosphere pyrolysis-gravimetric testing principles, enabling accurate carbon black proportion detection for various olefin plastics, supporting plastic material formulation verification, incoming material inspection, production quality monitoring, and third-party polymer material certification.

Test Principle:

D1603 is a two-stage thermal gravimetric (mass-loss) method:

Pyrolysis stage (inert atmosphere): A weighed specimen (~1 g) is heated in a tube furnace at 600 °C under a continuous nitrogen purge. The polyolefin matrix thermally decomposes and is carried out as volatile products, while carbon black — which is thermally stable in the absence of oxygen — remains in the combustion boat together with any inorganic residue/ash.

Oxidation / ash-correction stage (air): When required, the residue is further heated in a muffle furnace in air to oxidize the carbon black to a light-coloured ash. The mass difference between the nitrogen residue and the air residue is the true carbon black mass.

Why nitrogen matters: if oxygen leaks into the tube or the nitrogen is impure, part of the carbon black oxidizes together with the polymer and the reported content is artificially low. Conversely, non-volatile fillers remain in the boat and inflate the result — which is why the standard restricts the method to formulations where carbon black is the only non-volatile additive.

Calculation: Carbon black content % = (Wr-Wc) / Ws * 100

Where:

Wr = w3 - w1 = mass of residue (g) after burning in nitrogen
Wc = w4 - w1 = mass of residue (g) after burning in air
Ws = w_2 - w1$ = mass of sample (g)
w1 = tared boat, w2 = boat + sample, w3 = boat + residue after N₂, w4 = boat + residue after air

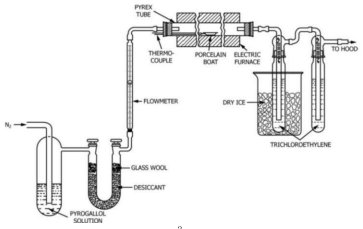

Test Equipment required for ASTM D1603 Carbon Black Content Test for Polyolefin Plastics

TGA Tester: Carbon content tester

- Electric tube furnace (minimum length 20 cm), supporting high‑temperature heating 500‑700 °C

- High‑temperature glass combustion tube, longer than furnace body

- Combustion boat: glazed porcelain / quartz / high‑silica glass / platinum boat, size approx. 8 × 1.9 × 1.3 cm

- Iron‑constantan thermocouple + millivoltmeter for temperature monitoring (300‑700 °C)

- Nitrogen flow meter (measuring range:1‑10 L/min)

- Glass cold traps, U‑shaped drying tube, glass wool, desiccator with desiccant

- Muffle furnace / Bunsen burner (for pre‑ignition boats and final ash‑oxidation step)

- Complete gas‑purification assembly for nitrogen gas purification; glass tube connections and rubber/neoprene stoppers

ASTM D1603 Carbon Black Content Test for Polyolefin Plastics

Tools

Analytical balance (readability: 0.0001 g / 0.1 mg)

Test Specimen Information:

Form: Any form that fits the combustion boat (pellets, granules, cut pieces from pipe, film, mouldings, articles)

Mass: 1.0 ± 0.1 g of the olefin plastic under test

Weighing: To the nearest 0.0001 g, immediately after placing in the tared boat

Cleaning: Soiled articles must be washed; printed articles wiped clean with a suitable solvent

Test parameters:

Furnace temperature (standard)	600 °C (1112 °F), held constant
Permissible temperature window	500–700 °C; below ~600 °C a heating time up to 30 min is desirable
Nitrogen flow rate	1.7 ± 0.3 L/min
Pre-purge time	Minimum 5 min with N₂ flowing before the tube enters the furnace
Pyrolysis time	At least 15 min at temperature
Cooling in tube	5 min out of the heated zone, still under N₂
Cooling in desiccator	≥30 min before weighing (also ≥30 min for the cleaned boat before tare)
Boat preparation	Heat to red heat, cool over fresh desiccant ≥30 min
Ash-correction burn	Muffle furnace, 600 °C for an additional 10 min — applied when carbon black is determined at values below 1 %, to oxidize the carbon and correct for residual inorganic matter
Alternative ramp (Note 7)	Sample in at ≤300 °C → 350 °C in 10 min → 450 °C in another 10 min → 500 °C after 30 min total → hold 15 min
Throughput	Multiple boats may be run simultaneously if all sit within the qualified temperature zone

Test procedure of ASTM D1603 Carbon Black Content Test for Polyolefin Plastics

1. Fill drying tube with anhydrous calcium‑chloride desiccant, prepare cold traps with trichloroethylene; alternatively perform full test inside fume‑hood and omit cold‑trap assembly.

2. Pre‑ignite clean combustion boat to red heat; transfer boat to desiccator and cool ≥30 min.

3. Weigh empty boat w1; load 1.0 g specimen into boat and weigh boat‑sample total mass w2.

4. Heat tube furnace to constant target temperature (600 °C). Adjust nitrogen flow to 1.7±0.3 L/min.

5. Insert sample‑loaded boat into combustion tube, seal tube inlet, purge system with nitrogen for minimum 5 min to eliminate residual oxygen. Slide combustion tube fully into hot furnace zone and perform pyrolysis heating (minimum 15 min).

6. Move tube out of furnace hot zone; cool assembly for 5 min under continuous nitrogen flow; take boat out and cool inside desiccator ≥30 min; weigh boat plus pyrolysis residue w3.

7. If expected carbon‑black content is below 1 %, place boat with residue into air muffle furnace (600 °C,10 min) to burn away carbon‑black residue, cool in desiccator, weigh boat plus inorganic ash w4.

8. Run two replicate determinations for one sample; compute carbon‑black percentage by formula, calculate average value.

Industry Application Fields

This test serves manufacturing quality control, technical service investigation and scientific research for polyolefin industries:

- PE / PP / PB plastic raw‑material compounding factories

- HDPE/LLDPE pipes, gas‑pipe, water‑pipe production

- Geomembrane, outdoor polyolefin sheets and profiles (carbon‑black provides UV‑stabilization for outdoor service)

- Plastic compound laboratories, third‑party material‑testing labs

- Supporting calculation for material optical absorptivity and fulfilling requirements of many polyolefin product specifications.

Related standard:

ISO 11358-1	Plastics -- Thermogravimetry (TG) of polymers -- Part 1: General principles
ASTM D1603	Standard Test Method for Carbon Black In Olefin Plastics
ISO 4437	Plastics pipes and fittings -- Polyethylene (PE) pipes for water supply -- Specifications
ISO 6964	Polyolefin pipes and fittings, covers same subject as ASTM D1603 but differs in technical details of procedure and parameters, not technically equivalent
ASTM D4218	Alternative ASTM test for carbon‑black in polyethylene compounds using direct muffle‑furnace technique (air‑atmosphere calcination method, faster for routine QC).
IS 4984 / IS 2530	India pipe standards that call up D1603/ISO 6964 for 2.5 ± 0.5 % carbon black
IEC 60811-605	Electric and optical fibre cables - Test methods for non-metallic materials - Part 605: Physical tests - Measurement of carbon black and/or mineral filler in polyethylene compounds

Importance of ASTM D1603 for Polyolefin Pipe Materials

Carbon‑black is the key UV‑stabilizing additive for outdoor‑used polyethylene / polypropylene products. Sufficient carbon‑black loading prevents UV‑photo‑oxidative degradation, maintains long‑term mechanical performance and service‑life for pipes, geomembranes and exterior plastic parts.

- Too‑low carbon‑black content causes rapid UV aging, cracking, brittleness and premature field‑failure of outdoor polyolefin components.

- Excess carbon‑black will negatively influence polymer mechanical properties, processability and surface characteristics.

- ASTM D1603 supplies reliable gravimetric measurement to verify whether actual carbon‑black loading conforms to design specification. It is essential for incoming‑material inspection, production quality‑control, failure‑analysis and material‑certification of olefin plastics exposed to sunlight service environments.

Keywords: ASTM D1603 carbon black content tester,olefin plastic carbon black test machine,polyethylene carbon black analyzer,polypropylene carbon black content test rig,polybutylene plastic carbon black detection equipment,inert atmosphere pyrolysis gravimetric tester,plastic additive composition analyzer,industrial olefin polymer quality control tester,brominated flame retardant plastic exclusion testing,modified polymer carbon black verification machine,plastic material formulation test apparatus,polymer component content testing system

Carbon black content tester is used to measure the carbon content in PE, PP, PB etc. , sample under nitrogen condition, through high temperature pyrolysis, then measure the weight to get the carbon level.

Ash Content Test Furnace (Muffle Furnace) analysis and determination and general small steel quenching, annealing, tempering and other heat treatment heating, high temperature furnace can also be used for metal, ceramic sintering, dissolution, analysis and other high temperature heating.

Q1: What is ASTM D1603‑20 test used for, and why is this test important for olefin plastics?

A: ASTM D1603‑20 measures carbon‑black weight percentage in polyethylene, polypropylene and polybutylene by nitrogen‑atmosphere pyrolysis‑gravimetric method. Carbon‑black acts as primary UV‑stabilizer for outdoor polyolefin products such as HDPE pipes and geomembranes. Insufficient carbon‑black leads to UV photo‑oxidation, cracking and premature service failure. Excess carbon‑black raises material cost and degrades processability and mechanical performance. This test validates whether carbon‑black loading meets product specification for incoming inspection, production QC and material certification.

Q2: Why must we use nitrogen atmosphere for ASTM D1603? Can a regular air‑based muffle furnace finish this test?

A: No. Under air atmosphere, both polyolefin polymer and carbon‑black will burn and oxidize completely, leaving no carbon‑black residue for weighing. High‑purity nitrogen builds inert environment: polymer matrix pyrolyzes and volatilizes, while carbon‑black stays un‑oxidized as solid residue for gravimetric calculation. A standard open muffle furnace cannot perform ASTM D1603 without full nitrogen‑purge gas‑path modification.

Q3: What samples are NOT suitable for ASTM D1603 test?

A: ASTM D1603 cannot test samples containing:

Non‑volatile inorganic fillers or pigments other than carbon‑black (extra inorganic residue will add weight error);
Brominated flame‑retardant additives;
Polyolefin modified by acrylic or other polar monomers (interferes pyrolysis accuracy). For these materials, alternative analytical methods should be selected.

Q4: What is the difference between ASTM D1603 and ASTM D4218? When to choose each one?

A: ASTM D4218 is a faster muffle‑furnace air‑calcination method for polyethylene compounds, suitable for routine production QC. ASTM D1603 uses inert‑nitrogen tube‑furnace pyrolysis; it is regarded as referee test method with higher accuracy and better anti‑interference performance, often used for dispute resolution, third‑party certification and research work. D1603 supports PE, PP and PB; D4218 targets polyethylene only.

Q5: What is the relation between ASTM D1603 and ISO 6964‑1986(E)? Are their test results interchangeable?

A: Both standards determine carbon‑black content for polyolefin pipe products. But technical parameters (nitrogen flow rate, heating time, temperature profile) differ significantly. Test results from one standard cannot be directly converted or interchanged for compliance acceptance.

Q6: Why do we need an extra muffle‑furnace oxidation step for samples below 1 % carbon‑black content?

A: After nitrogen pyrolysis, the residue contains carbon‑black plus trace inorganic ash from polymer additives. For low‑carbon‑black specimens, tiny inorganic ash mass creates large relative error. The secondary air‑oxidation burns away carbon‑black and leaves pure inorganic ash, so we subtract ash weight to get true carbon‑black mass for precise calculation

Q7. What happens if carbon black content is too low?

A: Below about 2.0 %, UV screening is incomplete. UV breaks the polymer chains, the surface embrittles and micro-cracks, and stress cracking initiates at welds and corners. A pipe rated for decades can fail within a few years of outdoor storage or above-ground service.

Q8: My test result shows carbon‑black lower than specification. What common root causes should I check?

Oxygen leakage inside gas circuit or insufficient nitrogen purity (partial carbon‑black oxidized during pyrolysis).
Short pyrolysis holding time; polymer not fully decomposed.
Sample contamination, or specimen not representative (poor mixing of masterbatch).
Weighing error: boat not fully cooled to room‑temperature before weighing; desiccant saturated.
Glass‑tube wall deposits contaminating combustion boat when taking out sample boat.

Q9. What is the difference between ASTM D1603 and ASTM D4218?

A: D4218 is a muffle-furnace method for black polyethylene compounds containing channel or furnace black only — fast (~20 min), ideal for production QC, but not applicable to thermal black or plastics that char on pyrolysis. ASTM D1603 is specified as the referee method for D4218: when a result is disputed, D1603 governs.

Q10: Is carbon‑black content test (ASTM D1603) enough to evaluate UV‑resistance of HDPE geomembrane or PE pipe?

A: No. ASTM D1603 only tests how much carbon‑black exists. You also need carbon‑black dispersion test (e.g. ASTM D5596) to check how uniformly carbon‑black distributes. Even correct content with bad dispersion forms agglomerates, creating stress points and early material failure in field service.

Q11: What typical carbon‑black percentage for outdoor HDPE pipe and geomembrane?

A: Most global polyolefin pipe and geomembrane specifications require carbon‑black content 2.0 % ~ 2.5 %. Too low sacrifices UV‑aging resistance; too high increases raw‑material cost and impairs physical properties.

Q12: Why choose ASTM D1603 Carbon Black Content Tester for Polyolefin Plastics from UnitedTest?

A: UnitedTest manufactures professional ASTM D1603‑20 carbon black content test apparatus for PE, PP, PB plastics. Nitrogen pyrolysis gravimetric system for HDPE pipe, geomembrane and polyolefin compound quality control. Compliant with ASTM D1603‑20 standard. Contact us for quotation.

UnitedTest is a professional manufacturer and exporter of ASTM D1603‑20 Carbon Black Content Tester, designed for quantitative determination of carbon‑black percentage in polyethylene, polypropylene and polybutylene olefin plastics, following nitrogen‑atmosphere pyrolysis gravimetric principle described in ASTM D1603‑20 standard.

Our complete test set includes high‑temperature tube electric furnace, precision gas flow control system, full glassware assembly (combustion tube, combustion boats, cold traps, drying tube), nitrogen purification unit and supporting accessories. It fulfils all apparatus requirements specified by ASTM D1603‑20 for lab quality‑control, third‑party material‑testing labs, polymer compounding plants, HDPE water/gas pipe factories and geomembrane manufacturers.

✅ Strictly comply with ASTM D1603‑20 standard requirements

✅ Real‑time temperature monitoring within 500‑700 °C working range

✅ Precise nitrogen flow control: 1.7±0.3L/min

✅ Complete gas‑purification module to eliminate oxygen interference

✅ Full glass‑ware set: combustion boat, high‑temp combustion tube, cold trap, U‑shape drying tube

✅ Support optional secondary muffle‑furnace oxidation for low‑concentration carbon‑black (<1 %) correction

✅ Widely used for HDPE pipe, PE geomembrane, PP profile, polyolefin compound incoming‑material inspection & production QC

UnitedTest supplies turn‑key ASTM D1603 carbon‑black test solutions. We provide equipment installation guidance, standard‑based operation training and after‑sales support for global customers. Contact UnitedTest team for detailed specification sheet and price offer.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
