EN 302-1 Load-bearing Timber Adhesive Longitudinal Tensile Shear Tester | UnitedTest

UnitedTest manufactures EN 302-1 compliant testing machines for load-bearing timber structure adhesives. EN 302-1 determines longitudinal tensile shear strength on beech single-lap joints, supporting close-contact glue line ≤0.1 mm and thick gap joints 0.3–4.0 mm for adhesive classification under different climatic environments.

EN 302-1 Adhesives for load-bearing timber structures – Test methods – Part 1: Determination of longitudinal tensile shear strength. EN 302-1 measures the shear strength of an adhesive bond in a single-lap joint made from beech, loaded in tension until rupture. It covers two glue line types: close-contact glue line (≤ 0.1 mm) and thick glue line / gap joint (0.3 – 4.0 mm). The test generates performance data used to classify adhesives for load-bearing timber structures based on their suitability for defined climatic environments. This standard is not a structural design tool and results may not fully represent real in-service performance of bonded timber members. UnitedTest provides high precision EN 302-1 tensile shear test equipment for glued laminated timber manufacturers, adhesive R&D labs, and third-party timber material certification.

Test Principle

The shear strength of adhesive bonds is determined by applying a longitudinal tensile force to a single lap joint with close contact or thick glue lines between two rectangular wooden adherents made of beech (Fagus sylvatica L.). The joints are loaded to rupture.

In practice: a 20 × 10 mm = 200 mm² bonded area is sheared in the grain direction; the failure load divided by 200 mm² gives the shear strength fᵥ.

Test Equipment required for EN 302-1 Wood Adhesive Longitudinal Tensile Shear Strength Test

Tensile testing machine

Two acceptable operation modes:

Mode A: constant loading rate (2.0 ± 0.5) kN/min;
Mode B: constant cross‑head speed complying with ISO 5893, adjusted so specimen failure occurs within 30–90 seconds; cross‑head speed shall not exceed 5 mm/min.

Hinged wedge grips

Firmly hold specimens without slippage during tensile loading, guaranteeing axial alignment of specimen long‑axis with load direction.

Wood‑working tools

Planer, saw, grooving cutter, abrasive paper P100 (ISO 6344‑2) for surface preparation of beech panels.

Test Specimen Information:

Substrate wood

Species: beech (Fagus sylvatica L.), untreated, straight-grained

Density (700 ± 50) kg/m³ at (12 ± 1) % moisture content

Angle α between annual rings and the bonding surface: 30°–85°; the two panels are assembled with annual rings forming a "herringbone pattern".

Panel preparation

Panels planed, with or without ≈ 14 mm wide grooves; cut to ≥ 300 mm (with cross-cut allowance) × ≥ 130 mm (with width-of-cut allowance)

Close contact: two panels of (5.0 ± 0.1) mm

Thick glue line: one (5.0 ± 0.1) mm panel + one [(5.0 ± 0.1) + h] mm grooved panel; for h > 1 mm, two grooved panels of (5.0 ± 0.1) + h/2 may be used

Grooves: depth h = 0.3 / 0.5 / 1.0 / 2.0 / 4.0 mm, width ≈ 14 mm, ending 5 mm from the side edges

Bonding

Not more than 24 h before bonding, lightly plane or lightly sand each bonding surface with P100 abrasive; remove dust; do not touch or soil the surfaces

For thick glue lines, only pre-mixed adhesives are suitable

Clamping pressure (0.8 ± 0.1) N/mm² uniformly distributed, or as recommended by the manufacturer

Exception: specimens with bond line > 1 mm for adhesive type GF (per EN 301, EN 17334, EN 17418) shall be produced pressureless — a narrow slot (~2 mm wide, ~2 mm deep) between groove end and adherent edge is a recommended method

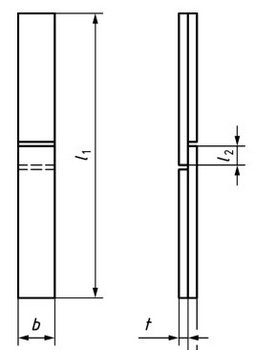

Test piece geometry

Cut five strips of width b = (20.0 ± 0.1) mm along the grain, avoiding the outer 7.5 mm of the panel edges; cut to length l₁ = (150 ± 5) mm; distribute test pieces from one board randomly among treatment classes

Cut flat-bottomed notches of (2.5 ± 0.5) mm width across the grain so that an overlap l₂ = (10.0 ± 0.1) mm is defined in the middle section, centred in the groove for thick glue lines; the cut must separate the wood and adhesive layers but must not go beyond the adhesive layer.

Key derived value: A = bonded test surface = b × l₂ = 20.0 × 10.0 = 200 mm², and the notches are what force failure to occur inside this defined 200 mm² overlap.

Test Parameters & Stipulations

A – bonded test surface	200 mm² (20.0 × 10.0 mm)
fᵥ – shear strength	N/mm² (MPa)
Fₘₐₓ – applied load at failure	N
l₁ – test piece length	(150 ± 5) mm
l₂ – overlap / tested length	(10.0 ± 0.1) mm
b – test piece width	(20.0 ± 0.1) mm
t – panel thickness (close contact)	(5.0 ± 0.1) mm
h – groove / thick glue line depth	0.3, 0.5, 1.0, 2.0, 4.0 mm
l₃ – groove width	≈ 14 mm
α – annual ring / glue line angle	30°–85°
Close contact glue line	≤ 0.1 mm (achieved with (0.8 ± 0.1) N/mm² pressure, no spacers)
Thick glue line	nominal 0.3 – 4.0 mm
Notch width	(2.5 ± 0.5) mm
Wood density / MC	(700 ± 50) kg/m³ at (12 ± 1) %
Standard climate [20/65]	(20 ± 2) °C, (65 ± 5) % RH
Clamping pressure	(0.8 ± 0.1) N/mm²
Rate of loading	(2.0 ± 0.5) kN/min, or ≤ 5 mm/min with failure in 30–90 s
Grip separation (opposite grip ends)	50 – 90 mm
Post-bonding conditioning	7–14 days; cutting not before 3 days
Valid results required	10 per treatment
Wood failure estimate	to the nearest 10 %
Reporting precision	0.1 N/mm²

Test Procedures for EN 302-1 Wood Adhesive Longitudinal Tensile Shear Strength Test

Panel preparation: Plane beech timber into panels; machine grooves if thick glue‑line specimens are needed. Condition raw panels under standard climate.
Bond assembly preparation: Sand/plan bonding surfaces ≤24 h before gluing, remove dust. Apply adhesive following manufacturer instructions (mixing, open‑time, assembly pressure). Assemble panels under defined pressure to form bonded assemblies for close‑contact or thick glue‑line joints.
Post‑bond conditioning: Store bonded assemblies for 7‑14 days under standard climate (minimum 3 days curing before cutting specimens).
Machine test‑pieces: Saw bonded panels into b=20mm strips; cut strips into 150‑mm long specimens. Mill cross‑grain notches to create the 10‑mm single‑lap overlap joint.
Pre‑test conditioning: Subject specimens to one pre‑treatment (A1‑A8) according to test scheme.
Mechanical tensile‑shear test: Mount specimen in hinged testing‑machine grips, apply tensile load at specified rate until fracture; record maximum failure load. Assess wood‑failure ratio visually.
Data processing: Calculate shear‑strength for each valid specimen; compute arithmetic mean, minimum value, standard deviation and coefficient of variation from first 10 valid replicates.

Industry Application Fields

Adhesive classification & CE/ETA/DoP support: compliance assessment against EN 301 (phenolic & aminoplastic), EN 15425 (1-component PUR), EN 16254 (EPI), EN 17334 (glued-in rods) and EN 17418 (2-component epoxy/PUR for on-site repair of cracked timber).
End-use sectors: glulam and CLT manufacturers, finger-jointing plants, structural timber and LVL producers, glued-in rod connections (e.g. moment-resisting timber joints), and on-site structural repair / strengthening with injected epoxies.
Users: adhesive manufacturers (R&D, batch QC), accredited testing laboratories and certification bodies, glulam/CLT producers for incoming-material verification, specifiers and procurement (minimum shear strength + wood failure in specifications), and researchers benchmarking new bio-based or filled adhesive formulations.
Regulatory context: published in support of EN 1995 (Eurocode 5) — the design code assumes durable bond integrity, and EN 302-1 is the evidence base for that assumption.

Related Stadard:

ISO 6237	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by tensile loading
EN 205	Adhesives - Wood adhesives for non-structural applications - Determination of tensile shear strength of lap joints
ASTM D906	Standard Test Method for Strength Properties of Adhesives in Plywood Type Construction in Shear by Tension Loading
ASTM D4680	static shear creep
ASTM D2339	strength properties of adhesives in two-ply wood construction in shear by tension loading (birch veneer; wood failure per ASTM D5266)
ASTM D3931	gap-filling adhesives under compression
GB/T 33333	Determination of shear strength by tensile loading in wood adhesives
EN 302-1	Adhesives for load-bearing timber structures - Test methods - Part 1: Determination of longitudinal tensile shear strength
EN 302-2	Adhesives for load-bearing timber structures - Test methods - Part 2: Determination of resistance to delamination
ISO 6238	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by compressive loading
ASTM D905	Standard Test Method for Strength Properties of Adhesive Bonds in Shear by Compression Loading

Keywords: EN 302-1,load-bearing timber structure adhesive test,longitudinal tensile shear strength tester,timber single lap joint shear test,beech wood adhesive bond test,close contact glue line test,thick gap joint test,timber adhesive climatic classification test,glulam adhesive shear strength test,wood structural adhesive tensile tester,UnitedTest timber adhesive testing machine,timber bonding quality control test,load bearing wood glue lab tester,wood adhesive qualification test,glue line shear strength testing instrument

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is the EN 302-1 test?

EN 302-1:2023 is the European standard test method for determining the longitudinal tensile shear strength of adhesive bonds for load-bearing timber structures. A single lap joint made of beech (Fagus sylvatica L.) is pulled in tension to rupture, either as a close contact glue line (≤ 0.1 mm) or a thick glue line / gap joint (0.3–4.0 mm). Shear strength fᵥ = Fₘₐₓ / 200 mm².

Q2: Why is this test important?

Because the glue line is the critical, and usually weakest, link in glulam, CLT, finger joints, glued-in rods and repaired timber. The bond must transfer longitudinal shear — if it fails, the high-strength timber around it is wasted. EN 302-1 proves the bond is not only strong when dry but also durable under the moisture and temperature of service classes 1, 2 and 3 (via treatments A1–A8), and it is the evidence base for the assumption in Eurocode 5 (EN 1995) that a bonded member acts monolithically.

Q3: Does EN 302-1 define a pass/fail limit?

No — it is a test method, not a product standard. It produces the number; acceptance thresholds come from EN 301, EN 15425, EN 16254, EN 17334, EN 17418. For example EN 301 has required minimum mean tensile shear strengths measured per EN 302-1 of 10 N/mm² after A1 and 6 N/mm² after A2/A4 for close-contact joints (A4/A5 not required for Type II). EN 301:2023 now defines 13 adhesive classes by type (I/II), application (GP/FJ/GF), temperature (50/70/90 °C) and use (M/S).

Q4: Why does the standard require reporting wood failure percentage?

Because strength alone can lie. High shear with ~0 % wood failure means the adhesive is the weak link (brittle bond, poor wetting, under-cure). Low shear with high wood failure means the wood, not the glue, was the limit. EN 302-1 requires wood failure estimated visually to the nearest 10 % for every piece and reports the mean — a built-in "lie detector."

Q5: Why must the grip be "fixed in a hinged manner"?

A single lap joint is geometrically eccentric. Rigid grips introduce bending moments and peel stress at the overlap ends, giving artificially low and scattered values. The hinge lets the specimen self-align under load so the glue line fails in pure shear.

Q6: What loading speed applies for classification tests?

Either (2.0 ± 0.5) kN/min, or a crosshead speed ≤ 5 mm/min such that failure occurs between 30 s and 90 s.

Q7: Close contact vs thick glue line — when is each used?

Close contact (≤ 0.1 mm) = standard lamination and finger joints. Thick glue line (0.3–4.0 mm) = gap-filling (GF) applications: block-glued glulam, large finger joints, glued-in rod slots, on-site crack injection. Note: specimens with bond line > 1 mm for GF type are produced pressureless (EN 301 / EN 17334 / EN 17418).

Q8: What are treatments A1–A8?

A1 standard climate; A2 4 days cold water (wet); A3 same + reconditioned (dry); A4 6 h boiling + 2 h cold water (wet); A5 same + reconditioned (dry); A6/A7/A8: 24 h wrapped in foil at 50/70/90 °C, tested hot in a cabinet at the same temperature.

Q9: What are the most common causes of poor repeatability?

Notches cutting past the adhesive layer; wrong notch width or off-centre overlap; slipping or misaligned grips; failure time outside 30–90 s; wood density/MC drift; sanding more than 24 h before bonding or touching the prepared surface; boiling not reached within 15 min for A4/A5; inconsistent lighting when reading wood failure (use oblique light and ideally two assessors).

Q10: Can one machine run EN 302-1, ISO 6237 and ASTM D2339?

Yes — all three are tensile-loaded wood lap shear tests. One ISO 5893-compliant electromechanical UTM with interchangeable hinged grips handles them; only the grip insert, load rate and software template change (2.0 ± 0.5 kN/min + fixed 200 mm² for EN 302-1; 2.5–6 kN/min for ISO 6237; 600–1000 lb/min with measured area for ASTM D2339).

Q11: Why choose EN 302‑1 Longitudinal Tensile Shear Strength Testing Machine from UnitedTest?

UnitedTest supplies full‑compliant EN 302‑1:2023 longitudinal tensile shear strength test machines for load‑bearing timber‑structure adhesives. Complete hinged wedge grips, test software for close‑contact & thick glue‑line lap‑joint specimens, for adhesive labs, certification institutes and glulam manufacturers.

UnitedTest is a professional manufacturer of material‑testing instruments, delivering complete test‑system solutions fully aligned with EN 302‑1:2023, the key European standard for adhesives for load‑bearing timber structures.

Our EN 302‑1 test system evaluates longitudinal tensile‑shear strength for close‑contact glue lines (≤0.1 mm) and thick gap glue‑lines (0.3 mm‑4.0 mm) using beech‑wood lap‑joint specimens. It is widely used by structural‑adhesive manufacturers, glulam factories, third‑party certification laboratories, timber‑construction research institutes to qualify adhesives against EN 301, EN 15425, EN 16254, EN 17334 and EN 17418 requirements.

Core machine & fixture features for EN 302‑1:2023

✅ Complies with ISO 5893 loading specification, supports two loading modes: constant load rate (2.0 ± 0.5 kN/min) OR constant cross‑head speed, controls rupture time within 30‑90 seconds.

✅ Hinged wedge grips specially designed for EN 302‑1 lap‑joint specimens; prevents slipping and bending moment during tensile‑shear loading.

✅ High‑precision force sensor; calculates shear‑strength f_v=F_max/ 200 automatically.

✅ Dedicated English‑language test software: captures peak failure load, records specimen data, computes mean strength, standard deviation, coefficient of variation; supports manual input for wood‑failure percentage.

✅ Output editable test‑report templates matching EN 302‑1 Clause 9 reporting requirements.

✅ Compatible accessories: works with climate‑chamber interface for hot testing (A6/A7/A8 treatments at 50 °C /70 °C /90 °C).

Typical end‑users

Structural wood‑adhesive R&D & QC labs (PUR, EPI, phenolic, aminoplastic, two‑component epoxy for timber repair)
Glulam / glued‑timber component manufacturers
Third‑party certification and inspection bodies for CE marking of timber‑construction products
University timber‑engineering research laboratories

UnitedTest delivers not only the universal testing machine mainframe, but also complete fixture kits, operation guidance referencing EN 302‑1:2023 clauses, after‑sales technical support to help your lab perform reliable repeatable longitudinal tensile‑shear tests for load‑bearing‑timber‑structure adhesives.
