ISO 6237 Wood-to-Wood Adhesive Shear Strength Tester | UnitedTest

UnitedTest produces precision ISO 6237-compliant tensile testing machines dedicated to measuring shear strength of wood-to-wood adhesive bonds for wood adhesive manufacturers, timber construction labs, and furniture production quality control. Our test equipment fully adheres to all specimen preparation, conditioning and tensile loading requirements outlined in ISO 6237.

ISO 6237 Adhesives – Wood-to-wood adhesive bonds – Determination of shear strength by tensile loading sets out a standardized laboratory testing procedure to quantify the tensile shear strength of wood-to-wood bonded joints. The standard enforces rigorous unified rules covering specimen fabrication, environmental pre-conditioning, and tensile loading parameters to guarantee repeatable, comparable test results across different testing facilities.

This test standard exclusively targets adhesives formulated for wood-to-wood bonding applications in parallel-laminated and cross-laminated timber structures. It is designed for raw adhesive performance evaluation at the laboratory stage and does not apply to finished manufactured wood products for on-site inspection. Test outputs help engineers screen timber adhesive formulations, optimize gluing processes, and validate raw adhesive batch quality before mass timber and furniture production.

Test Principle

A bonded wood specimen with a notched geometry is held in the jaws of a tensile test machine and pulled in tension. The load is transmitted through the bonded interface as a shear stress, and the maximum force at break is recorded. The shear strength is calculated by dividing the breaking force by the bonded shear area.

After fracture, the percentage of wood failure is estimated under oblique lighting — this distinguishes a true adhesive bond failure from a cohesive wood failure, which is critical for interpreting the result correctly.

Test Equipment required for ISO 6237 Tensile Shear Test for Wood-to-Wood Adhesive Bonds

Tensile testing machine

Minimum load capacity: 5 kN, force accuracy ±2%.

Loading modes (mutually exclusive unless parties agree otherwise):

a) Force ramp: 2.5–6 kN/min linear load increase;

b) Crosshead speed: 0.5–1.0 mm/min constant displacement.

Precision aligned wedge grips/jaws to prevent specimen slippage and misalignment during tension.

Adhesive Mixing & Panel Fabrication Apparatus

Homogenizing mixer: Minimizes air entrapment (except foamed adhesives).

Uniform coating spreaders: Wire-wound bar, roller coater or hand applicators; adhesive thickness control within ±5% target value.

Hot/cold pressing system: Delivers clamping pressure evenly over bonded area (±5% set pressure); heated platens maintain glue line temperature ±2 °C during curing.

Wood failure inspection light set

150 W incandescent bulb or 15 W fluorescent tube with non-reflective black shade, illuminating fracture surfaces at a 10°–15° oblique angle to evaluate fibre tear coverage.

Test Specimen Information:

Specimens are cut from bonded test panels and are of two types:

Two-ply (parallel-laminated): Grain of both plies is parallel to the long dimension of the specimen.

ISO 6237 Tensile Shear Test for Wood-to-Wood Adhesive Bonds

Overall dimension: 80 ±3 mm height, 25 ±0.5 mm width.

Shear bond area: 20 mm (vertical) ×25 mm (horizontal) = 500 mm².

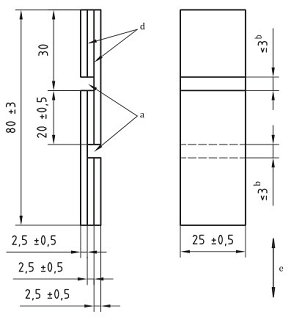

Three-ply (cross-laminated): Face plies have grain parallel to the long dimension; centre ply grain is perpendicular to the faces.

ISO 6237 Tensile Shear Test for Wood-to-Wood Adhesive Bonds

Key dimensional & material requirements:

Veneer thickness: (2.5 ± 0.5) mm

Timber density (at 12% moisture content): 670–770 kg/m³

Mean shear strength parallel to grain (at 12% MC): 13.0–18.0 MPa

Notching: Saw cuts extend to (two-ply) or up to the second glue line (three-ply), using a hollow-ground grooving saw

Sampling plan:

For routine QC: Minimum 4 specimens from each of 3 panels of similar construction

For higher precision: At least 40 specimens, 8 from each of 5 different panels.

Test Parameters & Stipulations

Tensile Loading Time Requirement

Failure must occur within 60 ±20 seconds of test start (40–80 s total test duration). Crosshead speed/force ramp rate shall be adjusted to hit this window, and recorded formally in the test report.

Wood Failure Assessment Parameters

Light incident angle: 10°–15° oblique to fracture surface.

Incandescent lamp distance to sample: 150–250 mm; fluorescent tube distance: 25–75 mm.

Evaluation precision: Wood failure percentage rounded to nearest 10%, judged by inspecting both fracture faces together.

Shear Area Dimension

Standard bonded shear zone fixed at 20 mm (vertical) × 25 mm (horizontal). All machined bond area dimensions must be documented in test records.

Test Procedures for ISO 6237 Tensile Shear Test for Wood-to-Wood Adhesive Bonds

Prepare adhesive per manufacturer's instructions; apply to veneers at specified spread rate.

Assemble veneers into two-ply or three-ply panels per the specified grain orientation.

Notch and cut specimens from the conditioned panel, ensuring edge margins are removed first.

Store cut specimens in the conditioning atmosphere until testing.

Mount the specimen in the tensile machine jaws, aligned as required.

Apply tensile load at the specified rate until failure occurs within (60 ± 20) s.

Record the breaking force (kN) for each joint.

Assess wood failure: Illuminate the fracture surface(s) at 10°–15° and estimate the % area of wood failure to the nearest 10%.

Calculate mean force/stress and standard deviation per panel and overall.

Industry Application Fields

ISO 6237 serves the following industries and stakeholders:

Adhesive manufacturers — product development, formulation validation, quality control, and technical data sheet generation

Wood panel producers — plywood, laminated veneer lumber (LVL), glue-laminated timber (glulam), particle board, and cross-laminated timber (CLT) manufacturers use the three-ply cross-laminated specimen as it closely mirrors real product structures

Structural timber engineering — verifying adhesives for load-bearing laminated wood constructions

Independent test laboratories — standardized bond-strength testing and certification

R&D and QA/QC departments — establishing process parameters (spread rate, press conditions, conditioning) and supplier verification

Flooring and furniture industries — evaluating adhesives for wood-to-wood bonding in parquet, engineered wood flooring, and furniture assembly.

Related Stadard:

ISO 6237	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by tensile loading
EN 205	Adhesives - Wood adhesives for non-structural applications - Determination of tensile shear strength of lap joints
ASTM D906	Standard Test Method for Strength Properties of Adhesives in Plywood Type Construction in Shear by Tension Loading
GB/T 33333	Determination of shear strength by tensile loading in wood adhesives
ISO 6238	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by compressive loading
ASTM D905	Standard Test Method for Strength Properties of Adhesive Bonds in Shear by Compression Loading

Keywords: UnitedTest ISO 6237 tester, ISO 6237 wood-to-wood adhesive shear tester, timber adhesive tensile shear strength test machine, wood bond shear strength testing equipment, ISO 6237 parallel cross laminated timber wood adhesive shear test rig, laboratory tensile loading wood-to-wood bond shear strength analyzer, ISO 6237 standardized specimen conditioning adhesive tester, wood glue performance test machine not for finished wood products, cross-laminated timber construction adhesive shear testing instrument

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is the core purpose of ISO 6237?

A1: It defines a unified laboratory tensile loading method to measure the shear strength of adhesive bonds between wood veneers. It evaluates raw wood adhesives for parallel-laminated or cross-laminated wood structures, and cannot be used to test finished commercial wood products like furniture or prefabricated construction panels.

Q2: Why is ISO 6237 testing so important for wood adhesives and engineered wood industries?

A2: Creates globally consistent test conditions to eliminate lab-to-lab deviation, enabling fair cross-brand adhesive comparison for international trade.

Produces two key performance indicators: shear strength (load-bearing capacity of glue lines) and wood failure percentage (interfacial adhesion quality). High wood failure means the bond is stronger than the wood itself, which is the target for reliable wood bonding.

Acts as mandatory compliance evidence for construction codes, supply contracts and third-party material certification for plywood, CLT, LVL and furniture adhesives.

Supports adhesive R&D: Formulators can isolate how resin formula, spread rate, pressing temperature or wood moisture impact bonding performance under controlled standardized conditions.

Mitigates structural safety risks: Underperforming adhesives screened out via this test avoid shear failure of load-bearing laminated wood components in buildings.

Q3: What special lighting equipment is required to assess wood failure percentage?

A3: Either a 150 W incandescent bulb or a 15 W fluorescent tube with a black non-reflective lampshade. Light hits the fracture surface at an oblique angle of 10°–15°. Incandescent lamps are placed 150–250 mm from the sample; fluorescent tubes are placed 25–75 mm away.

Q4: What are the two specimen types in ISO 6237, and can their test results be compared directly?

A4: Two-ply specimen: Both veneer grains run parallel to the specimen length, for adhesives used in parallel laminated wood joints.

Three-ply specimen: Face veneer grain is parallel to specimen length, core veneer grain is perpendicular, simulating plywood/cross-laminated timber.

Their shear strength and wood failure results cannot be cross-compared, as the internal stress distribution of the glue lines differs fundamentally.

Q5: What timber can be used to make test specimens? Are there density and shear limits?

A5: Standard timber must reach two criteria at 12% moisture content: density 670–770 kg/m³, parallel-grain shear strength 13.0–18.0 MPa, e.g., European beech, sugar maple, white birch. Treated, painted or defective timber (with knots, cracks, decay) is forbidden. Other wood species are allowed only with written agreement of all testing parties.

Q6: What veneer thickness is required by the standard?

A6: Nominal veneer thickness is 2.5 ± 0.5 mm; alternative thickness is permitted only if all stakeholders agree and fully recorded in the test report.

Q7: How many specimens do I need to test for routine quality control vs high-precision research?

A7: Routine QC: Min. 4 specimens from each of 3 identical test panels (12 specimens total).

High-precision performance testing/R&D: Min. 8 specimens from each of 5 identical panels (40 specimens total).

Q8: Can ISO 6237 data replace results from EN 205 or ASTM D905?

A8: Generally no. Each standard uses unique specimen geometry, shear area and test parameters. Regulators and buyers usually specify one dedicated standard; cross-standard data substitution is only accepted with formal written consent of all parties.

Q9: My test shows extremely low wood failure percentage (below 30%) — what are the common root causes?

A9: Wood veneer moisture outside the standard required range;

Incorrect adhesive spread rate or expired adhesive;

Insufficient pressing time, temperature or pressure during panel curing;

Contaminated wood bonding surfaces (dust, grease, release agent);

Non-compliant timber with excessive peeling checks or surface defects.

Q10: Why does the standard require removing edge margins before cutting test specimens?

A10: Panel edges experience uneven pressure and faster moisture loss during pressing, creating inconsistent bond strength (edge effects). Trimming edges eliminates biased, unrepresentative specimens to guarantee repeatable test data.

Q11. How do I ensure my ISO 6237 test results are reliable and comparable?

A11: Follow these best practices:

Use approved timber species from Annex B with verified density and moisture content

Follow the adhesive manufacturer's bonding parameters exactly (spread rate, open/closed assembly time, press temp/pressure/time) — these are normative per Annex A

Calibrate all equipment regularly (balance, test machine, measuring devices, thermometers)

Strictly control conditioning: (23 ± 2)°C, (50 ± 5)% RH for ≥7 days or until constant mass

Use adequate sampling: Minimum 12 specimens for QC; 40 for high-precision work

Properly align specimens in grips — misalignment causes erroneous shear distribution

Discard specimens that fail outside the bond area

Estimate wood failure carefully under the specified oblique lighting; consider digital imaging for improved repeatability

Report all parameters completely per Clause 11 of the standard

When comparing adhesives, use identical timber, specimen type, and conditioning — never compare two-ply results against three-ply results。
