EN 205 Wood Adhesive Tensile Shear Testing Machine | UnitedTest

UnitedTest manufactures EN 205 compliant test machines for non-structural wood adhesives. EN 205 determines tensile shear strength of lap joints, evaluating wood adhesive bond performance under hot and cold water exposure with thin ~0.1 mm bond lines.

EN 205 specifies the test method used to assess adhesives for wood and derived timber products for non-structural applications, measuring the tensile shear strength of lap joints. This standard evaluates adhesive resistance to hot and cold water ageing and verifies bond strength with a thin bond line of approximately 0.1 mm. UnitedTest delivers reliable EN 205 wood adhesive testing instruments for adhesive formulation research, factory quality control and third-party laboratory certification.

Test Principle

A symmetrical bonded single‑lap joint between two symmetrical wooden adherends is subjected to defined conditioning treatments and then strained to rupture by a tensile force applied parallel to the grain. The maximum force is recorded and converted into a shear stress by dividing it by the bonded overlap area.

Key design logic: the specimen is symmetric and the load is applied in the plane of the bond, so the bond line is loaded in (predominantly) pure shear with minimal peel/bending contribution.

Test Equipment required for EN 205 Wood adhesive lap joint shear test

Tensile testing machine

Constant‑rate‑of‑traverse test machine complying with ISO 5893.

If unavailable, a constant‑rate‑of‑loading machine is permitted, provided rupture falls within the specified time window for adhesive type.

Grips / jaws

Wedge‑action jaws that permit self‑alignment while the piece is pulled.

Auxiliary tools

Planer / sanding equipment (P100 abrasive paper conforming to ISO 6344‑2:1998), pressing device for bonding, climate‑controlled chambers for specimen conditioning, cutting saw for panel and specimen preparation.

Test Specimen Information:

Substrate — strictly standardised beech:

Species: beech (Fagus sylvatica L.)**, unsteamed, conditioned, straight‑grained
Density: (700 ± 50) kg/m³; moisture content (12 ± 1) % (relative to oven‑dry mass)
Growth‑ring angle to the bonding surface: 30° to 90°
Panels: thickness (5,0 ± 0,1) mm, width ~130 mm, length a multiple of 300 mm (plus cutting allowance)

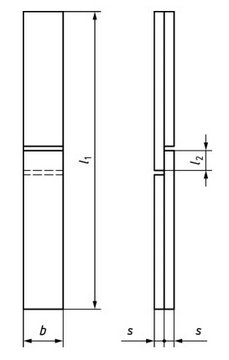

Bonded panel → test pieces:

Two 5 mm panels bonded with a thin bond line (nominally 0,1 mm)

After pressing: condition 7 days in standard atmosphere (longer if the manufacturer recommends); test pieces must not be cut earlier than 5 days after bonding
Cut five strips of width b = (20,0 ± 0,2) mm along the grain, discarding the outer 7,5 mm of the panel edges
Cut to length l₁ = (150 ± 5) mm
Make flat‑bottomed cuts (2,5 ± 0,5) mm wide across the grain in the bonded sections to define an overlap l₂ = (10,0 ± 0,2) mm in the middle; the cuts must fully sever the bond line but penetrate as little as possible into the opposite member

Bonded (tested) area: A = l₂ × b = 10,0 mm × 20,0 mm = 200 mm²

EN 205 Wood adhesive lap joint shear test

Test Parameters & Stipulations

Bond line thickness	thin, nominally 0,1 mm
Adhesive spread (default)	(150 ± 10) g/m², applied on both surfaces
Pressing pressure	(0,7 ± 0,1) N/mm², uniformly distributed
Number of test pieces	20 per conditioning sequence
Grip length	40–50 mm at each end
Traverse rate — thermoplastic (EN 204)	≈ 50 mm/min
Traverse rate — thermosetting (EN 12765)	6–12 mm/min
Alternative: time to rupture	5–15 s (thermoplastic), 30–60 s (thermosetting)
Result	τ = F_max / (l₂ × b) in N/mm², individual values rounded to 0,1 N/mm²

Test Procedures for EN 205 Wood adhesive lap joint shear test

Panel preparation: Condition beech panels under standard atmosphere ≥7 days. Sand/plan bonding surfaces within 24 h before gluing, clear dust and avoid contaminating bonding faces.
Bond assembly: Apply adhesive following manufacturer specifications or the default parameters required. Apply uniform pressure for 2 h to create ~0.1 mm thin bond‑line.
Post‑bond conditioning: Store bonded panels in standard atmosphere for minimum 7 days; cutting is not allowed within first 5 days after pressing.
Specimen cutting: Saw bonded panels to produce 20 lap‑joint test pieces with dimension: width 20 mm, total length 150 mm; machine cross‑grain flat‑bottom cuts to define the 10±0.2mm overlap region.
Pre‑test conditioning: Expose specimens to required water‑ageing / conditioning sequences specified by EN 204 or EN 12765. Keep specimens horizontally separated without extra mechanical stress.
Tensile‑shear testing: Mount specimen into tensile machine jaws (clamp 40‑50 mm end segment). Run tensile test at correct speed until rupture, record maximum force F_max.
Compute strength: Calculate shear strength for each specimen.
Report: Document adhesive info, wood data, bonding parameters, conditioning, all 20 specimen strength values, wood‑failure ratio, abnormalities and deviations from standard requirements.

Industry Application Fields

Furniture and interior joinery (PVAc, EPI, PU, urea/melamine adhesives for assembly, veneering, edge banding)
Doors, windows, stairs, panelling — matching adhesive durability to service climate (dry interior → humid interior → protected exterior → weather‑exposed with coating)
Adhesive manufacturers: formulation R&D, batch release/quality control, and declaration of D1–D4 or C1–C4 class on technical data sheets
Independent/testing laboratories and certification bodies: classification testing and CE/specification support
Wood‑product manufacturers: incoming‑material qualification, supplier comparison, factory production control (FPC)
Standardisation/regulatory context: it is the reference test method cited by the classification standards and by EN 14257 (heat resistance), EN 14256 (static load resistance), EN 16556 (maximum open time) and ISO 26842 (adhesive selection by durability)

Related Stadard:

ISO 6237	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by tensile loading
EN 205	Adhesives - Wood adhesives for non-structural applications - Determination of tensile shear strength of lap joints
GB/T 33333	Determination of shear strength by tensile loading in wood adhesives
EN 14257	tensile strength of the same lap joint at elevated temperature (80 ± 2 °C); uses EN 205 test pieces and 20 specimens
EN 14256	resistance to static load
EN 302‑1	the structural counterpart: longitudinal tensile shear strength for adhesives in load‑bearing timber structures, covering both close‑contact and thick (0,3–2,0 mm) glue lines
EN 302‑2	Adhesives for load-bearing timber structures - Test methods - Part 2: Determination of resistance to delamination
EN 314‑1 / EN 314‑2	bonding quality of plywood by shear testing (25 × 25 mm shear area, boiling‑water pre‑treatments, wood‑failure evaluation)
EN 16556	maximum open time for thermoplastic wood adhesives
ISO 6238	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by compressive loading
ASTM D7998	Standard Test Method for Measuring the Effect of Temperature on the Cohesive Strength Development of Adhesives using Lap Shear Bonds under Tensile Loading
ASTM D2339	two‑ply veneer wood‑adhesive shear by tension loading (birch veneer, ≥ 30 specimens, wood‑failure % mandatory)
ASTM D906	tensile shear of adhesive bonds in plywood‑type multi‑ply constructions
ASTM D905	Standard Test Method for Strength Properties of Adhesive Bonds in Shear by Compression Loading

Keywords: EN 205,wood adhesive tensile shear test,lap joint shear strength tester,non-structural wood glue test,wood adhesive bond strength test,thin bond line shear test,timber adhesive water resistance test,hot cold water ageing test for wood adhesive,wood derived products adhesive test,lap shear test machine,adhesive joint tensile tester,UnitedTest adhesive testing equipment,wood glue lab test,timber bonding performance test,EN205 adhesive certification test

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is the EN 205 test?

A: EN 205:2016 is the European standard method for determining the tensile shear strength of lap joints made with wood adhesives for non-structural applications. A symmetrical beech single‑lap joint with a thin (~0,1 mm) bond line is conditioned under defined sequences and then pulled to rupture by a tensile force parallel to the grain. The result is reported as shear strength τ = F_max / (l₂ × b) in N/mm².

Q2: What is EN 205 actually used for?

A: Three things: (1) assessing the usability and quality of adhesives for wood and derived timber products; (2) classifying them into durability classes D1–D4 (EN 204, thermoplastic) and C1–C4 (EN 12765, thermosetting); (3) studying how bonding conditions, conditioning sequences and pre/post‑bonding treatments affect bond strength.

Q3: Why is the EN 205 test important?

A: Because it is the reference measurement behind the European durability classification of wood adhesives. Without EN 205 numbers, claims like "D3 water‑resistant" or "D4 waterproof" cannot be verified. It also removes the wood as a variable (fixed beech species, density, moisture, grain and ring angle), so any difference in strength can be attributed to the adhesive or the bonding process — not the substrate.

Q4: Why does it matter for the material (the adhesive and the bonded joint)?

A: Wood adhesives fail mainly through water and heat: water plasticises thermoplastics, hydrolyses some thermosets, and creates swelling stresses at the interface. EN 205 reproduces these mechanisms through conditioning sequences (cold water, warm water, boiling water, re‑conditioning) and tests some of them in the wet state — the weakest, most realistic condition. It therefore predicts service performance, not just dry‑lab strength.

Q5: What bonding parameters apply if the adhesive supplier gives no instructions?

A: The 2016 defaults: adhesive on both surfaces, spread (150 ± 10) g/m², open assembly time (120 ± 10) s, closed assembly time (180 ± 10) s, pressing pressure (0,7 ± 0,1) N/mm², pressing time 2 h.

Q6: What test speed is used?

A: ≈ 50 mm/min for thermoplastic adhesives (EN 204) and 6–12 mm/min for thermosetting adhesives (EN 12765). This is why the machine needs a genuinely wide, stepless speed range (roughly 0,1–500 mm/min class machines cover it comfortably).

Q7: How is the specimen gripped and loaded?

A: Each end is clamped 40–50 mm into the jaws; the force must be applied centrally and in the plane of the bond so the joint is loaded in shear rather than in bending/peel — this is the main reason self‑aligning wedge grips are mandatory.

Q8: What is the expected force range, and what machine capacity should a lab buy?

A: With a 200 mm² bonded area and typical strengths of 5–20 N/mm², failure loads run roughly 1 000–4 000 N. A 5 kN or 10 kN electromechanical UTM with a suitable low‑range load cell (e.g. 1 kN or 2 kN cell for better resolution) is the practical choice.

Q9: Why must wood‑failure percentage be reported?

A: Because strength alone is ambiguous. A high value with near‑zero wood failure means the joint failed at the interface (poor bonding); a value accompanied by high wood failure means the bond is stronger than the wood itself. EN 205 grades wood failure as 0 / 25 / 50 / 75 / 100 % (mean of all pieces).

Q10: What are the most common causes of scattered or failed EN 205 results?

A: Wood moisture content drifting outside 12 ± 1 %; contaminated or oxidised bonding surfaces (sanding more than 24 h before bonding); non‑uniform adhesive spread; uneven press pressure; saw cuts that fail to fully sever the bond line (or cut too deep into the opposite member); eccentric gripping; wrong traverse rate; and inadequate conditioning or delays between conditioning steps.

Q11: Is EN 205 equivalent to ASTM D906 or ASTM D2339?

A: Same physical principle (tensile‑loaded shear of a bonded wood joint) but not directly interchangeable. EN 205 fixes beech, a 10 × 20 mm overlap and speed in mm/min; ASTM D2339/D906 use birch veneer, different notch geometry and a load‑rate in lb/min. Cross‑standard numbers should only be compared qualitatively.

Q12: What is the difference between EN 205 and EN 302‑1? Can I mix them up?

A: Do NOT mix them up.

EN 205: For non‑structural wood adhesives (furniture, interior joinery), thin bond‑line lap‑joint test; links to EN 204 / EN 12765 durability grades.
EN 302‑1: For load‑bearing / structural timber adhesives, for engineered wood construction products, links to EN 301 structural adhesive requirements. If you test furniture glue with EN 302‑1 or vice‑versa, test reports will be invalid for CE marking and classification.

Q13: Why choose EN 205 Tensile Shear Lap‑Joint Testing Machine from UnitedTest?

A: UnitedTest manufactures professional EN 205:2016 tensile‑shear testing machine for non‑structural wood adhesives. Fully compliant with ISO 5893, for lap‑joint bond‑strength test to classify wood glues per EN 204 D1‑D4 and EN 12765 C1‑C4 durability grades. Complete wedge self‑alignment grips, dedicated test software for calculation, lab‑grade quality for adhesive factories, furniture QA and third‑party testing laboratories.

UnitedTest supplies complete testing solutions for EN 205 — Determination of tensile shear strength of lap‑joints for non‑structural wood adhesives. Our universal tensile test machines meet ISO 5893 requirements, specially configured for wood adhesive performance evaluation, supporting adhesive durability classification according to EN 204 (thermoplastic wood adhesives) and EN 12765 (thermosetting wood adhesives).

Designed for adhesive manufacturers, furniture & joinery quality‑control labs, timber R&D institutes and third‑party certification laboratories, UnitedTest EN 205 test system executes lap‑joint tensile‑shear tests for beech wood bonded specimens, records maximum rupture force F_max, automatically computes shear strength, exports test data for full test‑report documentation including all 20‑specimen results, wood‑failure percentage statistics.

Key configuration for EN 205 compliance:

Constant‑rate‑of‑traverse control, adjustable cross‑head speed: 6‑12 mm/min for thermosetting adhesives; ~50 mm/min for thermoplastic adhesives, also supports constant‑loading mode with rupture‑time monitoring.
Wedge‑action self‑aligning jaw fixtures, guarantee central force application along bond plane, eliminating alignment‑caused test deviation.
Dedicated test software: stores specimen parameters (overlap length, specimen width b), auto‑calculates shear strength, supports export of both valid and invalid test data, meets EN 205:2016 test‑report requirements.
Optional accessories: specimen cutting guides, auxiliary clamping shims for Annex A simplified single‑lap joint in‑house quick tests.

UnitedTest EN 205 wood adhesive testing equipment helps you run repeatable lap‑joint tensile‑shear tests, verify adhesive batch‑to‑batch consistency, obtain reliable lab data for European durability‑class assessment for non‑structural wood glues. Contact UnitedTest for custom configuration, quotation and technical support for your EN 205 wood‑adhesive test laboratory setup.

Recommended UnitedTest configuration

Mainframe: 5 kN or 10 kN electromechanical UTM (single‑column WDW‑5Y class for dedicated adhesive labs; WDW‑10Y / bench‑top WDT‑10Y where the frame is shared with other tests). Typical failure loads for a 200 mm² overlap are 1–4 kN, so a 5–10 kN frame with a 1–2 kN load cell gives the best resolution.
Speed control: stepless crosshead speed covering 0,1–500 mm/min, so 6–12 mm/min and 50 mm/min steps are set directly in the method, not approximated.
Grips: self‑aligning wedge‑action jaws with flat faces sized for 5 mm × 20 mm wood ends; optional shim/clamp kit for the Annex A single‑lap specimen.
Software: EN 205 method template — automatic peak‑force capture, bonded‑area input (l₂ × b), τ calculation in N/mm² rounded to 0,1, mean of 20 pieces, wood‑failure logging (0/25/50/75/100 %), invalid‑result flagging, and export of a standard‑compliant test report covering all Clause 8 items.
Optional accessories: constant‑temperature water baths (cold/warm/boiling) for the conditioning sequences, conditioning chamber (20/65 or 23/50), specimen cutting jig for the 2,5 mm flat‑bottomed kerfs, oblique lighting kit for wood‑failure assessment, thickness/caliper and moisture‑content measurement kit, calibration service per ISO 7500‑1.
