ASTM D905 Wood-to-Wood Adhesive Shear Tester | Compression Loading Test Machine | UnitedTest

ASTM D905 tests comparative shear strength of wood-to-wood adhesive bonds via compression loaded block shear specimens for adhesive screening, R&D and bonding process monitoring. UnitedTest supplies ASTM D905 compliant adhesive bond testing equipment for timber laboratories and adhesive manufacturers.

ASTM D905 is a widely accepted standard test method to measure comparative shear strength properties of adhesive bonds using compression loading on block shear specimens. Primarily designed for wood-to-wood bonded joints, this test assesses shear performance on lab-prepared assemblies under controlled compressive force. The method is suitable for adhesive screening, formulation research and development, plus ongoing bonding process monitoring. Results are used for relative material comparison and are not intended to calculate direct design strength for finished structural timber products.

This block shear test creates pure shear stress across the glue line to evaluate adhesive performance, bond quality and batch consistency. It is commonly used alongside ISO 6238 for wood adhesive qualification in timber, joinery, engineered wood and furniture raw material labs.

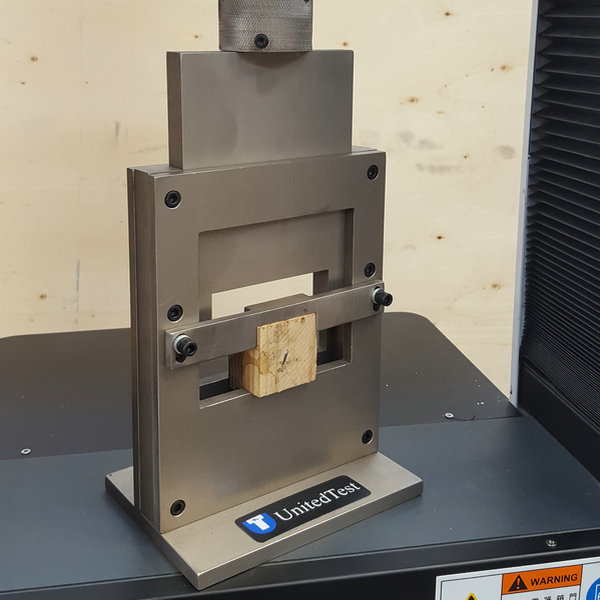

UnitedTest manufactures precision ASTM D905 compression loading shear testing machines. Our equipment delivers stable compressive force control and accurate force readouts, delivering repeatable shear strength data for adhesive R&D, incoming material inspection and production quality control.

Test Principle

Two wood blocks are bonded with the adhesive under study, conditioned, cut into standard staggered/lap shear specimens, and loaded in compression in a self-aligning shear tool. The tool applies a “guillotine” type compressive force so the bondline fails in shear parallel to the wood grain. Maximum load at failure is divided by the bondline area to obtain shear stress, and the percentage of wood failure is estimated separately. The method explicitly warns that it does not necessarily measure the “true” adhesive shear strength because wood strength, notch stress, fixture design, and loading rate all influence results.

ASTM D905 Wood Adhesive Compression Shear Test

Test Equipment required for ASTM D905 Wood Adhesive Compression Shear Test

Universal testing machine

Minimum compression capacity of 6810 kg (15 000 lbf). Must deliver constant cross‑head speed of 5 mm/min (0.20 in/min), tolerance ±25 %.

Machine shall maintain stable test‑chamber environment so specimen moisture content does not shift during testing.

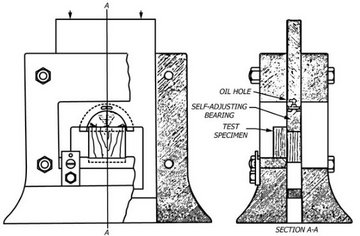

Self‑adjusting shearing‑tool fixture

Mandatory hardware with self‑aligning bearing and oil‑lubricated seat to guarantee uniform lateral load distribution across specimen.

Mis‑alignment creates invalid low‑strength test outcomes.

ASTM D905 Wood Adhesive Compression Shear Test

Auxiliary lab hardware

Precision dimensional measuring tools, reading to 0.25 mm (0.010 in), for measuring actual bond‑line shear area.

wood‑planing equipment, adhesive mixing & spreading tools, hot/cold pressing equipment for making bonded test blocks.

Test Specimen Information:

Reference wood substrate

Default reference wood is hard maple (Acer saccharum / Acer nigrum), minimum oven‑dry specific gravity 0.65. Wood must be straight‑grain, free of knots, decay, birdseye, short grain or discoloration in shear zone. Wood moisture before gluing is 10‑12 % unless adhesive manufacturer specifies alternative value. Bonding surfaces are freshly joint‑planed (unsanded), clean, and wood pairs are matched for similar specific gravity before gluing.

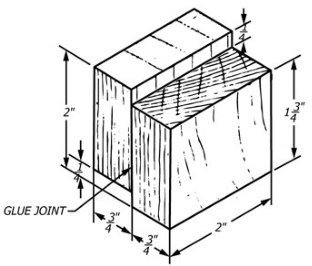

Specimen geometry

Single‑overlap compression‑shear specimen, metric dimensions approx. 44.4 mm overlap length × 50.8 mm width. Multiple specimens are sawn from one large glued block (five specimens per bonded assembly block recommended).

Specimen quantity requirement

Minimum 20 test specimens, sourced from at least four separate bonded joint blocks.

Test Parameters & Stipulations

Bonding variables: wood MC, mixing, spread rate/number of coats, one/both sides, open/closed assembly time, room temperature, press pressure, press time, bondline or ambient temperature—all per adhesive manufacturer unless otherwise agreed.
Loading rate: 5 mm/min ±25% to failure.
Calculation: shear stress = failure load ÷ bondline area; report kPa or psi. Bondline area measured to nearest 0.06 cm² (0.01 in²).
Wood failure %: estimated for each specimen/fracture face and averaged

Test Procedures for ASTM D905 Wood Adhesive Compression Shear Test

1. Collect adhesive‑process variables from adhesive manufacturer (mixing instruction, wood‑moisture requirement, spread rate, open/closed assembly time, pressing pressure‑time‑temperature, conditioning rules).

2. Prepare hard‑maple wood blocks: select qualified timber, joint‑plane bonding surfaces, pair blocks with matching specific gravity.

3. Mix and apply adhesive strictly per manufacturer recommendations, assemble wood pairs and apply curing pressure; mark bonded blocks uniquely.

4. Remove pressure and condition bonded assemblies under 23 °C / 50 %‑RH environment for required period (7 days or mass equilibrium, shorter of two).

5. Machine conditioned bonded blocks: trim, saw individual test specimens (minimum total 20 specimens from ≥4 bonded blocks). Keep specimens inside conditioning atmosphere except for brief cutting operations.

6. Measure real bond‑line shear‑area dimensions for each specimen.

7. Mount specimen inside self‑adjusting shearing‑tool fixture on compression tester. Run test at constant 5 mm/min cross‑head speed until joint fracture, record maximum failure load.

8. Evaluate percentage wood failure for each broken specimen following ASTM D5266 guidance.

9. Compute individual shear‑stress results, average value, max/min values and (optional) standard deviation.

10. Generate formal test report covering adhesive identification, bonding‑process conditions, conditioning data, test‑room climate, specimen count, individual or summary strength & wood‑failure data, deviations from standard method and test notes.

Industry Application Fields

Wood adhesive manufacturers: PVAc, urea-formaldehyde, phenol-formaldehyde, PRF, epoxy, PU, hot-melt, elastomer-based formulations.

Furniture, cabinet, joinery, flooring and carpentry adhesive QC.

Plywood, LVL, glulam and engineered-wood laboratories for bondline screening; note D905 is used in glulam QC frameworks such as ANSI/A190.1 and related programs, but structural approval usually needs additional structural standards.

R&D and formulation development: compare spread, press time, MC, temperature.

Third-party testing, procurement qualification, failure investigation.

Wood products where comparative shear performance matters more than full assembly design values

Related Stadard:

ISO 6237	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by tensile loading
EN 205	Adhesives - Wood adhesives for non-structural applications - Determination of tensile shear strength of lap joints
ASTM D906	Standard Test Method for Strength Properties of Adhesives in Plywood Type Construction in Shear by Tension Loading
JIS K6802	Phenolic resin adhesives for wood
BS 5350-C5	Methods of test for adhesives - Determination of bond strength in longitudinal shear for rigid adherends
ASTM D143 / BS 373	wood shear/physical property testing; Instron lists ISO 6238 with ASTM D143, JIS K6802, JIS Z2117, BS 373, JAS 601 for wood shear.
EN 205	non-structural wood adhesives, tensile shear of lap joints.
EN 302	Series adhesives for load-bearing timber structures, including shear test methods and shrinkage effects.
EN 17224	Determination of compressive shear strength of wood adhesives at elevated temperatures
ISO 13445	Block shear for rigid substrates; broader adhesive shear, not wood-specific.
GB/T 33333	Determination of shear strength by tensile loading in wood adhesives
ISO 6238	Adhesives - Wood-to-wood adhesive bonds - Determination of shear strength by compressive loading
ASTM D905	Standard Test Method for Strength Properties of Adhesive Bonds in Shear by Compression Loading

Keywords: ASTM D905 adhesive bond shear tester,wood to wood adhesive compression shear test machine,block shear specimen wood glue strength test rig,wood adhesive screening test apparatus,timber adhesive R&D testing system,adhesive bonding process monitoring equipment,wood glue line shear strength analyzer,lab prepared wood joint shear test machine,engineered wood adhesive performance tester,joinery adhesive comparative strength test instrument,wood adhesive batch quality inspection rig,compression loading shear test fixture

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

UnitedTest manufactures and exports compressive shear test fixtures, ISO 6238 wood adhesive shear jigs, ASTM D905 block shear fixtures, ASTM D4501 rigid‑substrate shear tools, and compatible universal testing machines. Buy ISO 6238 and ASTM D905 compressive shear test fixtures from UnitedTest.

Vice Tensile test fixture for plastics is based on the test standatd ASTM D638, determination of the tensile properties of unreinforced and reinforced plastics in the form of standard dumbbell-shaped test specimens when tested under defined conditions of pretreatment, temperature, speed.

Q1: What is ASTM D905 test used for?

A1: ASTM D905 is a laboratory‑only comparative test for wood‑bonding adhesives. It measures apparent shear strength of lab‑made wood‑to‑wood bonded joints under compressive load. It supports adhesive R&D, formulation comparison, incoming QC, bonding‑process optimisation and supplier‑customer qualification. It is NOT for testing finished commercial wood products or directly generating structural design shear values.

Q2: Why is ASTM D905 important for wood adhesive materials?

A2: It delivers repeatable, North‑American‑market‑accepted benchmark data to rank different wood adhesives and bonding parameters. Two critical outputs are generated: apparent shear strength and percentage wood failure. High wood failure means bond performance exceeds wood substrate strength, indicating good adhesive performance. The standard explicitly warns test results contain inherent bias caused by wood strength, fixture stress concentration and loading‑rate effects, preventing unsafe misuse of lab data for real‑world structural engineering without correction factors. It also provides documented precision data to help labs interpret data scatter for different adhesive chemistries (thermoset, thermoplastic, elastomer‑based adhesives).

Q3: What are specimen quantity requirements for ASTM D905?

A3: Minimum 20 test specimens, sourced from no fewer than four separate bonded wood blocks. Multiple source blocks are mandatory to account for natural wood property variation. Up to five specimens can be cut from one large bonded assembly block. Grain direction must run parallel to test‑loading direction.

Q4: What reference wood shall I use for ASTM D905 testing?

A4: The standard specifies hard maple (Acer saccharum / Acer nigrum) with minimum oven‑dry specific gravity of 0.65. Wood must have straight grain; no knots, decay, birdseye or short‑grain defects within the shear zone. Wood moisture before gluing is 10‑12 % unless the adhesive manufacturer specifies other values. Bonding surfaces are freshly joint‑planed (unsanded), clean, and wood pairs are matched for similar specific gravity before gluing. Other wood species may be used only with written agreement of involved parties.

Q6: What cross‑head speed should I run for ASTM D905? How is this different from ISO 6238?

A6: ASTM D905 defines fixed cross‑head speed: 5 mm/min (0.20 in/min), tolerance ±25 %. In contrast, ISO 6238 controls specimen failure‑time window (60 ± 20 seconds) instead of setting fixed cross‑head speed. Loading rate significantly affects measured strength for viscoelastic thermoplastic adhesives such as PVAc and hot‑melts, while thermosetting adhesives show lower sensitivity to speed changes.

Q7: What is wood‑failure percentage and how to evaluate it in ASTM D905?

A7: Wood‑failure percentage estimates how much fracture area breaks within wood substrate rather than along adhesive or interfacial planes. Evaluation follows ASTM D5266 standard practice. Both fracture surfaces are assessed together, and the percentage is estimated relative to actual fractured area of the bond‑line. High wood‑failure is desirable for high‑performance wood glues.

Q8: What is the most critical piece of test hardware for valid ASTM D905 results?

A8: The self‑adjusting (self‑aligning) compressive shearing‑tool fixture. Without the self‑aligning bearing seat, eccentric / uneven load distribution occurs and produces falsely‑low shear‑strength readings. The fixture geometry is illustrated in the standard’s Figure 1, and oil‑lubricated seats are specified for smooth alignment during compression testing.

Q9: Can ASTM D905 shear‑stress values directly be used as structural design strength values for glued‑wood components?

A9: No. The standard clearly states measured values are comparative apparent shear strength, not true adhesive shear strength. Stress concentration at specimen notches, wood‑substrate strength, fixture geometry and loading‑rate all introduce bias. If used for structural design, engineering correction / safety factors must be applied to raw test numbers.

Q10: What common factors cause high variability / high coefficient‑of‑variation in ASTM D905 test results?

A10: Key sources of scatter:

Natural variation in wood density, grain and growth‑ring orientation;

Non‑uniform adhesive spread, inconsistent wood moisture before bonding;

Worn or mis‑aligned self‑adjusting shear fixture causing eccentric loading;

Specimen‑cutting error: saw cuts penetrating the bond‑line;

Insufficient number of parent bonded blocks;

Deviations from conditioning temperature / humidity requirements;

Viscoelastic behaviour of thermoplastic / elastomer‑based adhesives, sensitive to small loading‑rate changes.

Q11: What documents must be included in a formal ASTM D905 test report?

A11: The report needs adhesive full identification, bonding / spreading / pressing conditions, specimen conditioning procedure, test‑room temperature and RH, number of specimens and parent bonded blocks, maximum/minimum/average shear‑stress, average wood‑failure percentage. Individual test values or standard deviation may be optionally reported, plus any deviations from standard method and test date.

Q12: What standards are closely‑related to ASTM D905?

A12: ‑ ISO 6238:2018: International counterpart for compressive‑shear wood‑adhesive test (major differences in loading control, conditioning rules and reference‑wood requirements).

‑ ASTM D5266: Practice for estimating percentage wood‑failure (normative reference).

‑ ASTM D143: Timber test methods for reference‑wood characterisation and moisture‑content measurement.

‑ ASTM D907: Terminology for adhesives.

‑ ISO 6237: Wood‑to‑wood shear under tensile‑loading mode.

Q13: Why choose UnitedTest ASTM D905 Wood Adhesive Shear Test Machine, Compression Shear Tester?

A13: UnitedTest manufactures ASTM D905‑08(R21) compressive shear testing machine and self‑adjusting shearing fixture for wood‑to‑wood adhesive bond shear strength test. Full‑compliance lab equipment for wood‑glue R&D, quality‑control and qualification testing. Request your technical datasheet & quotation.

UnitedTest is a global professional manufacturer of material mechanical testing equipment, delivering complete ASTM D905‑08 (Reapproved 2021) compliant test solutions for adhesive manufacturers, wood product R&D labs, furniture factories and third‑party test laboratories across North‑American and global markets.

ASTM D905 defines the compressive‑loading test method for comparative shear‑strength evaluation of laboratory‑prepared wood‑to‑wood adhesive joints, widely used for characterising PVAc, phenol‑resorcinol‑formaldehyde, urea‑formaldehyde, casein, hot‑melt and bio‑based wood adhesives. Reliable and repeatable test data strictly depends on a qualified universal testing machine plus the mandatory self‑adjusting shearing‑tool fixture specified in the standard.

UnitedTest’s ASTM D905 complete test package includes: ‑ Universal compression‑capable testing machine with stable constant cross‑head speed control (5 mm/min ±25 % tolerance as required by ASTM D905), high‑accuracy force measurement. Software supports automatic calculation for apparent shear stress, max/min values, average value, wood‑failure statistics and editable ASTM‑D905‑format test‑report templates. ‑ ASTM‑D905‑specific self‑adjusting compressive‑shear fixture with self‑aligning bearing and oil‑lubricated seat, strictly following standard Figure 1 drawing. Eliminates eccentric‑loading errors that produce invalid low‑strength test data. Fits standard maple‑based specimens for ASTM D905. ‑ Optional auxiliary accessories: precision dimensional measuring kits, lighting assembly for wood‑failure percentage assessment (per ASTM D5266 practice).

Our test system covers the full ASTM D905 workflow: capture maximum failure load, record wood‑failure percentage, run statistical analysis and export formal test reports, fully complying with all clauses of ASTM D905‑08(R21).

Why choose UnitedTest for your ASTM D905 test setup?

✅ Full compliance with ASTM D905‑08(R21); also compatible with ISO 6238, ASTM D143 related wood‑adhesive test standards.

✅ Self‑adjusting shear‑fixture design ensures uniform lateral load distribution, minimises test‑result variability.

✅ Powerful test software automates shear‑stress calculation, summary statistics and lab‑report generation.

✅ One‑stop service: equipment configuration consultation, fixture installation guidance, operator training and after‑sales calibration support.

✅ Customisable solutions for high‑volume adhesive QC batch‑testing or small‑batch R&D evaluation work.

If you are sourcing ASTM D905 compressive‑shear test machine or replacement self‑adjusting shearing‑tool fixture for wood‑adhesive bond testing, please contact UnitedTest for technical datasheet and custom quotation.
