EN 21974 Paper and board Elmendorf Tear Test

Share:

EN 21974 Elmendorf Tearing Resistance Tester for Paper and Board | UnitedTest

UnitedTest supplies EN 21974 Elmendorf tearing resistance testing machines for paper, light board, liner and fluting of corrugated fibreboard. This pendulum test measures paper tear strength and tearing resistance following the Elmendorf method.


EN 21974 defines the Elmendorf pendulum method to test the tearing resistance of paper and board materials. This standard applies to paper, light boards within the instrument measuring range, and liner or fluting components for corrugated fibreboard. It does not apply to finished corrugated fibreboard or cross-direction tear testing of highly directional paper and board. UnitedTest manufactures reliable Elmendorf tearing testers complying with EN 21974 for paper and packaging laboratory quality control.


Core Test Principle

A stack of superimposed paper sheets (normally four plies) with a pre‑made initial slit is clamped between a stationary frame clamp and a pendulum‑mounted clamp. When released, the pendulum swings in a plane perpendicular to the specimen surface and propagates the pre‑cut tear over a fixed tearing length of 43.0 mm ± 0.5 mm. The potential‑energy loss of the pendulum corresponds to the work consumed to tear the paper. Average tearing force is derived from this energy loss, and single‑sheet tearing resistance is calculated by dividing by the number of test plies.

EN 21974 Paper and board Elmendorf Tear Test


Test Specimen Specifications

  • Specimen shape: rectangular sheets, width 50 mm ± 2 mm to 76 mm ± 2 mm; length depends on instrument clamp design (common sizes: 50 × 63 mm, 50 × 65 mm, 63 × 76 mm).

  • Specimen stack: standard test piece consists of four superimposed sheets; all sheets must have identical side orientation; sheet edges shall not stick together.

  • Sampling: Follow ISO 186 sampling standard. Specimens must avoid sheet edges (keep ≥15 mm away from paper reel/sheet edges). No folds, creases or visible damage in the tearing zone. Watermarks shall be noted in the test report if present.

  • Quantity: Minimum 10 valid replicate tests for each testing direction (machine‑direction MD / cross‑direction CD); equals at least 40 individual sheets per direction.


Test Equipment of EN 21974 Paper and board Elmendorf Tear Test

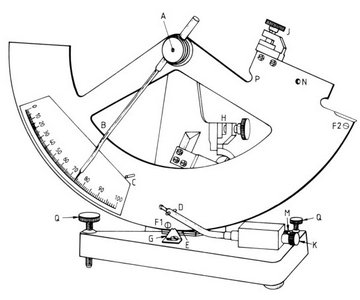

Elmendorf tear tester

Mechanical pointer‑type or digital‑transducer‑equipped apparatus complying with Annex‑A dimensional requirements.

  • Two clamps (stationary and pendulum‑mounted); clamping surfaces ≥25 mm wide ×15 mm deep. Pendulum bearing shall have low friction.

  • Pendulum release mechanism, pointer‑zero adjustment device, optional built‑in cutting knife for initial slit preparation.

  • Interchangeable pendulums / augmenting masses for different force capacities (range: 200 gf / 2000 mN up to 6400 gf / 64000 mN).

ISO 6383-2 Plastic film Elmendorf tear test

  • Gap between clamps in starting position: 2.8 mm ± 0.3 mm.

  • Tearing travel distance after pre‑cut: 43.0 mm ± 0.5 mm.

Specimen‑cutting tools

die, guillotine or template‑knife assembly for precise specimen cutting.


Test Parameters

SamplingISO 186
GrammageISO 536 (g/m²), needed for tear index
Reading rangeMean readings ideally 20 %–80 % of full scale (outside values may be noted)
Tear length43.0 ± 0.5 mm
Pliesn (normally 4); pendulum factor p (4, 8, 16, 32)
UnitsmN; gf instruments × 9.81 → mN; tear index always in mN·m²/g (Annex C)
ReportingTearing resistance and tear index to three significant figures, plus coefficient of variation


Test Procedures of EN 21974 Paper and board Elmendorf Tear Test

  1. Instrument preparation: Level the tester; perform zero adjustment; check pendulum bearing friction and pointer friction; calibrate per Annex B if necessary. Select suitable pendulum/mass combination so readings land within 20‑80 % full‑scale range.

  2. Place the four‑sheet specimen stack into clamps; produce the initial slit (either pre‑cut or by the tester’s built‑in knife). Set pointer to zero stop.

  3. Release pendulum sharply. Catch pendulum gently on return swing without disturbing pointer position; record scale reading. For digital testers follow manufacturer’s operating instructions.

  4. Alternate specimen surface orientation (side‑one toward pendulum / side‑two toward pendulum) between replicates.

  5. Evaluate tear‑path deviation: If tear deviates >10 mm. Reject those results when >2 of 10 replicates show large deviation, and run extra specimens to reach 10 valid tests. If “skinning” (inter‑layer peeling) occurs, judge deviation against the centre‑line of the peeled tear band.

  6. If four‑ply testing cannot produce usable data, adjust number of plies (more or fewer sheets), and explicitly record this deviation in test report.


Result Calculation Rules:


  • Tearing resistance: R = (F̄ × p) / n  — where F̄ = mean scale reading (mN), p = ply number for which the scale is calibrated (4, 8, 16, 32), n = plies actually torn (normally 4).

  • Tear index: X = R / g — where g = grammage (g/m²).

  • Calculate the coefficient of variation from the individual scale readings, for each direction separately.


Industrial Application Fields

  • Applicable materials: Paper and light‑weight thin boards, within instrument force range. Can test individual component layers of corrugated fibreboard.

  • Limitations: Not valid for complete corrugated fibreboard panels; not suitable for cross‑direction tearing‑resistance measurement of highly anisotropic (highly directional) paper/boardISO.

  • Industry use: Paper mills, packaging industry, printing‑paper producers, paper‑converting factories, third‑party testing laboratories. Used for incoming‑material inspection, production quality control, pulp‑formula development, finished‑paper performance evaluation for wrapping, printing, writing and specialty papers.


Related Standard:

ISO 1974Paper - Determination of tearing resistance - Elmendorf method
ASTM D689Standard Test Method for Internal Tearing Resistance of Paper
GB/T 455Paper and board--Determination of tearing resistance
TAPPI T414

Internal Tearing Resistance of Paper (Elmendorf-Type Method)

TCVN 3229

Paper. Determination of tearing resistance (Elmendorf method)

ISO 6383-2Plastics; Film and sheeting; Determination of tear resistance; Part 2 : Elmendorf method
ASTM D1922

Standard Test Method for Propagation Tear Resistance of Plastic Film and Thin Sheeting by Pendulum Method

EN 21974Paper and board — Determination of tearing resistance (Elmendorf method);
DIN 53128

Elmendorf Tearing Resistance (Paper)

National paper test standards aligned with ASTM D689 for regional markets (e.g., SCAN P11, Canadian PAPTAC D.9, Chinese GB/T 16578).


Key Differences: ASTM D689 vs. ISO 1974 vs. TAPPI T414

While all three share the Elmendorf principle, notable distinctions include:

AspectASTM D689ISO 1974TAPPI T414
Standard instrument1600 gf capacity, 16 plies typicalMulti-capacity, 4 plies standardSimilar to ASTM
Ply count logicTarget ~40% of full scale; 4-ply + lower capacity allowed for weak papers4 plies (recommended)Variable, often 16 plies
Specimen width63.0 ± 0.15 mm50 ± 2 mm (25-mm clamps) or 76 ± 2 mm (36-mm clamps)63 ± 1 mm
Jaw widthMinimum 25 mm (historically 36 mm in US)25 ± 1 mm or 36 ± 1 mmTypically 25 mm or 36 mm
Tearing distance43.0 ± 0.2 mm43.0 ± 0.5 mm43.0 mm
Clamp-axis distance103.0 ± 0.1 mm102.7⁻⁰·⁵ mmSimilar to ASTM
Highly directional materialsExplicitly NOT suitable for CD tearingNot ideal for CD of highly directional papersRequires TAPPI T496 arc specimen for CD
ReportingmN or gf per ply; tear index optionalmN per sheet; tear index (mN·m²/g)mN or gf


Keywords: EN 21974 tearing resistance tester, Elmendorf tear tester, Elmendorf pendulum method, paper tearing resistance test, paper tear strength tester, board tear resistance machine, corrugated liner tear test, fluting medium tearing test, packaging material testing equipment, paper lab testing instrument, UnitedTest tearing tester, UnitedTest ASTM D689 tester, ASTM D689 Elmendorf tearing tester, paper internal tearing resistance test machine, Elmendorf-type paper tear strength testing equipment, ASTM D689 single sheet multi-sheet paper tear resistance analyzer, Elmendorf tearing tester aligned with ISO 1974 TAPPI T414, perpendicular tear force paper laboratory test rig, highly directional paper cross-direction tear test limitation ASTM D689, pulp and packaging paper internal tearing strength QC testing machine

Related products and device

EN 21974 Paper and Board Elmendorf Tearing Resistance Test machine

Elmendorf Tearing Tester is designed for the tearing test of films, sheets, flexible PVC, PVDC, waterproof films, woven materials, polypropylene, polyester, paper, cardboard, textiles and nonwovens.

tensile testing machine for paper

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Related Standard

ISO 1974 Elmendorf paper tearing resistance test –

ISO 1974 Paper – Determination of tearing resistance – Elmendorf method

ISO 1974 defines the universal Elmendorf pendulum test to measure the out-of-plane tearing resistance of paper and lightweight paperboard, and specifies the full technical chain from sampling, specimen preparation, equipment calibration, operation to result calculation.

ISO 6383-2 Plastic film Elmendorf tear test –

ISO 6383-2 Plastics — Film and sheeting — Determination of tear resistance — Part 2: Elmendorf method

ISO 6383-2 specifies the Elmendorf pendulum method to measure the force required to propagate an existing pre-cut slit across thin flexible plastic film and sheeting under standardized loading conditions.


ASTM D1424 Elmendorf Tear Strength Test for Fabric –

ASTM D1424 Standard Test Method for Tear Strength of Fabrics by Falling-Pendulum (Elmendorf) Apparatus


ASTM D1424 specifies the procedure for determining the force required to propagate a single tear through a fabric using the Elmendorf (falling-pendulum) tester. The test method is a single-tear (tongue) test. A rectangular specimen is slit partway along its length to create two tongues. The tear propagates from the slit across the width of the specimen.

ASTM D1922 Elmendorf Tear Test for plastic films and thin sheeting tear resistance –

ASTM D1922: Standard Test Method for Propagation Tear Resistance of Plastic Film and Thin Sheeting by Pendulum Method.

ASTM D1922 defines a laboratory method to measure the average force required to propagate (continue) a tear through a plastic film or non-rigid thin sheeting, after the tear has already been started. The test uses an Elmendorf-type pendulum tearing tester. It is applicable to plastic film (arbitrarily defined as sheeting ≤ 0.25 mm / 0.010 in.) and thin non-rigid sheeting, and is equivalent to ISO 6383-2.

ASTM D1004 Tear Resistance (Graves Tear) of Plastic Film and Sheeting –

ASTM D1004: Standard Test Method for Tear Resistance (Graves Tear) of Plastic Film and Sheeting


ASTM D1004 is a test method that determines the tear strength of flexible plastic film and sheeting at very low rates of loading using a constant-rate-of crosshead-movement type tensile testing machine. Tearing is produced in a small area of stress concentration of the plastic film or sheeting specimen at controlled speeds below the rate encountered in real world applications in order to produce the most reliable data, which can be used to compare and analyze the tear resistance. Actual use of performance in tearing of certain plastics may not necessarily corralate with the data acquired from this test method. The specimen geometry of this test method produces a stress concentration in a small area of the specimen. The maximum stress, usually found near the onset of tearing, is recorded as the tear resistance in newtons (or pounds-force). The method is not applicable for film or sheeting material where brittle failures occur during testing or where maximum extension is greater than 101.6 mm (4 in.).

ISO 527-3 Tensile Test on Plastic Film –

ISO 527-3 Plastics - TENSILE PROPERTIES - PART 3: FOR FILMS AND SHEETS

ISO 527-3 specifies the test conditions for determining the tensile properties of plastic films and sheets with a thickness less than 1 mm, based on the general principles of ISO 527-1. Provides standardized procedures to measure critical mechanical parameters including tensile strength, yield strength, elongation at break, and Young's modulus for thin plastic materials. It is critically important because thin films behave very differently under stress compared to rigid plastics; they are more prone to tearing, slipping, and deformation. By standardizing the test conditions, this document ensures that material specifications, quality control, and research data are globally comparable and reliable.  Specimen created following ISO 527-3 can be used to determine the tensile properties of thin plastic sheets and films including the tensile modulus of elasticity and the tensile energy to break (TEB).

ASTM D689 Internal Elmendorf Tearing Resistance Test of Paper –

ASTM D689 Standard Test Method for Internal Tearing Resistance of Paper


ASTM D689 determining the internal tearing resistance of paper using an Elmendorf-type tearing tester. It measures the force perpendicular to the plane of the paper required to tear multiple sheets of paper through a specified distance after the tear has been started. The measured results can be used to calculate the approximate tearing resistance of a single sheet. In the case of tearing a single sheet of paper, the tearing resistance is measured directly. ASTM D689 explicitly states that similar procedures for making Elmendorf-type tear measurements are found in ISO 1974 and TAPPI T414. It is not suitable for determining the cross-directional tearing resistance of highly directional boards and papers.

FAQs for EN 21974 (Elmendorf Paper Tearing‑Resistance Test)

Q1. What is EN 21974?

EN 21974:1994 — "Paper — Determination of tearing resistance (Elmendorf method)" — is the European Standard identical to ISO 1974:1990. It specifies a pendulum (Elmendorf) method for measuring the force needed to propagate a tear that has been started by an initial cut in paper. Results are reported as tearing resistance (mN) and tear index (mN·m²/g). In the UK it was published as BS EN 21974:1994, replacing BS 4468:1969.


Q2. How does EN 21974 relate to ISO 1974, TAPPI T 414 and ASTM D689?

They are the same physical principle (pendulum energy loss) but not numerically interchangeable:

  • ISO 1974 / EN 21974: normally 4 plies, pendulum factor p = 4/8/16/32.

  • TAPPI T 414: typically 16 plies, 63 ± 1 mm wide specimens.

  • ASTM D689: standard 1600 gf capacity, 16 plies, jaw gap 2.8 ± 0.3 mm, axis-to-jaw 103.0 mm, target ≈ 40 % of scale.

Because apparent tearing resistance changes with ply count (1‑ply vs 4‑ply can differ by more than 20 %), always state the ply number and pendulum factor with the result.


Q3. What exactly is measured — "tear strength" or "tearing resistance"?

EN 21974 defines tearing resistance: the mean force required to continue a tear already started by a cut, for one sheet, expressed in millinewtons (mN). It is not the force to initiate a tear, and it is not an edge-tear test.


Q4. What is the difference between tearing resistance and tear index?

  • Tearing resistance (R) = mean force per sheet, in mN — an absolute, thickness/grammage-dependent value.

  • Tear index (X) = R ÷ grammage, in mN·m²/g — normalises out basis weight so you can compare 40 g/m² and 120 g/m² papers or set grammage-independent specs.

Formulas: R = (F̄ × p) / n and X = R / g, where F̄ = mean scale reading, p = pendulum factor, n = plies torn, g = grammage (ISO 536).


Q5. How do I choose the right pendulum capacity?

Run trial tests and select a pendulum (or pendulum + augmenting mass) so the mean reading falls between 20 % and 80 % of full scale. Readings outside that band may be used but must be flagged in the report.


Q6. What are the specimen dimensions?

Four rectangular sheets per test piece, same side up, edges parallel to the test direction, 50 ± 2 mm to 76 ± 2 mm wide, with an untorn length of 43.0 ± 0.5 mm after the initial cut. Typical clamp-dependent sizes: 50 × 63 mm, 50 × 65 mm, 63 × 76 mm. No folds/creases/defects, cut ≥ 15 mm from the sheet or reel edge, edges free and not stuck together.


Q7. How many specimens do I need?

A minimum of 10 valid tests in each principal direction (MD and CD) — i.e. at least 40 sheets per direction. More plies or fewer plies than four are allowed when four cannot give usable results, but this must be stated in the report.


Q8. Why four sheets at once?

A single sheet often falls below the usable range of the pendulum. Four plies amplify the signal, but note apparent tearing resistance depends on ply number: the 1‑ply vs 4‑ply difference can exceed 20 %, and 4‑ply vs up to 16‑ply differences, though smaller, can still be significant.


Q9. Why is the Elmendorf tear test important for paper?

  • It measures crack propagation, not crack initiation. Real failures — a web break on the paper machine, a torn sack corner, a split envelope, a runaway tear in a printed web — are propagation failures. Tensile and burst tests do not predict them.

  • It is the cheapest window into fibre quality. Tear responds strongly to fibre length, refining and filler, so it flags furnish or refiner changes long before customers complain.

  • It indicates anisotropy. MD vs CD tear quantifies fibre orientation, which drives curl, dimensional stability and converting behaviour.

  • It normalises across grades. The tear index lets mills benchmark 40 g/m² tissue against 120 g/m² sack paper.

  • It is contract language. Because it is an EN/ISO method with defined calibration and reporting rules, results are defensible in supplier–customer specifications.


Q10. Which industries rely on it?

Paper and board mills (QC/process control), packaging papers (sacks, bags, wrappers, envelopes), corrugating components (liner and fluting), printing and converting, tissue and towelling, label and release liners, filter and specialty papers, electrical insulating papers and pressboard (EN 60641‑2, EN 60554‑2), plus third-party testing laboratories and R&D on refining and furnish design.


Q11. What are the most common mistakes labs make?

Using the wrong pendulum capacity (readings outside 20–80 %), mixing ply counts between reports, letting specimens dry out between conditioning and testing, a blunt or misaligned knife, ignoring pendulum/specimen friction, not alternating sheet side toward the pendulum, and reporting a mean without the coefficient of variation or pendulum factor.


Q12. Why choose EN 21974 (ISO 1974) Elmendorf Paper Tearing‑Resistance Tester from UnitedTest?

UnitedTest manufactures high‑precision EN 21974 / ISO 1974 Elmendorf Tear Tester for paper & light board tearing‑resistance measurement. Digital Elmendorf pendulum tear testing machine fully compliant with EN 21974, ISO 1974 standards for paper mills, packaging labs & third‑party testing laboratories. Custom pendulum capacities, automatic cutting knife, English‑language report output available.


UnitedTest is a professional manufacturer of laboratory paper testing instruments, supplying Elmendorf‑type tearing resistance testers fully compliant with EN 21974:1994 and ISO 1974 standards. Our digital Elmendorf tear tester measures paper and lightweight board tear resistance via pendulum energy‑loss principle, supporting both machine‑direction (MD) and cross‑direction (CD) tear‑strength evaluation for quality‑control, R&D and incoming‑material inspection.

Designed to meet all critical dimensional and performance requirements from EN 21974 Annex A: fixed 43.0 mm tearing‑length, accurate clamp‑gap control, interchangeable pendulum / augmenting masses for multiple measuring ranges (200 gf‑6400 gf / 2000 mN‑64000 mN). Built‑in precision cutting knife creates standardized initial slit for test specimens. Digital sensor system replaces traditional mechanical pointer, avoids human reading error, directly outputs tearing resistance (mN) and tear‑index results (mN·m²/g).

✅ Compliance: EN 21974:1994, ISO 1974:1990 / EN ISO 1974:2012

✅ Supports 4‑ply standard specimen stack, also allows adjustable ply‑count testing

✅ Automatic calculation for mean value, coefficient of variation, tear‑index

✅ English‑language UI, built‑in report print / data export function

✅ Complete levelling, zero‑calibration and friction‑verification functions as required in EN 21974 Annex A & Annex B

✅ Widely used for pulp‑paper mills, packaging converters, printing factories, third‑party test laboratories and university material‑research labs across Europe, Southeast Asia and Middle‑East markets.


With UnitedTest EN 21974 Elmendorf tear strength tester, you get repeatable, audit‑ready test data for paper quality certification, supplier qualification and product‑performance comparison. Our engineering team provides installation guidance, calibration training and long‑term after‑sales support for all our paper‑testing laboratory equipment.
