ISO 6383-2 Standard | Elmendorf Pendulum Tear Resistance Test Machine for Plastic Film & Sheeting | UnitedTest

UnitedTest is a professional manufacturer specializing in ISO 6383-2 compliant Elmendorf tear testing machines for flexible packaging, plastic film and sheet production labs globally.

ISO 6383-2 Plastics — Film and sheeting — Determination of tear resistance — Part 2: Elmendorf method is the internationally recognized standard governing the Elmendorf pendulum tear test. This standard establishes uniform laboratory procedures to quantify the average force needed to fully propagate a pre-cut slit through thin, flexible plastic film and sheeting under calibrated, standardized pendulum loading conditions.

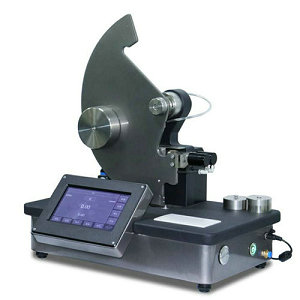

Our UnitedTest Elmendorf tear tester precisely follows all pendulum weight calibration, specimen cutting, clamping and measurement requirements defined in ISO 6383-2. It delivers repeatable tear resistance data for material quality control, new polymer formulation R&D and export compliance verification for plastic film, shrink film, composite packaging sheets and other flexible plastic substrates.

Core Test Principle

The test follows the energy conservation principle of a weighted pendulum:

A sector-shaped pendulum is lifted to a fixed starting position to store potential energy.

A pre-slit specimen is clamped between stationary and pendulum-mounted movable jaws.

The pendulum is released and swings freely, pulling the specimen to extend the pre-made slit over a fixed tearing distance of 43.0 ± 0.5 mm.

The energy consumed to tear the specimen is calculated from the pendulum’s residual swing angle, converted to tear resistance force in Newtons (N).

Definition: Tear resistance = the force (N) needed to propagate a tear per the standard procedure.

ISO 6383-2 Plastic film Elmendorf tear test

Test Specimen Specifications

Two specimen designs are defined; the constant-radius specimen is the preferred referee sample for better result reproducibility.

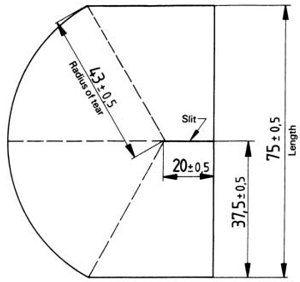

Constant-radius specimen

Curved tear zone with 43 mm tearing radius; eliminates excessive oblique tearing bias.

ISO 6383-2 Plastic film Elmendorf tear test

Rectangular specimen

Full width 63 mm flat rectangle; tear deviation >10 mm from the slit line invalidates the test result.

ISO 6383-2 Plastic film Elmendorf tear test

Total specimen length: 75 mm; vertical midpoint split at 37.5 mm

Pre-cut slit length: 20 mm, no nicks or rough edges (critical for repeatability)

Separate testing for Machine Direction (MD, longitudinal) and Transverse Direction (TD) tear resistance.

Minimum 5 specimens per direction; low-tear-strength films may stack multiple specimens at once (avoid opposite oblique tearing which causes false high readings).

ISO 6383-2 Stipulated Test Equipment (Elmendorf Tear Tester for plastic film):

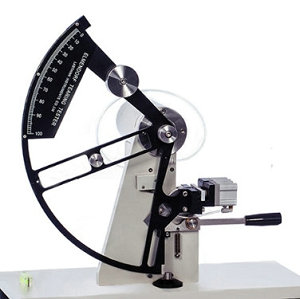

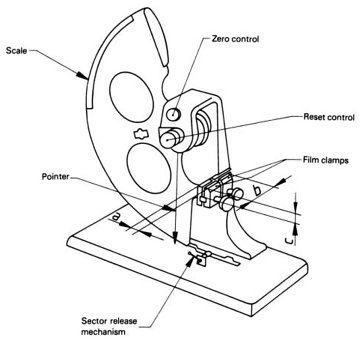

Elmendorf tear tester

Pendulum locking & shock-free release mechanism

Calibrated circumferential scale + pointer (accuracy within 1% after friction/windage correction)

Interchangeable incremental masses: expand the tester’s maximum tearing force capacity.

ISO 6383-2 Plastic film Elmendorf tear test

Fixed jaw + pendulum movable jaw assembly

Horizontal jaw clamping width ≥25 mm, vertical clamping height ≥15 mm; jaw thickness 9–13 mm.

Jaw separation at pendulum rest position: 2.8 ± 0.3 mm.

Pendulum suspension axis to jaw top edge distance: 104 ± 2 mm, with a 27.5° ± 30’ angle relative to the specimen plane.

Test Parameters

Pendulum energy utilization	20–80 % of total pendulum energy per test (adjust with added masses or grouped specimens)
Tearing length	43.0 ± 0.5 mm
Rejection criteria	• Constant‑radius: tear deviates outside constant‑radius section → reject • Rectangular: tear deviates >10 mm from slit line → reject (unless following embossed pattern) If deviation persists → switch to constant‑radius specimen

Test Procedures of ISO 6383-2 Plastic film Elmendorf tear test:

Thickness Measurement: Measure specimen thickness via ISO 4591 gravimetric or ISO 4593 mechanical scanning method (mechanical scanning invalid for embossed films).

Instrument Pre-Check: Level the tester, lift pendulum, reset pointer to zero; release pendulum empty to verify zero alignment, adjust if needed.

Range Trial Test: Run preliminary tests to select appropriate pendulum weights or single/multi-specimen stacking to meet the 20–80% energy absorption rule; re-zero after weight changes.

Specimen Mounting: Clamp single/stacked specimens tightly, centre the pre-cut slit between fixed and movable jaws; use the integrated knife to cut the slit if the machine is equipped.

Tear Execution: Lock the pendulum, reset pointer, release pendulum smoothly, record the scale reading after tearing completes.

Rejection & Retest: Remove invalid specimens per deviation rules, supplement new samples to reach the required 5 valid replicates per direction.

Calculation: Convert scale readings to individual tear resistance (N) accounting for stacked specimens and added pendulum masses; compute arithmetic mean and standard deviation (if requested) for MD and TD separately.

Industrial Application Fields

Flexible Packaging Industry: Food pouches, stretch wrap, lidding films, shopping bags, shrink film – assess resistance to accidental tearing during filling, shipping, consumer opening.

Agricultural Films: Mulch film, greenhouse sheeting – evaluate durability against sharp crop debris, wind abrasion.

Flexible PVC & Polyolefin Converting: Waterproof thin sheets, protective surface films for electronics.

Quality Control & Material Acceptance: In-line production monitoring, incoming raw material qualification, finished product compliance verification against material specifications.

R&D Material Development: Compare tear performance of modified polymer blends, additive formulations, and multi-layer coextruded films.

Related Standard:

ISO 6383-2	Plastics; Film and sheeting; Determination of tear resistance; Part 2 : Elmendorf method
ASTM D1922	Standard Test Method for Propagation Tear Resistance of Plastic Film and Thin Sheeting by Pendulum Method
JIS K 7128-2	Plastics -- Film and sheeting -- Determination of tear resistance -- Part 2: Elmendorf tear method
GB/T 16578.2	Plastics - Film and sheeting - Determination of tear resistance - Part 2: Elmendorf method
BS 2782-3:METHOD 360A	Methods of testing plastics. Mechanical properties. Determination of tear resistance of plastics film and sheeting by the Elmendorf method
ISO 6383-1	Trouser tear: Slow constant-rate tensile test on trouser-shaped specimens, suitable for thicker flexible/rigid sheets, measures steady-state tear force under slow pulling.

Importance of ISO 6383-2 Tear Testing for Plastic Materials

Predict Real-World Service Failure: The test quantifies a material’s ability to stop small slits/punctures from spreading into full rupture – a common failure mode for thin films during handling, transport, and daily use. Tensile strength only measures initial breakage, while tear resistance evaluates damage propagation behaviour.

Directional Material Performance Insight: Plastic films have anisotropic mechanical properties (different MD vs TD tear strength from extrusion stretching). The test quantifies both directions to avoid one-directional weak points in finished products.

Standardized Comparability: Uniform specimen geometry, conditioning, instrument calibration, and calculation rules enable consistent, repeatable lab-to-lab data for raw material selection, batch production QC, and supplier acceptance testing.

Product Performance Balancing: Enables formulation optimization: too low tear resistance causes easy rupture; excessively high tear strength creates consumer inconvenience (hard-to-open packaging).

Regulatory & Contract Compliance: Test results per ISO 6383-2 serve as objective technical evidence for product specifications, industrial tender contracts, and cross-border packaging material certification.

Risk Reduction for End Users: Identifies underperforming film lots before mass production, cutting waste, product damage claims, and safety risks (e.g., broken agricultural film, leaking food packaging).
