ISO 9585 Bone Plate Four-Point Bending Test

Share:

ISO 9585 Surgical Implant Bone Plate Four-Point Bending Tester | UnitedTest

UnitedTest manufactures ISO 9585 compliant four-point bending test machines for orthopaedic bone plates. ISO 9585 determines bending strength and stiffness of surgical bone plates via static single-cycle four-point bending, suitable for straight, slightly curved and angled bone plate segments for orthopedic implant quality validation.


ISO 9585 Implants for surgery‑Determination of bending strength and stiffness of bone plates. This standard defines a static single-cycle four-point bending test method for straight bone plates. It can also be applied to plates with slight initial curvature designed for bone preloading, as well as the straight segments of angled bone plates. This method is not recommended for bone plates shorter than 50 mm, nor plates integrated with or used together with intramedullary devices. ISO 9585 mechanical testing is essential for orthopaedic implant material verification, product batch quality control, and medical device R&D. UnitedTest supplies precision ISO 9585 four-point bending test equipment for medical implant manufacturers, orthopedic research labs and medical device certification institutions.

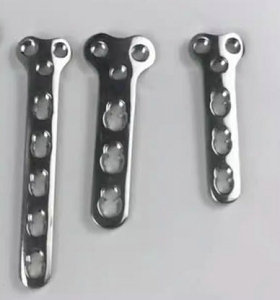

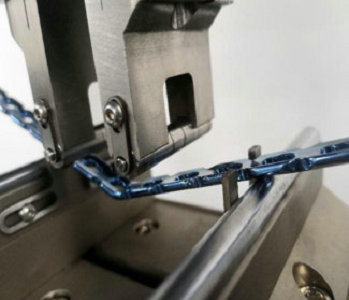

ISO 9585 Testing of surgery bone plates to ASTM F382 and ISO 9585, Bending / Flexural Test Method for Metallic Bone PlateISO 9585 Testing of surgery bone plates to ASTM F382 and ISO 9585, Bending / Flexural Test Method for Metallic Bone Plate


Test Principle

A bone plate is laid across a four‑roller bending rig: two outer rollers act as supports, two inner (central) rollers apply the load through a central loading line. Because the load is introduced at two points, the segment between the inner rollers is subjected to a constant bending moment with zero shear — the region where the plate is most likely to fail in service (at a screw hole).

Force F is increased gradually and the corresponding deflection δ recorded, giving a load/deflection curve. From this curve:

  • The slope S of the initial linear part → converted into equivalent bending stiffness E using the test geometry.

  • A proof point defined by an offset line (parallel to the linear part, displaced by q) → gives the proof load P → converted into bending strength.

  • If the plate fractures before reaching the proof point, strength is computed from the maximum load instead.

"Equivalent" stiffness explicitly accounts for holes and slots in the plate — it is a structural property of the plate as built, not a material modulus.


ISO 9585 Stipulated Test Methods

The core test is static four‑point bending test. Two outer support rollers hold the specimen, two inner loading rollers apply downward force. A uniform bending‑moment zone is generated between the two inner rollers, so failure or yielding occurs within this central span. Load‑deflection curves are recorded throughout loading until plate fracture or obvious yield deformation. Two key outputs are calculated:

  1. Equivalent bending stiffness: derived from slope of the linear elastic segment of load‑deflection plot, accounting for plate holes and slot.

  2. Bending strength: defined as the smaller value between bending moment at fracture or at the offset proof‑point (permanent deflection threshold).


Test Specimen Information

  • Applicable specimens: Straight bone plates; slightly pre‑curved bone plates; straight segments of angled bone plates.

  • Excluded specimens: Plates shorter than 50 mm; plates integrated with intramedullary devices.

  • Specimen mounting rules:

    • Bone‑contact surface faces inner rollers.

    • Screw‑hole arrangement is positioned: for symmetric plates, two innermost screw holes sit between inner rollers; for asymmetric plates, two screw holes lie between inner rollers and expected fracture zone falls within inner‑roller span.

    • Inner rollers shall avoid contacting screw holes; outer rollers ideally avoid screw‑hole regions.

    • Only one screw hole exists between each inner‑roller and outer‑roller pair.

  • Specimen usage rule: Each specimen is tested only once and discarded after testing.


Test equipment of ISO 9585 Bone Plate Four-Point Bending Test

Universal Testing Machine

Recommend UnitedTest WDW series electronic Universal testing machine.

Comply fully with ISO 5893: Class 1 force measurement accuracy, equipped with low-inertia electronic load cell and auto-recording system

Test rig and roller

Four‑roller fixture; axes of four rollers must stay mutually parallel.

Cylindrical or profile‑matched rollers, mean diameter 8 mm‑13 mm. One roller should restrain specimen longitudinal movement; rollers shall maintain fixed relative positions.

Cylindrical rollers apply for flat plates; contoured profile rollers are used for complex cross‑section plates.

ISO 9585 Bone Plate Four-Point Bending Test

Displacement‑measuring deviceTo record plate deflection relative to outer supports; deflection can be measured at mid‑span or at inner‑roller positions


Main Test Parameter

ParameterDefinition / stipulation
hDistance between inner and outer rollers (m)
kDistance between inner rollers (m)
FApplied force (N); F_max = force at fracture
δDeflection (m), measured per 4.2 i) 1), 2) or 3)
SSlope of the linear part of the load/deflection curve (N/m)
PProof load (N) at the offset (proof) point
qOffset for the proof line: q = 0.02 (2h + k) metres (i.e. 2 % of the outer span)
UnitsBending strength in N·m; equivalent bending stiffness in N·m²


Details test procedure of ISO 9585 Bone Plate Four-Point Bending Test

  1. Prepare test rig: Assemble four‑roller fixture, verify roller‑parallelism, install displacement‑measuring instrument.

  2. Mount specimen: Place bone plate with bone‑facing surface contacting inner rollers; align screw‑hole positions following standard rules; measure span dimensions h and k. Ensure specimen axis is perpendicular to roller axes. Select deflection‑measurement position (mid‑span / single inner‑roller / dual inner‑rollers).

  3. Apply force: Gradually increase load F, record corresponding deflection values continuously, plot load‑deflection curve, until plate fractures or obvious yield deformation emerges.

  4. Process data: If dual‑inner‑roller deflection is measured, calculate average deflection δ4. Extract slope S from linear elastic segment of curve.

  5. Calculate results: Compute equivalent bending stiffness using suitable formula. Calculate offset q, find proof‑point / fracture load, compute bending strength.

  6. Compile test report: Record all mandatory items as required by clause 6 of ISO 9585:1990; discard tested specimens.


Related Referenced Standards

ISO 9585Implants for Surgery — Determination of Bending Strength and Stiffness of Bone Plates.
YY/T 0342(Chinese national medical‑device standard): Modified adoption of ISO 9585:1990 for domestic bone‑plate testing in China.
ISO 14602Non‑active Surgical Implants — Implants for Osteosynthesis, Particular Requirements, referenced for implant marking requirements.
ASTM F382

Standard Specification and Test Method for Metallic Bone Plates

ASTM F1264Standard specification and test methods for intramedullary fixation devices
ASTM F3437Test standard for small‑size bone plates for small‑bone fixation, alternative method for mini‑plates where ISO 9585 is difficult to implement
YY/T 1503Test method for fatigue performance of metal bone plates for surgical implants
ASTM F543ASTM F543 Medical Bone Screw Testing
YY/T 0119.4

Spinal implants.Components used in the surgical fixation of the spinal skeletal system.Part 4:Metallic spinal rods

JIS T 0312Japanese orthopaedic‑implant bending‑test standard, shares four‑point‑bending principle but differs in fixture geometric ratios
OtherBS 3531‑23.1:1991 (UK), KS P ISO 9585 (Korea), GOST ISO 9585‑2011 (Russia), JIS T 0312 (Japan)


Industry Application Field

  • Field: orthopaedic trauma / osteosynthesis implants — metallic bone plates (stainless steel, Ti‑6Al‑4V, CoCr alloys) used for fracture fixation, osteotomy and reconstruction in long bones, pelvis, clavicle, small bones.

  • Design verification & comparison: bending stiffness and strength are the primary metrics for comparing plate cross‑sections, thickness, hole patterns and materials between design iterations, product families and competitors.

  • Regulatory submission: the data feed technical files / design dossiers (e.g. FDA 510(k), EU MDR) as bench‑test evidence of mechanical performance.

  • Quality control: lot‑to‑lot release testing and incoming inspection where bending resistance is critical.


Keywords: ISO 9585,surgical implant bone plate bending tester,four point bending test for bone plates,orthopaedic implant stiffness test,bone plate bending strength test,medical bone plate mechanical tester,orthopedic bone plate static bending test,surgical bone implant lab testing machine,bone plate preload curvature test,angled bone plate bending test,UnitedTest medical implant testing equipment,orthopaedic device quality control tester,medical implant material performance test,bone plate mechanical property tester,orthopedic implant certification test instrument

Related products and device

ISO 9585 Bone Plate Four-Point Bending Test Unviersal Testing Machine

UnitedTest universal testing machine with various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

ISO 9585 4 point bend fixtures

The four point bending flexural test provides values for the modulus of elasticity in bending, flexural stress ,flexural strain and the flexural stress-strain response of the material. This test is very similar to the three point bending flexural test.

ISO 9585 Bone Plate Four-Point Bending Test

Electronic Dynamic Universal Testing Machine/ Cyclic Testing Equipment widely used at material and components, parts dynamic mechanical property test, include tension, compression, low cycling test, match with high-low temperature chamber can execute the temperature test.

bone plate preload curvature test,

Electronic Fatigue Testing Machine designed for long-term cyclic load testing of metals, composites, and structural components, offering precise electronic control, repeatable results, and compliance with industrial standards.

UnitedTest medical implant testing equipment

Spinal Implant Constructs nail screw static and fatigue testing machine used to check the fatigue failure of medical nail, Loads are typically applied in a constant-amplitude, load-controlled sinusoidal waveform that runs more than 5 million times.

Related Standard

ASTM F382 Metallic Bone Plates fatigue bending test –

ASTM F382 Standard Specification and Test Method for Metallic Bone Plates

ASTM F382 unified terminology, geometric classification, material requirements, marking & packaging rules, and mechanical test protocols for metallic bone plates used in surgical skeletal internal‑fixation. It define two mandatory test methods:  Single‑Cycle Bend Test and Bending Fatigue Test. Both adopt four‑point bending configuration. It is of great significance for ensuring the safety and reliability of metallic bone plates, which are widely used to align and fix bone segments in orthopedic reconstructive surgeries.

ISO 25539-3 Test methods of cardiovascular implants - Vena cava filters –

ISO 25539-3 defines mechanical performance tests as core bench evaluations for filter systems (filter + delivery/retrieval/conversion systems), plus supplementary tests for materials, imaging, biocompatibility, clinical validation, sterilization and packaging. Include the Filter Tensile Strength, Torsional Bond Strength,Tensile Bond Strength, Radial Force, Force to Deploy test etc.,

ISO 17137 Test Methods of cardiovascular absorbable implants –

Based on the ISO/TS 17137 standard the evaluation of mechanical properties is a critical part of the design and safety validation process. Mechanical Evaluation like tension, radial force, Cyclic Fatigue Durability like constant pulsing. Because absorbable implants lose their structural integrity over time through degradation, their mechanical performance must be assessed not just at the time of implantation, but throughout their intended functional lifetime.

ISO 7198 Mechanical Tests and Other Evaluations for Vascular Implants –

ISO 7198 specifies test and performance requirements for tubular vascular grafts and vascular patches (surgical vascular prostheses). It defines mechanical tests (with full method/equipment/sample details) and other physicochemical, biological, dimensional, preclinical/clinical tests.

ASTM F2942 Vascular Implants Axial, bending, torsional and compression durability testing –

ASTM F2942 specifies in vitro test methodologies to evaluate the cyclic durability of vascular stents under non-radial mechanical deformations (axial, bending, and torsion) that occur in vivo due to musculoskeletal motion, breathing, or cardiac activity.

ASTM F1717 Spinal Implant Constructs Test –

ASTM F1717 Standard Test Methods for Spinal Implant Constructs in a Vertebrectomy Modelis a fundamental standard for evaluating the static and fatigue mechanical performance of spinal implant assemblies. Unlike ISO 12189, which focuses on a single device(an interbody cage), ASTM F1717 tests the entire posterior spinal construct—typically rods, screws, and cross-connectors—stabilizing a segment where a vertebral body has been removed (a "vertebrectomy" or "corpectomy" model). It simulates worst-case spinal instability to assess the implant's ability to maintain alignment and support loads.

ASTM F2068 Fatigue test system of Femoral Prostheses Implants, Hip Implants Testing –

ASTM F2068: Standard Specification for Femoral Prostheses – Metallic Implants


ASTM F2068 covers metallic stemmed femoral prostheses used to replace the natural hip joint by means of hemi-arthroplasty or total hip surgical procedures. Prostheses for hemi-arthroplasty are intended to articulate with the natural acetabulum of the patient. Prostheses for total hip replacement are intended to articulate with prosthetic acetabular cups. Prostheses may have integral femoral heads or cones designed to accept modular heads.

The mechanical strength (fatigue test ISO 7206-4, ISO 7206-6, shear strength test ASTM F1044, tensile test ASTM F1147, abrasion resistance test ASTM F1978), corrosion resistance, and biocompatibility of the head portions of one-piece integral implants are covered by this specification.

ISO 9585 — Bone Plate Bending Test: Frequently Asked Questions

Q1. What is ISO 9585?

ISO 9585 is an international test method that defines how to determine the bending strength and the equivalent bending stiffness of straight bone plates used as surgical implants. It specifies the four-point bending rig, the specimen placement rules, the loading procedure, the deflection measurement options, the calculation formulas, and the required content of the test report.


Q2. Which plates can be tested?

Straight bone plates — the primary intended object.

Plates with a small initial curvature designed to preload the bone.

The straight portion of angled plates.

Not recommended for:

Plates shorter than 50 mm (a separate method was noted as "in preparation").

Plates designed to be used with, or forming part of, intramedullary devices.


Q3. Why four-point bending rather than three-point?

Three-point bending produces a peak moment at a single point plus shear, so the result depends heavily on exactly where the load nose touches — very sensitive to whether it lands on a screw hole. Four-point bending creates a constant-moment region between the inner rollers, which can be deliberately positioned to span the screw holes. This is where clinical plate fractures actually initiate, so the test probes the real failure site and is far less sensitive to local contact artefacts.


Q4. What is a "proof point" and why is an offset used?

Bone plates usually do not show a sharp yield point. An offset line is drawn parallel to the initial linear part of the curve but displaced along the deflection axis by q = 0.02 (2h + k) (i.e. 2 % of the outer span). Where this line intersects the curve is the proof point, and the corresponding load is the proof load P. It defines the onset of appreciable permanent deformation in a repeatable way.


Q5. Why is the stiffness called "equivalent"?

Because the value is not a material modulus. It is calculated from the real test geometry and the response of the whole plate as manufactured, so it inherently includes the effect of screw holes, slots, contours and cross-section changes. That is exactly the point: two plates of the same alloy can have very different equivalent bending stiffness if their hole patterns differ.


Q6. Why is this test important?

Load sharing governs healing. Stiffness determines how load is shared between plate and bone. Too stiff → stress shielding, the bone is deprived of the mechanical stimulus it needs and healing is delayed. Too compliant → the fracture gap moves too much and union fails.

Strength sets the safety margin. Bending strength is the margin against a single overload event, such as a fall during rehabilitation.

It probes the real failure site. The constant-moment region is positioned over the screw holes — the stress-concentration sites where clinical plate fractures initiate.

It evaluates the product, not just the alloy. Because holes and contour are included, results reflect the actual implant a surgeon will use.

Regulatory necessity. The data supports design verification, technical documentation, 510(k)/MDR submissions, and lot-to-lot quality control.


Q7. Which industries and organisations use it?

Orthopaedic trauma / osteosynthesis device manufacturers, contract testing laboratories, university biomechanics labs, and regulatory bodies. Typical users are teams working on metallic bone plates in stainless steel, commercially pure titanium, Ti-6Al-4V and cobalt-chromium alloys for long bones, pelvis, clavicle, hand/foot and small-fragment fixation.


Q8. Is ISO 9585 a fatigue test?

No — it is a static (single-cycle) test. Fatigue behaviour of bone plates is covered by other documents: ASTM F382 Annex A2 (four-point bending fatigue), ASTM F1800, and YY/T 1503-2016 (China). In practice, the static ISO 9585 / ASTM F382 A1 result is used to set the load levels for the subsequent fatigue campaign.


Q9. How does ISO 9585 relate to ASTM F382?

They are the two principal bone-plate bending standards and share the same four-point bending principle. ASTM F382 (current edition F382-24) is broader — Annex A1 is the single-cycle bend test, and Annex A2 adds bending fatigue — and it formally references ISO 9585 and ISO 14602. ISO 9585 is purely static.


Q10. What are the main technical differences from ASTM F382?

ItemISO 9585:1990ASTM F382
Offset for proof point2 % of (2h + k)0.2 % of centre span (current editions)
Roller diameter8–13 mm6–12 mm (6–13 mm in some national adoptions)
Span ratio (loading : support)Commonly cited as about 1:2Commonly 1:3
FatigueNot coveredAnnex A2
Short / asymmetric platesOut of scopeRigid extension segments permitted

Because of these differences, results are not interchangeable — always state which standard and edition was used.


Q11. Why choose ISO 9585 Bone Plate Four‑Point Bending Testing Machine from UnitedTest?

UnitedTest supplies ISO 9585 four‑point bending testing machines & fixtures for surgical bone plates. Measure equivalent bending stiffness and bending strength for orthopaedic trauma implants. Fully compliant with ISO 9585:1990, support R&D, quality control and regulatory test reports.

UnitedTest is professional manufacturer of ISO 9585 testing machines and dedicated four‑point bend fixtures for surgical bone‑plate implants. Our test systems comply fully with ISO 9585:1990 Implants for surgery — Determination of bending strength and stiffness of bone plates, to perform static four‑point bending tests for orthopedic bone fixation plates.

Our ISO 9585 bone‑plate bending test equipment accurately captures load‑deflection curves, calculates equivalent bending stiffness (N·m²) and bending strength (N·m) following standard formulas. It supports test requirements for straight bone plates, slightly pre‑curved plates and angled‑plate straight segments, widely used in orthopedic implant R&D laboratory, incoming quality inspection, and pre‑market regulatory mechanical verification for trauma surgical implants.


The complete test kit includes precision‑machined 8‑13 mm diameter rollers (cylindrical and optional profiled rollers for complex‑section plates), anti‑longitudinal‑sliding specimen restraints, high‑precision displacement measuring modules, and test software embedded with ISO 9585 calculation logic. It avoids common fixture‑caused errors and generates standardized test reports meeting ISO 9585 documentation requirements.

Besides ISO 9585 compliance, UnitedTest machines can also adapt to related standards such as ASTM F382 for bone‑plate flexural testing. Whether you test titanium‑alloy locking plates, stainless‑steel reconstruction plates, or custom‑manufactured orthopedic plates, UnitedTest provides complete testing‑machine solutions, fixture customization, after‑sales calibration and technical support for biomechanical implant testing labs worldwide.
