ASTM F382 Metallic Bone Plate Four-Point Bending Tester | UnitedTest

ASTM F382 defines specifications and mechanical test protocols for metallic bone plates for skeletal internal fixation, covering single-cycle bend and four-point bending fatigue tests. UnitedTest manufactures ASTM F382 compliant bone plate testing machines for orthopedic implant pre-clinical validation.

ASTM F382 is the primary standard specification and test method for metallic bone plates used in surgical skeletal internal fixation. It establishes unified terminology, geometric classification, material requirements, marking, packaging guidelines and standardized mechanical test protocols for orthopedic bone plate implants.

Two mandatory four-point bending tests are specified: Single-Cycle Bend Test and Bending Fatigue Test. These tests evaluate static bending performance and cyclic fatigue resistance of metallic bone plates, which are critical to secure and align fractured bone segments in orthopedic reconstructive surgeries. The test results verify implant safety, structural reliability and meet regulatory submission requirements for medical implant manufacturers.

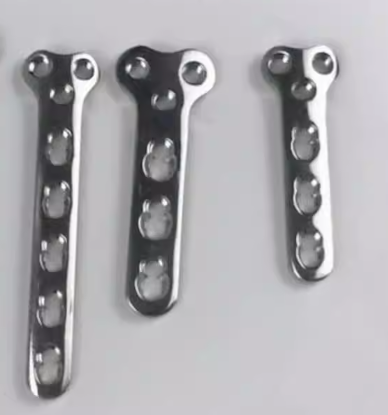

ASTM F382 Metallic Bone Plates fatigue bending test

UnitedTest designs and manufactures precision ASTM F382 bone plate testing machines. Our four-point bending test system performs static single cycle bend and cyclic fatigue loading for metallic bone plates, supporting medical implant R&D, batch quality control and third-party biomechanical laboratory certification.

Core Scope and Objectives

Applicable Scope: It is tailored for metallic bone plates applied in the surgical internal fixation of the human skeletal system. Notably, it does not mandate the use of all its test methods; users can choose the appropriate test items based on the specific design of the bone plate. Besides, it does not set specific product design standards or predict clinical performance in individual cases, as such predictions require more personalized clinical data support.
Core Objectives: It provides unified and standardized testing specifications for metallic bone plates, including requirements for materials, labeling, processing, and mechanical testing. The main goal is to accurately measure key mechanical properties such as bending stiffness, bending strength, and fatigue life of bone plates. This not only helps manufacturers optimize product materials and structural designs but also provides a reliable technical basis for regulatory agencies and testing institutions to evaluate the performance of such orthopedic devices.

Two Stipulated Test Methods

1, Single‑Cycle Bend Testing of Metallic Bone Plates
Purpose	Measure static mechanical properties: bending stiffness (K), bending structural stiffness EI_e. and bending strength (0.2 % offset bending moment) of metallic bone plates under monotonic static four‑point bending load. It evaluates static deformation‑resistance and yield‑related bending capacity for fracture‑fixation hardware. This test applies only to materials showing linear‑elastic behaviour.
Test Sample	Specimens shall be production‑equivalent implant‑grade bone plates (material, cross‑section, surface finish, marking and manufacturing process consistent with commercial product). Plates with different lengths but identical cross‑section and material can form one test sample group. If a bone plate lacks enough symmetric span to fit four‑point bend rollers, rigid extension segments may be mechanically attached to lengthen the specimen; this modification must be documented in test report.
Test Equipment	Recommend Universal static testing machine supporting displacement‑controlled loading (strongly preferred over load‑control) and load‑displacement data acquisition. Four‑point bending fixture: - Loading & support rollers with diameter 6–12 mm; roller diameter shall not exceed the distance between adjacent screw holes of test plate. - Cylindrical rollers for flat plates or plates whose mid‑span flatness deviation ≤ w/6 (w = plate width). Profiled matched rollers are mandatory for crescent‑section / highly contoured bone plates. Measuring tools for dimensioning: measure center‑span distance a, loading‑span distance h, plate thickness, width and length.
Test Procedure & Stipulations	Mount bone plate so that rollers contact the bone‑facing surface of the implant; the plate’s long axis must be perpendicular to roller axes. Configure specimen position: place two inner screw holes within center‑span region between two loading rollers. Avoid direct roller contact over screw‑hole features as much as possible. Run displacement‑controlled monotonic loading to record full load‑displacement curve. Calculate 0.2 % offset displacement: q = 0.002 X a. Draw offset line parallel to elastic slope to get proof load P. Calculation Bending structural stiffness, Bending strength.
2, Bending Fatigue Properties of Metallic Bone Plates
Purpose	Evaluate cyclic bending performance: obtain fatigue life at defined bending‑moment levels, generate semi‑log M‑N (moment‑cycles) curve, or determine median fatigue strength at 10⁶ cycles (50 % survival probability) for comparative assessment of bone‑plate durability under repeated load in orthopaedic service. This test must run within material linear‑elastic range and shall not approach static bending strength.
Test Sample	Specimens must represent commercial implant production quality; contoured / explanted plates are prohibited (per ASTM F565). Different‑length plates of identical cross‑section and material can constitute one sample batch. M‑N diagram testing: minimum 3 replicates at each load level; ideal practice is 5 replicates at each of five moment levels for better statistics. Fatigue‑strength estimation via up‑and‑down method does not define fixed minimal sample size; adequate data points are required for statistical confidence.
Test Equipment	Dynamic fatigue testing machine complying with ASTM E4 force‑verification requirements. Same four‑point bending fixture, plus mechanical anti‑ejection restraint (without constraining specimen free bending deformation). The UTDS series Dynamic/Fatigue Testing machine used for bone needle, bending intramedullary nail fatigue test is mainly used for biomechanical performance testing of various materials. including artificial blood vessels, soft tissues, bones, bone plates, and vertebrae Interfusion device, knee joint, spine. Dynamic and static mechanical tests on materials such as column fixators, metal coatings, hip joints, and intramedullary nails, including tension, compression, bending, and torsion.
Test Procedure & Stipulations	Install specimen, keep bone‑contact surface facing loading rollers. Convert target maximum bending moment M to applied load: P=2M/h Apply sinusoidal cyclic load under load control. Recommended test frequency = 5 Hz (to avoid material strain‑rate effects); recommended stress‑ratio R = 0.1. Deviations of R‑ratio or frequency must be justified and reported. Continue cyclic loading until specimen fracture, triggering of termination limit, or reaching predefined run‑out cycle count (typically 10⁶ cycles for fatigue‑strength evaluation). Two typical test workflows: - M‑N diagram: Test multiple moment levels (suggested starting loads: 75 %, 50 %, 25 % of static bending strength). Plot maximum moment versus cycles‑to‑failure on semi‑log scale and fit fatigue curve. - Fatigue‑strength determination: Use up‑and‑down method with load‑step ≤ 10 % of static bending strength to compute median fatigue strength at 10⁶ cycles. The value of one‑million cycles is a conservative comparative benchmark; typical clinical in‑vivo cycles during bone‑healing are far below one‑million cycle.

Related Referenced Standards

ISO 9585	Implants for Surgery — Determination of Bending Strength and Stiffness of Bone Plates.
ISO 14602	Non‑active Surgical Implants — Implants for Osteosynthesis, Particular Requirements, referenced for implant marking requirements.
ASTM F382	Standard Specification and Test Method for Metallic Bone Plates
YY/T 1503	Test method for fatigue performance of metal bone plates for surgical implants
YY/T 0119.4	Spinal implants.Components used in the surgical fixation of the spinal skeletal system.Part 4:Metallic spinal rods

Industry Application Field

ASTM F382‑24 applies to the orthopedic medical‑device industry, covering metallic bone‑plate orthopaedic internal‑fixation implants for trauma, pelvic, acetabular, reconstructive and orthognathic surgery. End‑users include implant manufacturers, third‑party medical‑device test laboratories, research institutes for new implant‑material & new‑plate‑design development, and regulatory agencies for market‑approval evaluation (FDA, Notified Bodies for CE marking). It provides standardized mechanical‑test baseline for product verification, design comparison, and technical‑document preparation for medical‑device registration.

As UnitedTest manufactures testing systems for orthopaedic implants: UnitedTest static‑dynamic universal test machines, together with dedicated four‑point‑bend bone‑plate fixtures, can fully implement both static single‑cycle bend and cyclic‑bending‑fatigue tests as defined in ASTM F382‑24, supporting implant‑manufacturer R&D and regulatory‑compliance testing work.

Keywords: ASTM F382 metallic bone plate tester,four point bending fatigue test machine for bone plate,orthopedic internal fixation implant bending tester,metallic bone plate single cycle bend test rig,skeletal bone plate biomechanical performance analyzer,orthopedic reconstructive implant mechanical test equipment,medical bone plate fatigue testing system,osteosynthesis bone plate regulatory compliance tester,titanium bone plate static bending test apparatus,orthopedic implant pre-clinical validation machine,metallic bone plate quality control tester,surgical bone fixation plate mechanical characterization rig

Electronic Dynamic Universal Testing Machine/ Cyclic Testing Equipment widely used at material and components, parts dynamic mechanical property test, include tension, compression, low cycling test, match with high-low temperature chamber can execute the temperature test.

Electronic Fatigue Testing Machine designed for long-term cyclic load testing of metals, composites, and structural components, offering precise electronic control, repeatable results, and compliance with industrial standards.

UnitedTest universal testing machine with various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

Electronic Dynamic Testing Machine for high-precision cyclic and vibration testing of materials and components, featuring accurate frequency control, stable performance, and laboratory-grade reliability.

Spinal Implant Constructs nail screw static and fatigue testing machine used to check the fatigue failure of medical nail, Loads are typically applied in a constant-amplitude, load-controlled sinusoidal waveform that runs more than 5 million times.

Q1: What is ASTM F382‑24, and why is this standard important?

A: ASTM F382‑24 is the latest ASTM consensus standard for metallic surgical bone plates for skeletal internal fixation, recognized by FDA and many global regulatory bodies. It defines terminology, geometry classification, material/marking requirements and two mandatory four‑point‑bend test methods (Annex A1 single‑cycle static bend; Annex A2 bending fatigue test). It is critical because raw material coupon testing cannot capture real‑world component‑level effects including screw‑hole stress concentration, plate cross‑section, manufacturing and surface finishing. It provides uniform test conditions for comparing different plate designs, alloys and geometries for R&D, quality control and regulatory submission. Note that test outputs are for relative comparison only, not for direct prediction of in‑vivo clinical performance.

Q2: What two main mechanical tests are covered in ASTM F382‑24?

Annex A1 Single‑Cycle Bend Test: Static four‑point bending to calculate bending stiffness K, bending structural stiffness EI_e, and 0.2 %‑offset bending strength (yield‑related bending moment). Displacement‑controlled loading is strongly recommended.
Annex A2 Bending Fatigue Test: Cyclic four‑point bending under sinusoidal load (recommended R‑ratio = 0.1, frequency = 5 Hz). It generates M‑N (moment‑cycles) curve or estimates median fatigue strength at 10⁶ cycles (50 % specimen survival probability) for durability ranking of bone plates under repeated physiological load.

Q3: Can I use bone plates that have been pre‑contoured or previously implanted as test samples for ASTM F382?

A: No. Per ASTM F565 referenced by F382‑24, pre‑bent/contoured or explanted plates are excluded from testing. Plastic deformation from contouring changes residual stress and mechanical performance and will produce invalid test data. Test specimens must be original implant‑grade production parts, representative of commercial product in material, geometry, marking and surface finish.

Q4: My bone plate is short and lacks enough screw holes to fit standard four‑point‑bend fixture. How to comply with ASTM F382‑24 Annex A1?

A: The standard permits rigid extension segments mechanically attached to both ends of short/asymmetric bone plates to lengthen the specimen. The extension must not constrain plate deformation; rollers must contact extensions, not the bone‑plate body. All fixture modifications must be fully documented in the formal test report.

Q5: What is the difference between ASTM F382 Annex A1 and ISO 9585? Can test results be interchanged?

A: ISO 9585 covers bone‑plate static bending strength and stiffness, similar but not equivalent to ASTM F382‑24 Annex A1. Differences exist in offset‑definition, fixture tolerances and calculation formulas. Test data from one standard cannot be directly converted or substituted for the other in regulatory files; you must run testing following your target‑market‑required standard.

Q6: Why use four‑point bending instead of three‑point bending for bone‑plate testing per ASTM F382‑24?

A: Four‑point bending delivers constant uniform bending moment across the full center span (between two inner loading rollers). This makes it possible to place screw holes (high‑stress critical zones) within the high‑moment test region, reproducing real‑world failure locations around screw holes. Three‑point bending creates peak moment only at one single loading point and is not accepted for F382 compliance.

Q7: What are critical fixture requirements for ASTM F382‑24 four‑point bend rollers?

Roller diameter range: 6–12 mm; roller diameter cannot exceed spacing between adjacent screw holes on bone plate.
Flat‑plate: use cylindrical rollers.
Crescent‑section / highly contoured plates (flatness deviation > w/6): you need profile‑matched contoured rollers, not simple cylindrical rollers.
Long axis of bone plate must stay perpendicular to roller axes during mounting; rollers shall avoid direct contact on screw‑hole features as much as possible.

Q8: What does “1 × 10⁶‑cycle fatigue strength” in Annex A2 mean? Do real patients see one‑million loading cycles?

A: 1 000 000 cycles is a conservative comparative benchmark defined by the standard, not typical clinical loading count. In clinical practice bone‑healing usually completes within 2‑3 months, corresponding to roughly 150 000‑250 000 load cycles. The 1 M‑cycle value is used to rank different implant designs side‑by‑side, not a clinical pass‑fail threshold. The standard does not define mandatory acceptance moment values for clinical use.

Q9: Can ASTM F382‑24 test results directly predict whether a bone plate will break in human patients?

A: No. The standard explicitly warns lab test results cannot directly predict in‑vivo performance. Bench‑top four‑point bending is a simplified lab loading condition; human bodies include complex muscle force, bone‑plate friction, variable patient weight, activity level and bone quality. F382‑24 results serve for relative comparison between designs/materials, which shall be combined with FEA simulation and clinical evaluation for full risk assessment.

Q10: Why choose ASTM F382 Metallic Bone Plate Static & Fatigue Four‑Point‑Bend Test System from UnitedTest?

A: UnitedTest supplies full ASTM F382‑24 compliant testing machines and four‑point‑bend fixtures for metallic bone‑plate static single‑cycle bend and bending‑fatigue tests. Support orthopedic implant R&D, QA and regulatory submission for FDA, CE marking.

Orthopedic implant manufacturers and medical‑device testing laboratories require standardized mechanical validation for metallic bone‑plate fixation devices for trauma, pelvis and reconstructive orthopaedic surgery. ASTM F382 (Standard Specification and Test Method for Metallic Bone Plates) is a FDA‑recognized consensus standard defining static single‑cycle bend (Annex A1) and cyclic bending‑fatigue (Annex A2) test protocols based on four‑point‑bend configuration.

UnitedTest delivers integrated ASTM F382‑24 bone‑plate testing solutions, including high‑performance static‑dynamic universal testing machines together with dedicated adjustable four‑point‑bend fixtures, interchangeable standard/profiled loading rollers and rigid‑extension accessories for short or asymmetric bone plates. Our test set‑ups measure bending stiffness, bending structural stiffness, 0.2 %‑offset bending strength, fatigue life and 10⁶ cycle median fatigue strength for metallic osteosynthesis bone plates (titanium‑alloy, stainless steel, cobalt‑chromium alloy).

Designed for orthopedic implant R&D, incoming quality control, design verification and regulatory technical‑file preparation for CE marking, FDA 510(k) submission. UnitedTest’s ASTM F382‑24 test hardware strictly follows fixture dimension, roller geometry, mounting and data‑acquisition requirements defined in Annex A1 and Annex A2, helping your lab generate auditable, repeatable test reports.

✅ Fully compliant with latest ASTM F382‑24 Annex A1 (single‑cycle bend) & Annex A2 (bending fatigue test)

✅ Four‑point‑bend fixture, interchangeable cylindrical & profile‑matched rollers for flat & crescent‑section bone plates

✅ Supports rigid‑extension segments for short bone‑plate specimens

✅ Displacement‑control for static bend test; load‑control sinusoidal cyclic fatigue test

✅ Calculates bending stiffness, structural stiffness, bending strength, M‑N fatigue curve, median fatigue strength at 1 000 000 cycles

✅ Suitable for titanium alloy, stainless steel, cobalt‑chromium metallic bone‑plate implants

✅ Test data traceable for orthopedic device regulatory submission (FDA, CE, ISO 13485 lab workflows)

✅ UnitedTest provides fixture customisation, on‑site commissioning and application‑engineering support for orthopaedic implant mechanical testing.
