ASTM D5448 Hoop Wound Composite Cylinder In‑Plane Shear Tester | UnitedTest

ASTM D5448 measures in‑plane shear properties of hoop‑wound polymer‑matrix composite cylinders via torsion loading on thin‑walled tubular specimens. UnitedTest manufactures ASTM D5448‑compliant torsion test machines for filament‑wound composite component performance evaluation and quality certification.

ASTM D5448 establishes a dedicated mechanical test procedure for characterizing in‑plane shear properties of hoop‑wound, approximately 90‑degree, polymer‑matrix composite cylinders reinforced with high‑modulus continuous fibers. Unlike conventional rail shear tests conducted on flat laminate coupons, this standard adopts a realistic thin‑walled cylindrical tube specimen subjected to torsional loading, generating shear‑dominated material responses within the fiber‑transverse plane.

The test geometry directly replicates real‑world filament‑wound structural configurations, delivering authentic shear performance data that flat‑panel test methods cannot reproduce. Test outputs support material qualification, winding‑process optimization, finite‑element model calibration, and batch‑to‑batch quality inspection for composite tubular parts widely used in pressure vessels, pipeline components, aerospace structures and industrial composite assemblies.

UnitedTest designs and builds high‑precision ASTM D5448‑compliant testing machines for hoop‑wound composite cylinders. Our torsion‑based test systems accurately apply controlled torsional loads to thin‑walled tubular samples, generating repeatable in‑plane shear property data for composite R&D laboratories, filament‑wound product manufacturers and third‑party material‑testing institutes.

Test Principle:

A hoop‑wound thin‑wall composite cylinder is bonded into metallic end fixtures. Pure torsional moment is applied monotonically to the cylinder. Under torsion, the hoop‑wound tube generates uniform in‑plane shear stress‑strain states inside the gauge section

Maximum applied torque yields in‑plane shear strength

Bonded resistance strain‑gage rosettes record strain responses, for calculating in‑plane shear failure strain and in‑plane shear modulus from stress‑strain curves.

Polar moment of inertia of hollow cylinder is used for shear‑stress conversion; transverse‑sensitivity correction is required for strain‑gage outputs before computing shear strain.

Core Test Method

Torsion test on hoop‑wound cylindrical tube specimens: mount the bonded specimen‑fixture assembly onto a torsion test machine, apply controlled angular rotation, continuously record torque and strain until specimen fracture. Rosette‑strain‑gage data is processed to eliminate gage transverse‑sensitivity error and verify loading uniformity. If non‑torsional bending/axial load exists, the test result is deemed invalid.

Test machine and fixture required for ASTM D5448 Inplane Shear Test of Hoop Wound Polymer Composites

Torsion testing machine

Composed of fixed rotational‑restraint member, rotating driving member, drive mechanism, torque‑force indicator.

The machine shall minimize system rotational deformation; torque‑measurement accuracy ≤ ±1 % full‑scale reading.

One end shall permit free axial movement to avoid unintended axial compression/tension on specimen

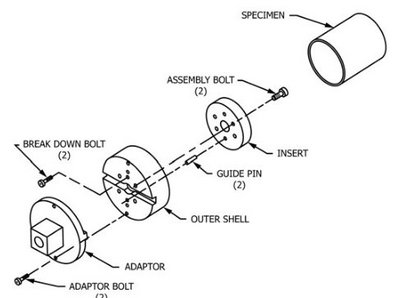

Special in‑plane shear fixture

Steel‑made assembly containing outer shell, insert and adaptor. These components are interchangeable with fixtures of ASTM D5449/D5449M.

Assembly bolts, guide pins and breakdown bolts are included for mounting and disassembly of specimen.

ASTM D5448 Inplane Shear Test of Hoop Wound Polymer Composites

Auxiliary Tools

Measurement tools: Micrometers and calipers. Ball‑anvil micrometers for wall‑thickness measurement on uneven composite surfaces; flat‑anvil tools for length, inner‑diameter and outer‑diameter measurement.

Instrument accuracy shall reach 1 % of measured dimension; wall‑thickness measurement accuracy: ±0.0025 mm; dimension‑measurement accuracy for diameter/length: ±0.025 mm

Strain‑recording system: 0°/‑45°/+45° strain‑gage rosettes (gage length 6.3 mm). 350 Ω or higher gage resistance is preferred; comply with ASTM E251 for gage calibration certification.

Two rosettes are mounted 180° apart circumferentially on specimen outer surface to check bending interference

Test Specimen Information:

Geometry: Thin‑wall hoop‑wound cylinder. Total length = 140 mm [5.5 in], gauge length = 102 mm [4.0 in], inner diameter = 100 ± 4 mm [4.000 ± 0.015 in], nominal wall thickness = 2 mm [0.08 in]. Permitted maximum diameter taper on tapered mandrel: 0.0005 mm/mm along axial direction.

Fabrication: Single‑tow hoop‑winding (approximately 90° fiber orientation), multi‑layer winding to reach target wall thickness, followed by curing. Multiple specimens can be cut from one cured winding component.

Sampling rule: At least five valid specimens for each test condition; statistical reference follows ASTM E122. Specimens shall be uniquely labelled for traceability back to raw‑material batches.

Key Test Parameters & Stipulations

Loading rate: Strain rate is controlled so that specimen failure occurs within 1–10 min. For constant‑torque‑speed testers, suggested standard torque speed = 2 %/min. Adjust rate if machine system compliance is high to avoid excessively low real strain rate.

Data‑sampling requirement: Minimum 100 data points per specimen; sampling rate of 2‑3 readings per second is recommended. Force drop of 10 % is regarded as significant failure‑trigger signal.

Details ASTM D5448 Inplane Shear Test of Hoop Wound Polymer Composites Test procedures:

1. Pre‑test definition: Confirm sampling scheme, specimen geometry, conditioning parameters, target property and data‑reporting format before testing.

2. Post‑conditioning dimensional measurement: Measure OD, ID, wall‑thickness, total length of each specimen at multiple circumferential positions and compute averaged dimensions.

3. Strain‑gage installation: Mount two 0°/‑45°/+45° rosettes 180° apart on outer surface of specimen gauge section; avoid damaging composite matrix and fibers during surface preparation.

4. Fixture assembly: Assemble outer shell, insert, guide pins and adaptor according to drawing; fasten assembly bolts and adaptor bolts.

5. Specimen potting and fixing: Fill fixture cavities with potting compound, insert specimen ends fully into fixture cavities, cure potting material following manufacturer specification. Measure averaged gauge‑length (free length between fixtures) at four circumferential positions at 90° intervals.

6. Mount assembly to torsion test machine, check system alignment to minimise bending and axial load.

7. Set environmental chamber and pre‑test thermal‑humidity stabilisation if environmental conditioning is required.

8. Connect strain‑acquisition and torque‑signal‑recording devices.

9. Apply torsional load at pre‑set rate until specimen failure, continuously record torque‑strain data.

10. Record failure location and failure mode (classical, catastrophic, local instability, partial, band‑spiral, band‑detachment or grip‑failure GR) according to standard failure‑mode sketches.

11. Fixture disassembly: Cut specimen ends near fixture base, remove bolts, degrade potting compound by oven heating, eject insert with breakdown bolts and clean fixture parts for reuse.

12. Data processing: Apply transverse‑sensitivity correction to strain‑gage signals, compute shear strain, shear strength, shear modulus, average value, standard deviation and coefficient‑of‑variation for valid specimens. Exclude grip‑failure and flaw‑caused‑fracture specimens from statistical calculation.

Target Industry Application Fields

ASTM D5448 is used in:

Filament-wound pressure vessels

Composite gas / hydrogen / oxygen tanks

Aerospace composite structures

Defense and missile casings

Marine and pipe structures

Wind energy rotor components with wound sections

Automotive composite shafts and tubes

Material qualification and QA

Composite design allowable development

R&D of epoxy / BMI / thermoplastic composite systems

It is especially relevant where hoop fiber orientation carries pressure or torsional loads.

Referenced Related Standards

ASTM D5458	Standard Test Method for Peel Cling of Stretch Wrap Film
ASTM D5449	Transverse compressive properties of hoop-wound cylinders
ASTM D5450	Transverse tensile properties of hoop-wound cylinders
ASTM D3518	In-plane shear from ±45° laminate
ASTM D5379	V-notched beam shear test
ASTM D4255	Rail shear test
ASTM D7078	V‑notched rail shear test for flat laminates

Keywords: ASTM D5448 in‑plane shear tester,hoop wound polymer matrix composite cylinder torsion test machine,high modulus continuous fiber composite tubular shear test rig,filament wound composite cylinder torsional property test apparatus,thin‑walled composite tube shear performance measurement equipment,90‑degree hoop wound composite material lab tester,composite pressure vessel shear property verification machine,tubular composite component mechanical characterization device,polymer matrix composite cylinder quality control tester,aerospace filament‑wound composite certification test instrument,composite tube torsion loading test system,fiber transverse plane shear behavior analyzing equipment

NJW series torsion testing machine consist of loading system, weight balancing system, transmission system, data collection system, and computer measuring and control system. Suitable to test the metal material, non-metal material, various kinds of structures like shaft, bolts, alloy components.

A single column tensile tester is a sophisticated material testing instrument designed for measuring mechanical properties of various materials under tension, compression, bending, shear, and other loading conditions. As the name suggests, it features a single vertical column supporting a moving crosshead that applies force to test specimens.

Q1: What is ASTM D5448 test for, and why is this test important?

A1: ASTM D5448/D5448M‑22 measures in‑plane shear modulus G12, in‑plane shear strength T12, and failure shear strain r12 for hoop‑wound (90°) polymer‑matrix composite cylinders under pure torsion loading.

It is critical because:

1. Torsion on thin‑wall hoop‑wound tubes creates near‑uniform pure in‑plane shear stress state in gauge section, which minimizes parasitic bending compared with flat‑specimen shear tests (Iosipescu, rail‑shear).

2. In‑plane shear is matrix‑dominated property for unidirectional composites; these data are mandatory input for FEA structural simulation, material qualification, design allowables for pressure vessels, rocket casings and filament‑wound tubular components.

3. This standard is approved by US Department of Defense, widely accepted for aerospace & defense composite material acceptance testing.

4. It reflects manufacturing quality: void content, fiber volume fraction, winding/curing defects directly affect shear test scatter.

Q2: What specimens are required for ASTM D5448 test? Can I use flat composite laminates?

A2: Standard specimen is thin‑wall hoop‑wound (≈90° fiber orientation) cylindrical tube. Nominal dimension: length 140 mm, inner diameter 100 mm, wall thickness 2 mm.

Flat composite plates / off‑axis flat coupons cannot be used. Flat‑specimen shear standards such as ASTM D5379 (Iosipescu) or D7078 apply for flat laminates, not D5448. Each test condition requires minimum 5 valid replicate specimens.

Q3: What is grip (GR) failure? Is grip failure acceptable for ASTM D5448?

A3: Grip (GR) failure means fracture occurs within one‑specimen‑thickness distance from specimen‑fixture bonded potting interface. Grip failure is considered invalid test result and must be discarded from statistical calculation.

Root causes: fixture misalignment, poor potting material selection, improper potting cure temperature, bad specimen end preparation. When many specimens produce GR failures, inspect fixture alignment, potting formulation and assembly procedure.

Q4. Why do material engineers trust ASTM D5448 data?

A4: Because the method controls alignment, strain measurement, fixture geometry, and failure-mode acceptance. This reduces data scatter and gives reproducible shear properties for design allowables.

Q5. Why use a cylinder instead of a flat coupon?

A5: A hoop-wound tube represents the real manufacturing process and load path better than a flat laminate. Flat-coupon shear tests may not capture winding tension, fiber curvature, residual stress, or tubular boundary effects.

Q6: What strain‑gage configuration does ASTM D5448 require?

A6: Two 0°/‑45°/+45° strain‑gage rosettes mounted 180° apart circumferentially on specimen outer gauge‑section surface. Gage length = 6.3 mm. 350 Ω or higher resistance gages are preferred to reduce self‑heating. You must apply transverse‑sensitivity correction for rosette raw strain readings before shear‑strain computation.

Q7: Why choose UnitedTest for ASTM D5448 testing?

A7: ASTM D5448 Composite Torsion Testing Machine & Fixture | UnitedTest

UnitedTest supplies ASTM D5448/D5448M‑22 compliant torsion testing machines and dedicated shear fixtures for hoop‑wound polymer‑matrix composite cylinders, measuring in‑plane shear modulus G₁₂, shear strength and failure shear strain for aerospace composite R&D & QA‑QC.

UnitedTest provides complete testing solutions complying with ASTM D5448 Standard Test Method for Inplane Shear Properties of Hoop Wound Polymer Matrix Composite Cylinders.

Our torsion test system with dedicated D5448 shear fixture is engineered for torsion testing of 100 mm‑ID hoop‑wound thin‑wall composite tubes, widely used for aerospace, defense, energy filament‑wound composite pressure vessel R&D, material qualification and production quality control.

The UnitedTest ASTM D5448 test setup accurately determines three core composite material properties: in‑plane shear strength τ₁₂'', in‑plane shear failure strain γ₁₂'' and in‑plane shear modulus G₁₂**. Our high‑precision servo torsion test machine delivers stable controlled angular‑velocity loading, high‑accuracy torque measurement, synchronised strain‑rosette data acquisition, and supports pre‑test data correction including strain‑gage transverse‑sensitivity correction, automatic validity judgement for non‑torsional bending load, and built‑in calculation workflow aligned with ASTM D5448 formulas.

Custom‑manufactured high‑strength steel D5448 fixtures (outer shell, insert, adaptor assembly) match standard drawing requirements. Same fixture hardware can also support companion ASTM D5449 and D5450 tests for hoop‑wound composite cylinders, maximizing lab equipment utilization.

Our test systems support ambient, conditioned and environmental‑chamber integrated testing. Full test reports output specimen dimension statistics, shear‑property statistics (average, standard deviation, coefficient of variation), failure‑mode classification, stress‑strain curves, and full deviation logging required for ASTM D5448 audit‑ready lab documentation.

UnitedTest delivers turn‑key solutions including machine hardware, standard D5448 fixture set, strain‑gage guidance, operation training and technical support for composite material laboratories, aerospace component manufacturers, defense‑qualification labs and university composite research centers.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
