ASTM D4495 Standard Test Method for Impact Resistance of Poly(Vinyl Chloride) (PVC) Rigid Profiles by Means of a Falling Weight
ASTM D4495 defines a falling‑weight impact test exclusively for extruded rigid poly(vinyl chloride) (PVC) building profiles including window and door frames, siding components. It determines the mean‑failure height and mean‑failure energy that trigger brittle fracture of hollow structural PVC profiles, using the up‑and‑down (Bruceton) statistical staircase method to evaluate profile toughness for quality control, product standard formulation, and material processing change assessment. Test results differentiate brittle failure with sharp cracks, splits or full part separation from ductile non‑failure such as tears or hinged breaks without complete penetration.
Core Test Principle
A defined mass is dropped freely from adjustable heights onto a horizontally‑supported hollow PVC profile specimen.
After each impact, inspect whether the specimen suffers brittle failure (sharp‑tip crack or complete splitting/separation; ductile tearing or hinged partial break counts as non‑failure).
Apply the up‑and‑down staircase rule: lower drop height after failure; raise drop height after non‑failure.
Use statistical formulas to calculate mean‑failure height (h), mean‑failure energy (MFE = h × weight), and estimated standard deviation from sequential pass‑fail data.
Principle core: Estimate the 50 % probability failure energy rather than testing to complete breakage for every specimen. Impact velocity from free fall is fixed; test results only apply to this specific impact velocity, not vastly different loading speeds.

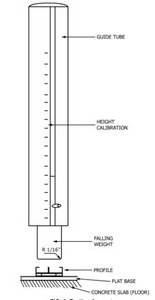

Test Equipment Required For ASTM D4495 Falling weight test for impact resistance of PVC rigid profiles
| Falling-Weight Impact Tester meet below specification. recommend United Test company Manufactured. | |
Falling weight | Cylindrical, diameter 2 2/16 inch, flat striking bottom surface; mass = 10 ± 0.5 lb (4.54 ± 0.23 kg). Striking surface shall be scratch‑resistant steel. |
| Drop/guide tube | Minimum length ~12 ft (4 m), enables maximum fall height ≥ 10 ft (3 m). Mount perfectly vertical verified by plumb bob or spirit level ≥ 2 ft long. Inner diameter approx. 67‑70 mm cold‑drawn seamless steel tubing is recommended. Must guarantee free fall with no chattering or vacuum‑induced weight restraint.
|
| Height adjustment & release mechanism | Height increment steps of 2 in (50 mm), ranging 2 ft‑10 ft above specimen holder; reproducible weight release. |
| Specimen holder | Rigid steel flat‑plate base, nominal dimension 8 × 12 × 1 in (200 × 300 × 25 mm), firmly anchored to a concrete floor slab. Right‑angle slotted brackets restrain lateral profile sliding during impact and center specimen below the drop path. |
Test Specimen Information

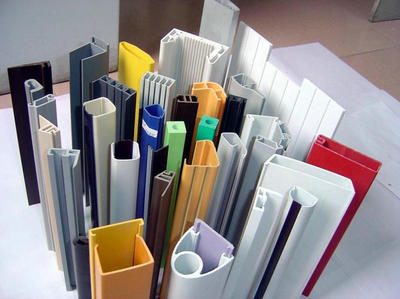

Geometry: a full section of the actual extruded profile (not a machined coupon) — this is the test's distinguishing feature.
Length: not less than 6 in. (150 mm); procedure specifies cutting samples 6 in. (152 mm) long.
Quantity:
20 specimens when the approximate mean-failure height is known (standard practice for adequate precision);
6 or more additional specimens to find the starting height when unknown;
Note 5: as few as five specimens can give a usable estimate, but with a relatively large estimated standard deviation.
Target points: each specimen is impacted at one target point only; the same target point shall not be struck twice.
Key Test Parameters:
| Falling‑weight mass | 10 ± 0.5 lb |
| Height increment step | 2 in (50 mm) |
| Maximum available drop height | ≥ 10 ft (3 m) |
| Specimen minimal length | 6 in (150 mm) |
| Standard test temperature | 23 °C /73.4 °F |
| Reference conditioning RH | 50 ± 10 % RH |

Test Stipulations:
1. If seven consecutive identical results (all‑failure or all‑non‑failure) occur at test start: starting height is inappropriate; discard data and restart testing after re‑estimating starting height.
2. Outlier handling: Do NOT discard data merely for atypical fracture appearance. Reject specimen only if a clear physical root cause (e.g., visible internal flaw) is found; follow ASTM E178 practice for outlier statistical treatment.
3. Record data with symbols: “X” for failure, “O” for non‑failure; maintain running plot of height‑versus‑outcome.
4. Definition of failure: Brittle failure only. Ductile tear and hinged partial break = non‑failure, even with visible cracking.
Test Procedures of ASTM D4495 Falling weight test for impact resistance of PVC rigid profiles
Cut extruded PVC profile into specimens of 6 in length.
Randomly select one test specimen.
Secure specimen on flat steel holder with slotted angle brackets to prevent lateral shift, center under falling‑weight path in its most stable resting orientation.
Lift falling weight to the estimated initial failure height; release for free fall onto specimen surface. Drop height is measured between the top impacted surface of profile and bottom face of falling weight.
Remove specimen and examine fracture behaviour to judge failure / non‑failure according to Figure 1 fracture classification.
Adjust height for next specimen: reduce height by one 2‑in increment if failure occurs; increase height by one increment if no failure.
Test subsequent specimens using staircase up‑and‑down logic from prior‑specimen outcome. Never re‑impact the same specimen target location.
Check for invalid continuous runs of seven identical results, restart if needed. Keep graphical log of X/O outcomes per height level.
Process abnormal fracture cases following ASTM E178 rules.
After finishing specimen series, perform statistical calculation.
Test Applications & Industry Fields
Window and door profile extrusion (the core application) — line QC, compound qualification, die/process troubleshooting.
PVC siding, soffit, trim, fencing, decking and other PVC building products.
Quality control during extrusion and fabrication — verifying the product survives shipping, handling and installation.
R&D / formulation work — quantifying the effect of impact modifiers, filler (CaCO₃) level, TiO₂, stabilizers, regrind/recycled PVC content, and processing changes.
Durability studies — tracking toughness loss after weathering, thermal or UV aging.
Product-standard compliance — used as the basis for setting impact requirements in PVC product specifications.
Related Standards
| ISO 6603-1 | Plastics - Determination of the punching properties of rigid plastics - Part 1: Non-instrumented impact test |
| JIS K 7211 | Plastics -- Determination of puncture impact behaviour of rigid plastics -- Part 1: Non-instrumented impact testing |
| ASTM D3763 | Standard Test Method for High Speed Puncture Properties of Plastics Using Load and Displacement Sensors |
| ASTM D1709 | Standard Test Methods for Impact Resistance of Plastic Film by the Free-Falling Dart Method |
| ASTM D7136 | Standard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event |
| ASTM D4226 | Impact‑resistance test methods for rigid PVC building products, covers multiple impact modes for PVC construction components |
| ASTM D4495 | Standard Test Method for Impact Resistance of Poly(Vinyl Chloride) (PVC) Rigid Profiles by Means of a Falling Weight |
| ASTM D5420 | Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimen by Means of a Striker Impacted by a Falling Weight (Gardner Impact) |
| EN 477 | Plastics - Poly(vinyl chloride) (PVC) based profiles - Determination of the resistance to impact of profiles by falling mass |
| GB/T 8814 | Unplasticized polyvinyl chloride(PVC-U)profiles for the doors and windows |
| EN 12608-1 | Unplasticized poly(vinyl chloride) (PVC-U) profiles for the fabrication of windows and doors - Classification@ requirements and test methods - Part 1: Non-coated PVC-U profiles with light coloured surfaces |
Quick Comparison: D4495 vs. D4226 vs. D5420
| Item | D4495 (this standard) | D4226 | D5420 |
|---|---|---|---|
| Object | Whole rigid PVC profile | Flat sections/coupons of PVC building products | Flat rigid plastic specimens (all polymers) |
| Weight | 10 ± 0.5 lb | 8 lb (3.6 kg) | 0.9 / 1.8 / 3.6 kg |
| Striker | None — flat-bottom weight hits profile directly | Impactor head C.125 or H.25 on a 16.3 mm-hole stand | 15.86 or 12.70 mm hardened steel striker, 5 geometries |
| Increment | 2 in. (50 mm), 2–10 ft | Height steps | Height steps |
| Output | Mean failure height + MFE (+ est. SD) | MFE / mean brittle failure energy; normalizable by thickness | Mean failure energy for relative ranking |
| Statistical method | Bruceton staircase (up-and-down) | Bruceton staircase | Bruceton staircase |
Keywords: ASTM D4495 tester,ASTM D4495 falling weight impact test,rigid PVC profile impact resistance test,PVC window frame impact tester,PVC siding impact test,Bruceton staircase impact test,PVC profile toughness test,falling weight impact testing machine,polyvinyl chloride impact test equipment,extruded plastic profile impact test,hollow PVC profile fracture test,construction PVC material impact tester,UnitedTest plastic impact test machine,rigid plastic drop weight impact apparatus,ASTM D4495 falling weight impact tester, ASTM D4495 test method, PVC rigid profile impact resistance tester, PVC profile drop weight impact testing machine, mean failure height / mean failure energy tester, Bruceton staircase method impact tester, PVC window profile impact tester, falling weight impact tester manufacturer / supplier
Related products and device
Related Standard
ISO 6603-1 specifies falling-dart methods to measure the puncture‑impact performance of rigid plastics using only the 50% impact‑failure energy (E₅₀) threshold, without recording force–time or force–deflection curves.
ASTM D1709: Standard Test Methods for Impact Resistance of Plastic Film by the Free-Falling Dart Method
ASTM D1709 test methods cover the determination of the energy that causes plastic film to fail under specified conditions of impact of a free-falling dart. This energy is expressed in terms of the weight (mass) of the missile falling from a specified height which would result in 50 % failure of specimens tested.
ASTMD5420 measures the relative ranking of materials based on the energy required to crack or break a plastic sheet when struck by a falling weight (the "Gardner Impact" method).
ASTMD5628 specifies a falling‑dart/tup method to measure the threshold impact‑failure energy for flat rigid plastics. It uses the Bruceton Staircase (Up‑and‑Down) Method to determine the energy causing 50% of specimens to fail (mean‑failure energy, MFE).
ASTMD3029 is designed to determine the relative ranking of rigid plastic materials based on the energy required to crack or break them under specified impact conditions.
EN 744 specifying the round-the-clock falling-weight impact method to evaluate the resistance to external blows of circular cross-section thermoplastics pipes. It's a standardized procedure to determine the ability of thermoplastic pipes to withstand external impacts without failing.
ISO 7765-1:1988 Plastics film and sheeting — Determination of impact resistance by the free-falling dart method
Part 1: Staircase methods
ISO 7765-1 and ASTM D1709 specifies methods for the determination of the energy, that causes plastics films and sheet less than 1 mm in thickness to fail under specified conditions of impact of a free falling dart from a specified height, that would result in failure of 50 % of the specimens tested. Two methods are described. Method A employs a dart with 38 mm diameter hemispherical head, dropped from a height of 0,66 m, and method B employs a dart with a 50 mm diameter hemispherical head dropped from a height of 1,50 m. The measurement technique is the staircase method.
Drop Dart Impact Resistance of Plastic Film ASTM D1709, ISO 7765
ASTM D4226 Standard Test Methods for Impact Resistance of Rigid Poly(Vinyl Chloride) (PVC) Building Products
ASTM D4226 covers determination of the energy required to crack or break rigid poly(vinyl chloride) (PVC) plastic sheeting, profile flat sections used in building products, and extruded/molded test samples, under a free-falling standard weight striking an impactor in contact with the specimen.
Also known as the Gardner falling-weight impact test for rigid flat plastic panels. It quantifies the impact energy required to crack, puncture, shatter, or tear rigid PVC sheets, extruded profiles, and molded flat coupons via a free-falling standardized weight striking a defined impactor tip. It uniquely distinguishes ductile failure (plastic tearing, stretching) and brittle failure (sharp cracking, shattering) to characterize the ductile-to-brittle transition of PVC building plastics.
FAQS - ASTM D4495 Falling weight test for impact resistance of PVC rigid profiles
United Test ASTM D4495 Impact Tester – PVC Rigid Profile Falling Weight Machine
Q1: What is ASTM D4495‑21 test used for?
A1: ASTM D4495‑21 is a falling‑weight drop impact test exclusively for rigid extruded PVC hollow building profiles (window frames, door profiles, vinyl siding). It applies the Bruceton up‑and‑down staircase statistical method to calculate Mean Failure Height (MFH) and Mean Failure Energy (MFE) — measuring the 50‑percent‑probability energy that causes brittle fracture of PVC profiles. It simulates mechanical shocks during transport, assembly, installation and end‑use service.
Q2: Why is ASTM D4495 test important for rigid PVC profiles?
A2: Rigid unplasticized PVC is notch‑sensitive and tends to brittle crack under impact. Simple tensile or Izod‑Charpy lab tests cannot reproduce the real‑world impact performance of complex hollow extruded profile geometry. This test delivers statistically meaningful impact energy data for QC, material formulation comparison, extrusion‑process validation and building‑product specification writing, helping factories avoid field breakage complaints for window & door components.
Q3: What size of test specimens do I need for ASTM D4495‑21?
A3: Profile specimens must be cut to minimum 6 inch (150 mm) length.
If approximate mean‑failure height known: 20 specimens for precise results; minimum 5 specimens for rough estimation (higher standard deviation expected).
If unknown failure height baseline: prepare ≥6 specimens to find proper starting drop height. Specimen must lay completely flat on holder; bowed / warped samples produce invalid test results and should be discarded before testing. Never re‑impact same impact spot on one specimen.
Q4: What is the “up‑and‑down (Bruceton) staircase test rule”?
A4: After every single impact:
If specimen fails → reduce next drop height by one 2‑inch increment.
If specimen does NOT fail → raise next drop height by one 2‑inch increment. Use outcome of previous specimen to set height for next sample.
Critical rule: If you get seven consecutive identical results (7× failure OR 7× non‑failure) right at test start, your starting height is wrong. Stop test, re‑estimate starting height and restart the full test series.
Q5: What common mistakes cause bad, inconsistent ASTM D4495 test data?
A5:
Using bowed / warped specimens which cannot sit flat on holder base.
Weight not falling freely (chatter inside tube, vacuum suction).
Mis‑judging brittle vs ductile failure (counting ductile tear as failure).
Improper starting height leading to long runs of all‑pass / all‑fail without restarting.
Re‑impacting same location of one specimen.
Ignoring required temperature‑humidity conditioning.
Q6. Can the tester also be used for other falling-weight standards?
A6: Yes — with the right fixture kit. The same column can be configured for D4226, D5420, D5628, D1709, ISO 7765-1, ISO 6603-1, D2444, EN 744, EN 1411, ISO 3127, ASTM E2486 (EIFS), depending on drop mass, striker type, and specimen support.
Q7. What should I look for when buying a D4495 falling-weight tester?
A7:
Genuine 10 lb ± 0.5 lb flat-bottom weight with a hardened, scratch-resistant striking face.
Drop column with ≥ 3 m usable fall and precise 50 mm (2 in.) height increments with a readable scale.
Reproducible, free-fall release (no vacuum drag, no side-wall chatter).
Rigid steel base plate 200 × 300 × 25 mm that can be anchored to a concrete floor.
Stable right-angle slotted brackets for profile centering and anti-sliding.
Q8. Does D4495 use a striker or impactor head like the Gardner test?
A8: No. There is no intermediate striker and no support-plate hole. The flat-bottom weight strikes the profile directly as it rests on the flat steel plate. This is a key difference from D4226 (H.25 / C.125 impactor) and D5420 (15.86 / 12.70 mm striker).
Q9: Why choose ASTM D4495 Falling‑Weight Impact Tester, PVC window profile drop weight impact testing machine from UnitedTest?
A9: UnitedTest manufactures ASTM D4495‑21 Falling Weight Impact Tester for rigid PVC window‑door profiles. Complies fully with ASTM D4495, implements Bruceton staircase method to measure mean failure height & mean failure energy for PVC profile impact‑resistance QC and R&D.
UnitedTest supplies high‑precision ASTM D4495 falling weight impact testing machine, built for rigid extruded PVC‑U profile impact‑resistance testing, fully compliant with ASTM D4495‑21 standard test method for rigid polyvinyl chloride building profiles.
Our tester is widely adopted by PVC window‑door profile factories, building‑material labs, third‑party inspection laboratories, polymer material R&D centers across North‑America and global markets. It performs standardized free‑fall drop‑weight test following the Bruceton up‑and‑down staircase method to compute Mean Failure Height (MFH), Mean Failure Energy (MFE) and estimated standard deviation for hollow PVC profiles such as window frames, door extrusions, vinyl siding and architectural trim profiles.
✅ Standard 10 ±0.5 lb cylindrical falling striking weight, scratch‑resistant striking steel surface
✅ Vertical guide tube, precise height adjustment in 2‑inch (50 mm) increments, max drop height ≥10 ft
✅ Anti‑chatter mechanical design ensures true free fall; eliminates vacuum‑drag weight‑restraint effect
✅ Heavy‑duty steel specimen holder plate, concrete‑mount base adapter, slotted angle brackets to fix hollow PVC profiles and prevent lateral sliding during impact
✅ Protective safety barrier to contain flying broken fragments
✅ Data logging support for X/O pass‑fail staircase test records, easy for post‑test formula calculation
✅ Supports both full 24‑h conditioned‑specimen test and fast QC‑4‑hour‑conditioning production‑line inspection
In‑factory incoming raw‑material quality‑control for rigid PVC profiles
Finished‑product batch inspection for window & door PVC extrusions
Evaluate impact‑toughness change caused by PVC formulation modification or extrusion‑process adjustment
Generate test data for product‑standard specification validation and third‑party certification reports
Related compatible standards: ASTM D4226, ASTM D2444, ASTM D5628. UnitedTest also provides custom fixtures and after‑sales technical guidance for ASTM D4495 test‑method operation, fracture‑mode judgement and staircase‑method data processing.
