ASTM D4226 Standard Test Methods for Impact Resistance of Rigid Poly(Vinyl Chloride) (PVC) Building Products

ASTM D4226 Standard | Gardner Falling Weight Impact Test for Rigid PVC Building Products | Compliant Falling Impact Testing Machine

ASTM D4226 Standard Test Methods for Impact Resistance of Rigid Poly(Vinyl Chloride) (PVC) Building Products is the core industrial benchmark that our ASTM D4226 certified Gardner falling weight impact tester fully complies with. It quantifies the critical impact energy required to crack, puncture, shatter or tear rigid PVC construction materials via a calibrated free-falling standard weight striking a precision impactor tip placed atop test specimens.

Commonly named the Gardner falling-weight impact test for rigid flat plastic panels, this standardized testing procedure applies to three primary PVC sample categories: rigid PVC plastic sheeting, flat extruded/molded building profile sections, and custom molded rigid PVC test coupons.

Our dedicated PVC impact testing machine delivers repeatable, accurate test data to differentiate two distinct material failure modes: ductile failure marked by plastic stretching and tearing, and brittle failure characterized by sharp cracking or complete shattering. The test results clearly map the ductile-to-brittle transition threshold of rigid PVC building plastics, an essential performance metric for construction PVC material R&D, factory quality control and third-party compliance inspection.

ASTM D4226 Impact resistance test of rigid plastics for door, window

Keywords: ASTM D4226 impact tester, Gardner falling weight impact tester, rigid PVC building product impact test machine, PVC sheet dart impact equipment, rigid polyvinyl chloride impact resistance test, PVC profile falling weight impact energy measurement, ductile brittle transition plastic impact test, construction PVC molded coupon impact inspection, Gardner dart impact tester for rigid flat plastic panels.

Core Test Principle

This is a constant-mass, variable-height free-fall impact test based on gravitational potential energy conversion:

E = mgh

Fixed mass (3.6 kg weight) eliminates variable-weight uncertainty; drop height is adjusted to tune impact energy incrementally.

When the weight falls, force transfers through the impactor tip to a concentrated point load on the unsupported central region of the specimen over the anvil hole.

Procedure A records any rupture as failure; Procedure B differentiates failure mode to separate ductile plastic deformation vs brittle catastrophic cracking, solving the critical limitation of general impact tests that cannot quantify cold brittleness transition energy for PVC.

The Bruceton staircase statistical method generates a statistically robust 50% failure threshold rather than single pass/fail height data, reducing test variability.

Specific Test Methods

Contains two independent stair-case (Bruceton) statistical test procedures with identical hardware but different failure evaluation criteria:

Procedure A: General Mean Failure Test

Objective: Calculate the Mean Failure Height (MFH) and Mean Failure Energy (MFE) at which 50% of specimens develop any visible failure (punched hole, tear, split, crack, shatter) under impact.

Failure definition: Any permanent penetration, rupture, or crack through the specimen cross-section.

Output: Overall material toughness, general impact resistance for quality screening.

Procedure B: Brittle Transition Test

Objective: Measure the Mean Brittle Failure Height and Mean Brittle Failure Energy, the energy threshold causing 50% of specimens to fail via brittle fracture (sharp crack, shatter, zero plastic deformation) rather than ductile tearing.

Critical function: Identify the ductile-to-brittle transition energy, a key metric for PVC prone to cold brittleness.

Failure classification rules (visual criteria from standard diagrams):

Brittle failure: Clean punched hole, radial shatter, sharp crack with 0° tip angle, no material stretching.

Ductile failure: Dented tear, crack with finite tip angle, drawn plastic deformation around the impact point.

Test Equipment Required For ASTM D4226:

Falling-Weight Impact Tester

Vertical guide tube with calibrated height scale, weight lift handle, vertical guide arm, plumb tube axis.

Standard falling weight: 3.6 ± 0.1 kg solid steel rod.

Anti-rebound safety: Protective shielding around the test zone; cotter pin hole on the weight tube to stop weight rebound after impact.

Two Mandatory Impactor Head

(Hardened Steel, Rockwell C50–55, polished scratch-free surface)

Impactor H.25 (Hemispherical 0.25 in / 6.35 mm radius tip)

Full seated penetration depth: 12.2 ± 0.1 mm

For thin/medium toughness PVC siding, most common configuration for building PVC panels.

ASTM D4226 Impact resistance test of rigid plastics for door, window

Impactor C.125 (40° conical tip with 0.125 in / 3.18 mm hemispherical radius)

Full seated penetration depth:17.5 ± 0.1 mm

Used for thick, high-toughness PVC where H.25 cannot induce failure; results cannot be cross-compared between the two impactors.

ASTM D4226 Impact resistance test of rigid plastics for door, window

Specimen Support Anvil

Central circular opening: 16.26 ± 0.025 mm diameter.

Opening top edge rounded to 0.8 m radius to avoid premature edge cracking of specimens.

Support Base & Stabilization

Minimum base block weight: 375 lb; max dimensions 16 in (H) × 30 in (W) × 30 in (D).

Rubber mats under tester/base are strictly prohibited (they absorb impact energy and skew results).

Bracket lighter bases to concrete floors to eliminate vibration during drop impact..

Test Specimen Information

Flat specimens cut from the building-product profile, ≥ 0.75 in (19 mm) wide.

Free of obvious imperfections (unless imperfection itself is the study variable).

Thickness measured with a micrometer (per ASTM D5947), accurate to 1% of avg thickness.

For unknown samples: ≥ 6 specimens to bracket starting height; for known approx. mean height: ~20 specimens give good precision (as few as 5 can work but with larger σ).

Same target point must not be tested twice.

Key Test Parameters:

Fixed weight: 3.6 kg steel drop mass (non-negotiable standard parameter).

Height increment d_h: Recommended as 0.5–2 × estimated standard deviation of the material; increments equal to ~5% of preliminary failure height deliver optimal statistical precision.

Test sequence rule: A continuous run of seven identical pass/fail results indicates an improperly selected starting height—restart testing with revised initial height.

Minimum pre-test screening: 6 variable-height trial impacts to bracket the approximate failure energy before formal staircase testing.

Specimen quantity: Minimum 5 specimens generate rough estimates; larger sample sets reduce standard deviation of final energy values.

Test Stipulations:

Only one impactor geometry (H.25 or C.125) can be used for a full material comparison; data from mixed impactors cannot be correlated.

Thickness normalization of impact energy is permitted only when specimen surface conditions (extruded/compression molded) are identical across test batches.

Maintain a running plot of test data: mark failure with "X", non-failure with "O" at each height level for real-time staircase adjustment.

Test Procedures of ASTM D4226 Fall weight impact test for Building products:

Specimen Conditioning: Condition all coupons per ASTM D618 for ≥40 h at standard temperature/humidity.

Thickness Measurement: Measure 5 thickness points per specimen, calculate average thickness, reject coupons with >5% thickness deviation.

Tester Setup: Mount the specified impactor (H.25/C.125), verify vertical plumb tube alignment, confirm 375 lb minimum stable base, install safety shielding.

Preliminary Screening Tests: Run minimum 6 variable-height impacts to bracket the rough failure energy range of the material.

Staircase Formal Testing:

Place a flat specimen fully covering the anvil hole, lightly clamp to prevent sliding.

Rest impactor tip on the specimen center, lift the 8-lb weight to starting height, release free fall.

Remove specimen, inspect fracture to classify as pass/no failure, ductile failure, or brittle failure (per standard failure diagrams).

Adjust drop height by fixed increment: raise height if no failure, lower height if failure occurs.

Repeat until sufficient staircase data is collected; log all heights and failure modes.

Data Calculation: Compute mean failure height, mean failure energy, estimated standard deviation, and normalized impact energy per the standard formulas.

Test Applications & Industry Fields

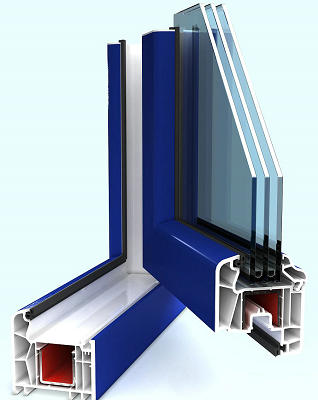

Building Construction (Primary Application): Rigid PVC vinyl siding, exterior wall panels, window profile flat sections, outdoor trim products—evaluate resistance to hail, and debris impact during installation/weather exposure.

Raw Material R&D: PVC compound formulation qualification; compare impact modifiers, stabilizers, and filler loading effects on ductile-brittle transition.

Manufacturing Quality Control: Batch screening of extruded PVC sheets; detect processing defects (uneven plasticization) that reduce impact toughness.

Weathering & Aging Testing: Evaluate impact property degradation after UV exposure, freeze-thaw cycling, or long-term outdoor service (predict cold-weather brittleness of exterior PVC).

Product Specification Compliance: Validate PVC building materials against industry and code impact resistance requirements for residential construction.

Related Standards

ISO 6603-1	Plastics - Determination of the punching properties of rigid plastics - Part 1: Non-instrumented impact test
JIS K 7211	Plastics -- Determination of puncture impact behaviour of rigid plastics -- Part 1: Non-instrumented impact testing
ASTM D3763	Standard Test Method for High Speed Puncture Properties of Plastics Using Load and Displacement Sensors
ASTM D1709	Standard Test Methods for Impact Resistance of Plastic Film by the Free-Falling Dart Method
ASTM D7136	Standard Test Method for Measuring the Damage Resistance of a Fiber-Reinforced Polymer Matrix Composite to a Drop-Weight Impact Event
ASTM D5420	Standard Test Method for Impact Resistance of Flat, Rigid Plastic Specimen by Means of a Striker Impacted by a Falling Weight (Gardner Impact)

XJB-30E Heavy duty frame falling hammer impact testing machine mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ASTM D4226, ISO 7765-1, ASTM D1709

XJB-30A Falling dart impact tester mainly used to test plastic, film, or sheet thickness below 1mm, impact by falling dart, check the energy when 50% of test specimen broken. Conform with standard: ISO 7765-1, ASTM D1709, GB 9639.

Q1: What is ASTM D4226, and what material does it test?

A1: ASTM D4226 is the standard Gardner falling-weight impact test exclusively for flat rigid PVC building products (vinyl siding, exterior wall panels, flat PVC extruded profiles, molded PVC coupons). It uses a fixed 8-lb (3.6 kg) free-falling weight to measure impact energy that causes specimen rupture, and uniquely distinguishes ductile vs brittle fracture to characterize PVC cold brittleness.

Q2: Why is ASTM D4226 critical for rigid PVC building materials?

A2: 1) Rigid PVC becomes brittle in cold outdoor climates; Procedure B quantifies ductile-to-brittle transition energy to avoid sudden hail/debris cracking on house siding.

2) It replicates real-world concentrated point impacts (hail, dropped construction tools) better than notched pendulum impact tests (ASTM D256).

3) It delivers statistically consistent 50% failure thresholds via the Bruceton staircase method, eliminating subjective single-height pass/fail results.

4) North American building codes and vinyl siding product specs (ASTM D3679) mandate this test for compliance certification.

5) It guides compounding adjustments (impact modifier loading, stabilizers) to balance cost and outdoor impact durability.

Q3: What is the difference between ASTM D4226 and the similar standard ASTM D5420?

A3: ASTM D4226 is limited to rigid PVC building construction products with defined H.25/C.125 impactors and Procedure B brittle transition testing. ASTM D5420 is a general Gardner impact standard for all flat plastics/films, with no dedicated method to separate brittle/ductile fracture modes, and no construction product-specific calibration rules.

Q4: What is Procedure A, and when do I use it?

A4: Procedure A calculates the Mean Failure Energy (MFE) — the energy at which 50% of specimens develop any visible failure (punched hole, tear, crack, split, shatter). Use it for general quality control, raw material screening, and overall toughness ranking of PVC panels. It counts all rupture types as failure, no differentiation between ductile/brittle modes.

Q5: What is Procedure B, and when is it mandatory?

A5: Procedure B calculates Mean Brittle Failure Energy (MBFE), the threshold energy where 50% of samples fail via pure brittle fracture (0° sharp crack tips, no plastic stretching). It measures the ductile-to-brittle transition energy, critical for outdoor PVC exposed to cold weather. It is required for cold-climate product qualification and weathering aging studies, as brittle fracture causes catastrophic, unnoticeable siding damage.

Q6: How do I visually tell brittle failure apart from ductile failure per ASTM D4226?

A6: Brittle failure: Clean punched hole, radial shatter, sharp crack with 0° tip angle, zero plastic deformation around impact zone, no material stretching.

Ductile failure: Dented cup-shaped tear, cracks with finite angled tips, drawn/stretched PVC material around the impact point, visible plastic deformation before breaking.

Q7: Can I re-test the same impact spot on one specimen multiple times?

A7: No. Each impact creates microcracks and residual stress that weaken the surrounding material. The standard forbids repeated impacts on the same target point; mark impact locations to avoid overlap.

Q8: Why is rubber mat under the test base strictly prohibited by the standard?

A8: Rubber absorbs impact energy and creates vibration during weight drop, artificially lowering measured failure height/energy and producing unreliable, non-reproducible data. The test requires a rigid, dense solid base (minimum 375 lb mass) to eliminate energy loss during impact loading.

Q9: What is the Bruceton Staircase method used in both procedures?

A9: It is a statistical up-down test sequence to find the 50% failure threshold:

Start at an estimated drop height; drop weight and record pass/failure (or brittle/ductile break).

If no failure (ductile break for Procedure B), raise drop height by fixed increment; if failure (brittle break), lower height.

Repeat until sufficient data is collected to calculate mean failure height via the standard formula.

This method produces far more repeatable data than single-height pass/fail spot checks.

Q10: How many specimens do I need for valid testing?

A10: Minimum 5 specimens generate rough estimates, but standard lab practice uses 20–30 coupons for precise standard deviation values. Before formal staircase testing, run at least six variable-height trial impacts to bracket the approximate failure energy range.

Q11: When can I discard an outlier specimen with abnormal fracture?

A11: Only if you identify a clear physical root cause for the anomaly (e.g., visible internal voids, surface scratches, embedded contamination). Random unexplained abnormal breaks cannot be discarded from the dataset, per ASTM E178 outlier rules referenced in D4226.

Q12: Can D4226 test results predict the impact resistance of full PVC profiles (e.g., siding with ribs/corners)?

A12: No. Test values only apply to the flat coupon section tested. Ribs, curved corners, and profile geometry change stress distribution during impact; flat-panel data cannot represent the full finished product’s impact performance
