ASTM D2290 Standard | Apparent Hoop Tensile Strength Test Machine for Plastic & Reinforced Plastic Pipe | UnitedTest

UnitedTest manufactures universal tensile testing machines fully compliant with ASTM D2290 for plastic pipe manufacturers and pipeline material labs.

ASTM D2290 Standard Test Method for Apparent Hoop Tensile Strength of Plastic or Reinforced Plastic Pipe establishes complete standardized test protocols. It uses split-disk or ring-segment fixtures to measure pipe hoop tensile performance under strictly controlled preconditioning, temperature, humidity and crosshead speed parameters.

Our ASTM D2290 tensile tester supports dedicated split-disk and ring-segment fixtures, delivering stable apparent hoop tensile strength data for thermoplastic and FRP pipe quality control, material R&D and industry compliance verification.

This test method covers the determination of the comparative apparent tensile strength of most plastic products utilizing a split disk or ring segment test fixture, when tested under defined conditions of pretreatment, temperature, humidity, and test machine speed. This test method is applicable to reinforced-thermosetting resin pipe regardless of fabrication method. This test method also is applicable to extruded and molded thermoplastic pipe.

Core Definition: Apparent Hoop Tensile Strength

The result is termed apparent rather than true tensile strength because split-disk fixtures introduce minor bending moments at the fixture split line during loading; fixture geometry is engineered to minimize this bending interference. The test quantifies circumferential tensile resistance, the critical load bearing direction for pressure piping.

Core Test Principle

Plastic pipes under internal pressure bear primary tensile stress along the hoop (circumferential) direction. This test replicates hoop tension by mounting pipe ring specimens on self-aligning fixtures and applying uniaxial tensile load at constant crosshead speed until yield or rupture occurs.

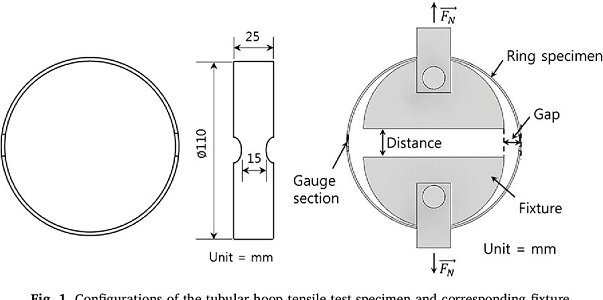

Split-disk setup (A/B/C): Expands the full pipe ring radially, generating hoop tension; minor bending moment from disk separation creates "apparent" strength instead of pure tensile stress.

Ring-segment setup (D/E): Pulls only machined narrow segments, minimizes bending moment to deliver near-direct tensile stress on the reduced test cross-section.

Record peak breaking load and yield load, calculate apparent hoop tensile strength using cross-sectional area of the reduced test zone.

Test procedure stipulated on the ASTM D2290 for pipe hoop tensile test:

Procedure	Requirement	Specimen
Procedure A	Applicable: Reinforced thermosetting resin pipe (any manufacturing process) Test fixture: Self-aligning split-disk fixture	Full ring, minimum overall width 0.90 in; reduced section minimum width 0.55 in. 1 or 2 reduced zones (180° apart if two), centered within ±0.05 in of specimen width midline.
Procedure B	Applicable: All-size thermoplastic pipe (extruded/molded) Test fixture: Split-disk fixture	Full ring width W: 0.50–2.00 in; reduced width Wr = W/2 minimum (Wr range: 0.250–0.750 in). Two reduced zones at minimum wall thickness and 180° opposite; Wr thickness variation ≤0.010 in OD to ID, Wr width difference between two zones ≤0.020 in.
Procedure C	Applicable: Thermoplastic pipe, nominal diameter ≥ 4.5 in (110 mm) Test fixture: Split-disk fixture with fixed 2.0 in split disk width	Nominal width 1.75–2.00 in; two test areas (min wall thickness + 180° opposite) wet-sanded to retain rectangular cross-section.
Procedure D	Applicable: HDPE pipe, nominal diameter ≥14 in (350 mm), wall thickness ≥1 in (25 mm) Test fixture: Dual ring-segment self-aligning fixture	Source ring width 2.00 ±0.2 in; cut into two separate ring segments, machined to width 1.70 ±0.10 in. Reduced cross-sections machined after 24 h conditioning; two pin holes drilled symmetrically above/below reduced zones.
Procedure E	Applicable: PVC pipe, nominal diameter ≥14 in (350 mm), wall thickness ≥0.5 in (12.7 mm) Test fixture: Single ring-segment self-aligning fixture	Source ring width 1.00 ±0.2 in; single ring segment per test ring. Wall thickness ≥1 in: reduced section thickness 0.25–0.75 in, thickness tolerance ±0.005 in. Wall thickness 0.5–1.0 in: reduced section thickness 0.125–0.250 in, thickness tolerance ±0.005 in.

Required Test Equipment & Apparatus of ASTM D2290 Test for Apparent Hoop Tensile Strength of Plastic or Reinforced Plastic Pipe

Universal Constant-Rate Tensile Testing Machine	Recommend UnitedTest Electronic Universal Testing Machine, and Hydraulic type Hoop tensile testing machine. Crosshead drives at uniform controllable speed; load indicator accuracy ±1% of reading, calibrated per ASTM E4 (Force Calibration standard). Must eliminate inertia lag at specified test speeds.

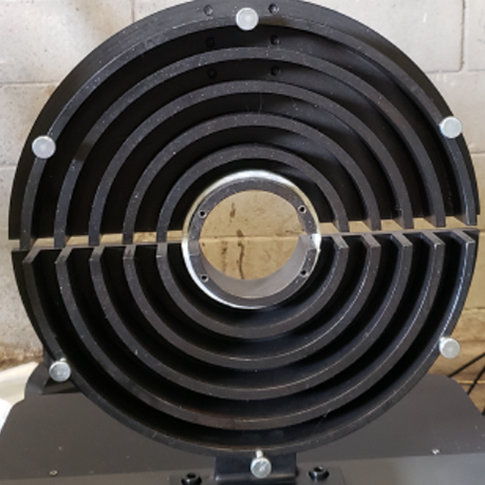

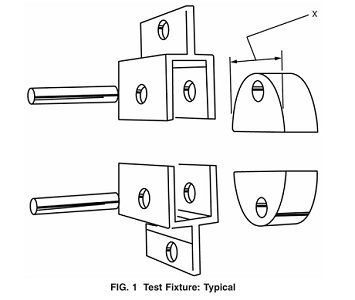

Self-Aligning Test Fixtures (Split-Disk Fixture A/B/C)	Split disk width for A/B ≥ specimen width +0.1 in; fixed 2.0 in width for Procedure C. Self-align mounting ensures pulling force is perpendicular to the fixture split axis after load application.

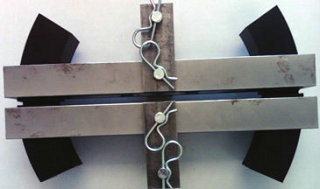

Self-Aligning Test Fixtures (Dual Ring-Segment Fixture D)	2.00 in ×5.00 in opening for segments 1.6–1.8 in wide, wall thickness 1.0–4.5 in; adjustable for thicker walls. 0.50 in diameter locating pins with tapered ends for easy specimen installation.
Self-Aligning Test Fixtures (Single Ring-Segment Fixture E)	Compact self-align clamp for one machined PVC ring segment.
Ball-anvil micrometer	Ball-anvil micrometers with readability of 0.001 in, to measure specimen width, wall thickness and reduced section dimensions.
Auxiliary Tools	Specimen machining fixture for cutting reduced cross-sections; dimensional measuring instrument.

Mandatory Crosshead Test Speeds

Procedure	Crosshead Separation Speed
A	0.1–0.5 in/min (2.5–12.7 mm/min)
B / C / D	Fixed 0.5 in/min (12.7 mm/min)
E	Fixed 0.2 in/min (5.1 mm/min)

Step-by-Step Test Procedures of ASTM D2290 Apparent Hoop Tensile Strength Testing:

1, Specimen Measurement: Use micrometer to record width and thickness of all reduced cross-sections to 0.001 in precision.

2, Fixture Mounting: Secure specimen on self-aligning fixture following geometry rules:

A/B/C: Reduced zones aligned at fixture split line; A specimens offset 2.0 ±0.2 in from split.

D: Two ring segments symmetric relative to fixture pull centerline.

E: Single segment fixed into dedicated single-segment clamp.

3, Machine Setup: Set crosshead speed to procedure-specified value, zero load indicator.

4, Load Application: Start tensile machine, pull specimen continuously until yield or complete rupture.

5, Data Recording: Capture yield load, maximum breaking load, crosshead travel distance at rupture.

6, Calculation: Compute individual apparent tensile strength, average value and sample standard deviation.

7, Report Compilation: Document all material, specimen, conditioning, test and statistical data per reporting requirements.

Industrial Application Fields

Civil & Municipal Piping: Water supply, sewage, drainage HDPE/PVC pipe; large-diameter underground pressure pipelines.

FRP Reinforced Thermoset Pipe Industry: Fiberglass-reinforced plastic industrial process pipe, chemical delivery pipelines.

Oil & Gas Offshore/Onshore Plastic Pipeline: Large-bore PE transmission pipes (≥14 in diameter).

Manufacturing Quality Control: Incoming raw material inspection, finished pipe batch acceptance/rejection criteria.

R&D & Material Formulation: Resin composite optimization, weld line strength evaluation, new polymer pipe development.

Engineering Design Validation: Input hoop tensile data for pipe pressure resistance, burst load structural calculations.

Third-Party Compliance Certification: Meet U.S. municipal, military and ASTM pipe specification acceptance standards.

Related Test Standard:

ASTM D2105	Longitudinal tensile test for plastic pipe (measures axial pipe strength, opposite loading direction of D2290).
ASTM D1599	Short-Time Hydraulic Burst Test for Plastic Pipe; Procedure C D2290 yields equivalent burst performance data for 4–8 in PE/PB pipes, used as a faster alternative to full burst hydrotesting.
ISO 10468	Glass-reinforced thermosetting plastics (GRP) pipes — Determination of the ring creep properties under wet or dry conditions
ASTM D638	Standard tensile test for plastic dogbone flat specimens (axial tensile, not hoop circumferential stress).
ISO 1167	Thermoplastic pipe – Determination of resistance to internal pressure (burst-based, not split-disk, but functionally related)

Keywords: UnitedTest ASTM D2290 hoop tensile tester, ASTM D2290 plastic pipe apparent hoop strength test machine, split disk ring segment pipe tensile testing equipment, reinforced plastic FRP pipe hoop tensile strength analyzer, ASTM D2290 controlled temperature humidity crosshead speed test bench.

UnitedTest Pipe Apparent Hoop Tensile Testing Machine complies with ASTM D2290, specialized in testing apparent hoop tensile strength of plastic and reinforced plastic pipes. It uses a self-aligning split disk fixture to apply tensile stress to pipe ring samples along their contour.

Hoop tensile strength of plastic pipes is designed based on the ASTM D2290, to determine the breaking strength for the pipe hoop tensile test. ASTM D2290 is a test method used to study the apparent tensile strength of plastic pipes using a specialized test fixture to pull apart a ring of pipe.

Q1: What is ASTM D2290-25, and what core property does it measure?

A: ASTM D2290-25 is the 2025 updated ASTM standard test method for apparent hoop tensile strength of plastic and reinforced thermoset pipe. It evaluates circumferential (hoop) tensile resistance via split-disk or ring-segment fixtures under controlled conditioning, temperature, humidity and crosshead speed. The result is called "apparent" instead of true tensile strength because split-disk fixtures introduce minor bending stress at the fixture split line during loading.

Q2: Why is ASTM D2290 hoop tensile testing critical for plastic pipe materials?

A: Internal pipeline pressure creates dominant hoop tensile stress, which is the leading cause of pipe longitudinal splitting and burst failure.

Flat tensile tests (e.g., ASTM D638) cannot replicate pipe curvature, residual manufacturing stress, and real circumferential loading from internal pressure.

It provides fast, low-material-cost QC screening compared to full hydraulic burst testing (ASTM D1599).

Hoop strength data is mandatory input for engineering calculations of maximum allowable operating pressure (MAOP).

It detects weak zones like thin wall sections, extrusion knit lines, weld seams, and poor fiber winding in FRP pipes.

It supports batch acceptance, supplier qualification, R&D material formulation, and third-party compliance certification for municipal, industrial and military piping systems.

Q3: What pipe materials and sizes does ASTM D2290 cover?

A: Two major material categories, split into five distinct procedures by pipe size and polymer type:

Procedure A: All reinforced thermosetting resin (FRP/GRP) pipe, any diameter

Procedure B: All-size extruded/molded thermoplastic pipe (PVC, HDPE, PP, PB)

Procedure C: Thermoplastic pipe ≥4.5 in (110 mm) nominal diameter

Procedure D: HDPE pipe ≥14 in (350 mm) nominal diameter, wall thickness ≥1 in (25 mm)

Procedure E: PVC pipe ≥14 in (350 mm) nominal diameter, wall thickness ≥0.5 in (12.7 mm)

Q4: What is the core difference between split-disk (A/B/C) and ring-segment (D/E) test fixtures?

A: Split-disk fixtures (A/B/C): Use full ring specimens, expand the ring radially to generate hoop tension. Bending moment from disk separation exists, hence "apparent" strength result. Lower cost, simpler for small/medium pipes.

Ring-segment fixtures (D/E): Use machined partial ring segments with narrow reduced cross-sections. Self-aligning clamps apply nearly direct uniaxial tension with minimal bending moment, delivering more accurate tensile data for large-diameter thick-wall HDPE/PVC pipes. Two segments for D, single segment for E.

Q5: How do I select the correct Procedure (A/B/C/D/E) for my pipe?

A: Follow this decision rule:

FRP/thermoset pipe → Procedure A

Any-size thermoplastic pipe <4.5 in diameter → Procedure B

Thermoplastic pipe ≥4.5 in diameter (not ≥14 in HDPE/PVC) → Procedure C

HDPE pipe ≥14 in OD, wall ≥1 in → Procedure D

PVC pipe ≥14 in OD, wall ≥0.5 in → Procedure E

Q6: Why are all fixtures required to be self-aligning?

A: Self-aligning mounting ensures tensile pulling force acts perfectly perpendicular to the fixture split axis under load. Misalignment introduces extra shear and bending stress, skews peak load readings, and causes inconsistent failure modes between laboratories, ruining repeatability and reproducibility data.

Q7: How many specimens are required for valid ASTM D2290 testing?

A:Routine quality control: Minimum 1 specimen per batch

Dispute resolution, formal certification, or reliable average data: Minimum 5 ring specimens

Final report must calculate arithmetic mean and standard deviation from the full specimen set.

Q8: What information must be included in the official ASTM D2290 test report?

A: Mandatory report items cover material identity, manufacturing method, specimen geometry, conditioning environment, number of specimens, crosshead speed, individual apparent strength values, average strength, standard deviation, resin content (for FRP), and test date. Missing any core data makes the report non-compliant with the standard.

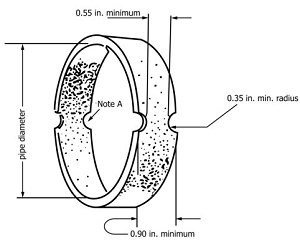

Q9: Why do specimens need machined reduced cross-sections?

A: Reduced narrow test zones force consistent fracture at the targeted area (minimum wall thickness, weld lines, knit lines) rather than random rupture at fixture contact points. Uniform reduced-section dimensions enable precise cross-sectional area calculation for apparent tensile strength formulas and eliminate inconsistent failure location variability. All machining marks must be removed from reduced zones per standard requirements.

Q10: What are the fixed crosshead speed requirements for each procedure?

A: Procedure A: 0.1–0.5 in/min (2.5–12.7 mm/min) variable range

B / C / D: Fixed 0.5 in/min (12.7 mm/min)

E: Fixed 0.2 in/min (5.1 mm/min)

Crosshead speed directly impacts yield load and ultimate rupture load; deviation invalidates test results.

Q11: Why is the strength value called "apparent tensile strength" instead of true tensile strength?

A: Split-disk fixtures (A/B/C) create a bending moment at the fixture split line as the two disk halves separate. This combined tension + bending stress state does not represent pure uniaxial tensile loading, so the calculated value is labeled apparent strength. Ring-segment D/E minimize bending, but the standard retains the unified term for consistency across all five procedures.

Q12: Can ASTM D2290 replace hydraulic burst testing (ASTM D1599)?

A: Partially for screening purposes only. Note 1 of the standard confirms Procedure C produces equivalent quick burst performance data for 4–8 in polyethylene/polybutylene pipes, with faster testing and less material consumption. However, full hydraulic burst testing remains required for formal product certification and long-term pressure resistance validation; D2290 serves as a rapid pre-screen tool.

Q13. What is the main advantage of the newer Procedures D and E (Ring Segment Method)?

A: For large-diameter pipe (≥14 in.), the traditional split-disk (Procedure A/B/C) becomes difficult to manufacture and align. Procedures D and E use ring segments that apply a more direct tensile load with minimal bending. This improves accuracy for large-bore PE and PVC pipes used in municipal water and sewer projects.
