ISO 15306 GRP Pipe Cyclic Internal Pressure Fatigue Tester | UnitedTest

ISO 15306 defines laboratory test methods to measure cyclic internal pressure fatigue resistance for GRP pipes and fittings up to DN 600. UnitedTest supplies fully ISO 15306 compliant GRP pipe fatigue testing machines for pipeline quality control and R&D.

ISO 15306 is the official international standard dedicated to determining the resistance to cyclic internal pressure for glass-reinforced thermosetting plastics (GRP) pipes, also commonly known as fiberglass-reinforced thermoset (FRP) pipes. This specialized laboratory test method evaluates cyclic pressure fatigue performance, simulating repeated internal pressure fluctuations that GRP piping systems endure during long-term field service.

Unlike standard static pressure tests, ISO 15306 focuses on fatigue durability under continuous cyclic loading, making it critical for validating pipeline service life and structural reliability. The standard covers not only straight GRP pipes but also GRP pipe fittings, supporting comprehensive component qualification. Its scope applies to all pipe and fitting sizes with nominal diameters up to DN 600, covering most common industrial and municipal GRP pipeline specifications.

Cyclic internal pressure fatigue data from ISO 15306 testing enables pipe manufacturers and engineering labs to verify composite material durability, optimize pipe wall structure, validate batch production consistency, and ensure compliance with international GRP pipeline design and safety requirements.

UnitedTest designs and manufactures high-precision ISO 15306 compliant cyclic internal pressure fatigue testing machines. Our professional test equipment delivers stable, repeatable cyclic pressure loading and accurate fatigue performance analysis for GRP pipes and fittings, ideal for production quality control, material research, and third-party certification testing.

Core Test Principle

A pipe test specimen is subjected to repeated fluctuating internal pressure with fixed mean pressure, pressure amplitude and cycle frequency, up to a target number of cycles. The test stops either when the specimen fails (leakage or burst rupture) or when the specified cycle count is reached.

Key definitions:

Cyclic pressure: Pressure oscillating around a defined mean value with equal amplitude above and below the mean.

Mean pressure: Central pressure level for oscillation.

Pressure amplitude: Deviation between mean pressure and upper/lower pressure limit.

Cycle: Full pressure sweep from lower limit → upper limit → lower limit.

Failure: Visible leakage through pipe wall, or bursting (rupture with rapid loss of test fluid).

Test Equipment stipulated in ISO 15306 Cyclic internal pressure test of GRP pipes

Recommend UnitedTest HYD Pipe Hydrostatic Pressure Test System is primarily used to simulate the pressure conditions that plastic pipes experience in actual use.

Internal pressure source with control system

Provides gradual pressure build‑up; maintains cyclic pressure within ±4 % tolerance of specified minimum and maximum pressure values throughout testing.

Pressure‑recording device

Measures and records upper‑limit pressure, lower‑limit pressure, and accumulates cycle counts during cyclic loading

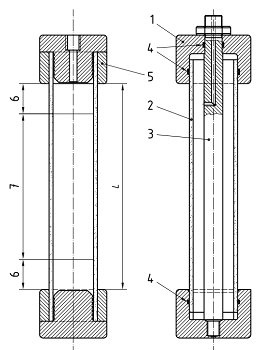

End‑sealing devices (Type A / Type B)

Type 1 end caps: For testing with end thrust (external seals). Internal pressure creates axial thrust acting on pipe ends.

Type 2 end caps: For testing without end thrust (internal seals). Tie bars bear axial thrust so the pipe specimen carries no end‑thrust load

ISO 15306 Cyclic internal pressure test of GRP pipes

Test Specimen Information

Quantity: Number of specimens is defined by the referencing product standard; ISO 15306 itself does not set a fixed number.

Dimensions: Free test length is specified by the referencing standard. Before testing, measure each specimen’s outer or inner diameter, wall thickness and total length.

Valid failure zone: Failures occurring too close to the end‑sealing devices (outside the valid test zone) may be discarded, as these are regarded as end‑cap‑induced artefacts, not representative of pipe‑body performance.

Key Test Parameters

Mean pressure: Equals pipe nominal pressure PN (bar).

Pressure amplitude: ± 0.25 × PN.

Example: PN 10 pipe cycles between 7.5 bar (lower limit) and 12.5 bar (upper limit).

Cycle frequency (size‑dependent default values):

DN ≤ 150: (16 ± 4) cycles/min

150 < DN < 350: (8 ± 2) cycles/min

350 < DN < 600: (4 ± 1) cycles/min

Test medium: Liquid inside specimen defined by referencing standard; surrounding environment defaults to air.

Target number of cycles: Defined by referencing standard.

Standardized Full Test Procedures of ISO 15306 Cyclic internal pressure test of GRP pipes:

Measure dimensional data for each specimen: diameter, wall thickness, length.

Mount appropriate end‑sealing caps (Type 1 or Type 2 according to end‑thrust requirement). Fill specimen completely with test liquid and purge all trapped air.

Connect assembly to the pressure source. Stabilize both test liquid and surrounding environment to the target test temperature.

Adjust pressure to the lower cyclic limit, then ramp pressure up to upper limit and reduce back to lower limit to complete one cycle. Repeat this cyclic loading at the defined frequency.

Terminate test for each specimen either when leakage/burst failure occurs, or after completing the required total number of cycles.

Record cycle count at failure for specimens that fail before reaching target cycles.

Industrial Application Fields

This test applies to GRP/FRP piping systems used in:

Municipal water supply and sewerage

Industrial process pipelines

Buried pressure piping

On‑shore and offshore service lines

It simulates real‑world service conditions of repeated pressure fluctuations caused by pump start‑stop, water‑hammer, valve actuation and transient surge pressures in pressurized GRP pipe networks.

Related Standard:

ISO 1167	Thermoplastics pipes, fittings and assemblies for the conveyance of fluids - Determination of the resistance to internal pressure
ASTM D1598	Standard Test Method for Time-to-Failure of Plastic Pipe Under Constant Internal Pressure
ASTM D1599	Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings.
ASTM D2992	American standard for obtaining hydrostatic design basis for fiberglass pipe and fittings, covering both static long‑term pressure and cyclic pressure fatigue testing.
ISO 14692	Petroleum and natural‑gas industry GRP piping standard, which uses cyclic pressure fatigue data for design‑basis calculation of composite pipework.
ISO 10467	Product standard for GRP piping systems for drainage, sewerage and pressure conveyance; it references ISO 15306 for cyclic‑pressure performance verification of GRP pipe products.
GOST 34646	Fiberglass-reinforced thermosetting plastic pipes. Method for determination of resistance to cyclic internal pressure
ASTM D2143	Standard Test Method for Cyclic Pressure Strength of Reinforced, Thermosetting Plastic Pipe

Keywords: ISO 15306 GRP pipe cyclic internal pressure test, GRP pipe cyclic pressure fatigue tester, FRP pipe fatigue resistance testing machine, ISO 15306 DN600 pipe fitting pressure test equipment, glass reinforced thermosetting plastic pipe cyclic load durability test, industrial GRP pipeline fatigue performance analyzer, cyclic internal pressure resistance test for fiberglass pipe, ISO 15306 pipeline long-term service life tester, GRP pipe and fitting fatigue quality control equipment

hydrostatic pressure testing machine is designed according to ISO 1167, ASTM D1598, ASTM D1599. Under a stipulated constant hydrostatic pressure force, keeping provision time; or inside the pipe, apply a constant and rapid hydraulic pressure to make the specimen broken in a short period time, check the max. pressure force, then calculate the ring stress.

Stainless Steel End Caps For Pipe Hydrostatic Pressure and Burst Testing are designed for internal hydrostatic pressure testing of pipes and fittings. It is used to seal the sample in order to generate internal pressure in the sample, with the characters: ISO 1167 Type A structure.

ISO 15306 Cyclic Internal Pressure Test for GRP Pipes | UnitedTest

Reliable ISO 15306 Compliance Testing Equipment for Glass-Reinforced Thermosetting Plastic (GRP) Pipes

UnitedTest manufactures professional ISO 15306 cyclic internal pressure test machines designed for determining the resistance of glass-reinforced thermosetting plastics (GRP) pipes to fluctuating internal pressure. Our equipment fully complies with ISO 15306:2003 and its amendment ISO 15306:2003/Amd 1:2012, which clarifies applicability for pipes up to DN 600.

Q1: What is ISO 15306 test, and why is this test important for GRP / FRP pipes?

A: ISO 15306 is an international lab test standard for glass‑reinforced thermosetting plastic (GRP/FRP) pipes, measuring resistance to repeated cyclic internal pressure. Static burst or constant hydrostatic tests cannot simulate real‑world surge pressure, water hammer and pump on‑off cycling. GRP is anisotropic composite material; repeated alternating pressure creates cyclic hoop and axial stress, triggering matrix micro‑cracks, delamination, leakage or premature burst even if static burst pressure meets specification. This test validates fatigue performance for product certification and long‑term pipeline safety.

Q2: What are default pressure parameters defined inside ISO 15306?

A: Default settings:

Mean pressure = pipe nominal pressure PN (bar)

Pressure amplitude = ± 0.25 × PN

Example PN 10 pipe cycles between 7.5 bar (lower limit) and 12.5 bar (upper limit).

Most other parameters (specimen quantity, target cycle count, temperature, test liquid) are defined by the referencing product standard rather than ISO 15306 itself.

Q3: What counts as test failure in ISO 15306? Can some failures be discarded?

A: Two official failure modes:

Leakage: Visible continuous fluid loss through pipe wall

Bursting: Pipe‑wall rupture with instant loss of test liquid.

Failures occurring too close to end caps (outside the valid failure zone) can be disregarded. Those damages are caused by end‑cap clamping stress instead of pipe‑body material fatigue. Pass‑fail judgment rules are not inside ISO 15306, they come from referencing GRP product standards.

Q4: What industries need ISO 15306 cyclic internal pressure testing?

A: GRP pipe manufacturers, third‑party testing laboratories, water‑supply & wastewater engineering, chemical process piping, oil‑onshore service lines, buried composite pipeline projects. It is a key type‑approval test for GRP pressure pipe tender and certification.

Q5: What common mistakes happen during ISO 15306 laboratory testing?

A: Forgetting to fully purge trapped air inside test specimen, causing unstable cyclic pressure waveform.

Using only one end‑cap type, ignoring end‑thrust test requirement.

Failure to keep pressure tolerance within ± 4 %.

Counting end‑cap‑zone breakage as pipe‑body fatigue failure.

Missing automatic cycle‑count logging, only manual record.

Q6: ISO 15306 vs. ASTM D2143 — Understanding the Global Landscape?

A: For laboratories serving both international and US markets, UnitedTest machines can be configured to support ASTM D2143-21 — the American Society for Testing and Materials standard for Cyclic Pressure Strength of Reinforced, Thermosetting Plastic Pipe. While ASTM D2143 notes "no known ISO equivalent" and is limited to pipes with OD/wall thickness ratio ≥ 10:1, its testing philosophy closely parallels ISO 15306. UnitedTest provides dual-standard capable systems to maximize your laboratory's flexibility.

Q7: Why Choose UnitedTest ISO 15306 Test Machines?

As a leading manufacturer of materials testing equipment, UnitedTest delivers GRP pipe cyclic pressure testing systems engineered for precision, repeatability, and ease of use. Our machines meet all Clause 4 apparatus requirements of ISO 15306:2003:

High-Precision Pressure Source — Servo-controlled hydraulic/pneumatic system maintains cycle limits within ±4% accuracy throughout the test duration

Advanced Pressure Recording — High-resolution transducers continuously measure and log upper/lower pressure limits and total cycle count

Versatile End-Sealing Fixtures — Compatible with both Type 1 (end thrust, external seals) and Type 2 (no end thrust, internal seals) configurations per Figure 1 of the standard

Programmable Test Parameters — Easily configure mean pressure (= PN), pressure amplitude (±0.25 × PN), and cycle frequency (16/8/4 cycles per minute based on DN)

Temperature Control Option — Integrated test liquid heating/cooling to maintain specified test temperature

Comprehensive Test Report — Automated generation of all Clause 9 required data fields

Key Applications of UnitedTest ISO 15306 Test Equipment

Our cyclic internal pressure test machines serve manufacturers, third-party testing laboratories, and research institutions across:

Municipal water & wastewater pipe manufacturers — validate GRP pipe durability under pump-induced pressure surges

Industrial GRP pipe producers — chemical plants, refineries, and process industries requiring reliable cyclic pressure verification

Oil & gas GRP pipeline suppliers — compliance testing aligned with ISO 14692 requirements

Standards & certification bodies — independent verification to ISO 15306:2003/Amd 1:2012

R&D laboratories — material fatigue research and new product development.

UnitedTest cyclic pressure test system helps customers complete GRP pipe type‑approval, product certification, batch quality inspection and composite‑material fatigue research. Our machine works together with related standards including ISO 10467, ISO 14692 and comparable ASTM D2992 cyclic‑fatigue test workflows.

Whether you need bench‑top lab‑scale equipment or large‑DN industrial test rig for DN 150‑DN 600 GRP pipes, UnitedTest provides customized hardware, end‑cap tooling and technical support for ISO 15306 cyclic internal‑pressure testing projects.
