Home >> Products >> Plastic Pipe Industry Testing >> Pipe Hydrostatic Pressure Test >> ISO 1167 Pipe Hydrostatic Pressure Tester

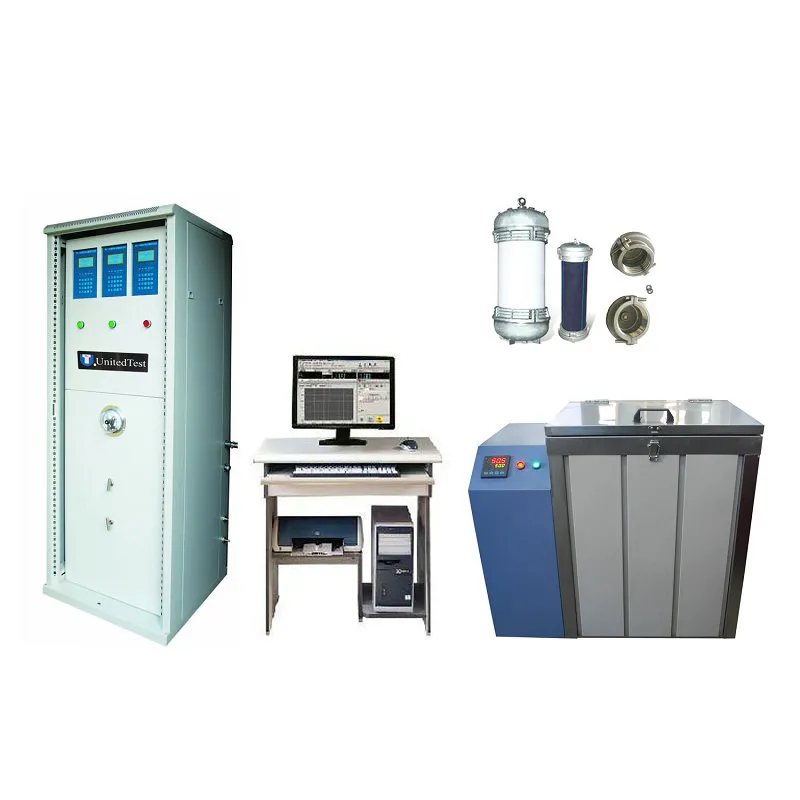

ISO 1167 Pipe Hydrostatic Pressure Tester

HYD-B series Pipe hydrostatic pressure testing machine, Computer + LCD meter both way control.

HYD-B series Pipe hydrostatic pressure testing machine is designed according to ISO 1167, ASTM D1598, ASTM D1599. It's mainly used to test the plastic pipeline, compound pipeline, such as PP-R, PP-B, PP-A, PVC, PE, PE-X etc. Under a stipulated constant hydrostatic pressure force, keeping provision time; or inside the pipe, apply a constant and rapid hydraulic pressure to make the specimen broken in a short period time, check the max. pressure force, then calculate the ring stress. This tester is necessary equipment for plastic pipe manufacturer.

Request a Quote >

General introduction

UnitedTest Pipe hydrostatic testing machine is primarily used to simulate the pressure conditions that plastic pipes experience in actual use. By precisely controlling pressure and temperature, and conducting long-term or short-term tests, it comprehensively evaluates the pipe's pressure resistance, creep resistance, and service life, providing a scientific basis for product quality assessment, production process optimization, and safe usage.

Principle:

Test pieces are subjected to a specified constant internal hydrostatic pressure for a specified period of time or until a test piece or pieces fail.

Throughout the test, the test pieces are kept in an environment at a specified constant temperature: this is commonly in water (“water-in-water” test).

The following test parameters shall be specified by the standard or specification making reference to this part of ISO 1167:

a) the type of end cap to be used (see 5.1 and ISO 1167-2:2006, 4.1);

b) the test temperature;

c) the number of test pieces;

d) the duration of the test under pressure and the criteria for a failure;

e) the test pressure, p, or the circumferential (hoop) stress, σ, to be induced by the test pressure.

Standard:
ISO 1167: Thermoplastics pipes, fittings and assemblies for the conveyance of fluids -- Determination of the resistance to internal pressure;
ASTM D1598: Standard Test Method for Time-to-Failure of Plastic Pipe Under Constant Internal Pressure;
ASTM D1599: Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings;

Main Features

Control mode of main frame
Constant temperature tank

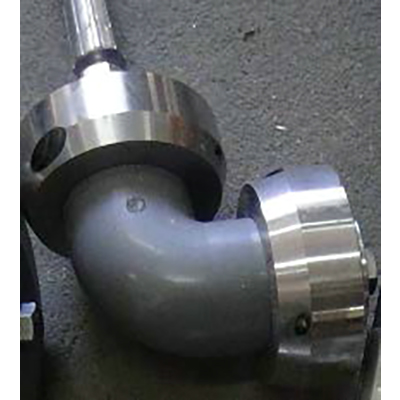

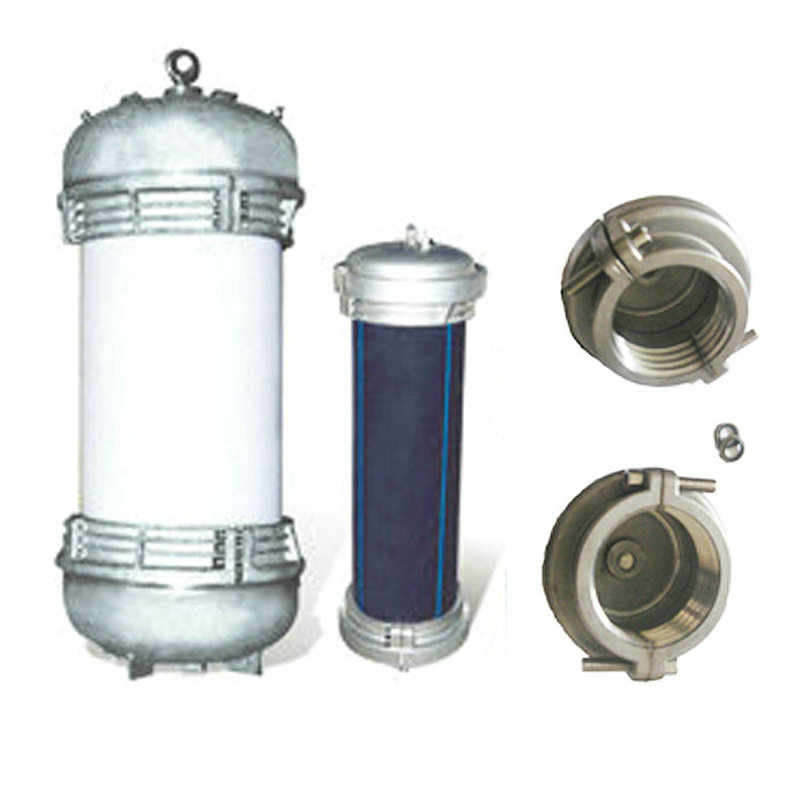

End cap of pipe pressure test

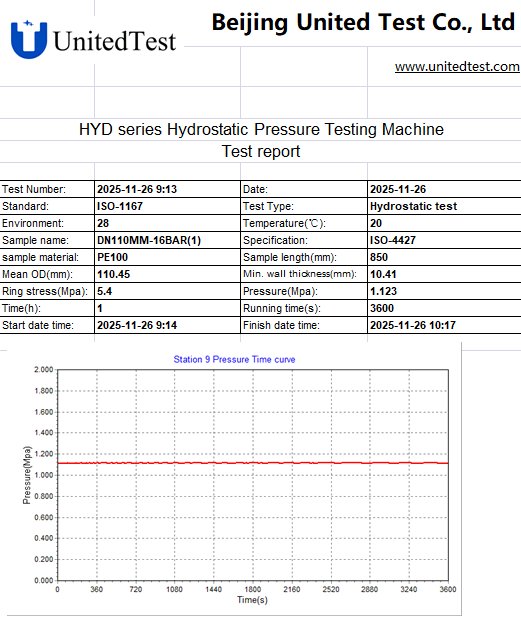

Test report

1, Computer controlled test, and LCD meter control. Both way. And the both way independent, one type failure not affect the another way test.

2, All working stations can execute both the hydrostatic pressure test and burst test.

3, working station standard, can extend to more stations like 5, 6, 9, 12 etc., Customer can choose the test stations 2, 3 or 5, 6, 10 or even more.

4, Pressure 10Mpa (100bar) / 20Mpa (200bar);

5, All stations are totally independent, all stations can do burst test, and long term hydrostatic pressure test as well. Like test pressure, test time etc., can be free set on each test stations.

6, Setting the test parameter on the software, then operation is automatic till the test finish.

7, Test can be operated through the PC software, or manual operate on the meter of the mainframe.

8, Pressure-time curve, real-time pressure value checking is available.

9, 10mm ~ 2000mm large pipe sample range.

1, Constant-temperature tank is composed of 304# stainless steel interior and aluminum alloy/steel plate outer plate, no corrosion,

2, Imported circulation pump, high accuracy heater and temperature holding system;

3, Rigid and thick heat insulation polyurethane foam, and temperature proof layer to ensure the temperature and energy keeping performance, avoid energy loss.

4, For big tank, the cover of tank equipped with automatic lifting device, more reliable and convenient;

ISO 1167 Pipe Hydrostatic Pressure Tester

1, Annual production end closure tens of thousands sets to ensure our technical and quality of this important pipeline hydrostatic pressure test fixtures;;

2, We adopt raw material is 45# carbon steel or 304# stainless steel, several type end closures for pipe or pipe fitting;

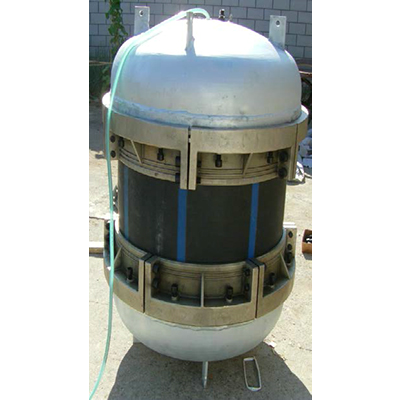

3, ISO 1167 Type A structure, External type: for diameter 16mm till 2000mm, three to six petals structure(not welding), no leakage under high pressure, Nickle coating, reliable and durable, 100% success installation.

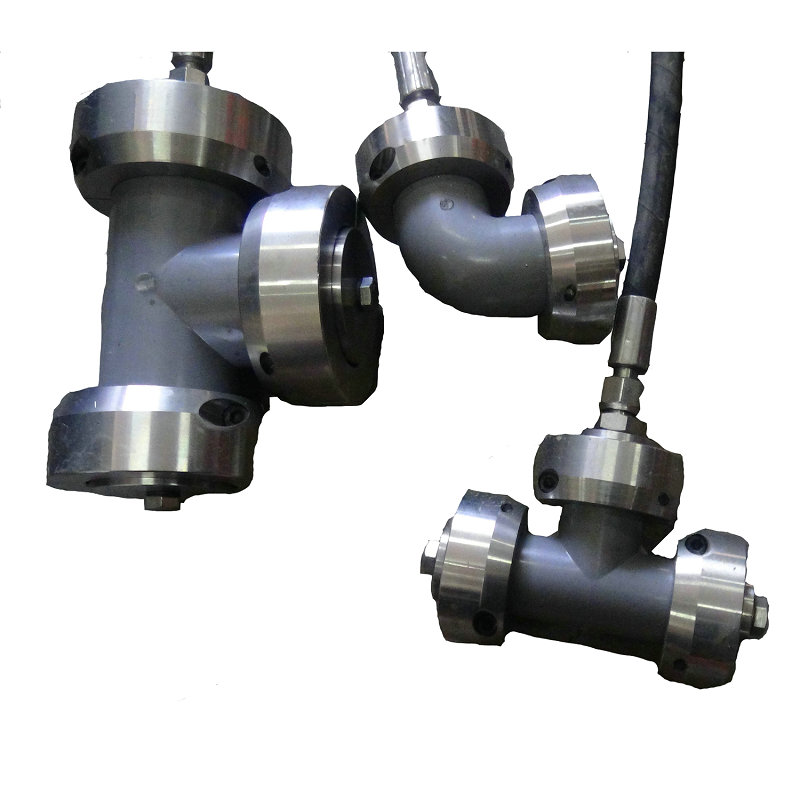

1000mm end cap	Pipe joints end cap

Main technical specification

Model	HYD-B
Display type	Digital meter & PC software both way
Working station	1 to 20 working stations
Burst test	All stations can execute the burst test
Hydrostatic pressure test	All stations can execute the long-term hydrostatic pressure test
Max. pressure	0 ～ 10Mpa (100 bar) / 0 ～ 20Mpa (200 bar)
Constant pressure accuracy	-1%, +2%
Pressure resolution	0.001Mpa
Time count range	1～9999h 59min 59s
Time display accuracy	1s
Constant temperature media box temp.	Ambient temperature to 95℃ 15℃ to Ambient temp. with cooling unit
Temp. indication accuracy	±0.5℃
Power supply	380V AC 50HZ, 3 phase
Pipe sample diameter range	10-2000mm (Customized)
Standard end cap	φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ75, φ110, φ125, φ140, φ160, φ180, φ200, φ225, φ250,φ280, φ315, φ355, φ400, φ450, φ500, φ560, φ630, φ710, φ800, φ900, φ1000, φ1100, φ1200, φ1300…φ2400
Customized end cap	φ1/2",φ3/4",φ1" …. φ20" etc., inch sizeor any other size according requirement.

Main Accessories

Item	Quantity
Frame	1 set
(include solenoid, pressure sensor, accumulator)
Pressure loading system	1 set
(include pump, motor, Build-in water Reservoir)
Constant temperature tank (stainless steel interior)	1 set
Cooling unit for low temperature (Optional)	1 set
Connection hose for pressure control system and constant temperature medium tank	1 set
Connection hose for pressure source and pressure control system	1 set
End closure (According sample diameter size)
Computer	1 set
Professional test software (English)	1 set
Documents (Manual, packing list, certificate)

304# stainless steel end cap of pipe hydrostatic pressure test;

diameter size 10mm-2000mm.

ISO 1167 Pipe Hydrostatic Pressure Tester

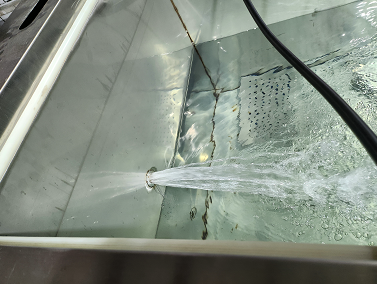

Pipe break under hydrostatic pressure

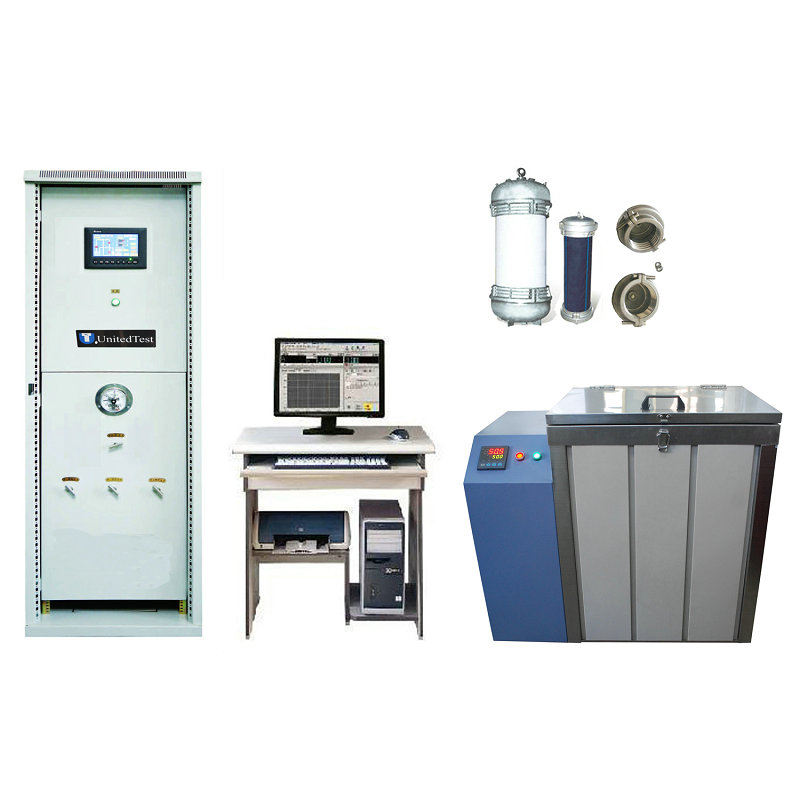

3 stations standard INTERNAL PRESSURE TEST MACHINE.

Standard

ASTM D1599 Pipe short-time hydraulic burst pressure test –

ASTM D1599 is titled "Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings." It is a fundamental short-term, destructive pressure test used to determine the ultimate failure pressure (often called the "burst pressure") of thermoplastic pipe, tubing, or fittings under rapidly applied internal pressure at a specified temperature. Typically completed within 60–70 seconds, mainly for quality control and short-term design validation.

ASTM D1598 test for long-term hydrostatic pressure of plastic pipe –

ASTM D1598 is a standard test method that determines the time-to-failure of thermoplastic and reinforced thermosetting/resin pipes under constant internal pressure at a controlled temperature, which is critical for establishing hydrostatic design basis and ensuring long-term pipeline reliability.

ASTM D1598, D1599 Plastic Pipe Constant or short time pressure testing methods –

ASTM D1598: Standard Test Method for Time-to-Failure of Plastic Pipe Under Constant Internal Pressure.

ASTM D1598 test method covers the determination of the time-to-failure of both thermoplastic and reinforced thermosetting/resin pipe under constant internal pressure.This test method provides a method of characterizing plastics in the form of pipe under the conditions prescribed.

ASTM D1599: Standard Test Method for Resistance to Short-Time Hydraulic Pressure of Plastic Pipe, Tubing, and Fittings.

ASTM D1599 test method establishes the short-time hydraulic failure pressure of thermoplastic or reinforced thermosetting resin pipe, tubing, or fittings. Data obtained by this test method are of use only in predicting the behavior of pipe, tubing, and fittings under conditions of temperature, time, method of loading, and hoop stress similar to those used in the actual test. They are generally not indicative of the long-term strength of thermoplastic or reinforced thermosetting resin pipe, tubing, and fittings

ISO 1167 Thermoplastics pipes resistance to internal pressure test –

ISO 1167: 2006 Thermoplastics pipes, fittings and assemblies for the conveyance of fluids -- Determination of the resistance to internal pressure.

ISO 1167 test method specifies a general test method for determining the resistance to internal hydrostatic pressure at a given temperature of thermoplastics pipes, fittings and piping systems for the transport of fluids. The method accommodates water-in-water, water-in-air and water-in-liquid tests.

Hydrostatic pressure testing is a valuable method for assessing the strength and integrity of pressurized systems, ensuring that they can meet operational demands without failure. Hydrostatic pressure testing can evaluate these items by filling pipelines, tanks, or containers with water before pressure is applied to detect any potential leaks or issues.

Hydrostatic pressure tester is critical across multiple industries, from pipeline engineering to industrial piping. It helps prevent costly failures or leaks by verifying whether the system can safely reach the specified pressure levels.

What Is Hydrostatic Pressure Testing?

Hydrostatic Pressure Testing or hydrotest of pipes is a specialized testing method used to assess the pressure resistance performance of pipes under constant pressure and temperature, mainly applied to quality inspection of plastic, composite, and other types of pipes.

Testing Principle: By applying constant pressure inside the pipe and maintaining it for a specified duration (such as 24 hours or longer), the test simulates the stress state under actual working conditions, observing whether any cracking, leakage, or deformation occurs, thus evaluating the material's pressure resistance strength and sealing ability.

In What Application scenario you need use the Hydrostatic Pressure Testing Equipment?

The static Hydrostatic Pressure Testing of pipes is mainly used to assess the pressure resistance and sealing performance of pipes under constant pressure, and its application scenarios cover multiple fields:
Gas Pipeline Safety Testing:Used for strength verification of underground polyethylene gas pipeline systems, simulating actual working conditions to test the pressure resistance of the pipeline, ensuring gas transportation safety.
Plastic Pipe Performance Testing:Applicable to long-term pressure resistance testing of thermoplastic pipes such as PE, PVC, and PP-R, conducted according to the national standard ISO 1167 to evaluate their cracking resistance and sealing performance.
Automotive Component Testing:Can determine the pressure endurance time and burst pressure values of automotive hoses, rubber hoses, air conditioning pipes, etc., ensuring the safety of automotive hydraulic systems.
Metal Pipe Verification:Conduct macro strength and sealing tests on metal pipes such as steel and aluminum pipes to ensure the stability of metal pipelines under high-pressure environments.
Other Material Testing:Applicable to pressure resistance evaluation of non-metallic materials such as rubber hoses and geothermal pipes, by controlling pressure and temperature parameters to simulate actual use scenarios.
