ISO 14125 FRP Composite Flexural Tester | Three & Four Point Bending | UnitedTest

ISO 14125 defines three-point and four-point flexure testing for fiber-reinforced plastic composites. UnitedTest manufactures ISO 14125 compliant test machines for FRP material quality control and performance screening.

ISO 14125 Fibre-reinforced plastic composites -- Determination of flexural properties

ISO 14125 is an international standard that specifies reliable test procedures for measuring the flexural strength, flexural modulus, and bending performance of fibre-reinforced plastic (FRP) composite materials. The standard covers both thermoplastic and thermoset composite systems, including glass fiber, carbon fiber, and aramid fiber reinforced laminates, as well as industrial composite materials such as SMC, BMC, and GMT composites.

This standard provides two core loading configurations for flexible performance evaluation: Method A for three-point flexure testing and Method B for four-point flexure testing, delivering versatile mechanical data for composite material characterization. ISO 14125 testing is primarily applied for laboratory material screening, batch quality control, and new formulation verification instead of direct structural engineering design calculation.

UnitedTest develops and manufactures high-precision ISO 14125 flexural testing machines, fully meeting standard requirements for FRP composite mechanical property inspection and industrial material certification.

Test Principle

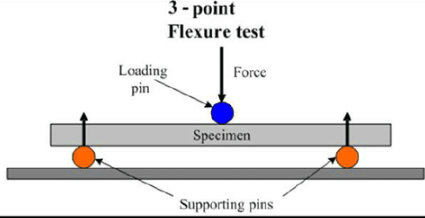

A specimen is supported as a freely supported beam and deflected at constant rate of traverse until it fractures or a pre-determined deformation is reached. Force and deflection are recorded continuously. The geometry (span-to-thickness ratio) is deliberately chosen to limit shear deformation and avoid interlaminar shear failure, so the result reflects bending, not shear.

Three-point (Method A): single central loading member → maximum bending moment at mid-span only.
Four-point (Method B): two central loading members, with inner span = ⅓ of outer span, creating a constant bending moment between them and lower contact compressive stresses than three-point. The outer support distance is essentially the same as in three-point, so the same specimen can be used for both methods.

ISO 14125 Three points bending test of Fiber-Reinforced Plastic Composites

Specific Test Methods

	Method A (3-point)	Method B (4-point)
Loading	1 central nose	2 symmetric noses, inner span L' = L/3
Bending moment	Peak at mid-span	Constant between the loading noses
Stress formula	σ_f = 3FL / (2bh²)	σ_f = FL / (bh²)
Strain formula	ε_f = 6sh / L²	ε_f = 4,7sh / L²
Modulus	E_f = (L³ / 4bh³)·(ΔF/Δs)	E_f = (L³ / 4,7bh³)·(ΔF/Δs)
Best for	Screening, QC, short-fibre/mat systems	Unidirectional/high-modulus CFRP, structural laminates, research validation

Where F = load (N), L = span (mm), b = width (mm), h = thickness (mm), s = mid-span deflection (mm).

Test Equipment required for ISO 14125 Three points bending test of Fiber-Reinforced Plastic Composites

Recommend UnitedTest Universal Testing Machine and Bending fixtures.

Universal testing machine	Complies with ISO 5893. Force indication error ≤ ±1 % full‑scale; deflection indication error ≤ ±1 % full‑scale. Machine cross‑head displacement shall be corrected for machine frame compliance and specimen indentation at contact points. Speed 0.5 / 1 / 2 / 5 / 10 mm/min (±20 %) and 20 / 50 / 100 / 200 / 500 mm/min (±10 %). The 0.5 mm/min speed is not in ISO 5893; the tolerances at 1 and 2 mm/min are tighter than ISO 5893.
Loading noses and supports	radii — R₁ = 5 ± 0.2 mm; R₂ = 2 ± 0.2 mm for h ≤ 3 mm and 5 ± 0.2 mm for h > 3 mm. Axes of supports and loading members must be parallel; span must be adjustable.
Measuring tools	Micrometer (resolution ≤ 0.01 mm): to measure specimen width b and thickness h. Vernier calliper: accuracy within 0.1 % of support span L, for span‑length verification
Optional thin cushion/shim	e.g. 0.2 mm polypropylene sheet: placed between loading nose and specimen to avoid premature compressive crushing on specimen surface for high‑performance composite materials

Test Specimen Information

Shape: rectangular cross-section, no rounded edges. Thickness tolerance ±2 %, width tolerance ±3 % (thickness checked over the central one-third for 3-point, over the full length for 4-point).

Four material classes — preferred dimensions (mm):

Method A (three-point):

Class	Typical material	Length l	Span L	Width b	Thickness h	L/h
I	Discontinuous-fibre-reinforced thermoplastics	80	64	10	4	16
II	Mats, continuous matting, fabrics, mixed formats (DMC, BMC, SMC, GMT)	80	64	15	4	16
III	Transverse (90°) UD; UD (0°)/multidirectional with 5 < E₁/G₁₃ ≤ 15 (e.g. glass)	60	40	15	2	20
IV	UD (0°)/multidirectional with 15 < E₁/G₁₃ ≤ 50 (e.g. carbon)	100	80	15	2	40

Method B (four-point):

Class	l	Outer span L	Inner span L'	b	h
I	80	66	22	10	4
II	80	66	22	15	4
III	60	45	15	15	2
IV	100	81	27	15	2

Key Test Parameters:

Span — set to within 1 % of the target L/h ratio, and measure it to better than 0.2 %. Use the tabulated ratios; if unacceptable failure modes appear (e.g. interlaminar shear), increase L/h in the order 16/1 → 20/1 → 40/1 → 60/1.
Speed — from the material spec; otherwise choose the Table 1 value giving a strain rate as close as possible to ε̇ = 0.01 min⁻¹ (1 %/min):

3-point: v = ε̇L² / (6h)
4-point: v = ε̇L² / (4,7h)
This gives ≈ 0.4 h deflection in 1 min → e.g. 2 mm/min for Class I.

Details Test Procedures of ISO 14125 Three points bending test of Fiber-Reinforced Plastic Composites

Measure actual width b and thickness h in specimen central region for every bar; reject specimens beyond thickness tolerance.
Adjust test‑machine support span L to target L/h ratio, verify span dimension.
Configure cross‑head test speed according to strain‑rate requirement.
Symmetrically place specimen on two supports, confirm tensile‑face orientation. Apply optional compression‑protection shim if needed.
Start test, apply constant‑rate bending load. Continuously record force and deflection, obtain full load‑deflection curve.
Stop test upon specimen rupture or pre‑defined deformation limit. Document observed failure mode (tensile fracture, compressive fracture, interlaminar shear etc.).
Discard invalid‑fracture‑mode specimens and run replacement tests until ≥ 5 valid specimens are obtained.
Compute flexural stress, strength, strain and chord modulus using three‑point / four‑point formulas; apply Annex B large‑deflection correction if deflection > 0.1 L.

Test Application (Industry & Material Scope)

Aerospace — CFRP laminate qualification, batch release, lay-up validation.
Automotive & rail — SMC/BMC/GMT panels, structural brackets, lightweight body parts.
Wind energy — GFRP/CFRP spar caps and blade laminates (bending-dominated service loads).
Marine — hulls, decks, masts, GRP sandwich skins.
Construction / civil infrastructure — pultruded profiles, FRP rebar, bridge decks, strengthening laminates.
Sporting goods, pressure vessels/pipes, electrical laminates — any product where bending, not pure axial load, governs.
Functions: incoming inspection, batch-to-batch QC, supplier qualification, material screening and ranking, resin/cure/void/fibre-volume monitoring, R&D lay-up optimisation, and FEA calibration input (always remembering it is not a design-allowable source).

ISO 14125 Three points bending test of Fiber-Reinforced Plastic Composites

Related Standard:

ASTM D790	Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials
ISO 14125	Fibre-reinforced plastic composites -- Determination of flexural properties
GB/T 1449	Fibre-reinforced plastic composites-Determination of flexural properties
ASTM D6272	Standard Test Method for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials by Four-Point Bending
ASTM D7264	Standard Test Method for Flexural Properties of Polymer Matrix Composite Materials
ISO 178	Plastics — Determination of flexural properties
prEN 2562, CRAG 200	aerospace test-condition sources.
JIS K 7171	Japan standard Basically consistent with the technical content of ISO 178. (プラスチック－曲げ特性の求め方)
JIS K 7074	CFRP flexural testing (source of the four-point shim practice).
ISO 1209-1	Rigid cellular plastics - Determination of flexural properties - Part 1: Basic bending test
ISO 1209‑2	Companion part of the same series; determines flexural strength and apparent flexural modulus of elasticity for rigid cellular plastics (calculates formal flexural mechanical properties)
ASTM D2344	Short‑beam strength — when a short span makes a composite delaminate, you are measuring interlaminar shear, not flexural strength.
EN 12089	Thermal insulating products for building applications — Determination of bending behaviour. Three-point loading, Method A on full-size products and Method B on specimens (thickness ≤ 100 mm, length 5×thickness + 50 mm, width 150 mm); support diameters 80 ± 3 mm or 30 ± 3 mm; span 300–1200 mm (A) / 200–500 mm (B); ≥ 3 specimens; conditioning ≥ 6 h at (23 ± 5) °C; repeatability ≈ 5 %, reproducibility ≈ 15 %. It is the European product-level counterpart (harmonised under the Construction Products Regulation), whereas ISO 1209-2 is a material-level method.
ISO 14130	Apparent interlaminar shear, short-beam, plus fracture-toughness and ILSS methods used alongside.
ISO 527‑4 / ISO 527‑5	Plastics - Determination of tensile properties - Part 4: Test conditions for isotropic and orthotropic fibre-reinforced plastic composites
ASTM C203	Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation, commonly used in North America as the functional counterpart for insulation boards.

Keywords: ISO 14125 tester,FRP composite flexural properties test machine,fiber reinforced plastic bending tester,three point four point flexure test rig,glass fiber composite flexural strength tester,carbon fiber laminate bending test equipment,aramid fiber composite mechanical tester,SMC BMC GMT composite flexural test,thermoset composite bending performance analyzer,thermoplastic FRP material quality tester,industrial composite structural screening machine,composite material lab flexural tester,UnitedTest FRP testing equipment,polymer composite modulus test instrument

WDW Series Computer Control Electronic Universal Testing Machine made by UNITEDTEST range from 100N to 600KN load capacity with various models like single columns, table type, door frame type etc., is used to perform tension, compression, flexure/bending, shearing, peeling etc., test for metal and nonmetal specimens. Matched with UNITEDTEST design and produced various test fixture, like peel, flexure, puncture, tear, pneumatic grip, belt tension etc., this UTM can be used to almost all materials include but not limited to steel rod, rubber, steel wire, plastic, seat belt, textile, wood, panel etc., mechanical performance inspection.

Large capacity electronic universal testing machine is a high-precision mechanical property testing device designed for measuring the tensile, compressive, bending, shearing, peeling, and tearing properties of materials under static load conditions, with a maximum test force capacity of 600/1000KN.

Three-point bending test fixture for fiber-reinforced plastic composites, designed in accordance with ISO 14125, provides a standardized method for determining the flexural properties of composite materials using a three-point bending test.

ASTM D695 Compression Testing fixture Rigid Plastics is used to determine the compressive strength of rigid unreinforced and reinforced plastic, including high-modulus composites, through a process of straining and loading the plastic at relatively low rates of strain.

Q1. What is ISO 14125?

ISO 14125:1998 is the International Standard “Fibre-reinforced plastic composites — Determination of flexural properties”. It specifies a method for determining the flexural properties of fibre-reinforced thermoplastic and thermosetting composites under three-point loading (Method A) or four-point loading (Method B).

Q2: What is the key difference between ISO 14125 and ISO 178? Can I run composite bending tests under ISO 178?

ISO 178 applies for unreinforced plastics, filled plastics and short‑fibre compounds (fibre length ≤ 7.5 mm). ISO 14125 is specifically designed for long‑fibre composite laminates. ISO 14125 adds unique requirements: four‑point loading method, composite material classification Class I‑IV, strict span‑to‑thickness L/h rules to prevent interlaminar shear, large‑deflection correction formulas and clear failure‑mode evaluation. You should not use ISO 178 for continuous‑fibre composite laminates, otherwise unreliable and non‑comparable test results will be generated.

Q3: When should I pick three‑point Method A versus four‑point Method B?

Three‑point (Method A): Simple fixture setup. Maximum bending moment concentrates directly under the central loading nose. Fit for routine QC screening of glass‑mat reinforced composites. Risk: local indentation and compressive crushing under the loading roller.
Four‑point (Method B): Creates a uniform pure‑bending zone between two inner loading noses (outer span L = 3 × inner span L′). Failure occurs at the weakest material location rather than under loading rollers. Preferred for high‑modulus carbon‑fibre / aramid‑fibre unidirectional composites (Class III & IV) to eliminate local indentation‑caused invalid failures.

Q4: Why does span‑to‑thickness ratio (L/h) matter so much for ISO 14125 testing? What ratios are allowed?

Improper short L/h ratio causes interlaminar shear delamination before real bending fracture. Your test output will measure interlaminar‑shear performance instead of true flexural properties, producing wrong data that looks plausible on reports. Priority acceptable L/h ratios in sequence: 16/1, 20/1, 40/1, 60/1. If repeated delamination occurs, increase span length to get higher L/h ratio.

Q5: What is the purpose of polypropylene shim in ISO 14125 test?

The optional thin 0.2 mm polypropylene shim sits between metal loading roller and composite specimen surface. It is recommended for Class III and IV high‑performance composites. It mitigates premature local compressive crushing damage at contact points and prevents artificial compressive‑initiated invalid failure at loading positions.

Q6: Can I substitute ISO 14125 flexural modulus data for tensile modulus for composite structural design?

No. Bending test creates non‑uniform stress distribution across specimen thickness. Shear deformation and composite ply stacking sequence generate deviation between flexural modulus and real tensile Young’s modulus. ISO 14125 explicitly warns users against this misuse.

Q7. Why is the ISO 14125 flexural test important for composite materials?

Most composite parts — panels, blades, beams, skins, pultruded profiles — carry bending loads, so flexural strength and stiffness map directly onto real service performance. Unlike tensile testing, the bend test needs no tabs and no alignment-critical grips; it is highly sensitive to fibre volume fraction, fibre orientation, resin cure, voids and fibre–matrix bonding; and it distinguishes tensile-face from compressive-face failure. It is therefore the standard tool for screening, batch release and QC of CFRP, GFRP and aramid composites.

Q9: Why choose ISO 14125 Composite Flexural Testing Machine & Bending Fixtures made by UnitedTest?

UnitedTest manufactures ISO 14125‑compliant composite flexural test machines and interchangeable 3‑point / 4‑point bending fixtures. Measure flexural strength, chord flexural modulus and failure modes for carbon‑fibre, glass‑fibre, SMC, BMC, GMT long‑fibre composite laminates for aerospace, automotive, wind‑energy and composite QC laboratories.

ISO 14125:1998 is the globally‑accepted international standard for measuring flexural properties of long‑fibre‑reinforced thermoset and thermoplastic plastic composites, including Method A three‑point flexure and Method B four‑point flexure testing workflowsISO. Widely deployed across aerospace secondary‑component R&D, automotive lightweight‑part quality assurance, wind‑turbine‑material evaluation, marine composite validation and sports‑equipment composite manufacturing, ISO 14125 delivers comparable bending‑performance data for material screening, incoming‑goods inspection and batch‑consistency verification.

UnitedTest supplies fully ISO 14125‑compliant universal testing machines and quick‑swap flexural bending fixture kits for fibre‑reinforced plastic composite testing. Our complete test solution strictly meets all apparatus requirements defined within ISO 14125:

Adjustable outer support span for accurate L/h span‑to‑thickness ratio setup (16/1, 20/1, 40/1, 60/1)
Precision‑machined loading and support rollers with standard radii; parallel‑axis guarantee
Force measurement accuracy ≤ ±1 % full‑scale; high‑resolution deflection acquisition
Software pre‑programmed for ISO 14125 calculation rules: chord‑modulus computation at ε = 0.0005 and ε = 0.0025, Annex B large‑deflection correction, automatic invalid‑specimen flagging
Built‑in statistical calculation for mean value, standard deviation and 95 % confidence interval complying with ISO 2602
One‑click export of complete ISO 14125‑standardized test reports

Operators can rapidly switch between 3‑point (Method A) and 4‑point (Method B) test configurations. Optional protective polypropylene shim accessories are offered for Class III / IV high‑modulus carbon‑fibre and aramid‑fibre composite specimens to avoid premature contact‑induced compressive failure.

Key parameters measured by UnitedTest ISO 14125 test system:

✅ Flexural strength

✅ Flexural stress at break

✅ ISO 14125 chord flexural modulus

✅ Flexural strain at break

✅ Automatic classification of failure modes (tensile fracture, compressive fracture, invalid interlaminar‑shear delamination)

Typical test materials:Carbon‑fibre‑reinforced laminates, glass‑fibre composites, aramid‑fibre‑reinforced panels, SMC, BMC, GMT, long‑fibre thermoplastic composite plates, moulded composite components.

Our universal test frames also support related composite standards: ISO 178, ASTM D790, ASTM D7264, ISO 14130 short‑beam shear test and ISO 527‑4 tensile testing.

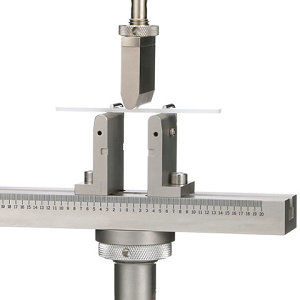

UnitedTest ISO 14125 bending fixtures

Three-point and four-point configurations for fibre-reinforced plastic composites, built to ISO 14125

Standard loading-nose radius R5 mm and support radius R5 mm; other radii available (1, 2, 3, 4, 6, 6.35, 8, 10, 12, 12.7 mm) for non-standard or ASTM setups

Adjustable span for 16:1, 20:1, 40:1 and 60:1 span-to-thickness ratios

Specimen length 10–200 mm, width up to 100 mm

Adapter coupling: 40 mm female clevis with 12 / 16 / 20 mm locking pin — also compatible with Instron, MTS and Zwick frames
