Three-point bending test fixture for fiber-reinforced plastic composites

Three-point bending test fixture for fiber-reinforced plastic composites

ISO 14125, ISO 178, ASTM D790

Three-point bending test fixture for fiber-reinforced plastic composites, designed in accordance with ISO 14125, provides a standardized method for determining the flexural properties of composite materials using a three-point bending test. The fixture ensures accurate specimen preparation and support, allowing for precise measurement of flexural strength, flexural modulus, and other related properties. This information is crucial for evaluating the performance of composite materials in various applications, ensuring their suitability for structural and load-bearing applications where bending stresses are prevalent, and contributing to the overall safety and reliability of composite structures. ISO 178 Plastics flexural / bending test, ISO 178 3-Point Bend Test on Plastics, ISO 178 Bending test, ISO 178 ASTM 790 plastic bend test, ISO 178 plastics flexural properties test, ISO 178 three point bending test machine, rigid semi-rigid plastic flexural strength tester, plastic flexural modulus testing equipment, polymer flexural stress strain analysis machine, ISO 178 standard specimen bending tester, adjustable speed plastic flexural test rig, industrial plastic mechanical property tester

General introduction

DIN EN ISO 14125 Test Fixture

Flexural properties are essential for understanding the mechanical behavior of fiber-reinforced polymer matrix composites under bending loads. Three-point bending test fixture for fiber-reinforced plastic composites, designed in accordance with ISO 14125, provides a standardized method for determining the flexural properties of composite materials using a three-point bending test. The fixture ensures accurate specimen preparation and support, allowing for precise measurement of flexural strength, flexural modulus, and other related properties. This information is crucial for evaluating the performance of composite materials in various applications, ensuring their suitability for structural and load-bearing applications where bending stresses are prevalent, and contributing to the overall safety and reliability of composite structures.


ISO 14125 flexural testing methods:
ISO 14125 bend testing standard is based on ISO 178, but was established with fiber-reinforced plastic composites in mind.
It retains the test conditions relevant for glass-reinforced systems and it’s extended to include both three-point, and four-point, loading geometries. It’s also suitable for flexural strength testing for composites based on newer fibers such as carbon and aramid fibers.

Other source documents consulted include ASTM D790 (four-point loading). The overall specimen length for four-point loading is the same as for three-point loading. The method is not suitable for determining design parameters, but may be used for screening materials, or as a quality-control test.

ISO 14125 flex testing samples
The samples you test for the ISO 14125 flex testing method may be molded to the chosen dimensions, machined from the central portion of the standard multi-purpose test specimen. They can also be machined from semi-finished, or finished, products such as moldings or laminates.

The ISO 14125 plastic test specifies preferred dimensions for the specimen. Tests on specimens of other dimensions, or prepared under different conditions, may produce incomparable results. Other influencing factors to consider include the speed of testing and the conditioning of the specimens.

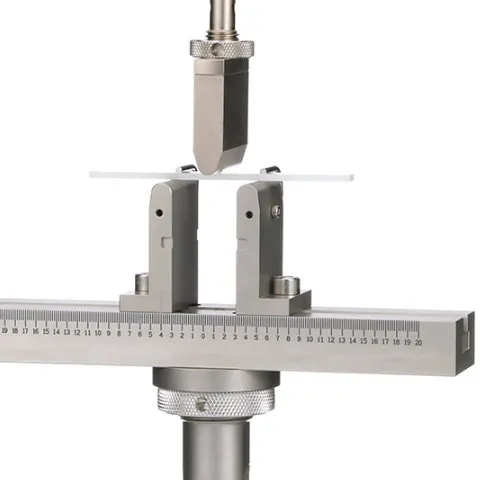

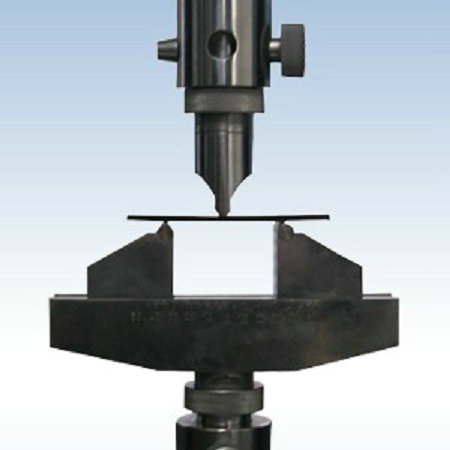

Three-point bending test fixture for fiber-reinforced plastic composites

Key Features

  • Features
  • Standard

ISO 14125 bending fixtures

Three-point and four-point configurations for fibre-reinforced plastic composites, built to ISO 14125

Standard loading-nose radius R5 mm and support radius R5 mm; other radii available (1, 2, 3, 4, 6, 6.35, 8, 10, 12, 12.7 mm) for non-standard or ASTM setups

Adjustable span for 16:1, 20:1, 40:1 and 60:1 span-to-thickness ratios

Specimen length 10–200 mm, width up to 100 mm

Adapter coupling: 40 mm female clevis with 12 / 16 / 20 mm locking pin — also compatible with Instron, MTS and Zwick frames

ASTM D790   Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials

ISO 14125   Fibre-reinforced plastic composites -- Determination of flexural properties

ASTM D6272 Standard Test Method for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials by Four-Point Bending

ASTM D7264Standard Test Method for Flexural Properties of Polymer Matrix Composite Materials

ISO 178 Plastics — Determination of flexural properties

GB/T 9341Equivalent to using ISO 178

JIS K 7171Japan standard Basically consistent with the technical content of ISO 178. (プラスチック-曲げ特性の求め方)

ISO 1209-1Rigid cellular plastics - Determination of flexural properties - Part 1: Basic bending test

ISO 1209‑2Companion part of the same series; determines flexural strength and apparent flexural modulus of elasticity for rigid cellular plastics (calculates formal flexural mechanical properties)

GB/T 8812.1Rigid cellular plastics - Determination of flexural properties - Part 1: Basic bending test

DIN 53423Germany corresponding bending test for rigid foams.

ASTM C203   Standard Test Methods for Breaking Load and Flexural Properties of Block-Type Thermal Insulation, commonly used in North America as the functional counterpart for insulation boards.


Specification

Sample Length: 10-200mm (adjustable)

Sample Width: 0-100mm

Radius of punch: Standard 5mm, other customized like 1, 2, 3, 4, 5, 6, 6.35, 8, 10, 12, and 12.7mm

Radius of supports: Standard 5mm, other customized.

Adapter Couping: 40mm female clevis with 12/16/20mm locking pin


Standard

ISO 14125 Three points bending test of Fiber-Reinforced Plastic Composites –

ISO 14125 Fibre-reinforced plastic composites -- Determination of flexural properties

ISO 14125 specifying test methods to measure flexural properties of fibre‑reinforced plastic composites, covering both thermoplastic and thermoset composite materials (glass, carbon, aramid‑fibre reinforced laminates, SMC, BMC, GMT etc.). It defines two loading configurations: Method A (three‑point flexure) and Method B (four‑point flexure). It is intended for material screening and quality‑control rather than direct structural design input.

ISO 178 Plastics flexural / bending test –

ISO 178 Plastics - Determination of flexural properties

ISO 178 specifies a method for determining the flexural properties of rigid and semi-rigid plastics under defined conditions. A standard test specimen is defined, but parameters are included for alternative specimen sizes for use where appropriate. A range of test speeds is included.

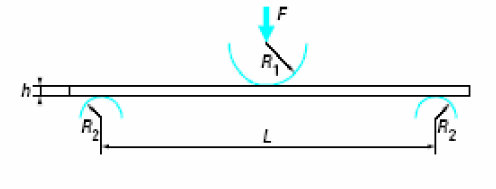

ISO 178 test method is used to investigate the flexural behaviour of the test specimens and to determine the flexural strength, flexural modulus and other aspects of the flexural stress/strain relationship under the conditions defined. It applies to a freely supported beam, loaded at midspan (three-point loading test).

ASTM D790 Bending Test Flexural Properties of Unreinforced and Reinforced Plastics –

ASTM D790: Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics and Electrical Insulating Materials

ASTM D790 determines flexural (bending) properties for unreinforced plastics, reinforced plastics, high‑modulus composites and electrical insulating materials via three‑point bending on simply‑supported rectangular beam specimens. It applies to rigid and semi‑rigid materials. Flexural strength cannot be calculated if the specimen neither yields nor fractures on its outer surface before reaching 5 % maximum outer‑fiber strain.

EN 12814-1 Bend Test for Thermoplastic Welded Joints –

EN 12814-1 Testing of welded joints of thermoplastics semi-finished products - Bend test

EN 12814-1 specifies bend‑test methods for butt‑welded joints of thermoplastic semi‑finished products (plates and tubes) to evaluate weld‑joint ductility and welding quality. It excludes components with wall thickness below 3 mm and non‑reinforced filled/unfilled thermoplastics are applicable regardless of welding technology.

ISO 1209-1 Bending test for rigid cellular plastics –

ISO 1209‑1 Rigid cellular plastics — Determination of flexural properties — Part 1: Basic bending test

ISO 1209‑1 is an simple three‑point‑bending test to evaluate bending performance of rigid cellular plastic bars. This test measures load at specified deflection or breaking load, but it cannot calculate flexural strength or apparent flexural modulus because small specimens do not establish pure‑bending stress state; those mechanical parameters are covered in ISO 1209‑2. It applies only to foams ≥20 mm thickness and is invalid for materials showing obvious crushing during testing.

ISO 1209-2 Flexural Strength & Apparent Flexural Modulus Testing for Rigid Cellular Plastics –

ISO 1209-2 Rigid cellular plastics - Determination of flexural properties - Part 2: Determination of flexural strength and apparent flexural modulus of elasticity

ISO 1209-2 specifies a three-point bending test method to determine, on rigid cellular plastics: Flexural strength (R) — the maximum fibre stress the foam develops in bending; Apparent flexural modulus of elasticity (E) — the stiffness in bending.

The word "apparent" is deliberate: cellular plastics are not homogeneous continua — the measured stiffness includes shear deflection and local cell-wall crushing/indentation under the loading and support edges, so E is an engineering, configuration-dependent value, not a true material constant valid for all geometries.

ISO 899-2 Plastic three-point flexural creep test –

ISO 899-2 Plastics — Determination of creep behaviour — Part 2: Flexural creep by three-point loading

ISO 899-2 specifies how to measure the time-dependent bending deformation of a freely supported plastic beam under a constant mid-span load, under controlled pre-treatment, temperature and humidity. Apply for rigid and semi-rigid, non-reinforced, filled and fibre-reinforced plastics; specimens moulded directly or machined from sheets or moulded articles.
