When fibre-reinforced plastic composites replace metals in aircraft structures, wind turbine blades, automotive components, and marine vessels, engineers must answer a critical question: how many millions of constant-amplitude load cycles can a composite laminate survive before fatigue failure? ISO 13003:2003 — Fibre-reinforced plastics — Determination of fatigue properties under cyclic loading conditions — is the internationally recognized standard that answers this question with quantitative, reproducible data.

ISO 13003 defines general procedures for fatigue testing of fibre-reinforced plastic composites under constant amplitude and constant frequency cyclic loading conditions. UnitedTest is a professional OEM manufacturer of dynamic fatigue testing machines fully compliant with ISO 13003, the universal international standard for constant-amplitude cyclic fatigue testing of fibre-reinforced plastic (FRP) composite materials. This complete technical brief systematically explains ISO 13003’s full scope, core test principle, mandatory test equipment, standardized specimen rules, unified test parameters, binding test stipulations, step-by-step test workflows, cross-linked similar standards, global industrial applications and the critical engineering value of this FRP fatigue standard. All content strictly follows the original normative text of ISO 13003, designed for composite R&D labs, wind turbine manufacturers, automotive lightweight factories, aerospace component suppliers and third-party EU certification institutes searching for fully ISO 13003-compliant FRP fatigue testing equipment.

The standard's general procedures are applicable to all modes of testing and test machine control, with prior experience mainly in:

Tensile fatigue testing — based on equivalent static test methods (ISO 527-4, ISO 527-5)

Flexural fatigue testing — based on equivalent static test methods (ISO 14125)

ISO 13003 is a general framework standard. It deliberately defers to specific static test methods for specimen geometry, preparation, and calculations. This makes it versatile across different composite types and loading modes.

Important Scope Limitations

Fatigue tests on unidirectionally reinforced carbon-fibre systems in the fibre direction are particularly difficult to perform and require special care

For specific tests like fracture toughness crack propagation, dedicated standards should be used in preference to ISO 13003

The standard covers constant amplitude, constant frequency loading — variable amplitude or spectrum loading is outside its scope.

Test Principle

Three interchangeable control modes defined:

Load (stress) control: Machine maintains fixed σmax/σmin; specimen strain rises gradually as matrix cracking, delamination and fibre breakage accumulate.

Strain control: Machine locks fixed εmax/εmin; cyclic load decays as internal composite damage evolves.

Displacement control: Machine holds fixed peak-to-peak travel; stiffness degradation is the primary failure indicator (20% modulus drop).

Damage tracking mechanism: Continuous monitoring of hysteresis loops, storage modulus and damping factor across cycles to quantify invisible microdamage before visible rupture.

Test Specimen Full Specifications

1, Tensile Fatigue Specimens

Standard reference: ISO 527-4 (isotropic/orthotropic FRP) / ISO 527-5 (unidirectional fibre composites)

Specimen production: Cut from test panels manufactured per ISO 1268; all edges finely polished to eliminate machining notches triggering early delamination.

Special note: Standard tensile coupons require anti-buckling support if reversed tension-compression (R<0) cyclic loads are applied.

2, Flexural Fatigue Specimens

Standard reference: ISO 14125 (3-point or 4-point bending geometry)

Thickness & span ratios follow ISO 14125 dimension tables for glass/carbon fibre laminates.

3, Specimen Quantity

Minimum baseline dataset: 5 replicate specimens tested at 4 distinct stress/strain amplitude levels to generate complete S-N curves.

Static control batch: 5 monotonic static specimens tested at standard ISO loading rate to measure ultimate static strength (UTS/ UFS).

Loading-rate sensitive materials (glass FRP): Additional 5 specimens tested at fatigue equivalent loading rate to capture rate-dependent ultimate strength (UTSF/UFSF).

Statistical design data requirement: 24–30 specimens total for reliable Weibull fatigue life distribution analysis; 6 for preliminary screening, 12 for general R&D material testing.

Test Equipment for ISO 13003 Fatigue Testing of Fibre-Reinforced Plastic Composites

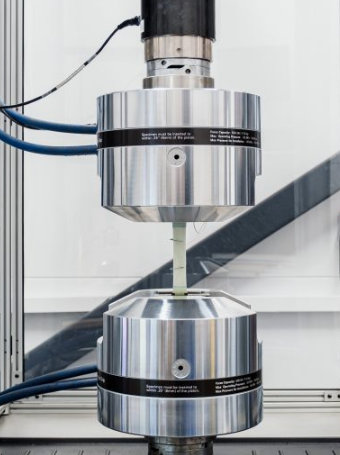

Dynamic Fatigue Testing Machine

Recommend UnitedTest UTDS series electronic dynamic fatigue testing machine.

Actuator system: Servo-hydraulic / linear electric drive supporting sine, triangular, trapezoidal, square constant-amplitude waveforms, capable of ≥10⁸ long-cycle unattended operation.

Measurement accuracy: Load, displacement, strain sensors with full-scale precision ≤2% for continuous real-time recording.

Fatigue-rated load cell: Recommended for long-duration cycling to avoid signal drift from repeated vibration.

Built-in alignment fixture: Eliminate eccentric bending stress, a major source of premature specimen failure.

ISO 13003 Fatigue dynamic test, Fibre-reinforced plastics fatigue properties under cyclic loading

Auxiliary Supplies

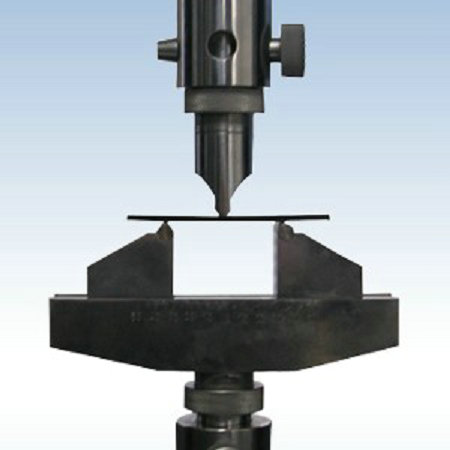

Dedicated tensile/flexural jigs: Interchangeable ISO 527 tensile wedge grips and ISO 14125 3/4-point bending fixtures, supplied by UnitedTest as standard kits.

ISO 13003 Fatigue Testing of Fibre-Reinforced Plastic Composites

Thermocouple temperature sensor: ±0.5°C precision to monitor specimen surface self-heating during cycling.

Dynamic extensometer: For strain-controlled testing, captures real-time strain hysteresis curves.

Multi-channel data logger: Auto-record cycle count, peak/trough load/strain, modulus decay and specimen temperature continuously.

Key Test Parameters

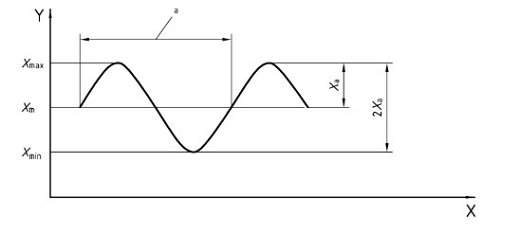

Waveform default: Sine wave; triangular/trapezoidal permitted per customer agreement.

Stress ratio Rσ definition: Rσ = σmin / σmax; recommended R=0.1 for tension-tension testing to maintain jig contact without full unloading.

Frequency range: 1–25 Hz maximum; frequency must be limited to restrict self-heating temperature rise ≤10°C above ambient. Carbon fibre FRPs allow higher frequencies than glass/aramid due to superior thermal conductivity.

Amplitude rule: Test levels evenly distributed across target fatigue life range (10¹ to 10⁸ cycles); trial runs recommended to confirm valid stress gradient intervals.

Step-by-Step Test Procedure of ISO 13003 Fatigue Testing of Fibre-Reinforced Plastic Composites:

1 Pre-Test Specimen

Run 5 static monotonic specimens at standard test speed to record static ultimate tensile/flexural strength (UTS/ UFS).

For rate-sensitive glass FRPs, complete extra static tests at fatigue-equivalent loading rate to obtain UTSF/UFSF values for curve normalization.

2 Machine Setup & Specimen Mounting

Install matching tensile/flexural jig, perform full axial alignment check to eliminate bending load.

Mount specimen, attach thermocouple to surface for continuous temperature tracking; fit extensometer for strain control modes.

Program test parameters: control mode (load/strain/displacement), waveform, frequency, R-ratio, 4–6 target stress/strain amplitude levels, 20% stiffness loss stop threshold.

3 Cyclic Fatigue Execution

Smoothly ramp up cyclic load/displacement to preset peak/trough values, record stabilized initial load and modulus as baseline reference.

Activate continuous cycling; system auto-log cycle count, peak/trough stress/strain, hysteresis curves and real-time specimen temperature.

Periodically extract storage modulus and damping factor data to track progressive composite microdamage.

Automatically terminate test when full rupture or 20% stiffness drop threshold is triggered; record total fatigue life Nf.

4 Batch Compilation & Data Analysis

Repeat full workflow for 5 replicates at each of 4+ stress/strain levels, discard invalid tab/flaw failure specimens and supplement new coupons.

Compile all Nf cycle data, plot Wohler S-N logarithmic curves.

ISO 13003 Fatigue dynamic test, Fibre-reinforced plastics fatigue properties under cyclic loading

Related Test Standard:

ISO 9664	Adhesives - Test methods for fatigue properties of structural adhesives in tensile shear
ASTM D3166	Standard Test Method for Fatigue Properties of Adhesives in Shear by Tension Loading (Metal/Metal)
GB/T 35465.3	Test method for fatigue properties of polymer matrix composite materials -Part 3: Tension-tension fatigue
ISO 16525-5	Adhesives - Test methods for isotropic electrically conductive adhesives - Part 5: Determination of shear fatigue
GB/T 16779	Test method for tension-tension fatigue of fiber reinforced plastic laminates
ISO 13003	Fibre-reinforced plastic composites - Determination of fatigue properties under cyclic loading conditions - the international equivalent of ASTM D3479 for composite fatigue testing
GOST R 57143	Polymer composites. Standard test method for tension-tension fatigue
ASTM D3479	Composite material fatigue test, adaptable for bonded composite lap joint fatigue evaluation
ISO 14126	FRP in-plane compressive test (required for reversed tension-compression fatigue specimen anti-buckling design)
ASTM D7615	Open-hole composite fatigue test

Keywords: ISO 13003 test method · fibre-reinforced plastic fatigue testing · composite fatigue properties under cyclic loading · constant amplitude fatigue test · ISO 13003 · tensile and flexural fatigue testing machine · UnitedTest fatigue testing machine · ISO 13003 vs ASTM D3479 · composite S-N curve testing · fibre-reinforced plastic constant frequency fatigue · ISO 13003 equipment · servo-hydraulic fatigue testing machine for composites · composite fatigue test machine manufacturer.

ISO 13003 FRP fatigue test, fibre reinforced plastic cyclic fatigue tester, UnitedTest ISO 13003 compliant dynamic fatigue machine, FRP S-N curve test standard

SO 13003 tensile flexural fatigue test procedure, ISO 13003 load strain displacement control difference, glass carbon fibre composite fatigue testing machine, FRP stiffness loss fatigue failure criterion, ISO 13003 specimen quantity requirement, self-heating temperature limit composite fatigue test, Wohler S-N curve plotting ISO 13003.

Electronic Dynamic Testing Machine for high-precision cyclic and vibration testing of materials and components, featuring accurate frequency control, stable performance, and laboratory-grade reliability.

Hydraulic wedge test grips are a robust and versatile solution for tensile testing of high-strength materials. It can be used in both static and dynamic materials testing applications – from 20KN to 500 kN force capacity for dynamic tests, and up to 600 kN for static tests.

Q1: What is ISO 13003 test standard?

A1: ISO 13003 is the global universal international standard for constant-amplitude, constant-frequency cyclic fatigue testing of all fibre-reinforced plastic (FRP) composite materials. It unifies standardized procedures for both tensile fatigue and 3/4-point flexural fatigue, supporting three machine control modes: load-controlled, strain-controlled and displacement-controlled. It covers all cycle types (tension-tension, reversed tension-compression, compression-compression) and sets dual failure criteria: full specimen fracture or 20% stiffness reduction. It serves as the primary test baseline for CE marking and European composite product reliability certification.

Q2: Why is ISO 13003 fatigue test critical for FRP composite materials?

A2: 7 core engineering & commercial reasons:

Simulate real multi-mode service loads: Unlike tension-only standards (ASTM D3479), ISO 13003 supports both tensile and bending fatigue, matching real vibration loads on wind blades, automotive chassis and marine hulls.

Detect invisible pre-failure damage: FRPs lose rigidity via matrix cracking and interlayer delamination long before breaking; the standard defines a 20% stiffness loss threshold to evaluate functional failure risk.

Eliminate cross-lab test inconsistency: Unified specimen, conditioning, frequency and data plotting rules enable fair performance comparison between global composite suppliers for international trade.

Solve self-heating test error issues: Mandatory 10°C temperature rise limit prevents artificial fatigue life shortening caused by softened polymer matrix at high cyclic frequencies.

Characterize rate-dependent FRP performance: Glass fibre composites show large strength variation with loading speed; ISO 13003 requires separate fatigue-rate static strength testing for accurate S-N curve normalization.

Generate industry-standard Wohler S-N curves: Logarithmic stress-cycle plots per ISO 13003 are mandatory input for composite finite element structural lifespan simulation.

Full loading scenario compatibility: Supports reversed tension-compression cycles common in wind and rail structures, not limited to aerospace tension-only loading.

Q3: Which industries rely on ISO 13003 compliant fatigue testing?

A3: UnitedTest’s UTDS ISO 13003 fatigue testers serve these core sectors:

Wind power manufacturing: Onshore/offshore glass/carbon turbine blade tensile & flexural cyclic fatigue qualification

New energy automotive: EV carbon body panels, composite battery housing vibration durability testing for EU vehicle certification

Civil & general aviation: Secondary aircraft FRP structural component fatigue screening

Rail transportation: Train lightweight composite carriage panels and bogie parts

Marine & yacht manufacturing: FRP hull wave-induced cyclic tension-flex performance validation

Composite material R&D labs: Prepreg formulation, laminate stacking sequence fatigue optimization

Third-party EU certification labs: CE marking composite reliability testing

Sports goods production: Carbon bike frames, composite snowboard flex fatigue durability testing.

Q4: What are the key differences between ISO 13003 and ASTM D3479?

Item	ISO 13003	ASTM D3479
Test Modes	Tensile + 3/4-point flexural fatigue	Only uniaxial tension-tension fatigue
Control Modes	Load / Strain / Displacement triple modes	Load (Proc A) + Strain (Proc B) only
All Cycle Types	T-T, T-C reversed, C-C compression cycles	Strictly tension-tension (R>0) only
Failure Criteria	Fracture OR 20% stiffness loss	Fracture or user-defined stiffness drop
Specimen Reference	ISO 527 (tension) / ISO 14125 (flexure)	ASTM D3039 tensile coupon
Primary Market	EU, Asia global certification	US aerospace & military compliance

Q5: What is the maximum allowable self-heating temperature rise for ISO 13003 testing? Why?

A5: The specimen surface temperature rise must be limited to ≤10°C above ambient. Excessive heat softens the polymer matrix, accelerates microcrack propagation and produces artificially shortened fatigue life data. Carbon fibre composites can run at higher frequencies than glass/aramid due to superior thermal conductivity.

Q6: What is the recommended stress ratio (R-value) for standard tension-tension fatigue per ISO 13003?

A6: R = 0.1 is the official recommended ratio, which maintains consistent contact between specimen and jig without full unloading of the loading train, avoiding grip slippage during cycling.

Q7: What are the acceptable cyclic waveforms under ISO 13003?

A7: Sine wave is the default reference waveform; triangular, trapezoidal and square waveforms are permitted by customer written agreement to simulate specific industrial vibration conditions.

Q8: What special specimen preparation rules does ISO 13003 require?

A8: All cutting edges must be finely polished to eliminate micro notches that trigger premature delamination

Specimens machined from panels produced per ISO 1268 production rules to match real component manufacturing

Visual microscopic inspection before testing; discard coupons with voids, scratches or machining defects

Tensile specimens for reversed tension-compression loading need anti-buckling support fixtures

Q9: Can I use the same specimen for tensile and flexural ISO 13003 fatigue tests?

A9: No. Tensile specimens follow ISO 527 flat coupon geometry; flexural specimens use ISO 14125 rectangular bars with defined span/thickness ratios. Separate jigs and coupon shapes are required for each test mode.

Q10: What is the official failure judgment rule for displacement-controlled ISO 13003 tests?

A10: For displacement/strain-controlled fatigue, the test ends when the specimen stiffness permanently reduces by 20% relative to initial baseline modulus, even if no visible fracture occurs. Load-controlled tests terminate upon full specimen separation.

Q11: What is a “run-out” test result in ISO 13003?

A11: A run-out means the specimen completes the pre-set maximum cycle limit without reaching the 20% stiffness loss or fracture failure criterion. On S-N graphs, run-out data points are marked with a rightward arrow to indicate infinite fatigue life at that stress level.

Q12: Does UnitedTest supply complete ISO 13003 compliant test systems? What advantages?

A12 Yes, UnitedTest UTDS series delivers full turnkey ISO 13003 fatigue solutions with unique strengths:

Native triple control mode (load / strain / displacement) without hardware upgrades

Dual tensile & flexural interchangeable fixture kit to run both Annex A/B tests on one machine

Built-in real-time hysteresis & storage modulus tracking software matching ISO 13003 Annex requirements

Pre-programmed ISO 13003 analysis module: auto-generate logarithmic Wohler S-N curves and full standard test reports

Compatible integrated temperature-humidity chamber for ISO 291 pre-conditioning

Multi-standard compatibility: Supports ISO 527, ISO 14125, ASTM D3479 and ISO 13003 on single frame

Wide load range options (5kN–100kN) for small lab coupons and medium structural laminates

Global European after-sales calibration, fixture customization and operator training.

Q13: Why do most specimens fail at the jig tabs instead of the gauge span?

A13: Root causes & UnitedTest fixes:

Incorrect tab geometry or low-fatigue adhesive: Use standardized ISO 527/14125 tabs and high-strength bonding film

Poor machine axial alignment causing eccentric bending stress: Use UnitedTest built-in alignment calibration tools

Excessive grip clamping torque crushing coupon edges: Apply standardized torque-controlled wedge grips

Q14: Why do my ISO 13003 fatigue results show large data scatter between replicates?

A14: Main contributing factors:

Unpolished specimen edges creating random microcrack initiation points

Unstable test frequency leading to variable self-heating temperature

Inconsistent glue/tab bonding quality across coupons

Out-of-calibration load/strain sensors; schedule annual UnitedTest dynamic calibration

Q15: What is hysteresis loop monitoring used for in ISO 13003 testing?

A15 Hysteresis loops track storage modulus and damping factor evolution across cycles. Shrinking loops indicate progressive matrix cracking and delamination inside the FRP laminate, even before measurable stiffness loss reaches the 20% failure threshold.

Q16: Can I ignore specimen temperature monitoring during ISO 13003 fatigue runs?

A16 No. If temperature rise exceeds 10°C, matrix softening changes fatigue resistance and all data becomes invalid. Every test level must record specimen surface temperature, and frequency must be reduced if overheating occurs.

Q17: Why glass fibre FRPs need separate fatigue-rate static strength testing?

A17 Glass reinforced plastics are highly rate-dependent; their ultimate strength at fast cyclic fatigue speeds is much higher than standard static test speed. Using only slow static strength to set fatigue stress levels will overestimate real component fatigue risk.

If you are searching for a fully ISO 13003:2003 compliant tensile & flexural dynamic fatigue testing machine for carbon/glass/aramid fibre reinforced plastic composites, UnitedTest UTDS series composite fatigue testers provide one-stop test solutions including standard ISO 527 tensile grips, ISO 14125 bending jigs, dynamic extensometers, temperature monitoring sensors and pre-built ISO 13003 dedicated analysis software for automatic Wohler S-N curve plotting and stiffness loss tracking. Our equipment fully meets all normative ISO 13003 requirements for wind turbine blade, EV lightweight, aerospace and marine FRP material R&D, quality inspection and EU CE product reliability certification. Contact UnitedTest to download full technical datasheets, request customized test system quotations and receive professional one-on-one ISO 13003 test parameter setup technical guidance for your composite laboratory.

We offer customization to meet your specific needs. Our expert team will collaborate with you to develop the perfect product for you
